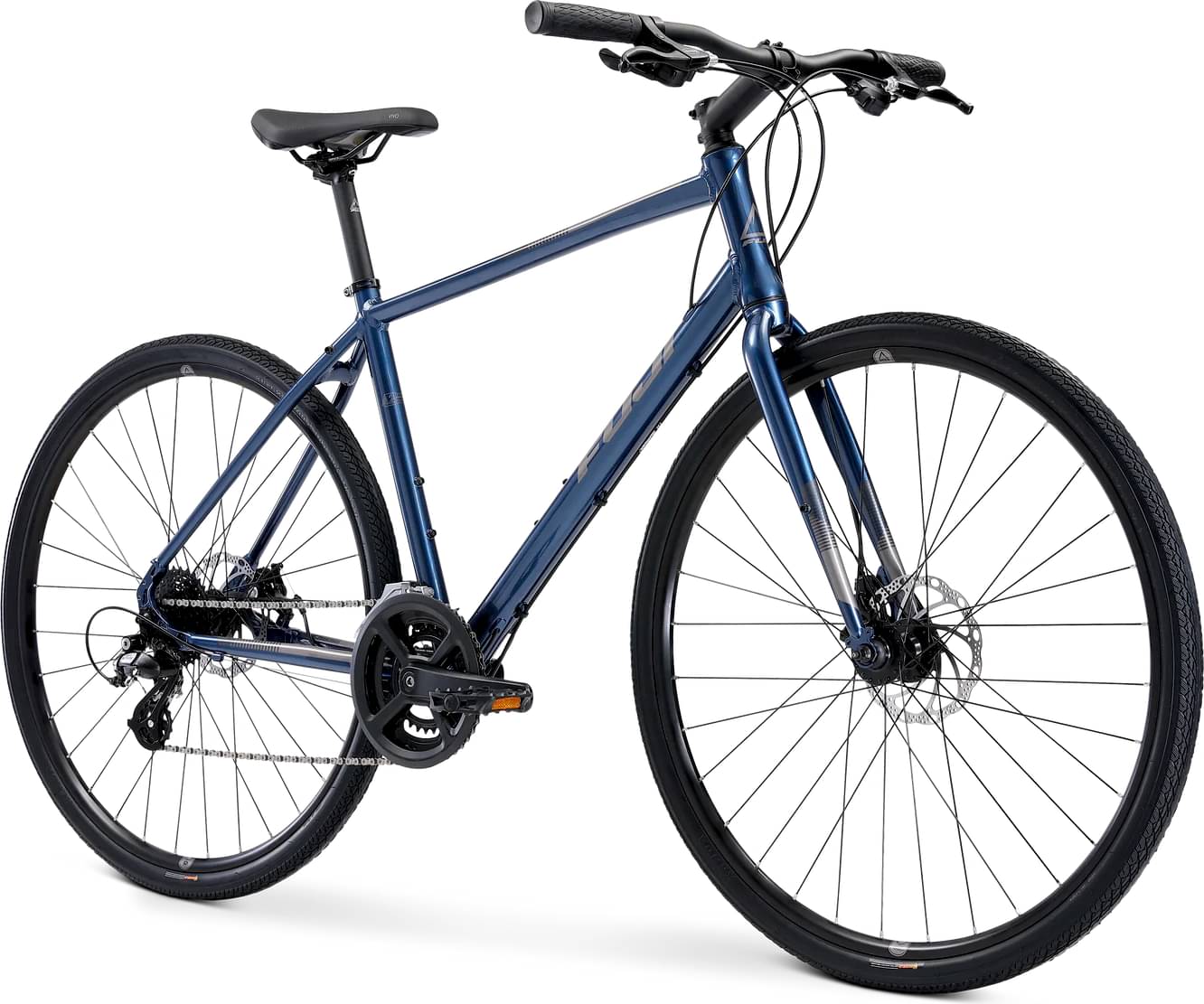

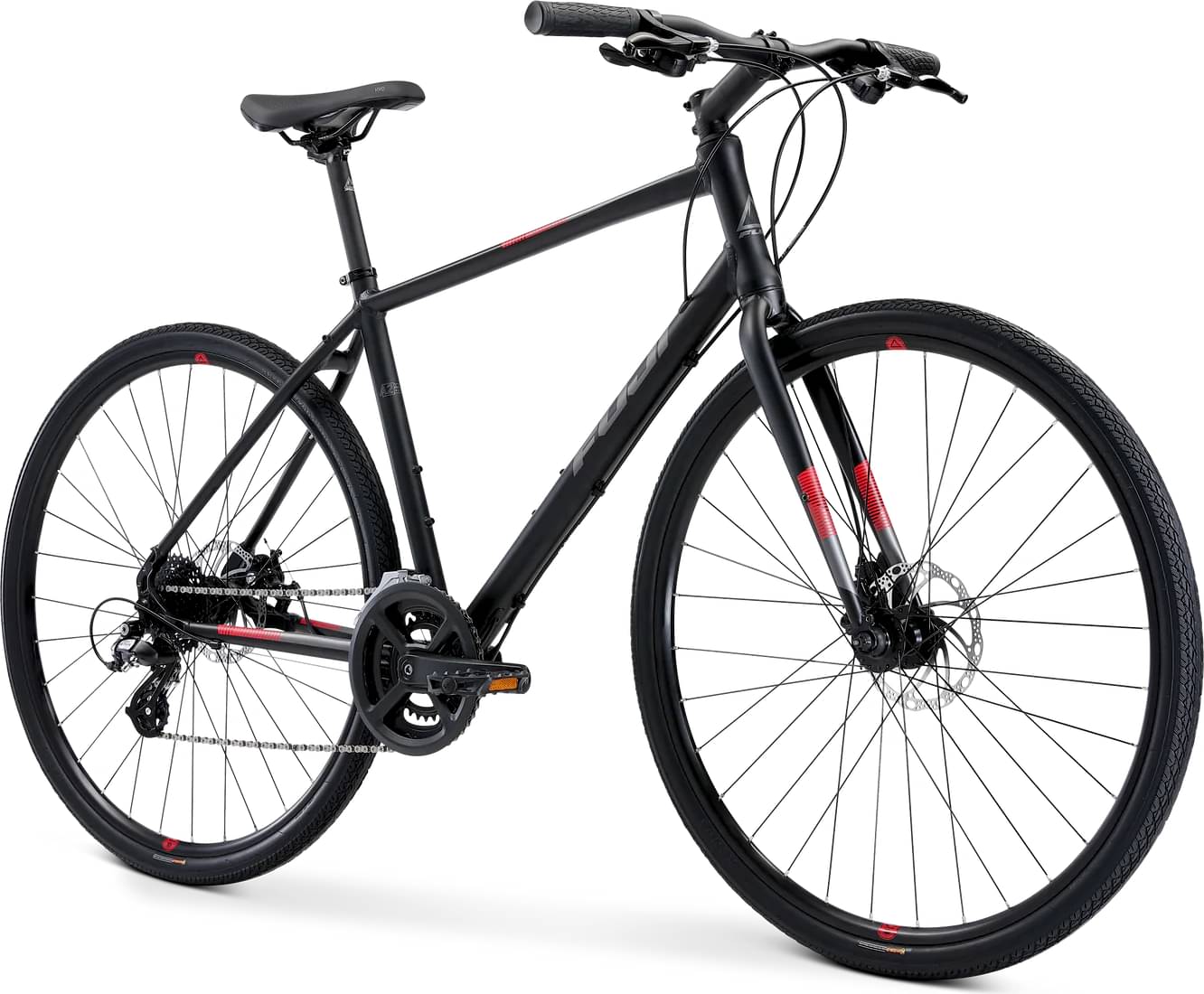

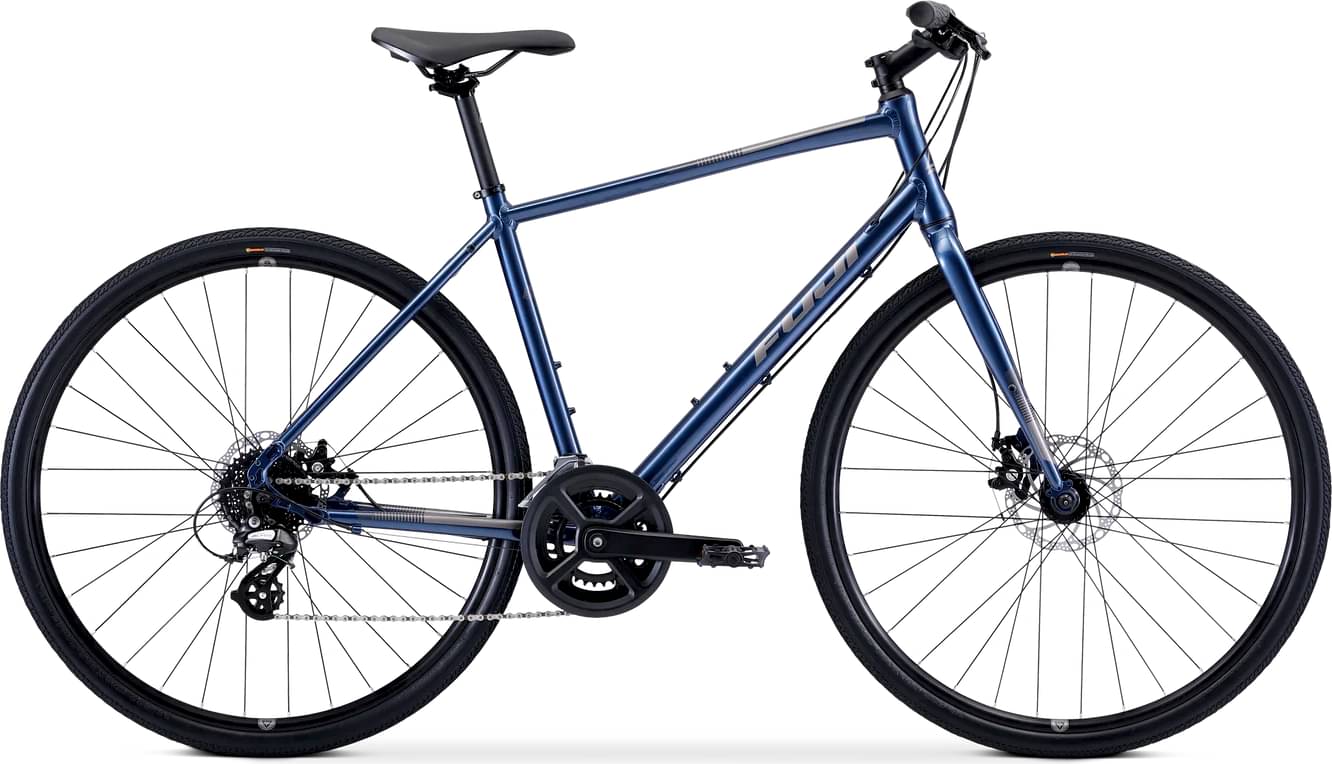

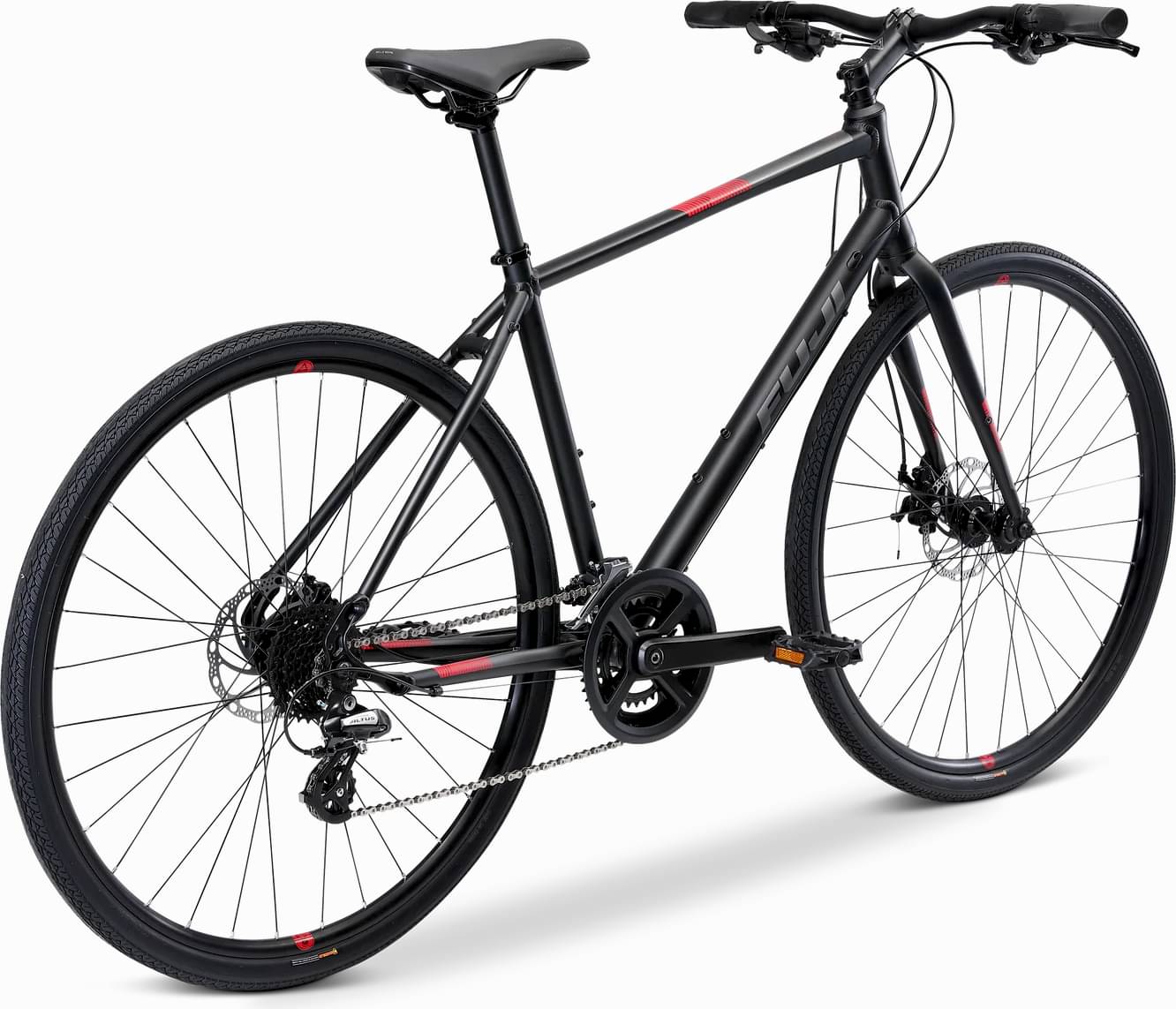

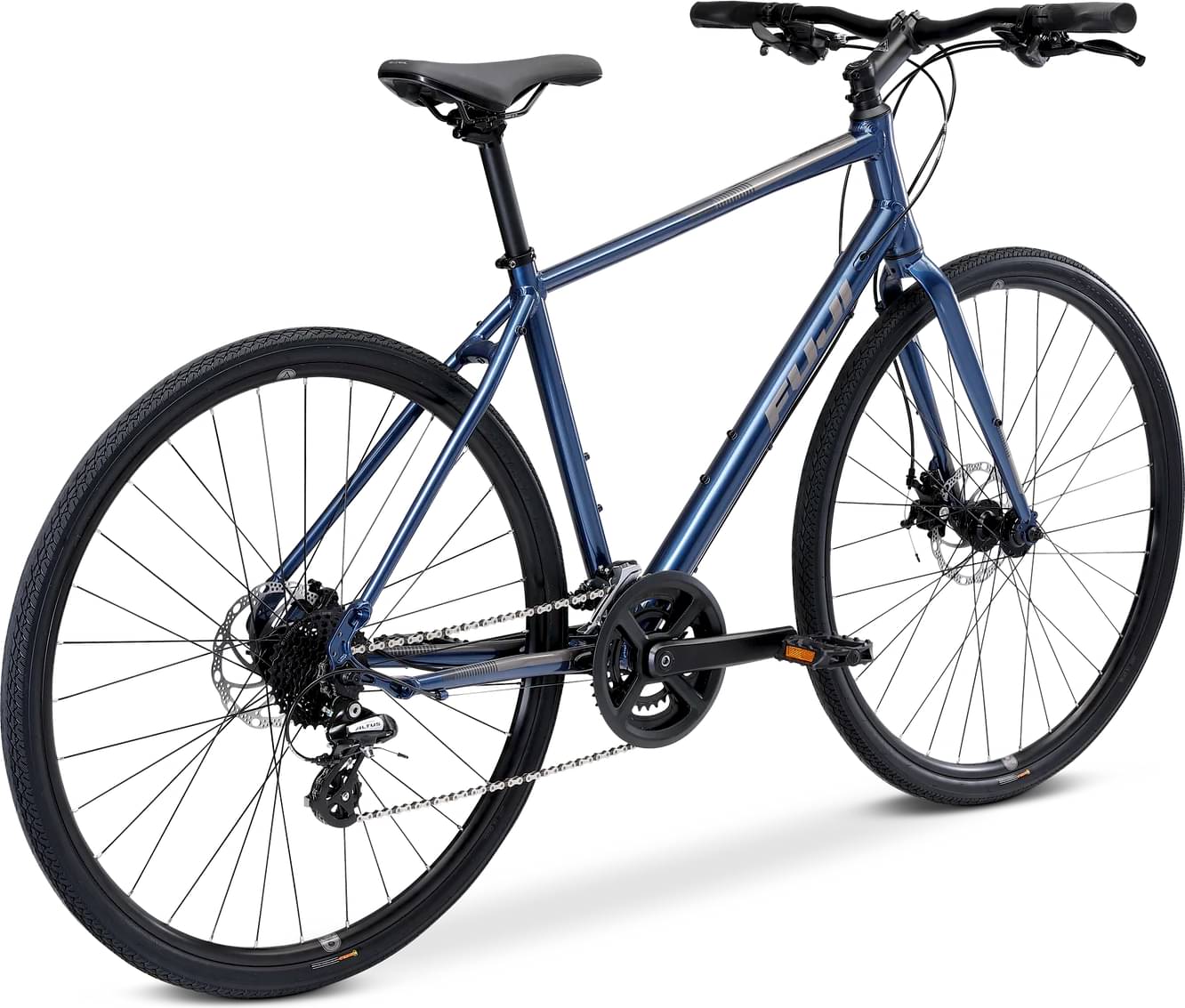

Fuji Absolute 1.9 2025
2025 Urban
Estimate price |
699$
Weight | 12.97 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Tektro Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom butted alloy
Suspension Fork
Fuji Hi-Ten steel
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Tourney
Shift Levers
Shimano Altus, 2 x 8-speed
Cassette
Shimano Altus, 11-34T
Crank
Prowheel, 46/30T
Bottom Bracket
Sealed cartridge bearing
Chain
KMC HV700
Pedals
Resin platform
Wheels
Rims
Alex double wall rims 32h, stainless spokes
Tires
Kenda Tendril, 700 x 38c, K-shield flat protection
Brakes
Brakes
Tektro M280, mechanical disc, 160mm rotors
Brake Levers
Shimano ST-EF500
Cockpit
Stem
3D-forged alloy, 17 degree, 31.8mm
Handlebar
Alloy, 18mm rise, 6 degree backsweep
Grips
Velo comfort sport
Headset
1-1/8" semi-integrated
Seat
Saddle
Selle Royal Vivo Ergo
Seatpost
Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.347 mm | 1.423 mm | 1.476 mm | 1.445 mm | 1.458 mm |
| Front Center | 622 mm | 622 mm | 627 mm | 627 mm | 679 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 87 mm | 78 mm | 72 mm | 98 mm | 73 mm |
| Stack | 528 mm | 555 mm | 583 mm | 601 mm | 630 mm |
| Reach | 392 mm | 390 mm | 395 mm | 416 mm | 432 mm |
| Top Tube Length | 533 mm | 549 mm | 575 mm | 600 mm | 625 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 190 mm | 220 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1055 mm | 1055 mm | 1060 mm | 1060 mm | 1112 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 728 mm | 765 mm | 802 mm | 835 mm | 873 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
