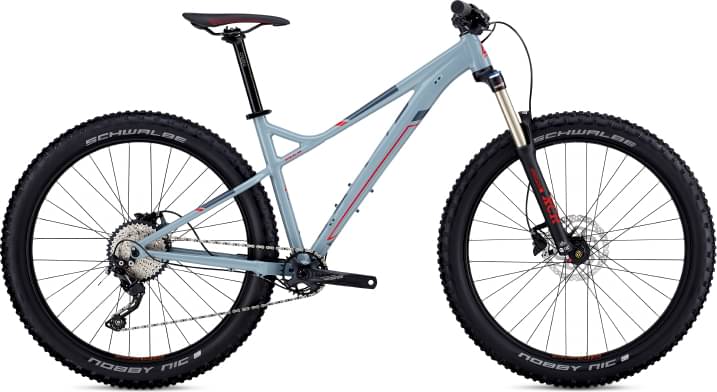

Fuji Bighorn 1.7 2023
2023 Mountain
Estimate price |
1,133$
Weight | 13.99 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A6-SL super-butted alloy front and rear triangle w/ PowerCurve down tube, smooth welds, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148x12mm cold-forged dropout and replaceable hanger
Suspension Fork
Suntour XCR 34 LO Coil, tapered steerer, Boost 110x15mm thru axle, 120mm travel
Drivetrain
Rear Derailleur
Shimano Deore shadow plus, 10-speed
Front Derailleur
N/A
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
New Shimano
Crank
FSA Gamma Pro, 30T
Bottom Bracket
FSA Mega EXO
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
WTB Scraper i35 32H rims, Formula DC-511 110x15 Boost front, DC-1248 148x12mm Boost rear 6-bolt hubs
Tires
Schwalbe Nobby Nic Performance, 27.5" x 3.0", 67tpi, folding
Brakes
Brakes
Shimano M315, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano M315, hydraulic disc
Cockpit
Stem
Oval Concepts 600AM, 3D-forged 6061 stem body, 0°
Handlebar
Oval Concepts 205 riser bar, 6061 alloy, ± 5mm rise, 9° sweep, 31.8mm clamp
Grips
Oval Concepts 634, large diameter pads, single lock on, dual density
Headset
FSA NO.42, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 238 trail, steel rail
Seatpost
Oval Concepts, 6061 alloy, 30.9mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 698 mm | 724 mm | 749 mm | 775 mm | 805 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm | 83 mm |
| Stack | 610 mm | 619.2 mm | 619.2 mm | 628.5 mm | 637.7 mm |
| Reach | 407.5 mm | 429.9 mm | 454.9 mm | 477.2 mm | 494.6 mm |
| Top Tube Length | 583 mm | 608 mm | 633 mm | 658 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 432 mm | 465 mm | 513 mm | 543 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1123 mm | 1150 mm | 1175 mm | 1201 mm | 1231 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 631 mm | 667 mm | 683 mm | 685 mm | 707 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model
Bighorn 1.7 completes the Fuji Bighorn model. Fuji released 21 bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1018$. Comparing the average cost of a Trail bike to this one, you will see that Bighorn 1.7 price is 171.32% smaller.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Bighorn 1.7 weighs 13.99 kg (30.84 lbs) and is a bit heavier than the average. In short, the average Trail bike weight is 7.78% lower than this one.
Overview of components
Fork
This bike has the Suntour XCR fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Bighorn 1.7 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Bighorn 1.7 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
