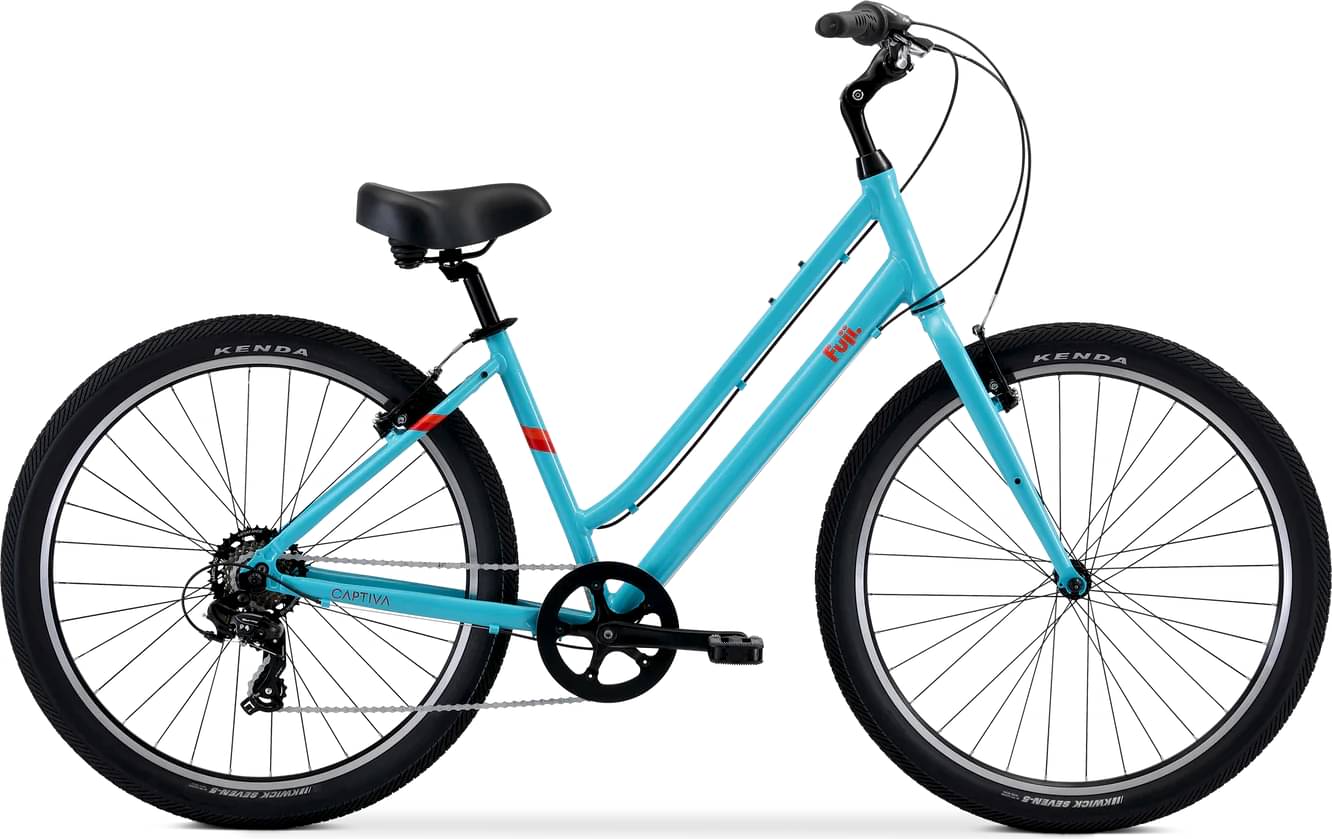

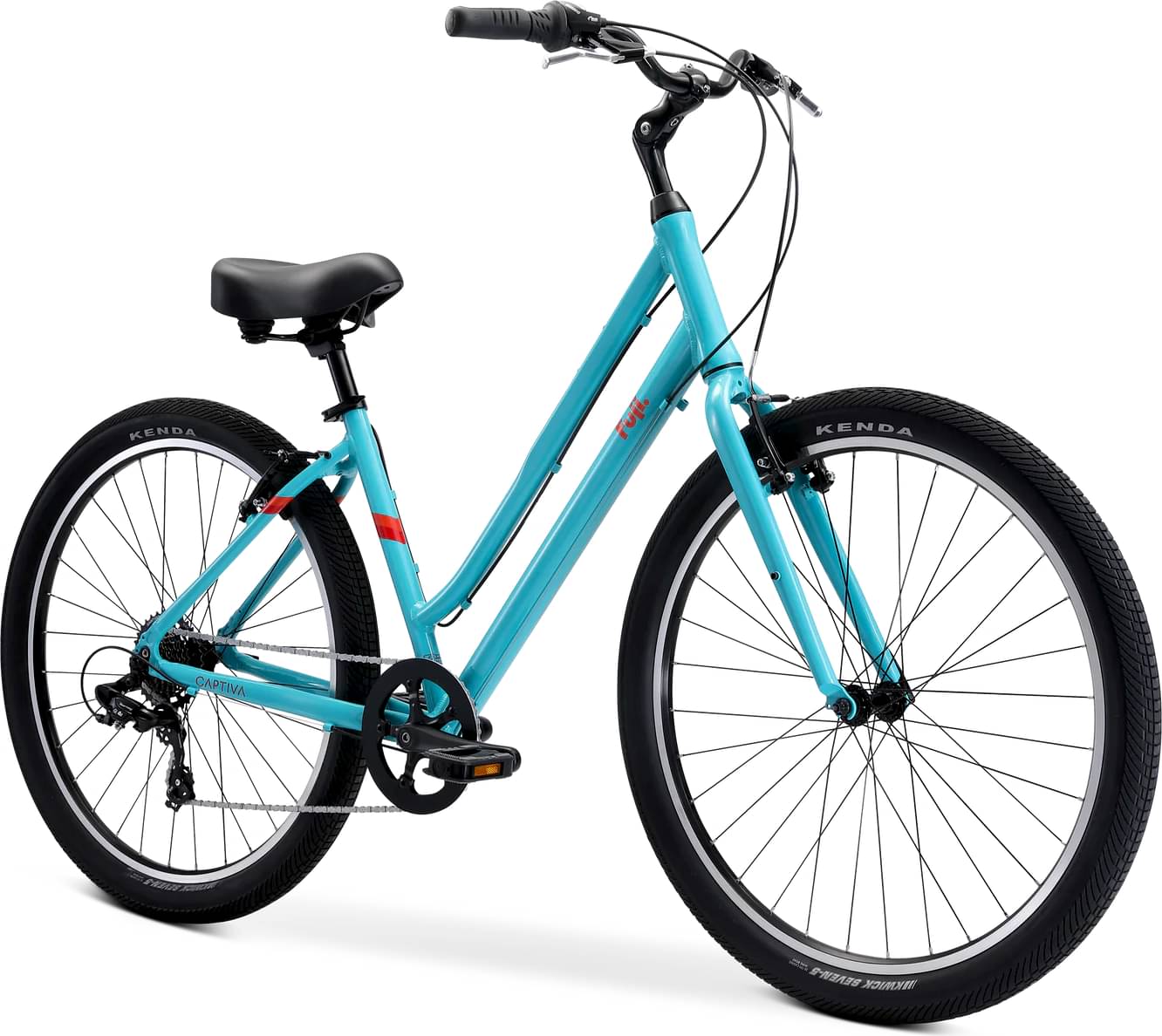

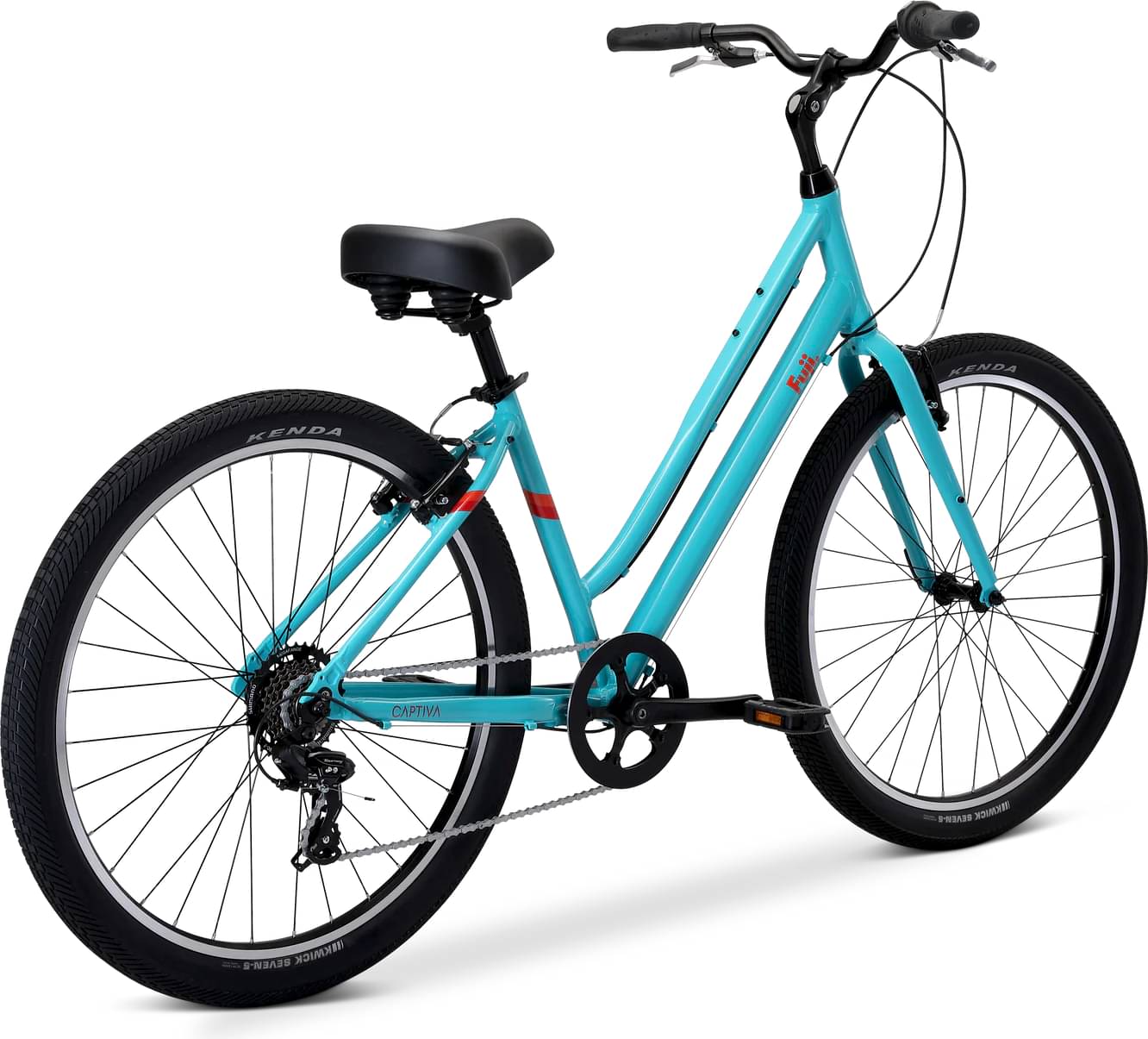

Fuji Captiva 7 LS 2025
2025 Urban
Estimate price |
599$
Weight | 13.67 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Tektro Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1 alloy
Suspension Fork
Fuji Hi-ten steel
Drivetrain
Rear Derailleur
Shimano Tourney
Shift Levers
Shimano Revo, 1 x 7-speed
Cassette
Shimano 14-34T freewheel
Crank
Alloy 44T with chainguard
Bottom Bracket
Sealed cartridge bearing
Chain
KMC Z7 rustbuster
Pedals
Resin platform, Kraton non-slip insert
Wheels
Rims
Weinmann double wall rims, 32h, 14g spokes
Tires
Kenda, 27.5 x 2.4"
Brakes
Brakes
Tektro linear pull
Brake Levers
Promax linear pull
Cockpit
Stem
Alloy quill, 25 degree
Handlebar
Steel, 50mm rise, 25 degree backsweep
Grips
Comfort
Headset
1-1/8" threaded
Seat
Saddle
Fuji comfort
Seatpost
Alloy 2-bolt micro-adjust, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.627 mm | 1.711 mm | 1.773 mm |
| Front Center | 625 mm | 628 mm | 641 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 85 mm | 96 mm | 97 mm |
| Stack | 589 mm | 621 mm | 649 mm |
| Reach | 362 mm | 363 mm | 366 mm |
| Top Tube Length | 600 mm | 615 mm | 630 mm |
| Seat Tube Angle | 67 ° | 67 ° | 67 ° |
| Seat Tube Length | 381 mm | 440 mm | 490 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1096 mm | 1099 mm | 1113 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
