Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Monoque C-4 carbon with 12K weave carbon strands, Integrated aluminum cupped head tube, Double water bottle mounts.
Suspension Fork
FC-770 Fuji Bonded Carbon Integrated w/ 1 1/8" Alloy Steerer
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano 105 F-Type
Shift Levers
Shimano 105 STI shifter/brake, 20-speed Flight Deck compatible
Cassette
Shimano 105 11-25T, 10-speed
Crank
FSA Gossamer MegaExo Compact, w/Integrated spindle, 34/50T 7075 CNC outer chainrings
Bottom Bracket
FSA MegaExo Exterior Bearing System
Chain
KMC DX-10, 10-speed
Pedals
none
Wheels
Rims
Shimano RS-10, 700c clincher
Tires
Continental Ultra Race, 700 x 25c
Brakes
Brakes
Shimano BR-R560 dual pivot/cartridge pad
Brake Levers
Shimano 105 STI
Cockpit
Stem
Fuji PRO Alloy 3D forged, +/-7 degree
Handlebar
Fuji UltraLite 6061 Double Butted, 31.8mm w/Anatomical drops
Headset
Tange IS-24 1 1/8" Integrated Road, with 20mm convex hollow top cap
Seat
Saddle
Fuji RaceLite
Seatpost
Fuji PRO Alloy, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 53cm | 55cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.35 mm | 1.39 mm | 1.43 mm | 1.42 mm | 1.34 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 582 mm | 585 mm | 593 mm | 599 mm | 605 mm | 644 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 75.9 mm | 69.5 mm | 66.3 mm | 63.2 mm | 56.9 mm | 63.2 mm |
| Stack | 508 mm | 521 mm | 542.5 mm | 563 mm | 576 mm | 582 mm |
| Reach | 377 mm | 385 mm | 390.7 mm | 395 mm | 406 mm | 434 mm |
| Top Tube Length | 516 mm | 530.9 mm | 551 mm | 561.2 mm | 576 mm | 606 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 72 ° | 73 ° | 72 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 982 mm | 986 mm | 993 mm | 1000 mm | 1006 mm | 1045 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 720 mm | 740 mm | 764 mm | 789 mm | 804 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

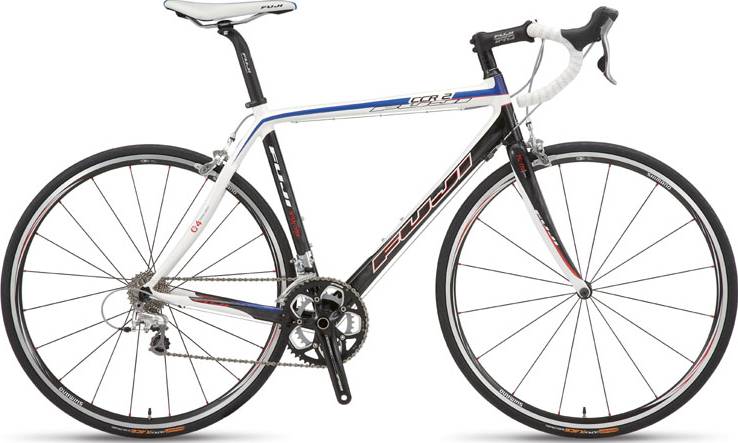

CCR-2 belongs to the Fuji Ccr 2 model. There are 3 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Road bikes average price
According to our math, the average price for a trustworthy General Road bike is 1915$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
General Road bikes average weight
General Road bikes have an average weight of 9 kg (19.84 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Fuji CCR-2 it’s weighing 8.55 kg (18.85 lbs). At this weight, is a bit lighter than average. In other words, this model is 5.26% lighter than the average General Road bike.
CCR-2 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The CCR-2 2009 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CCR-2 comes with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
