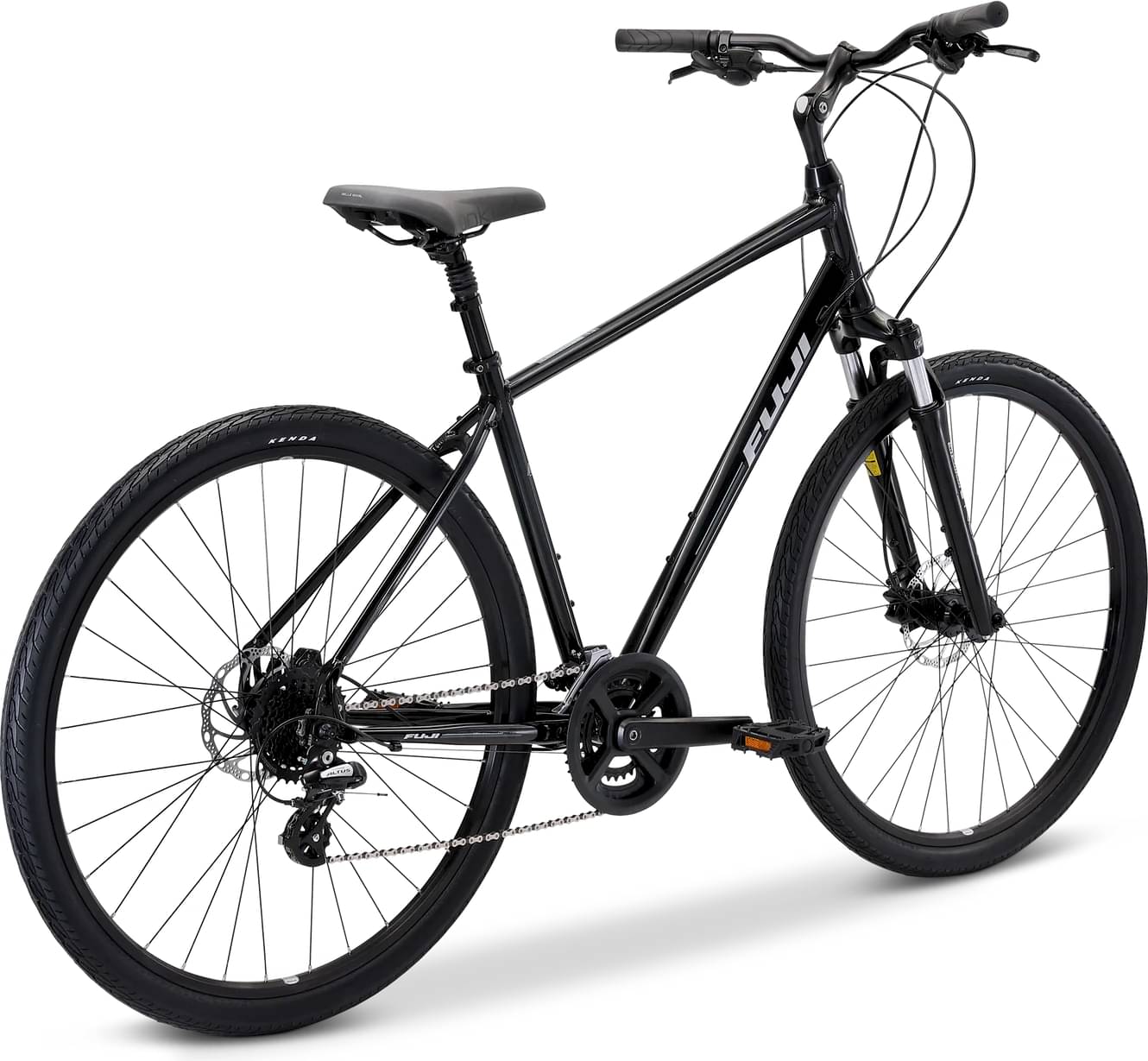

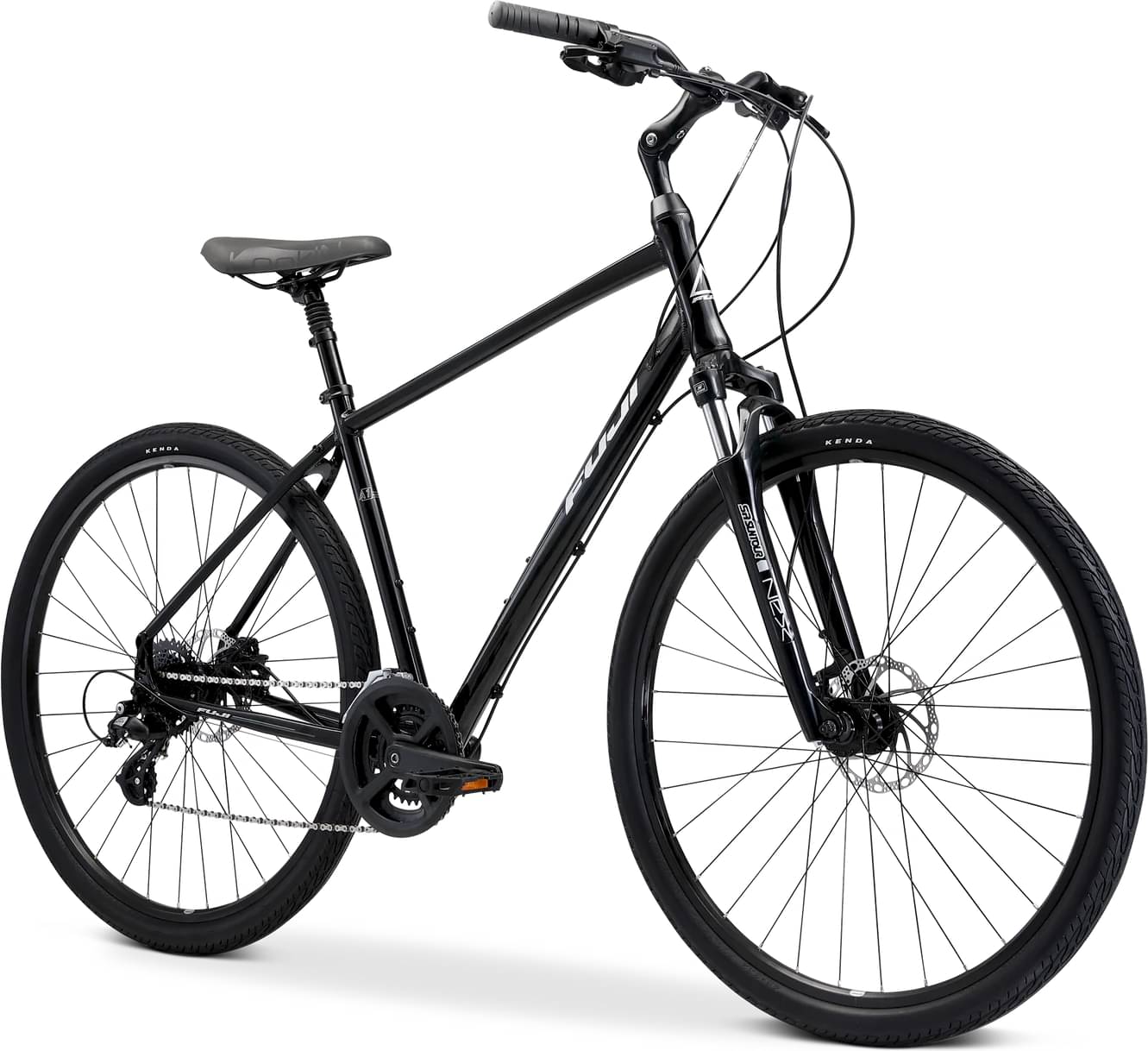

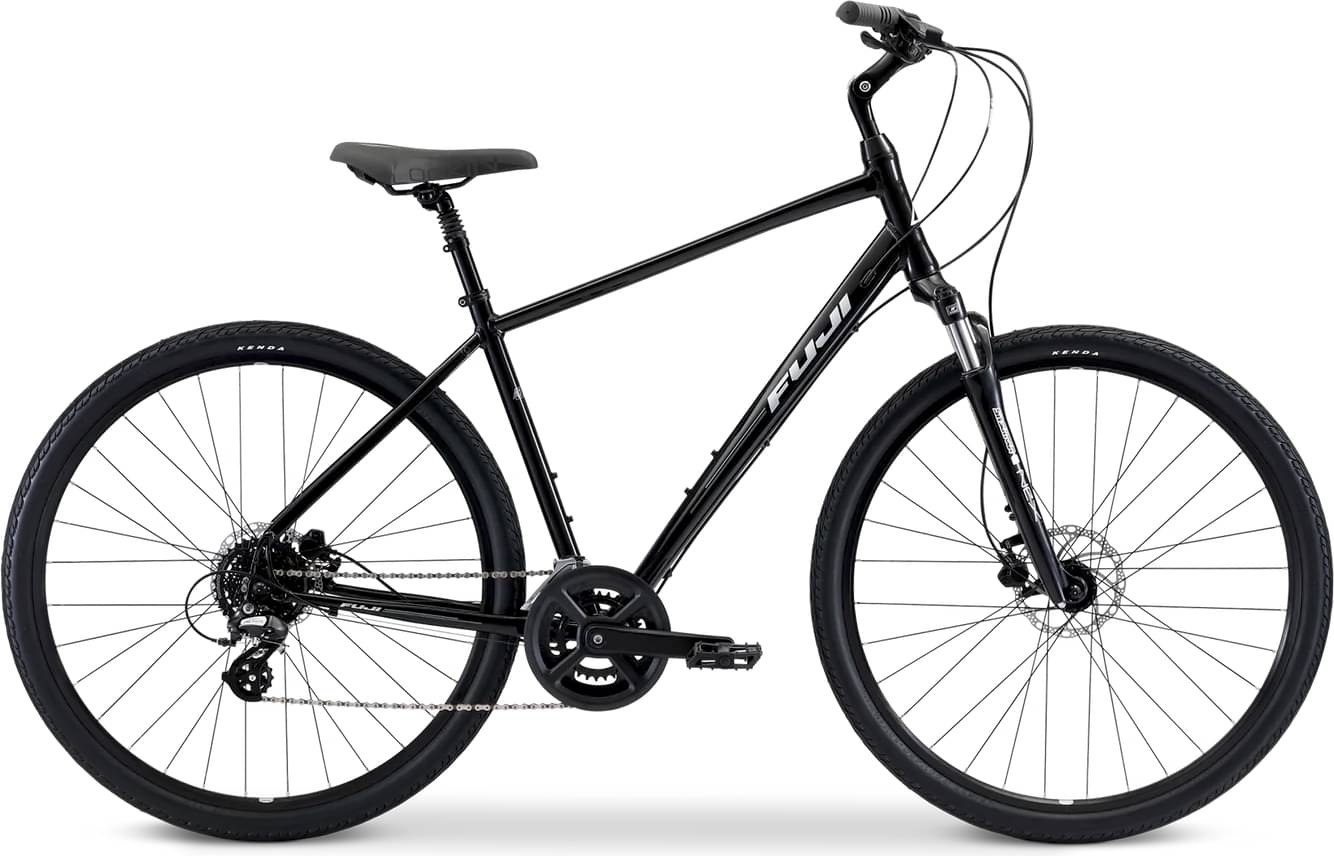

Fuji Crosstown 1.3 2025
2025 Urban
Estimate price |
749$
Weight | 14.93 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Tektro HD Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy
Suspension Fork
SR NEX suspension, 63mm travel
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Tourney
Shift Levers
Shimano Altus, 2 x 8-speed
Cassette
Shimano Altus, 11-34T
Crank
Prowheel, 46/30T
Bottom Bracket
Sealed cartridge bearing
Chain
KMC HV700
Pedals
Resin platform
Wheels
Rims
Weinmann double wall rims, 32h, 14g stainless spokes
Tires
Kenda, 700 x 40c
Brakes
Brakes
Tektro HD-275, hydraulic disc, 160mm rotors
Brake Levers
Tektro HD-275, hydraulic disc
Cockpit
Stem
Alloy adjustable
Handlebar
Alloy, 25mm rise, 25 degree backsweep
Grips
Velo comfort, lock on
Headset
1-1/8" threaded
Seat
Saddle
Selle Royal LookIn
Seatpost
Alloy micro-adjust suspension, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.748 mm | 1.721 mm | 1.709 mm | 1.669 mm |
| Front Center | 630 mm | 645 mm | 660 mm | 695 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 92 mm | 91 mm | 83 mm | 76 mm |
| Stack | 638 mm | 647 mm | 651 mm | 671 mm |
| Reach | 365 mm | 376 mm | 381 mm | 402 mm |
| Top Tube Length | 596 mm | 611 mm | 625 mm | 645 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 381 mm | 445 mm | 495 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 185 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 450 mm |
| Wheelbase | 1086 mm | 1101 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 771 mm | 805 mm | 836 mm | 864 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
