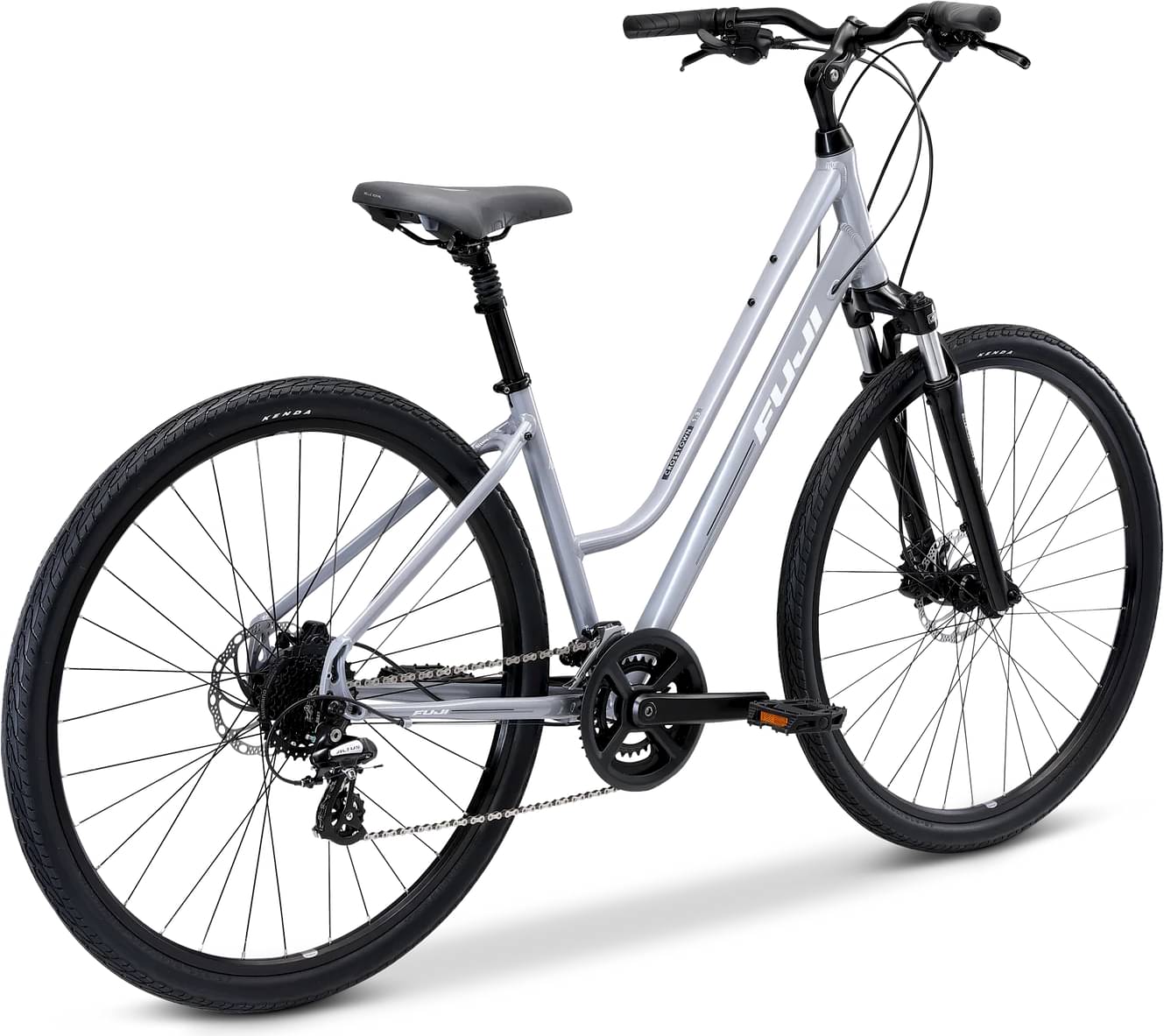

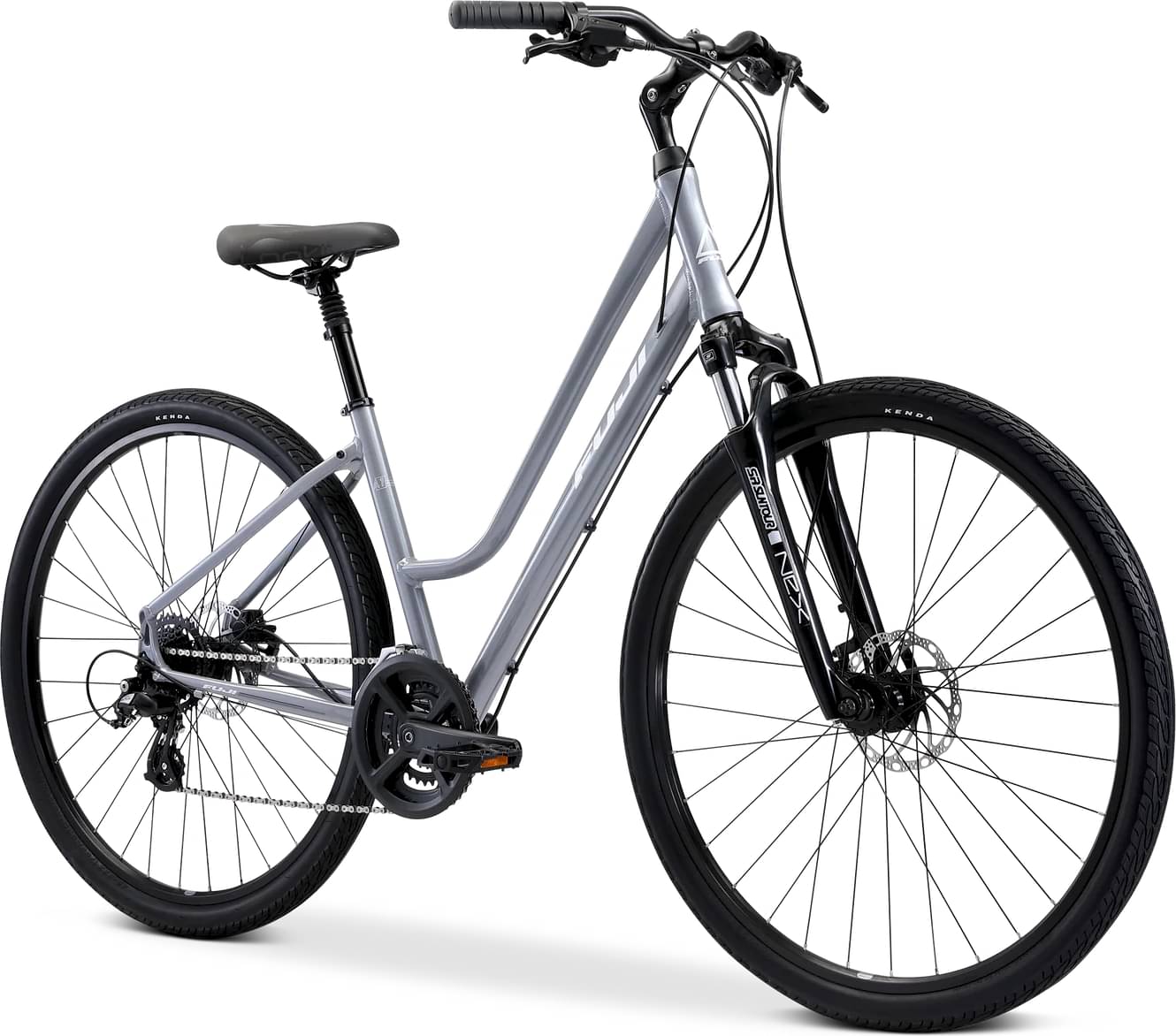

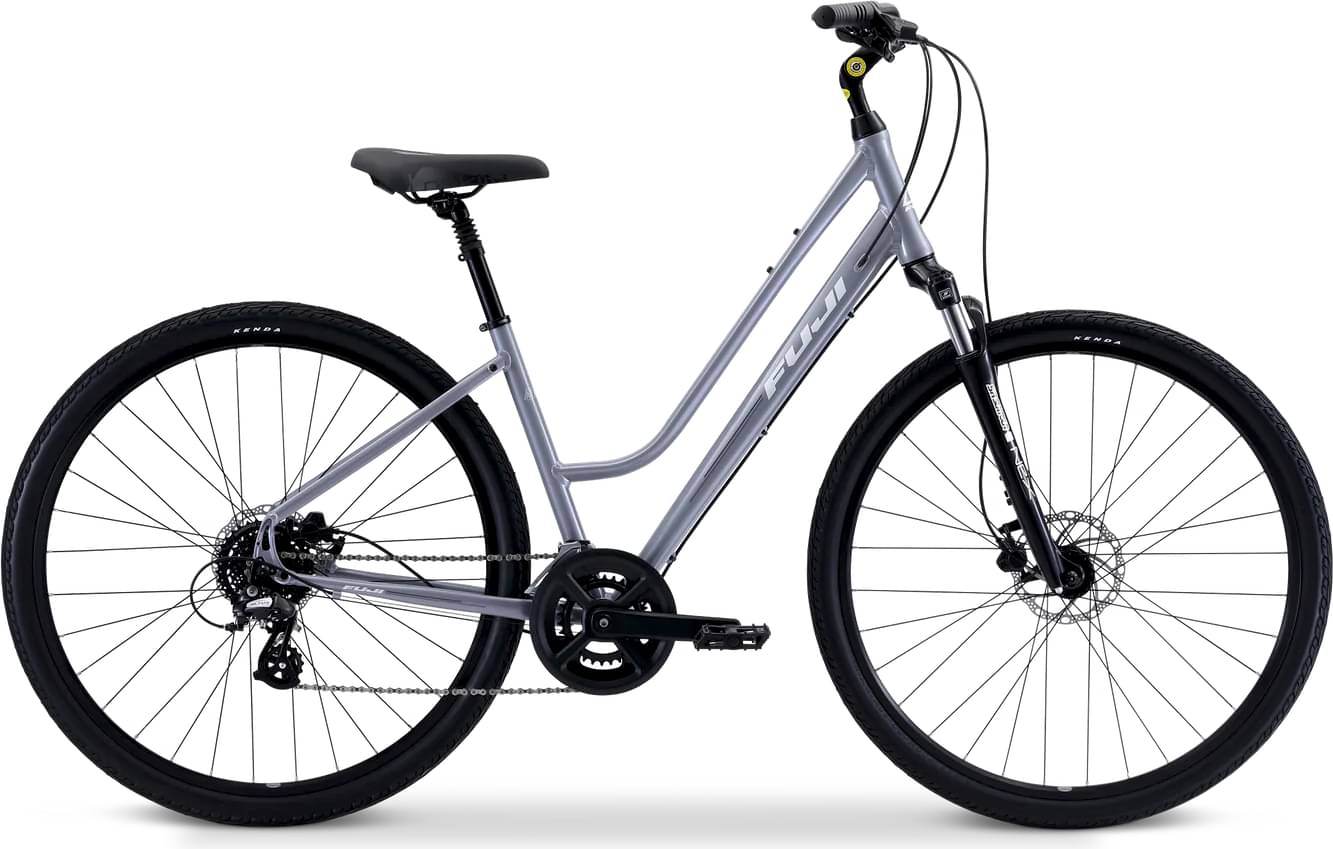

Fuji Crosstown 1.3 LS 2025
2025 Urban
Estimate price |
749$
Weight | 14.89 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Tektro HD Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy
Suspension Fork
SR NEX suspension, 63mm travel
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Tourney
Shift Levers
Shimano Altus, 2 x 8-speed
Cassette
Shimano Altus, 11-34T
Crank
Prowheel, 46/30T
Bottom Bracket
Sealed cartridge bearing
Chain
KMC HV700
Pedals
Resin platform
Wheels
Rims
Weinmann double wall rims, 32h, 14g stainless spokes
Tires
Kenda, 700 x 40c
Brakes
Brakes
Tektro HD-275, hydraulic disc, 160mm rotors
Brake Levers
Tektro HD-275, hydraulic disc
Cockpit
Stem
Alloy adjustable
Handlebar
Alloy, 25mm rise, 25 degree backsweep
Grips
Velo comfort, lock on
Headset
1-1/8" threaded
Seat
Saddle
Selle Royal LookIn
Seatpost
Alloy micro-adjust suspension, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.848 mm | 1.83 mm | 1.8 mm |
| Front Center | 625 mm | 640 mm | 655 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 93 mm | 91 mm | 91 mm |
| Stack | 656 mm | 666 mm | 675 mm |
| Reach | 355 mm | 364 mm | 375 mm |
| Top Tube Length | 591 mm | 606 mm | 621 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1081 mm | 1096 mm | 1111 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
