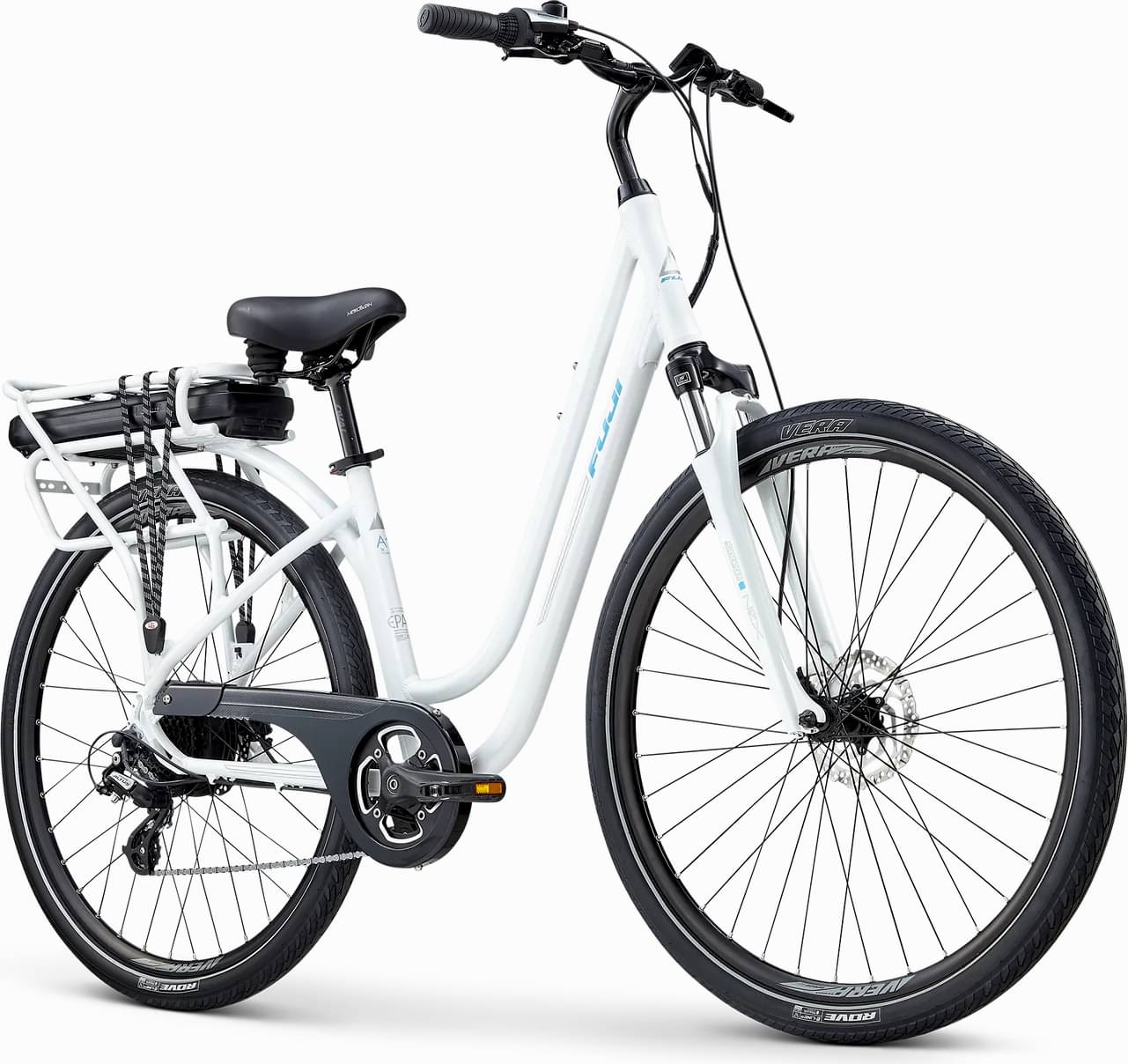

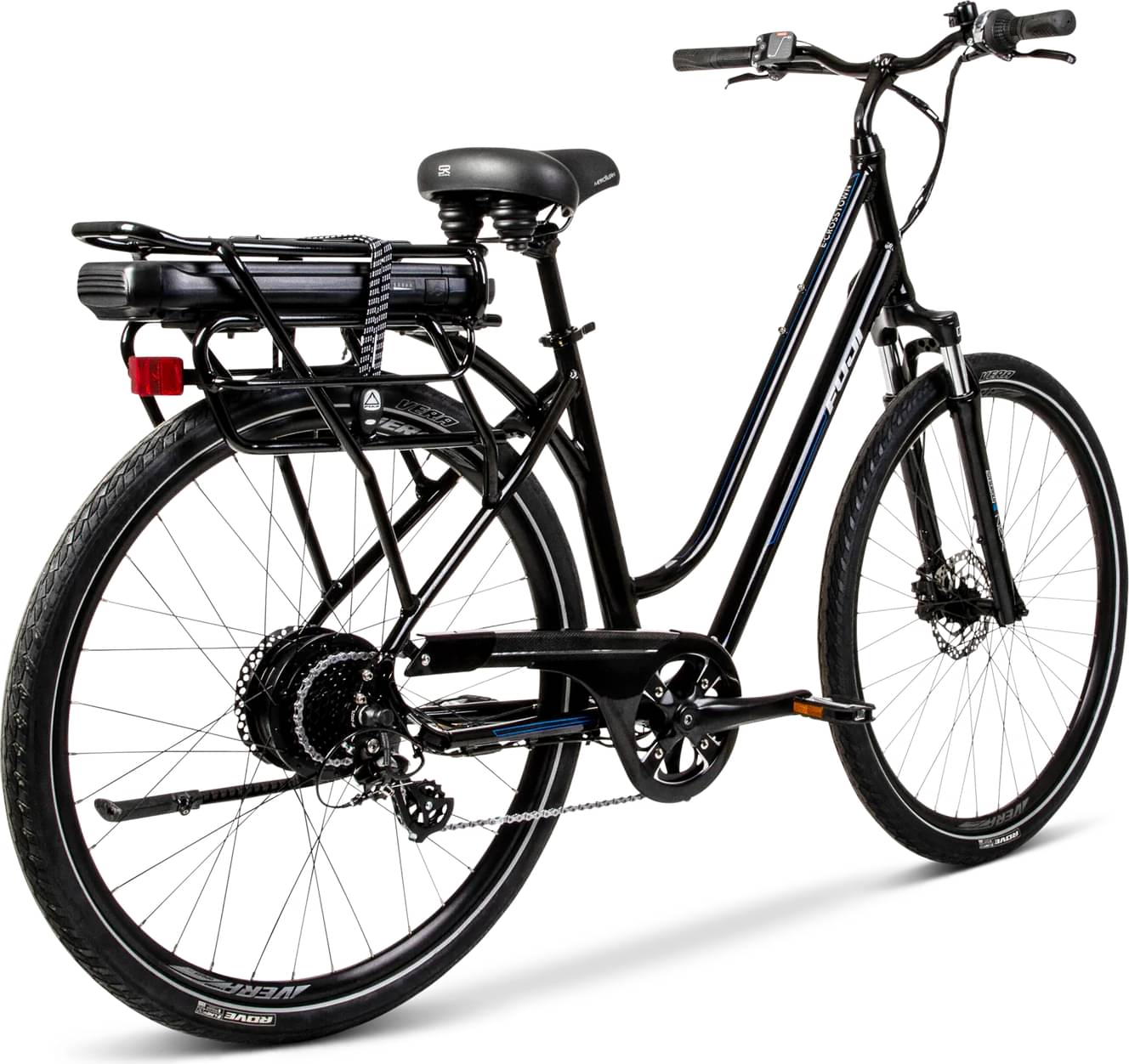

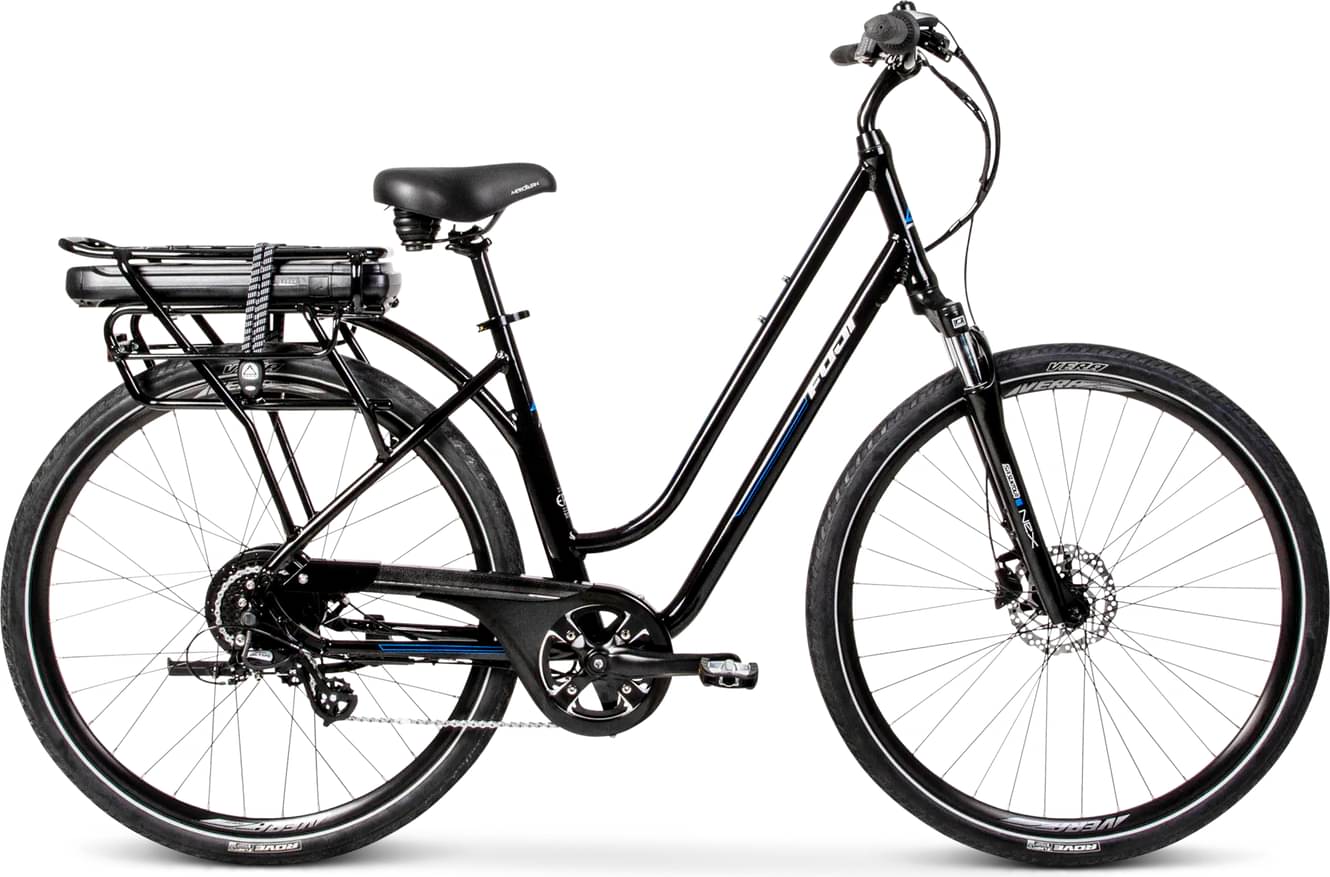

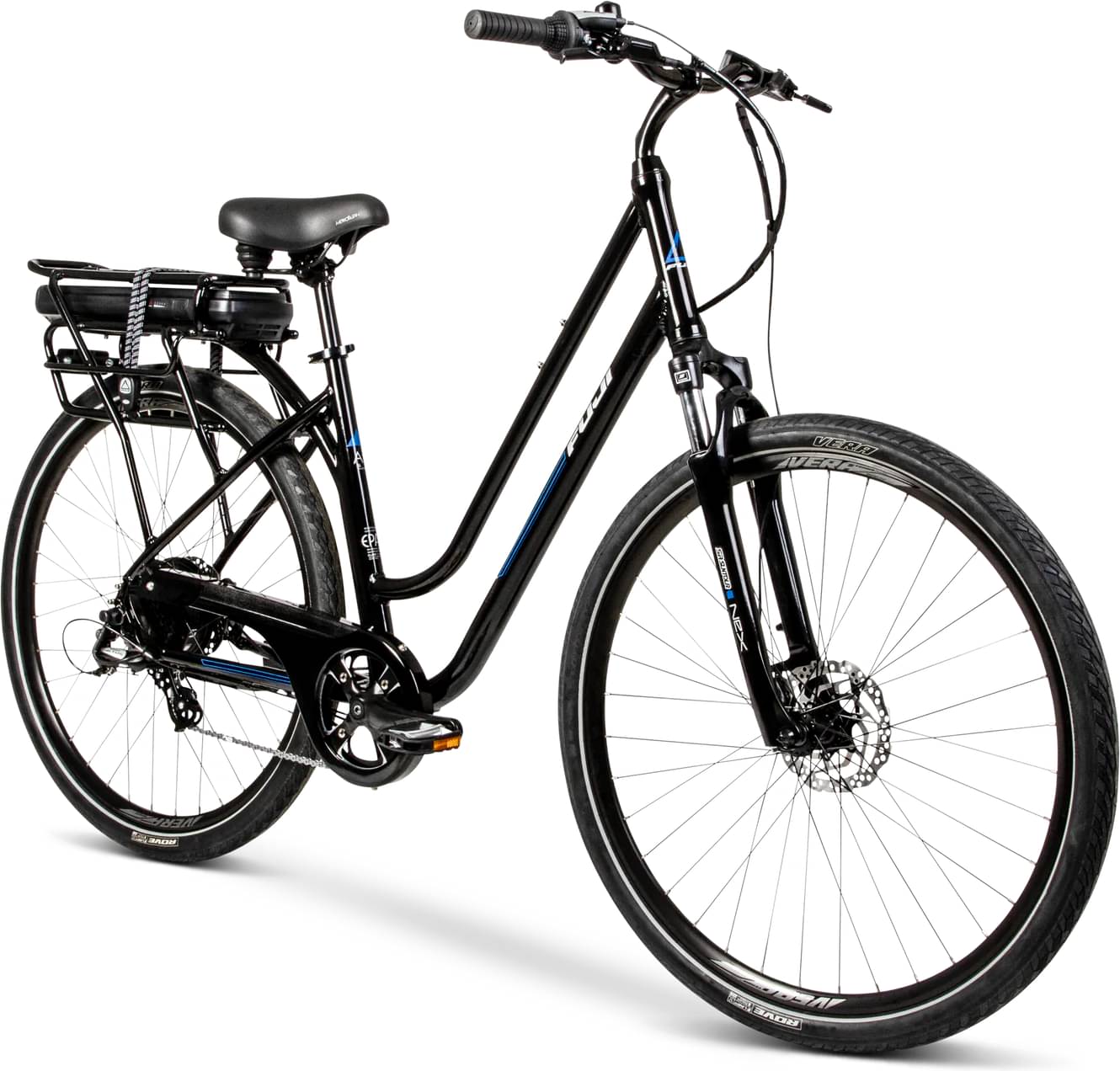

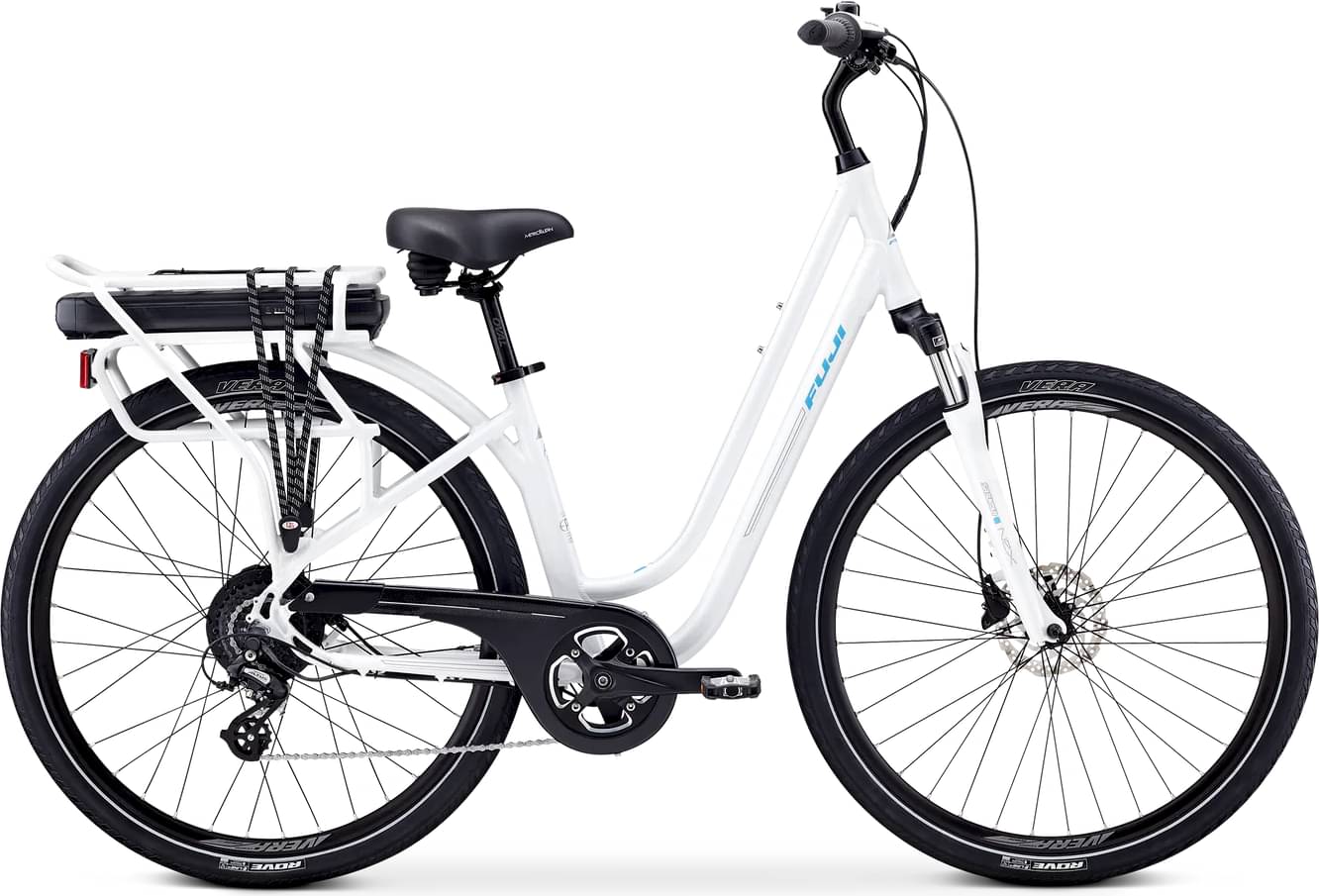

Fuji E-Crosstown LS 2025
2025 E-bike
Estimate price |
1,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Motor Bafang 250W hub-drive -
Battery Fuji Power Pack 468Wh w/ 2A charger -
Drivetrain 1 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1-SL Custom-Butted Alloy, integrated head tube, rear rack mounted battery, fender mounts
Suspension Fork
Suntour NEX disc, 700C coil, travel 63mm, steel steerer
Drivetrain
Rear Derailleur
Shimano Altus M310
Shift Levers
Shimano Tourney Revoshifter
Cassette
Shimano Acera HG31, 11-32T, 8-speed
Crank
Fuji 44T chainring, w/ chainring guard
Bottom Bracket
Bafang sealed cartridge BB with cadence sensor
Chain
KMC X8 w/ Missing Link, EPT anti-rust, 8-speed
Pedals
Polished aluminum body, Kraton grip, chromoly axle
Wheels
Rims
Shimano TX505 CL disc, 36H, front, Bafang rear motor bub, 6 bolt disc, 36H, stainless steel spokes, Vera Terra DPD22 aluminum double wall rims with stainless eyelets
Tires
Vera Rove 700 x 42c, E Line 50 w/ Phalanx puncture protection, reflective stripe
Brakes
Brakes
Shimano MT200 hydraulic disc, rotors: 160mm front, 160mm rear
Brake Levers
Shimano MT200 hydraulic 3 finger lever
Cockpit
Stem
Classic alloy quill stem
Handlebar
Alloy 25mm rise, 9 degree sweep, 25.4mm clamp
Grips
Oval Concepts Comfort, single density Kraton
Headset
1 1/8" threaded steel, caged bearings
Seat
Saddle
Selle Royal Metropolitan with Comfort Gel
Seatpost
Alloy micro-adjust, 27.2mm diameter
Motor & Battery
Motor
Bafang H400B rear hub motor, 250W rated power, 20mph or 25kph maximum assist
Battery
Fuji Power Pack 468Wh w/ 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.887 mm | 1.872 mm | 1.835 mm |
| Front Center | 627 mm | 635 mm | 647 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 78 mm | 76 mm | 76 mm |
| Stack | 670 mm | 674 mm | 679 mm |
| Reach | 355 mm | 360 mm | 370 mm |
| Top Tube Length | 559 mm | 568 mm | 579 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 385 mm | 432 mm | 483 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 195 mm | 200 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1087 mm | 1095 mm | 1107 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 468 mm | 482 mm | 518 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
