Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lugged Cro-Moly Steel
Suspension Fork
Lugged Crown, Steel
Drivetrain
Rear Derailleur
none
Front Derailleur
none
Shift Levers
none
Cassette
18T Fixed Track Cog
Crank
Custom Miche Primato, 48T
Bottom Bracket
Miche
Chain
KMC Z410, gold
Pedals
Wellgo Track pedals w/ custom gold anodized cage, steel toe clip, & Leather Double Toe Strap
Wheels
Rims
Formula Hubs w/ Alex Crostini Rims & black stainless spokes w/ gold nipples
Tires
Continental UltraSport 700x23c
Brakes
Brakes
none
Brake Levers
none
Cockpit
Stem
Custom Fuji Gold Anodized quill style stem
Handlebar
Custom Fuji Gold Anodized Track bar
Headset
First Gold Anodized threaded
Seat
Saddle
Brooks Swift Leather w/ Cro-Moly rails
Seatpost
Custom Fuji gold anodized
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 280 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 566 mm | 578 mm | 589 mm | 573 mm | 583 mm | 592 mm | 597 mm |
| Rake | 40 mm | 45 mm | 45 mm | 40 mm | 40 mm | 40 mm | 35 mm |
| Top Tube Length | 496 mm | 516 mm | 536 mm | 546 mm | 556 mm | 566 mm | 586 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 105 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 391 mm | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Wheelbase | 954 mm | 971 mm | 983 mm | 966 mm | 976 mm | 986 mm | 991 mm |
| Bottom Bracket Drop | 33 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 693 mm | 742 mm | 757 mm | 774 mm | 793 mm | 812 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

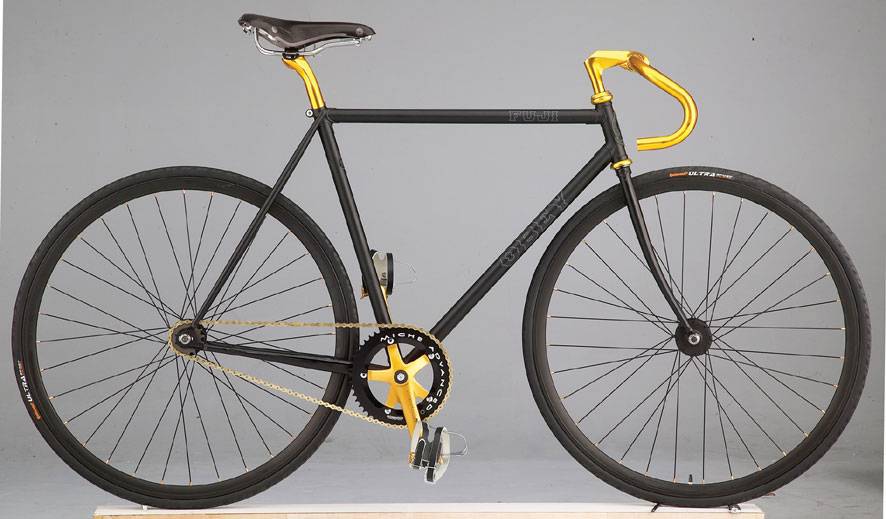

Obey Limited Edition Track Bike (US only) belongs to the Fuji Obey model. 1 bike variation carries this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Track bikes
Our math shows that the average cost of a dependable Track bike is 1503$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Track bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
Obey Limited Edition Track Bike (US only) has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
When leaving the production line, the Obey Limited Edition Track Bike (US only) model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
