Bike details
Overview
Key information split into simple groups.

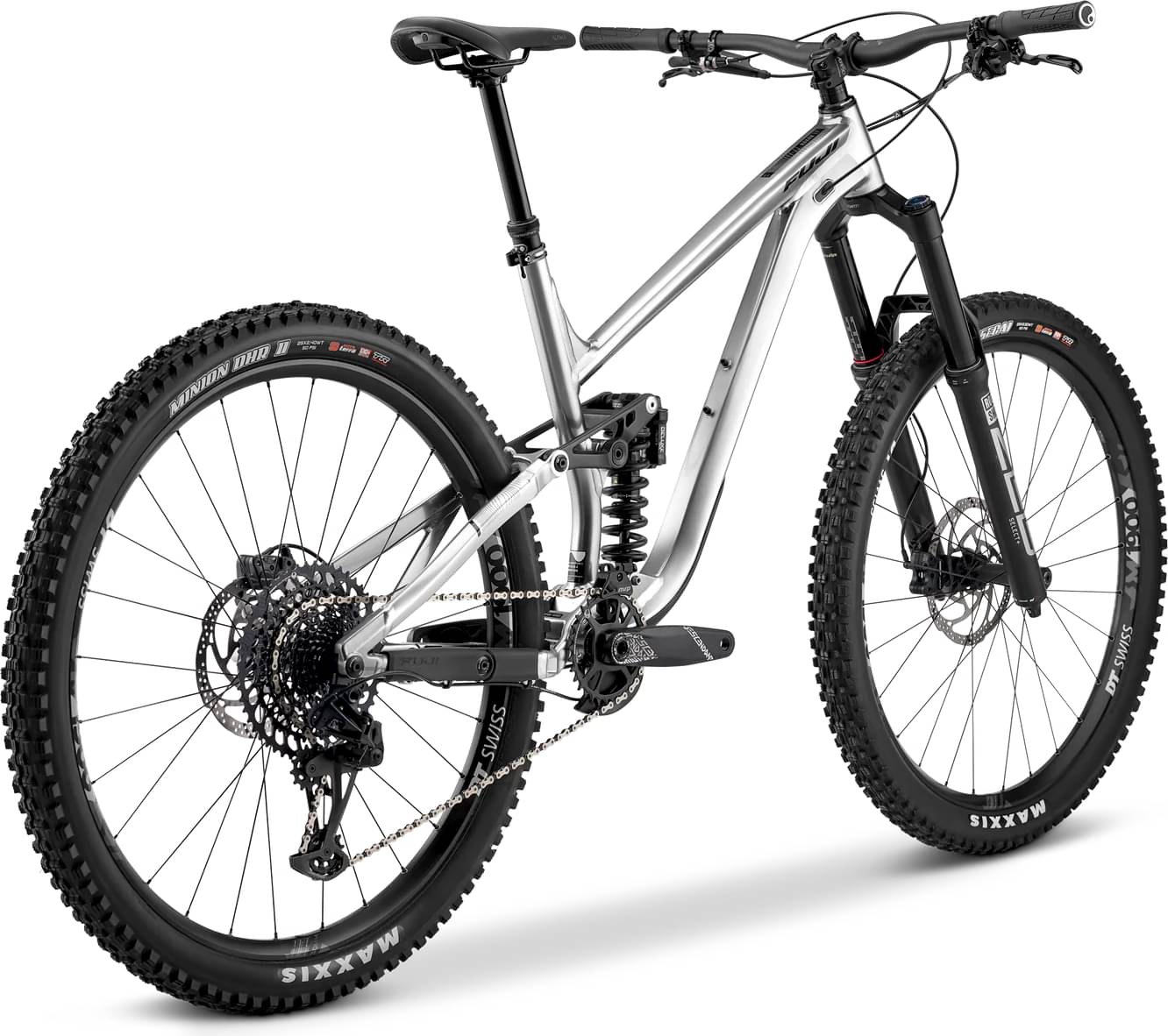

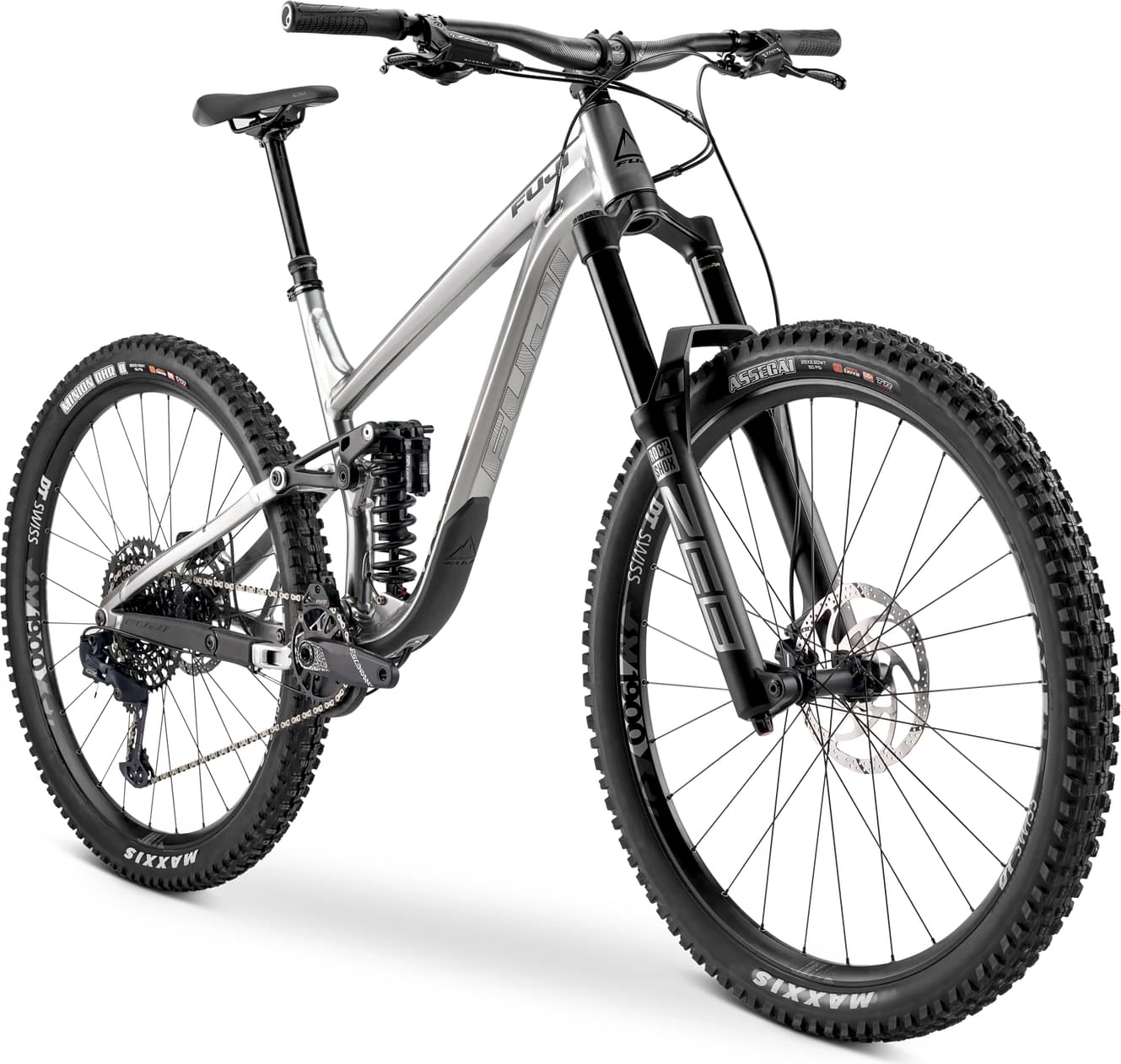

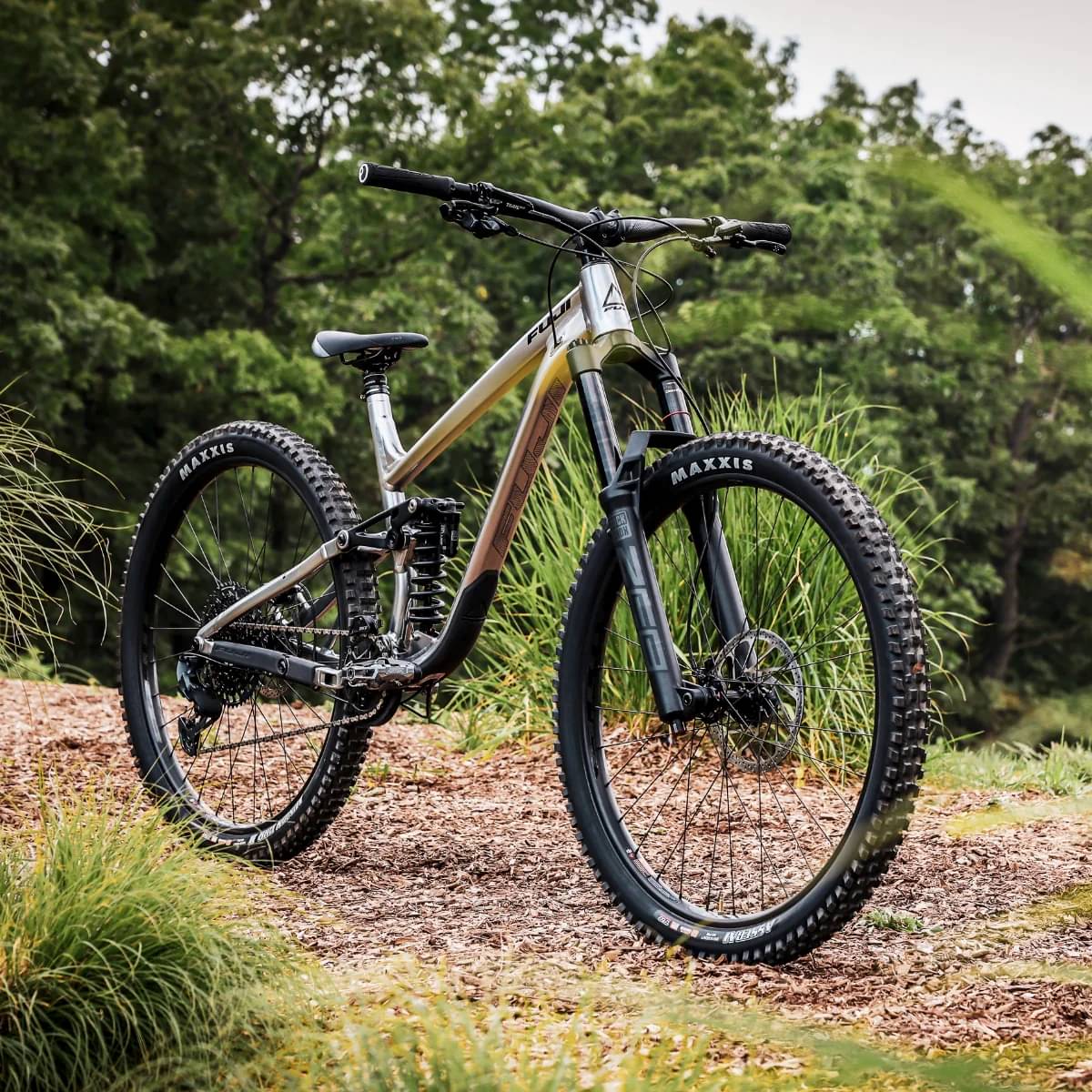

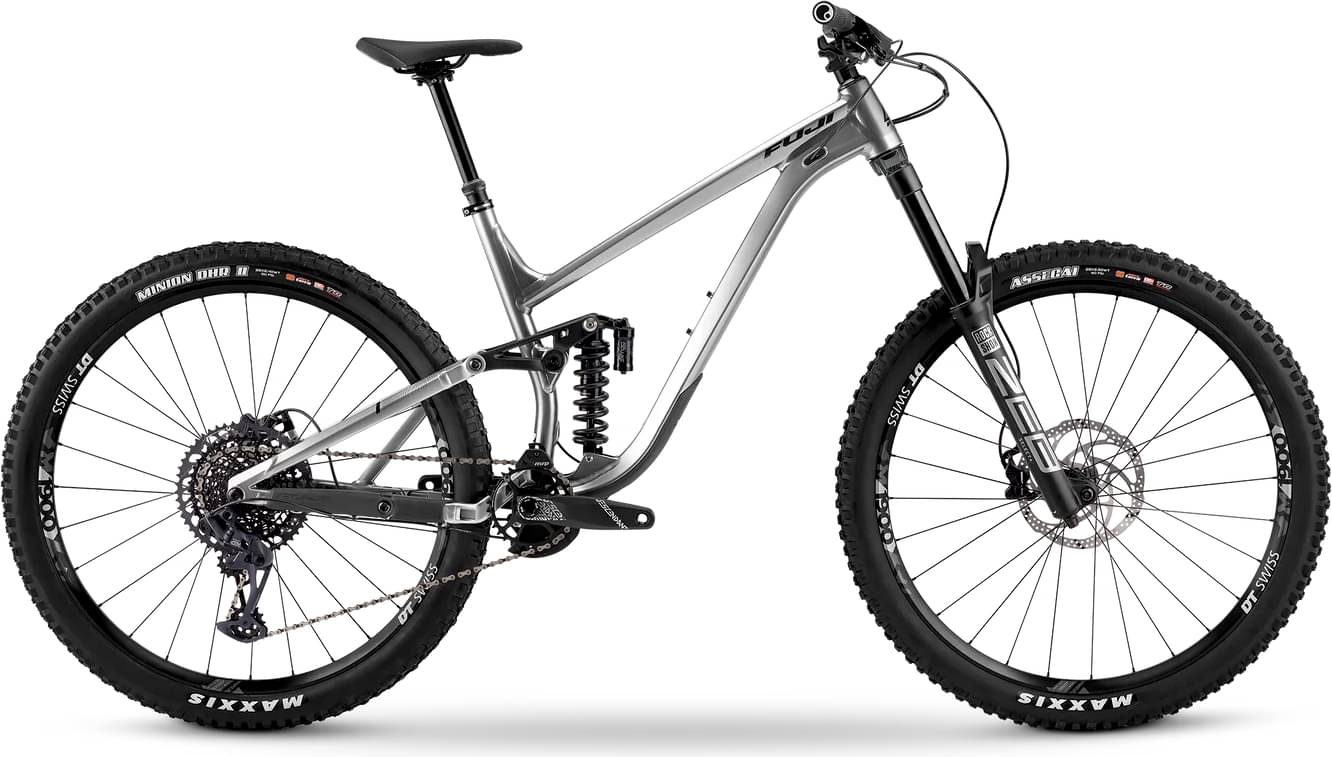

Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 150mm -
Fork RockShox ZEB Select+
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes TRP Trail EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, 150mm
Suspension Fork
RockShox ZEB Select+ 29 DebonAir, tapered alloy steerer, Boost 110x15mm, 170mm

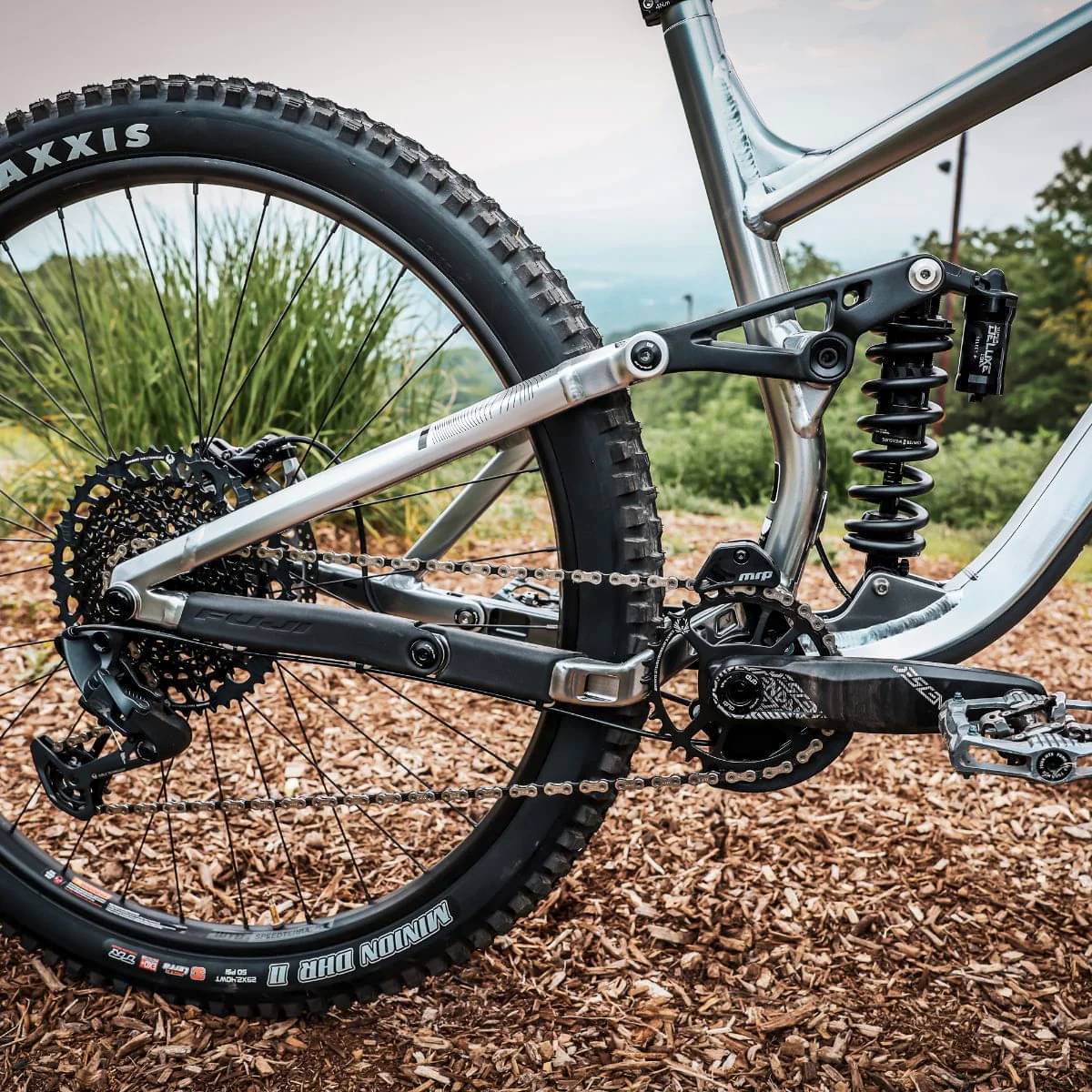

Rear Shock
RockShox Super Deluxe Coil Select+
Drivetrain

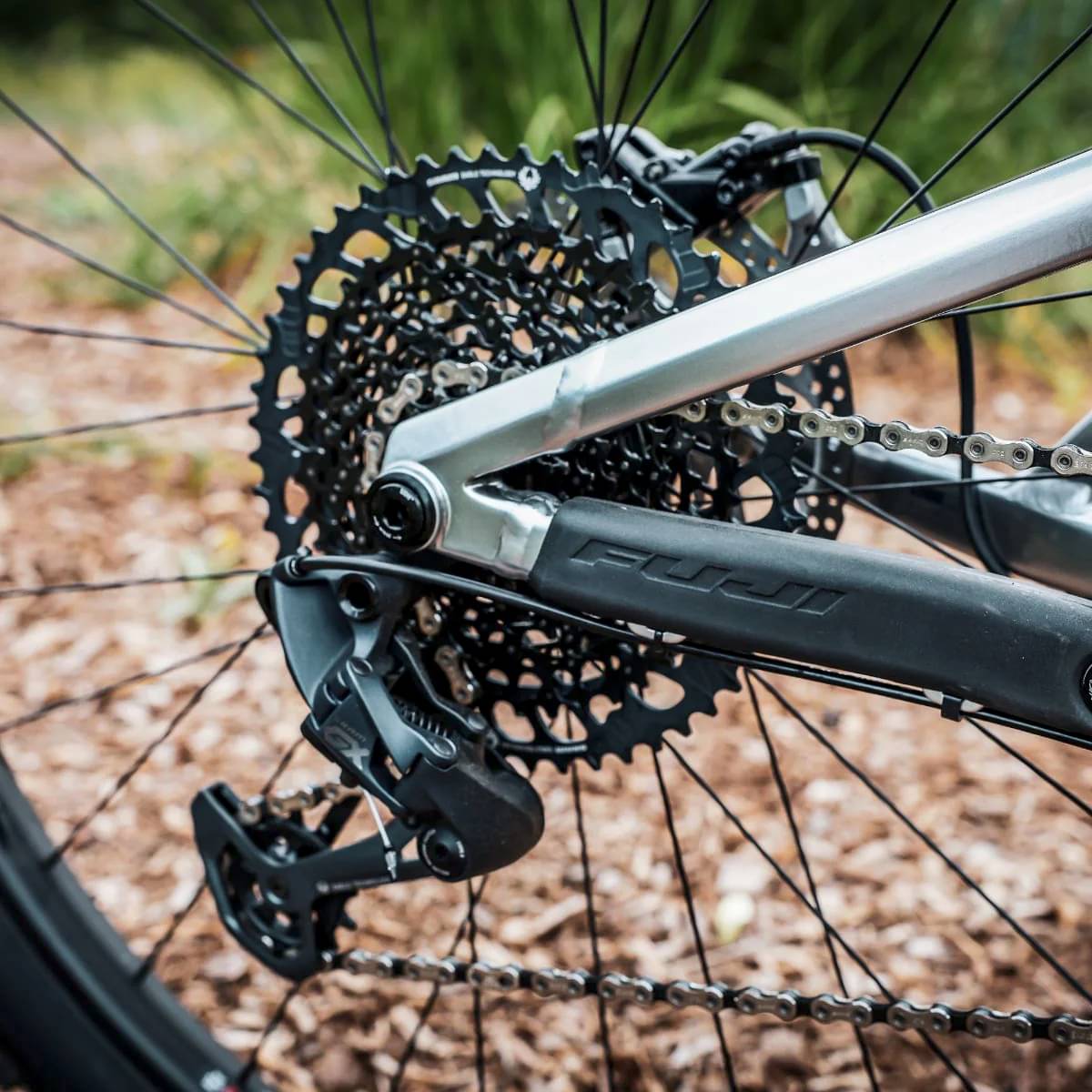

Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle, 1 x 12-speed
Cassette
SRAM XG-1275, 10-52T
Crank
Truvativ Descendant, 32T
Bottom Bracket
SRAM DUB, threaded
Chain
SRAM GX Eagle
Wheels
Rims
WTB Speedterra i30 wheelset, 32H
Tires
Maxxis Assegai, 29" x 2.50" WT, 3C Maxx Terra, EXO+, 120tpi, Tubeless Ready, folding, Maxxis Minion DHR II, 29" x 2.40" WT, 3C Maxx Terra, EXO+, 120tpi, Tubeless Ready, folding
Brakes
Brakes
TRP Trail EVO, 203/180mm rotors

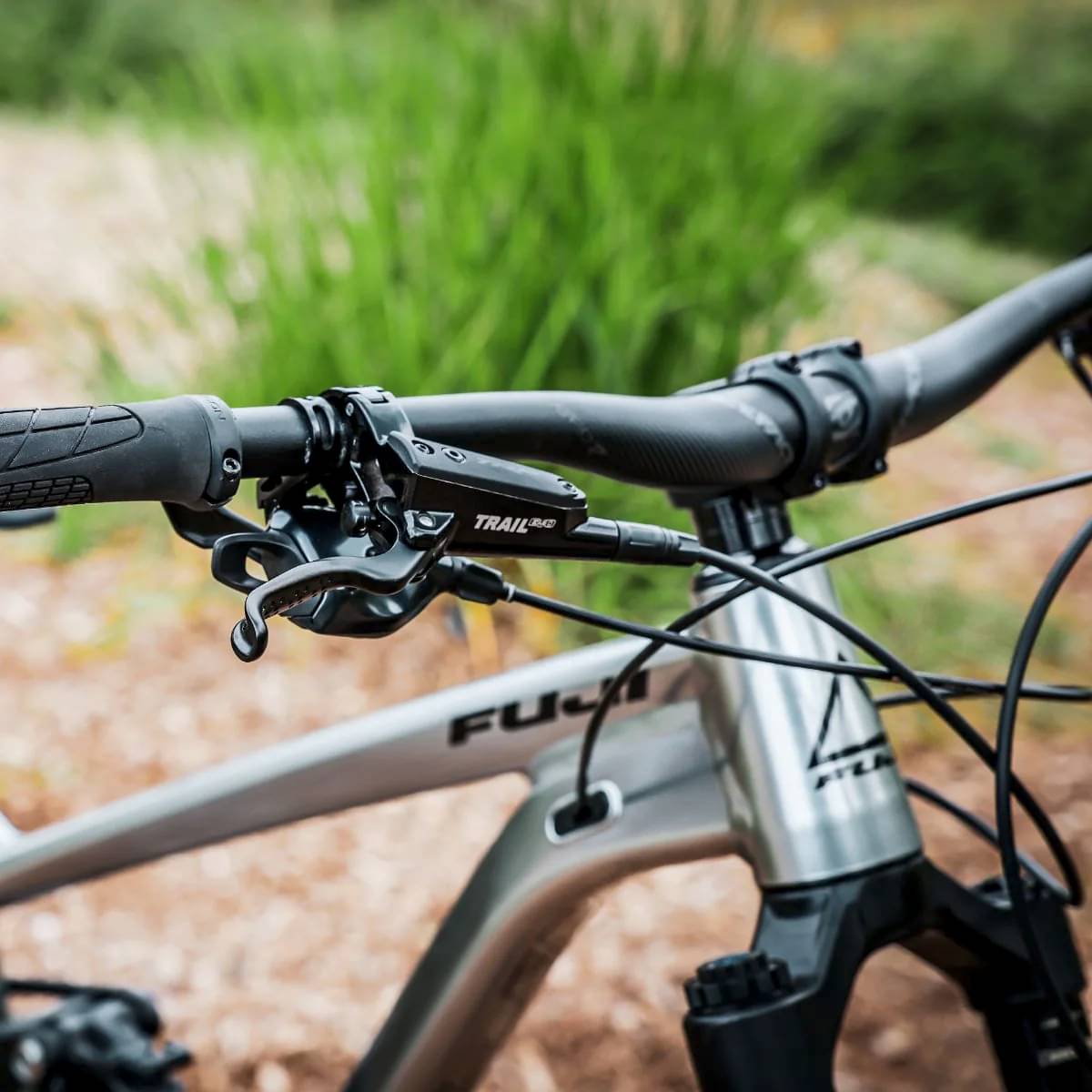

Brake Levers
TRP Trail EVO
Cockpit
Stem
Race Face Aeffect R, alloy, +0 degree rise
Handlebar
Race Face Aeffect R Riser Bar, alloy, 20mm rise, 780mm
Grips
Ergon GA20, Lock on
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Fizik Alpaca Terra X5
Seatpost

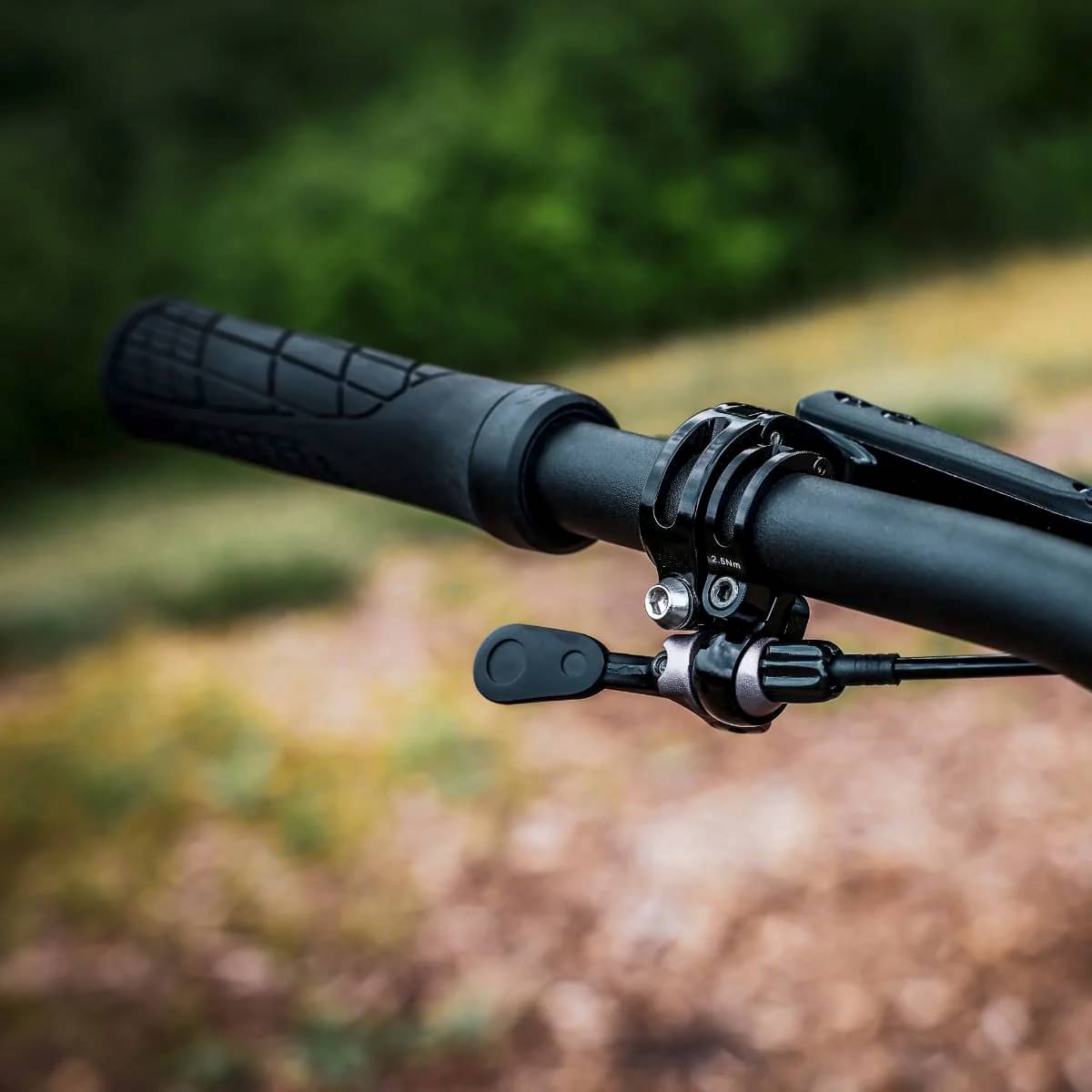

Crankbrothers Highline 3 dropper, 31.6mm, 15" - 125mm travel, 17, 19"- 150mm travel, 21" - 170mm travel, Highline Premium Ball Socket Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.321 mm | 1.286 mm | 1.253 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 789 mm | 813 mm | 838 mm | 863 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 140 mm | 140 mm | 140 mm | 139 mm |
| Stack | 612 mm | 621 mm | 630 mm | 639 mm |
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Top Tube Length | 586 mm | 613 mm | 641 mm | 663.5 mm |
| Seat Tube Angle | 77.5 ° | 77 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 458 mm | 495 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1224 mm | 1248 mm | 1273 mm | 1298 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 747 mm | 760 mm | 763 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
