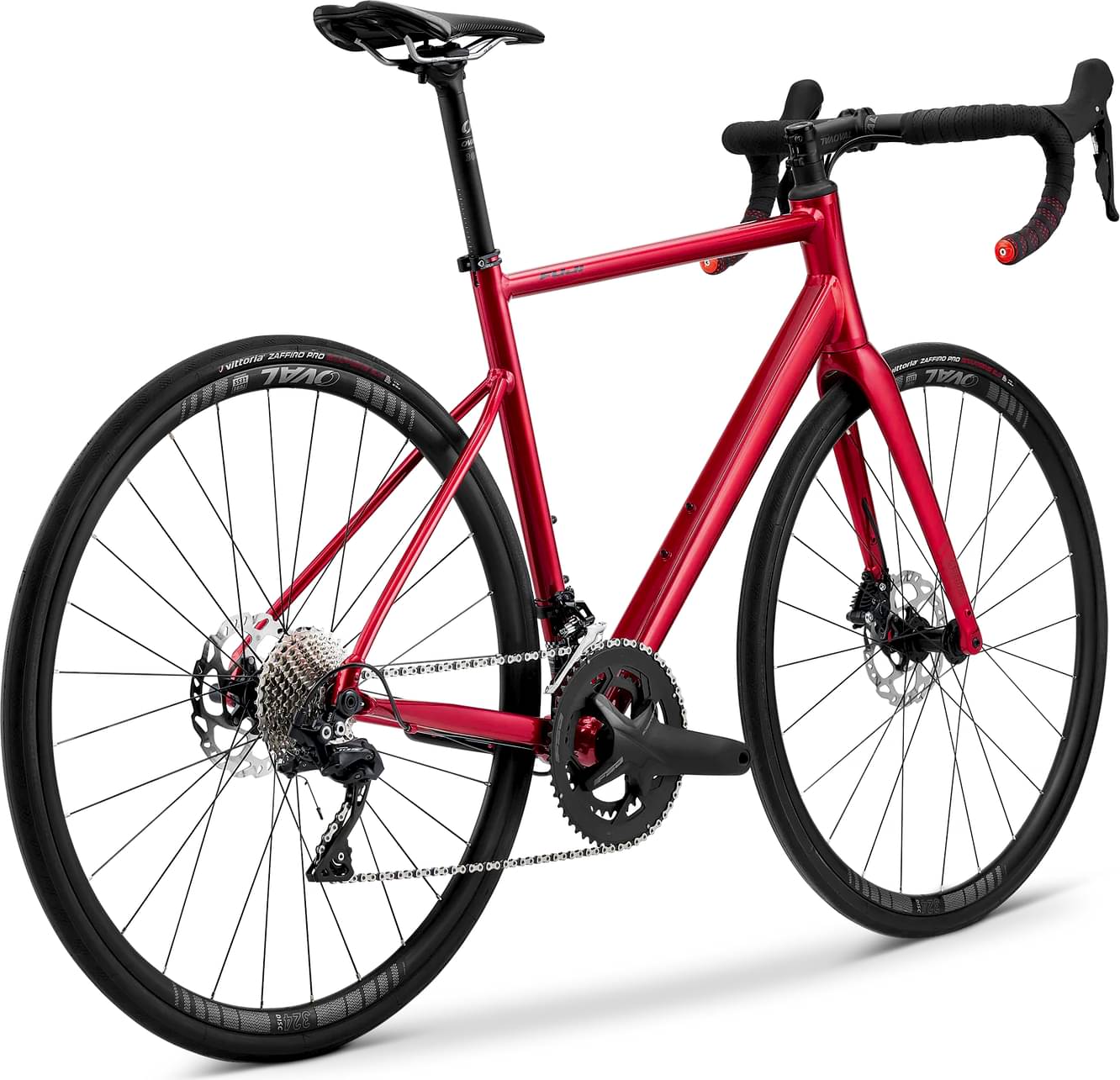

Bike details
Overview
Key information split into simple groups.

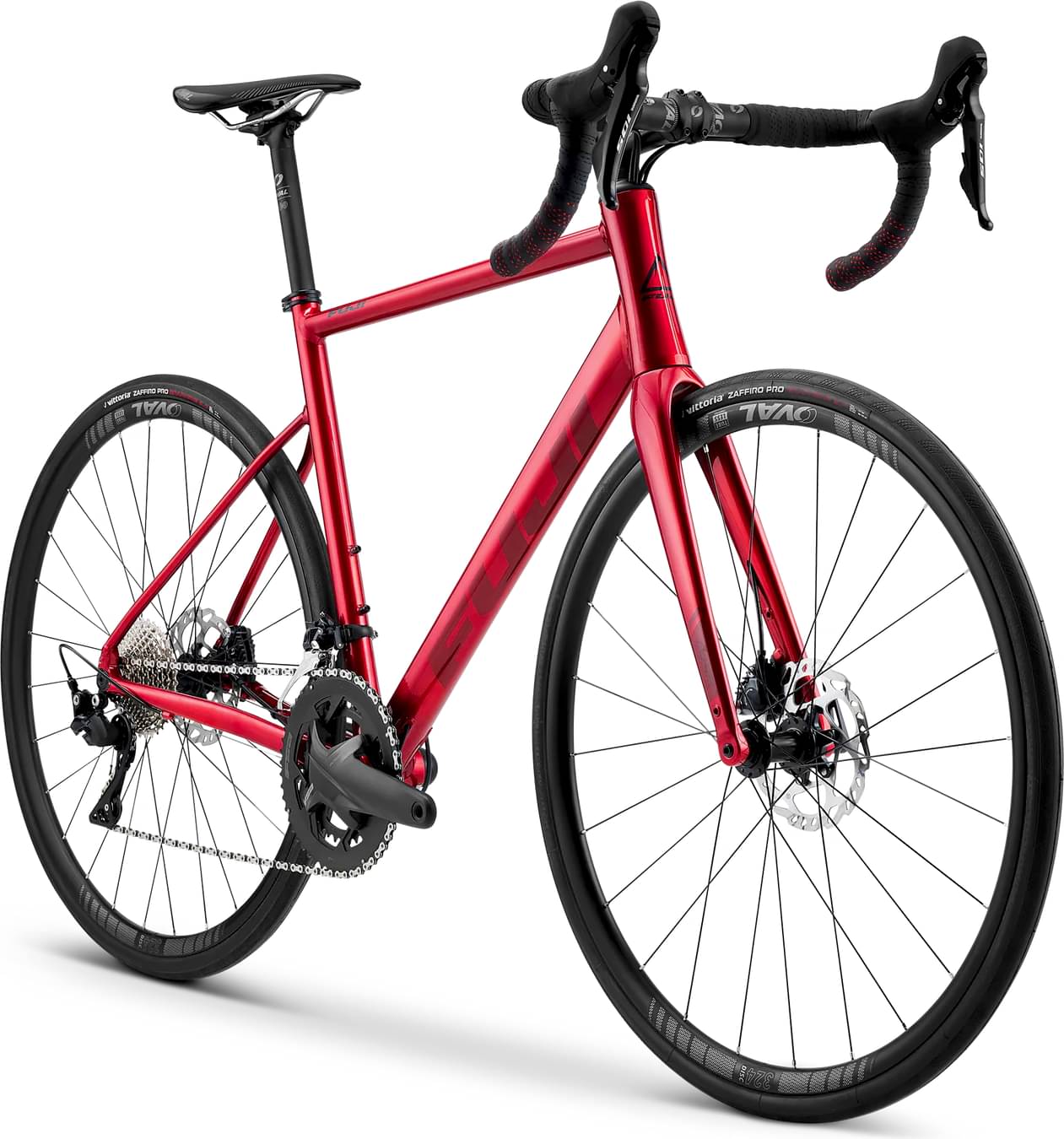

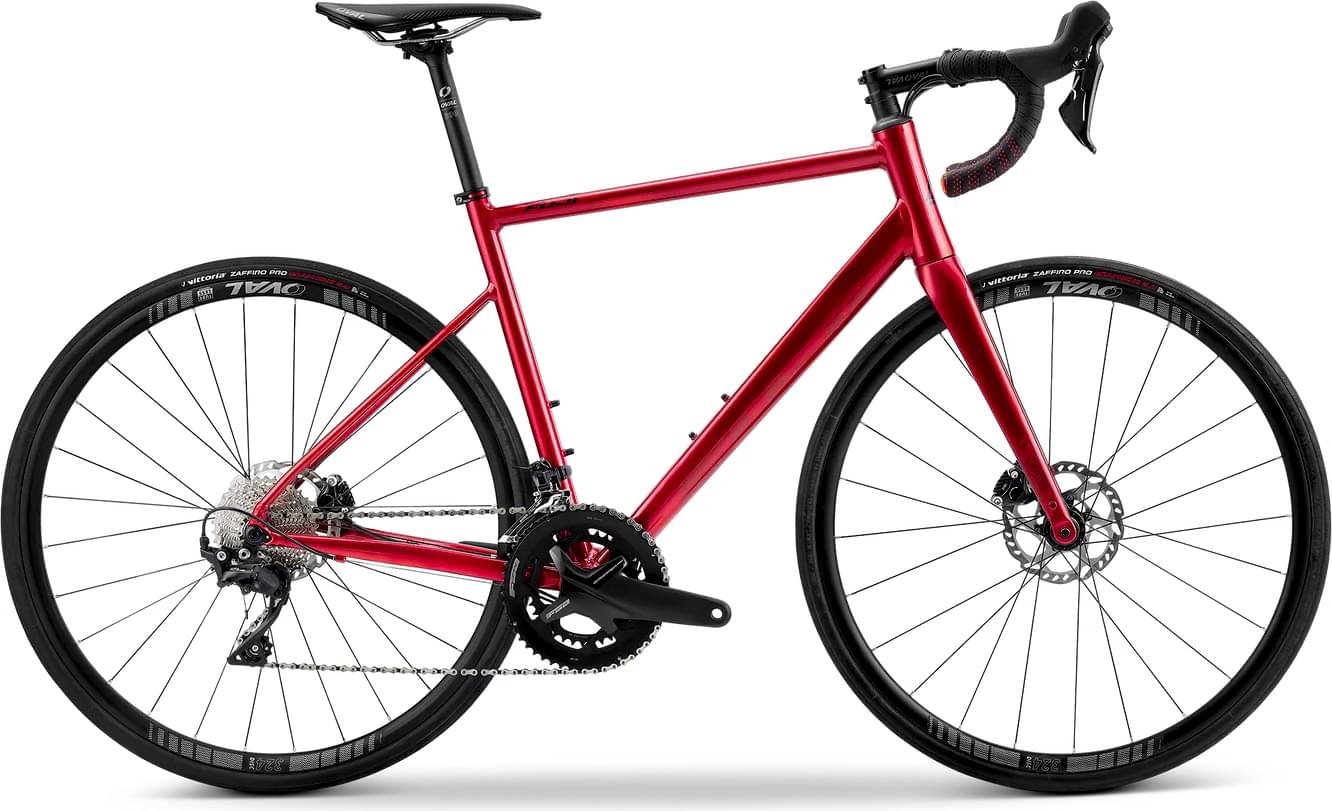

Bike summary
-
-
Frame Aluminum -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL super-butted 6066 aluminum

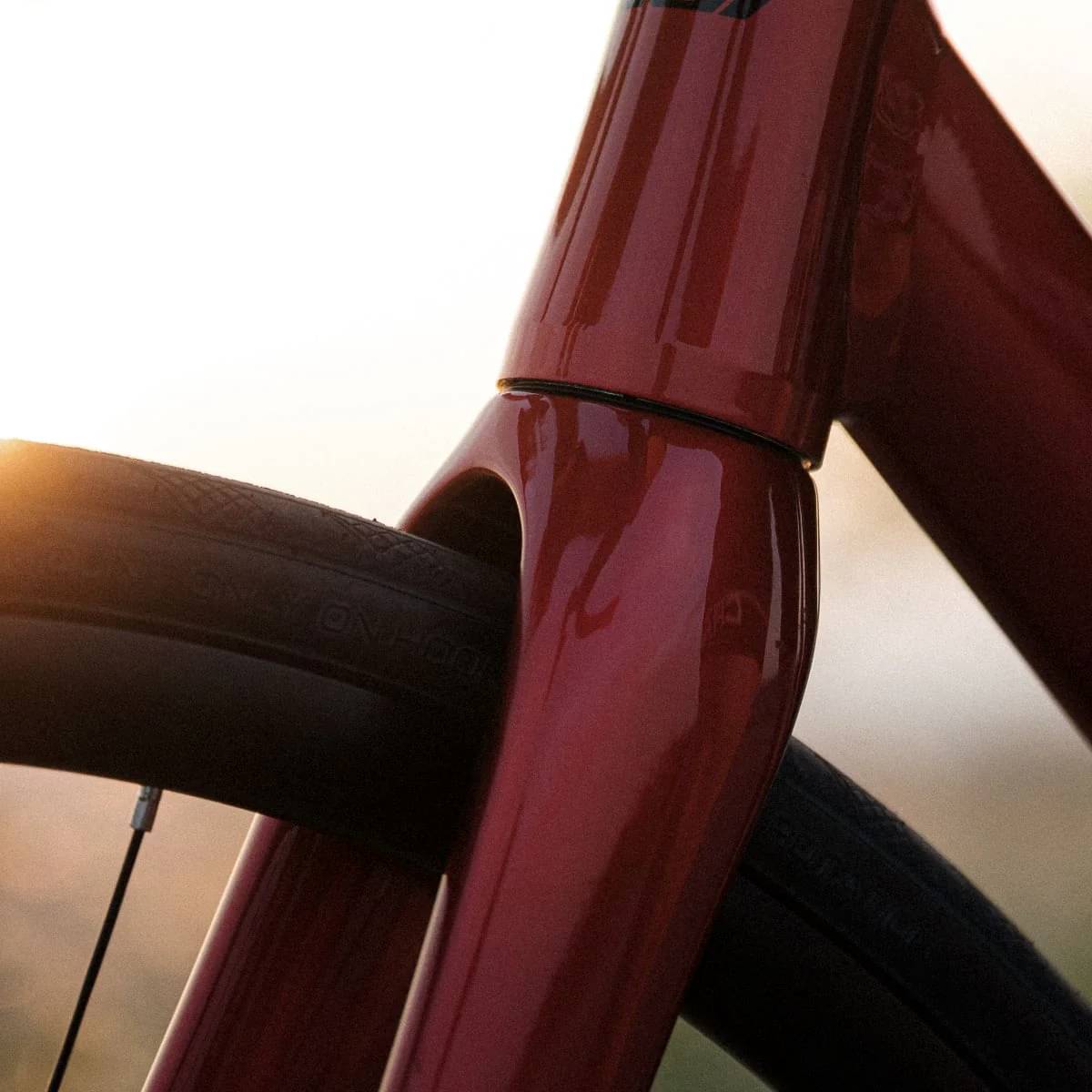

Suspension Fork
C10 carbon monocoque fork
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105, 2 x 11 speed
Cassette
Shimano 105, 11-34T
Crank
FSA Gossamer Pro 105, 52/36T
Bottom Bracket
FSA T47 24mm 85.5
Chain
KMC X11
Wheels
Rims
Oval Concepts 324, 24/28H
Tires
Vittoria Zaffiro Pro V, G2.0, 700 x 28c
Brakes
Brakes

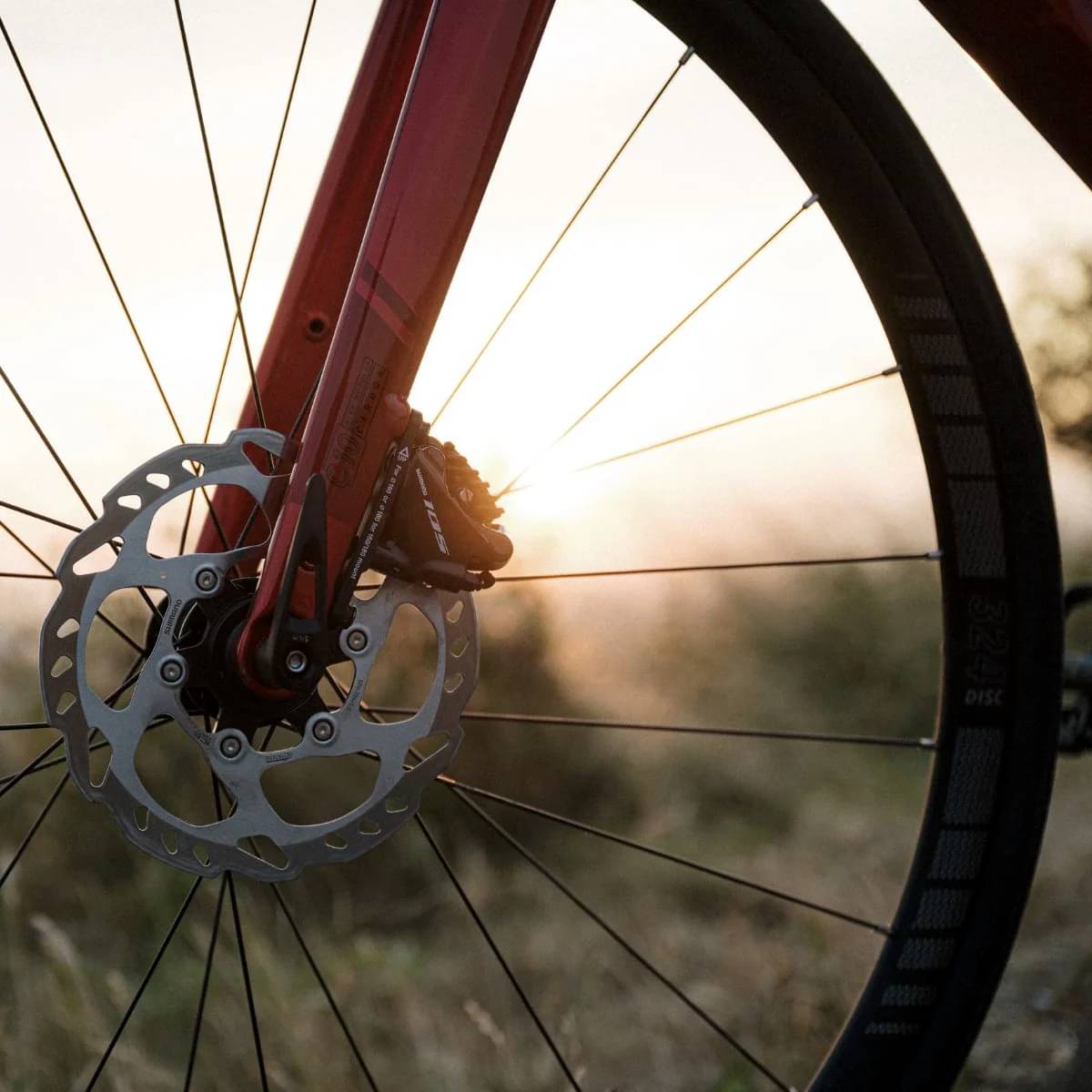

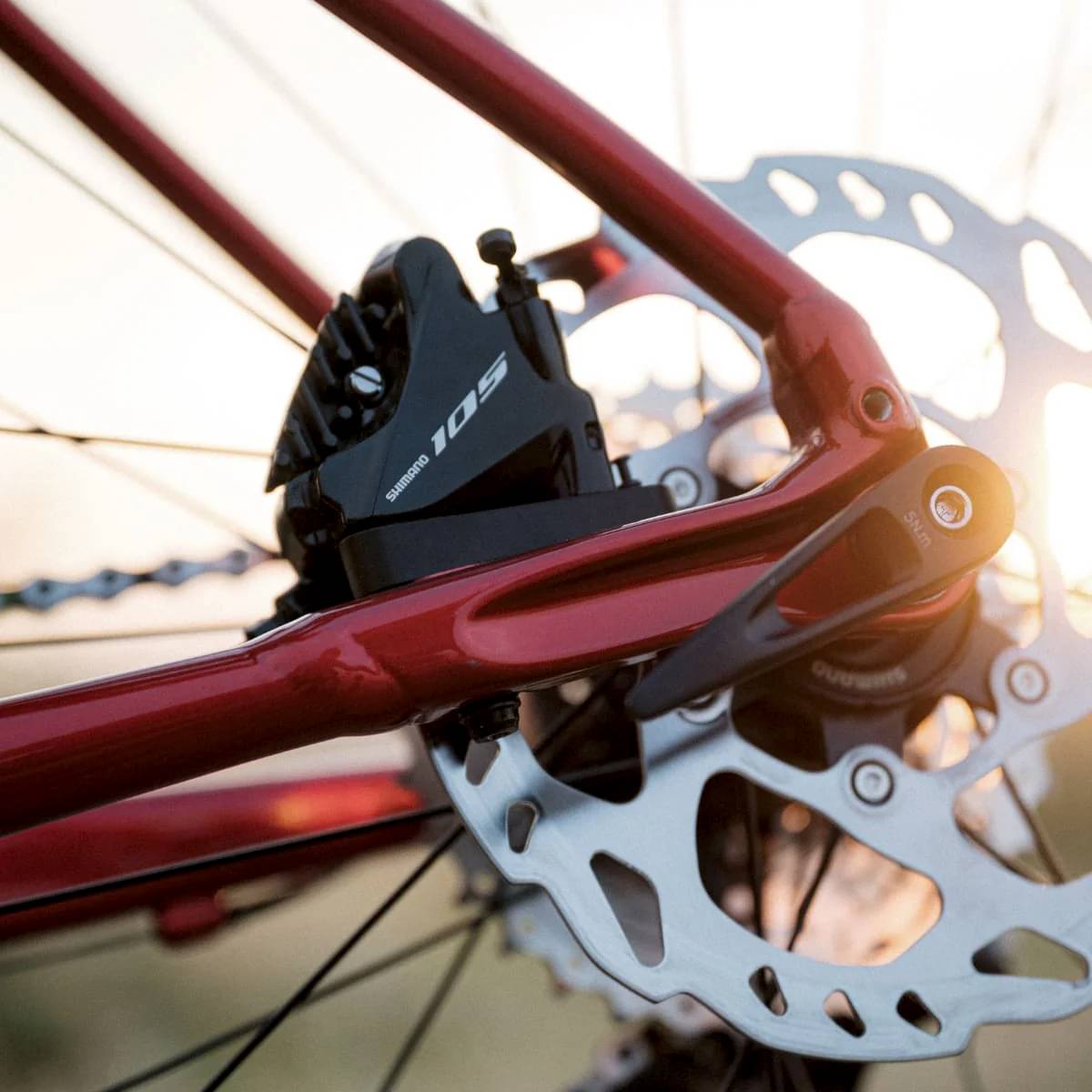

Shimano 105, hydraulic disc, 160mm rotors
Brake Levers
Shimano 105, hydraulic disc
Cockpit

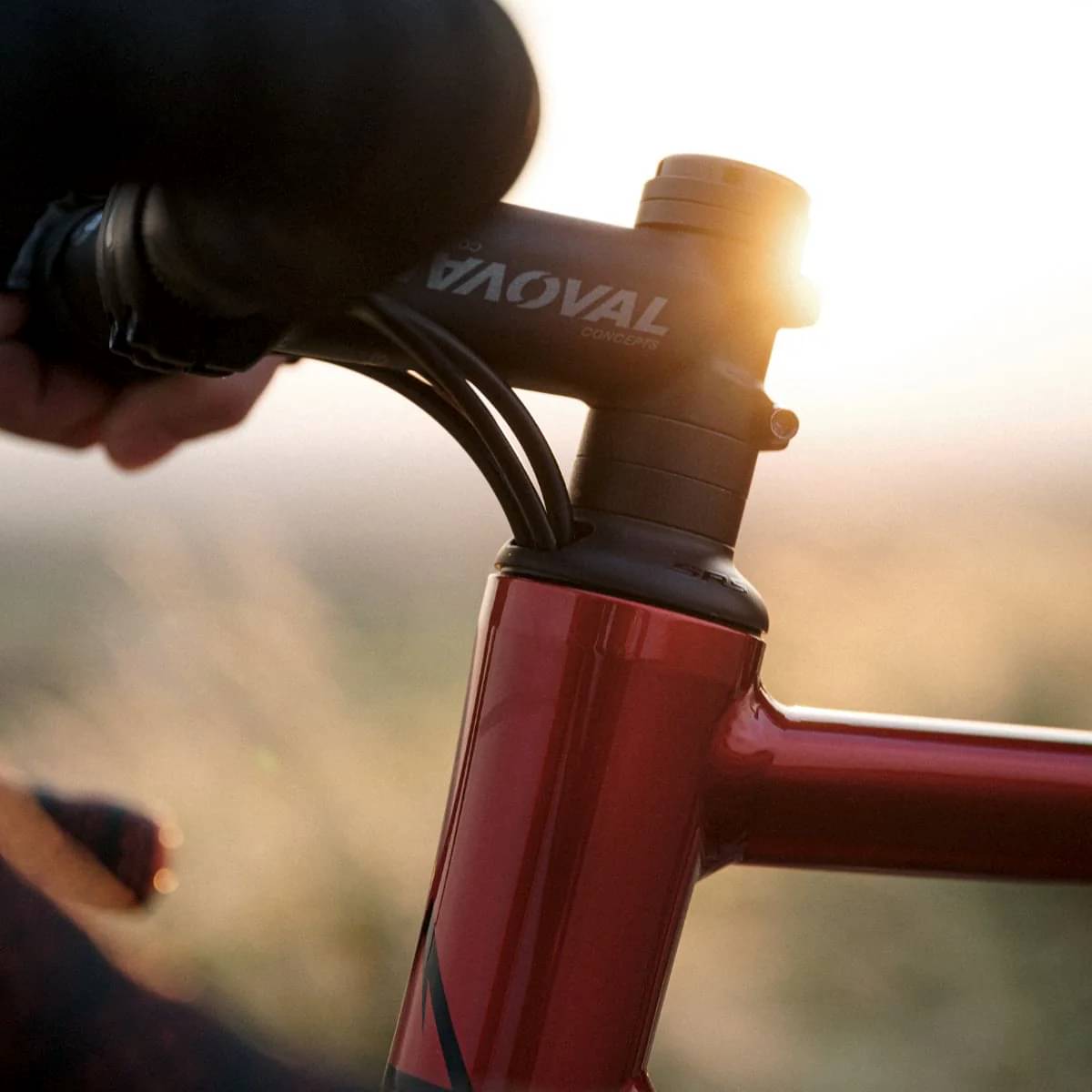

Stem
Fuji 3D-forged 6061, +/-6 degree
Handlebar
Fuji Ergo, 6061 alloy, 31.8mm clamp
Headset
FSA SRS 1.5"
Seat
Saddle
Selle Italia X Base
Seatpost
Oval Concepts 300, 6061 alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.411 mm | 1.423 mm | 1.461 mm | 1.487 mm | 1.513 mm | 1.506 mm |
| Bottom Bracket Height | 260 mm | 262 mm | 262 mm | 264 mm | 264 mm | 266 mm |
| Front Center | 576 mm | 584 mm | 584 mm | 601 mm | 620 mm | 630 mm |
| Rake | 52 mm | 52 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 61 mm | 61 mm | 61 mm | 61 mm | 58 mm |
| Stack | 515 mm | 530 mm | 555 mm | 580 mm | 605 mm | 625 mm |
| Reach | 365 mm | 372.5 mm | 380 mm | 390 mm | 400 mm | 415 mm |
| Top Tube Length | 505 mm | 525 mm | 540 mm | 560 mm | 585 mm | 600 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 450 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 145 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 979 mm | 988 mm | 988 mm | 1005 mm | 1025 mm | 1035 mm |
| Bottom Bracket Drop | 76 mm | 74 mm | 74 mm | 72 mm | 72 mm | 70 mm |
| Standover Height | 710 mm | 740 mm | 770 mm | 795 mm | 815 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
