Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Truvativ -
Suspension Rigid -
Drivetrain Single Speed
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL custom-butted alloy w/ aero-shaped down tube, hydroformed top tube, integrated head tube
Suspension Fork
FC-770 Fuji straight blade integrated carbon w/ 1 1/8" alloy steerer
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
15T
Crank
TruVativ Omnium, 48T
Bottom Bracket
SRAM/TruVativ GSP external sealed bearing
Chain
KMC Z410
Pedals
N/A
Wheels
Rims
30mm aero alloy clincher wheelset, 24/28H - 700c
Tires
Vittoria Rubino Pro Slick, 150 tpi, 700c x 23mm
Brakes
Brakes
N/A
Brake Levers
N/A
Cockpit
Stem
Oval 713 3D-forged 7050 alloy, 31.8mm, +/- 6 degrees
Handlebar
Track 6061 alloy, 31.8mm
Headset
FSA Orbit CE 1 1/8" integrated w/ alloy top cover
Seat
Saddle
Oval R500 w/ CrMo hollow rails
Seatpost
Oval aero carbon 290mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.25 mm | 1.23 mm | 1.24 mm | 1.24 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 549 mm | 296 mm | 570 mm | 585 mm | 600 mm | 620 mm |
| Rake | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Trail | 64 mm | 920 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 492 mm | 502 mm | 513 mm | 528 mm | 547 mm | 571 mm |
| Reach | 394 mm | 407 mm | 414 mm | 425 mm | 435 mm | 448 mm |
| Top Tube Length | 515 mm | 530 mm | 550 mm | 565 mm | 580 mm | 600 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 74 ° | 74 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 155 mm | 180 mm |
| Chainstay Length | 395 mm | 395 mm | 395 mm | 395 mm | 395 mm | 395 mm |
| Wheelbase | 940 mm | mm | 961 mm | 976 mm | 991 mm | 1011 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 753 mm | 772 mm | 785 mm | 802 mm | 821 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview

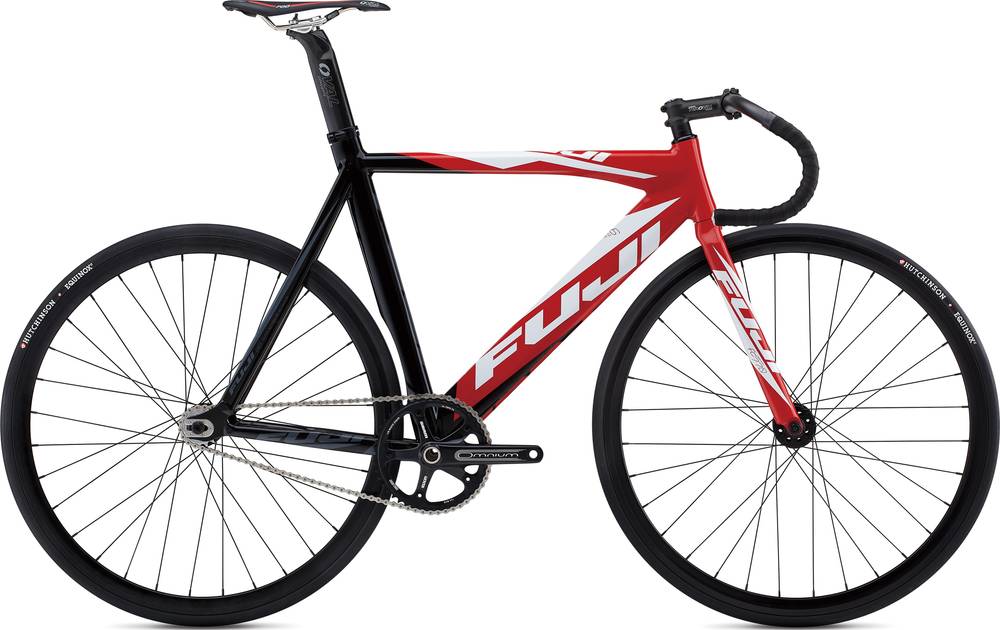

Track 1.1 E belongs to the Fuji E Track model. There is 1 e-bike that carries this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Track e-bikes
According to our calculations, the average cost of a Track e-bike that is reliable is 3049$. However, even though the average price of a Track e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Track e-bikes
The average weight for Track e-bikes is 7.95 kg (17.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuji Track 1.1 E it’s weighing 7.95 kg (17.53 lbs). At this weight, is equally heavier with average. In other words, this model is 0% heavier than the average Track e-bike.
Track 1.1 E components
Fork material
Track 1.1 E has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Track 1.1 E are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Sizes
Track 1.1 E comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
