Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset XT, X5 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1-SL alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
Fuji Alloy rigid, 1 1/8" threadless, disc tabs
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
SRAM X-5 direct mount
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
SunRace Driven, 11-36T, 10-speed
Crank
Lasco, alloy, 36/22T
Bottom Bracket
Sealed cartridge bearing
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
Alloy platform
Wheels
Rims
Weinmann rims, 100mm (F) / 100mm (R) wide, 32h, Formula SL-1240 front / Formula DHL-197 rear disc hubs, stainless black spokes
Tires
Vee Bulldozer, 26 X 4.7, 72 tpi, folding
Brakes
Brakes
Tektro HD-M290, hydraulic disc, 180/160mm rotor
Brake Levers
Tektro HD-M290, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 710mm wide
Headset
FSA 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.49 mm | 1.47 mm | 1.45 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 665 mm | 680 mm | 696 mm | 711 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 75 mm | 75 mm | 75 mm |
| Stack | 604.4 mm | 613.7 mm | 623.1 mm | 632.5 mm |
| Reach | 400.6 mm | 412.8 mm | 424.9 mm | 437 mm |
| Top Tube Length | 586 mm | 601 mm | 616 mm | 631 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm | 155 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1124 mm | 1140 mm | 1155 mm | 1171 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 795 mm | 823 mm | 852 mm | 881 mm |
| Wheels | 26" | 26" | 26" | 26" |
Model Overview

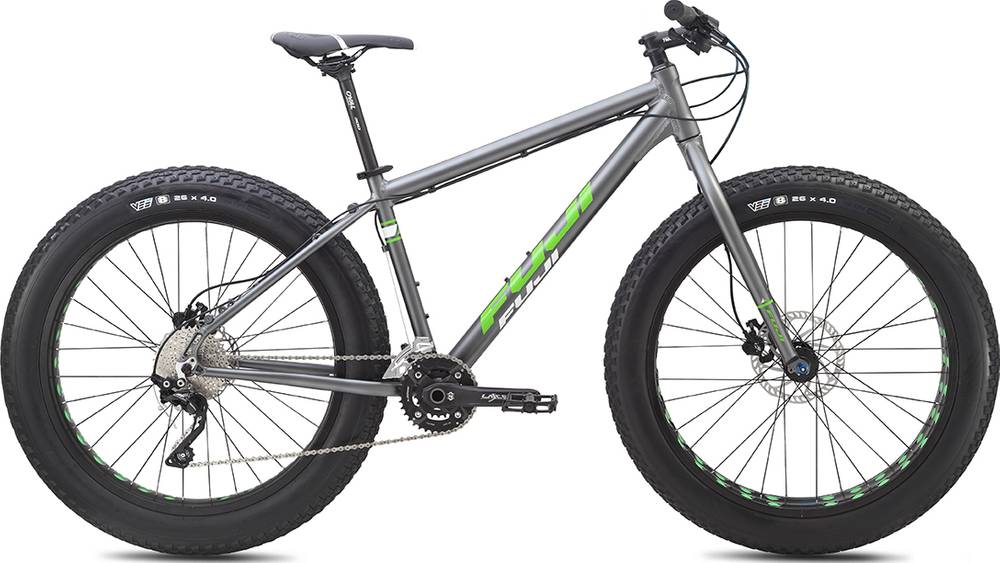

Wendigo belongs to the Fuji Wendigo model. There are 8 bikes that carry this model name.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fatbike bikes average price
According to our math, the average price for a trustworthy Fatbike bike is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Fatbike bikes
If we make a quick analysis of the average weight of a Fatbike bike, we get 13.2 kg (29.1 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 16.1 kg (35.49 lbs), the Wendigo model is much heavier than average. In short, the average Fatbike bike weight is 21.97% lower than this one.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on Wendigo are the 26″ aluminum type. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Wendigo comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
