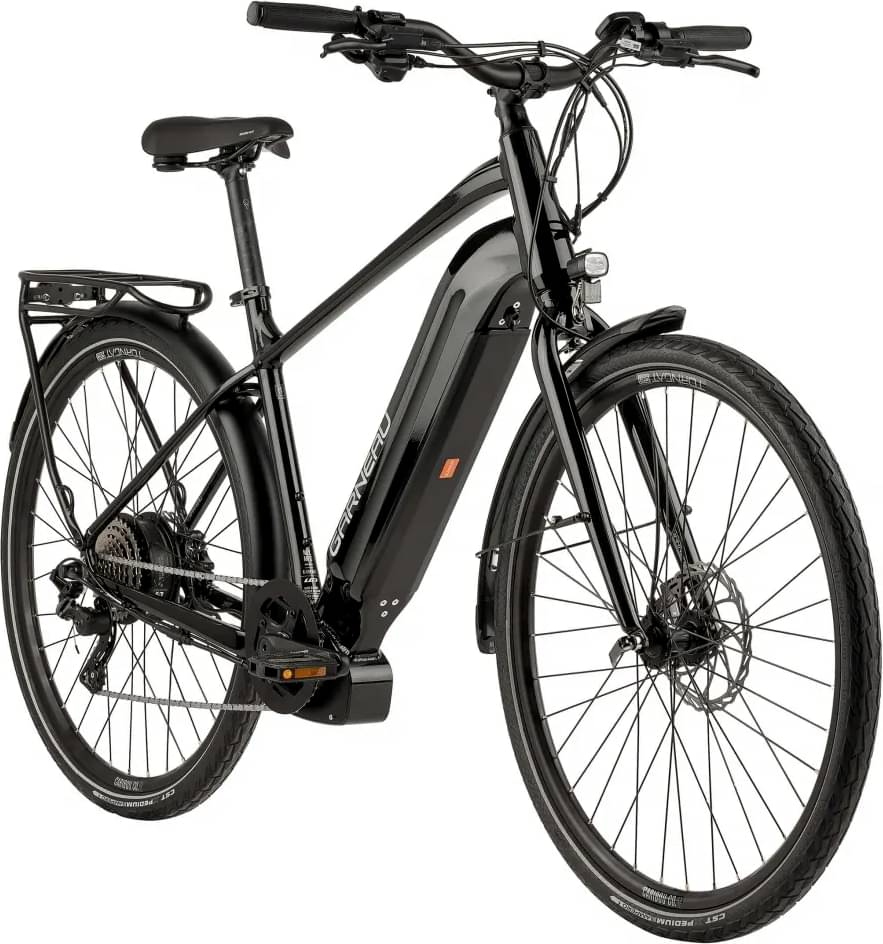

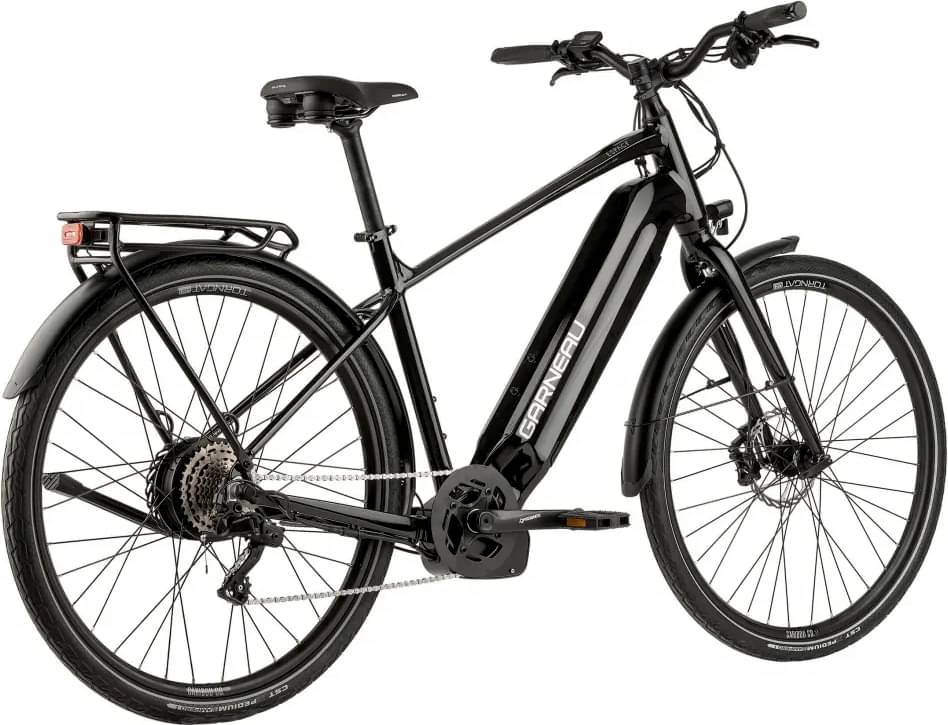

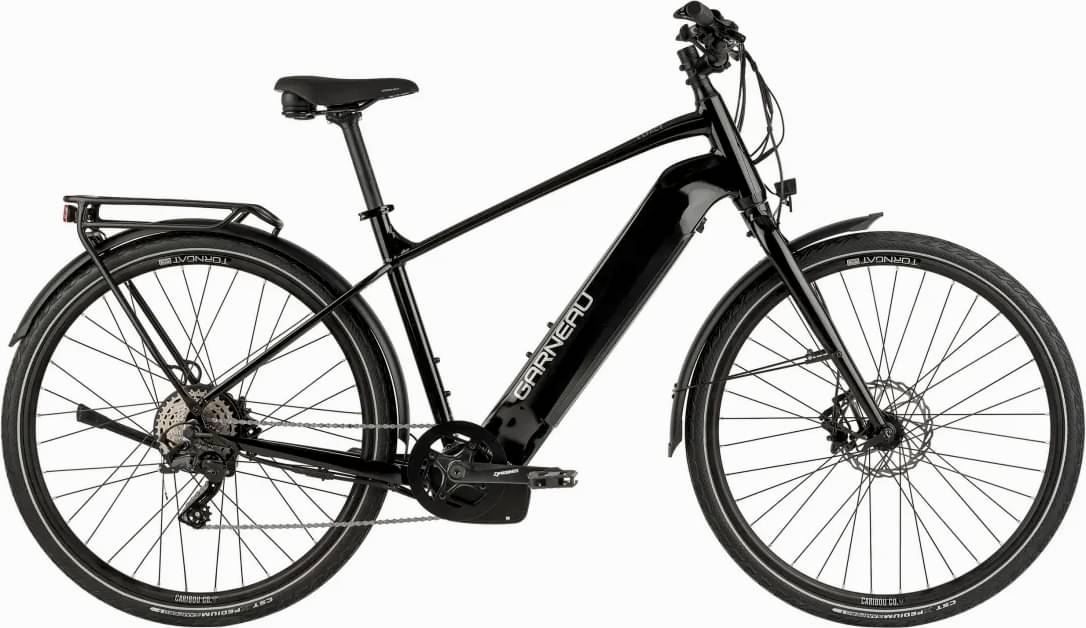

garneau E-Espace R + 2024
2024 E-bike
Estimate price |
2,027$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Motor Bafang 350W 45Nm hub-drive -
Battery Bafang 36V/ 17.8Ah (640Wh) integrated, smart BMS, 32km/h -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Espace step, cadre abaissé, moteur-roue, aluminium S-6 LT hydroformé, batterie intégrée, disque
Suspension Fork
E-Espace, S-6, aluminium, disc
Drivetrain
Rear Derailleur
Microshift Acolyt, w/clutch, 8-speed
Shift Levers
Microshift xpress plus
Cassette
Sugek, 11-36T, 8-speed
Crank
Prowheel, Narrow wide, 40T
Bottom Bracket
Bafang SR PA231.32.ST torque sensor bb
Chain
KMC Z8.3 EPT, Anti-rust
Pedals
Platform
Wheels
Front Hub
Caribou co. disc, QR 9 x 100 mm
Rear Hub
Bafang H400B, 6 bolts disc
Rims
Torngat D21-700, 36h
Spokes
12/13g, stainless steel
Tires
CST Xpedium ampero, reflective, 700 x 45c
Brakes
Brakes
Jieke Y-5, hydraulic disc
Brake Levers
jieke Y-5, w/sensor control
Cockpit
Stem
Caribou co. alloy, 45mm, 17?
Handlebar
Caribou Panache 2, 75 mm riser, Ø31.8 mm
Grips
Velo Ergo, lock-on
Headset
ZS44/28.6 | ZS44/30.0, 1 1/8''
Seat
Saddle
Selle Royal Essenza Relaxed
Seatpost
Caribou Panache 2, Ø30,9 mm
Motor & Battery
Motor

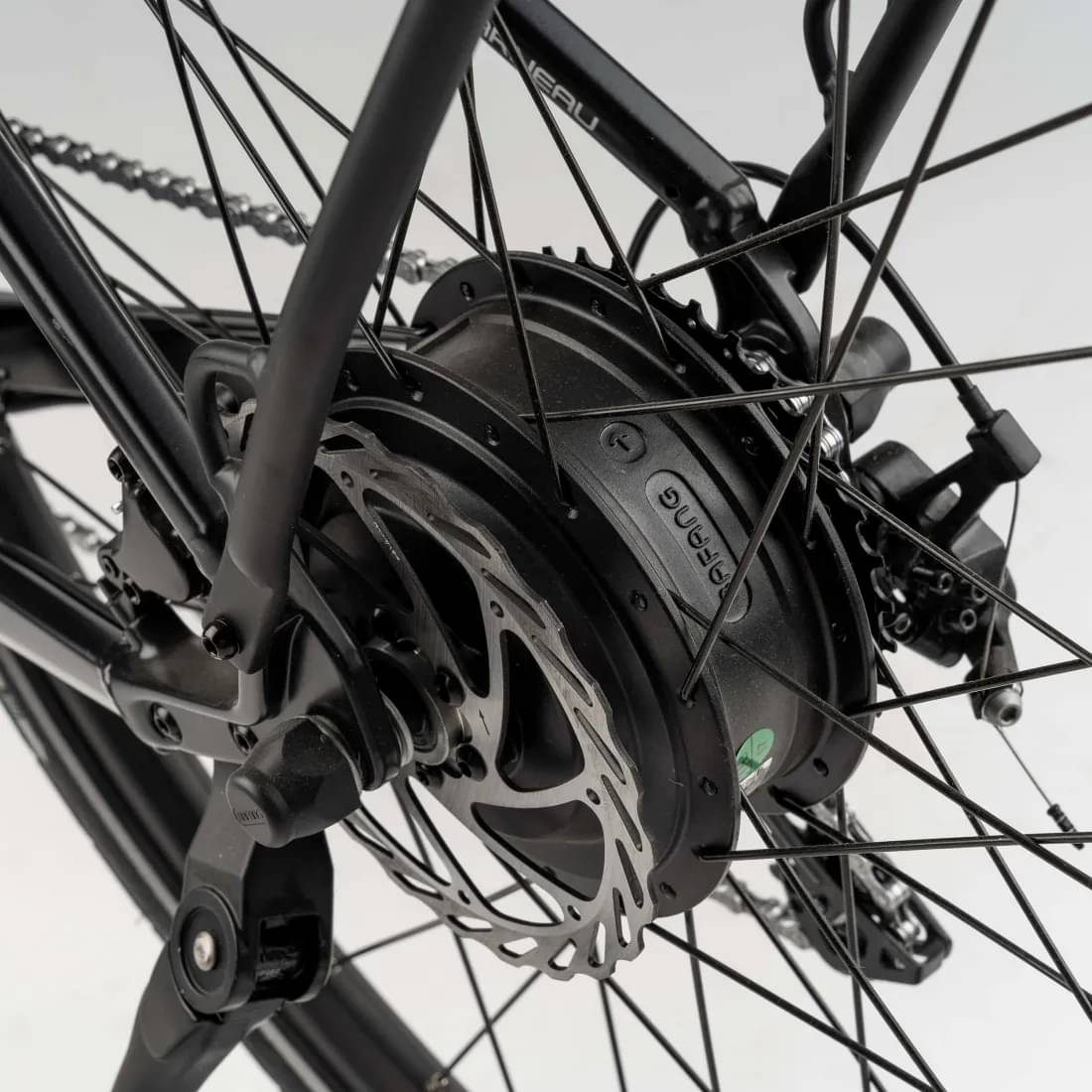

Bafang H400B 36V/350W, 45Nm, 32 km/h
Battery
Bafang 36V/ 17.8Ah (640Wh) integrated, smart BMS, 32km/h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.498 mm | 1.54 mm |
| Front Center | 644 mm | 676 mm |
| Rake | 50 mm | 50 mm |
| Trail | 70 mm | 70 mm |
| Stack | 605 mm | 647 mm |
| Reach | 404 mm | 420 mm |
| Top Tube Length | 590 mm | 625 mm |
| Seat Tube Angle | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 490 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 180 mm | 230 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1085 mm | 1118 mm |
| Bottom Bracket Drop | 70 mm | 65 mm |
| Standover Height | 732 mm | 774 mm |
| Wheels | 700 | 700 |
