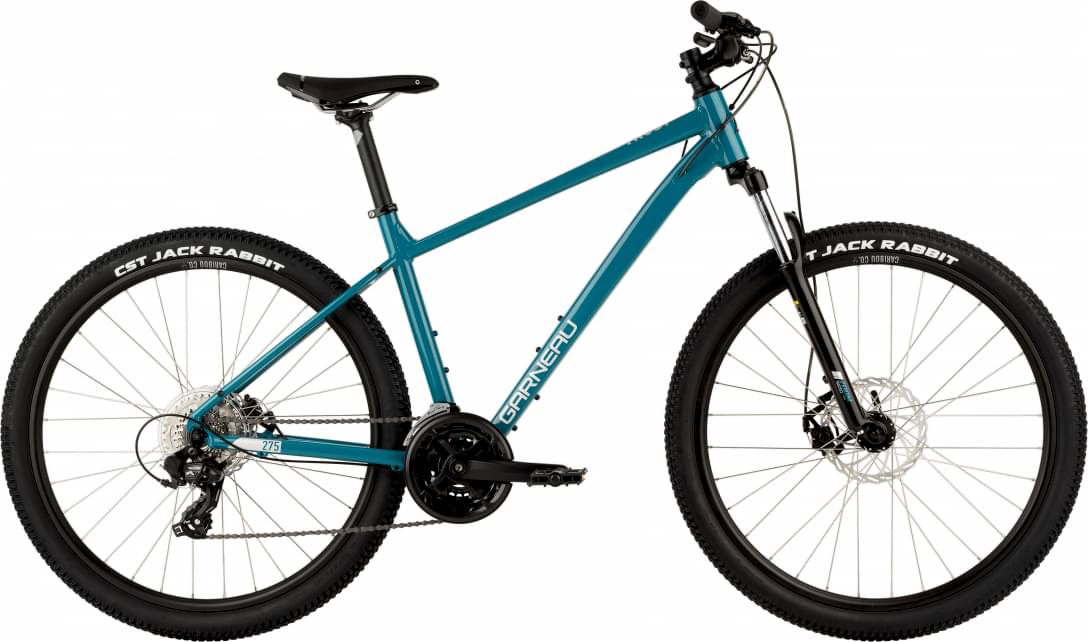

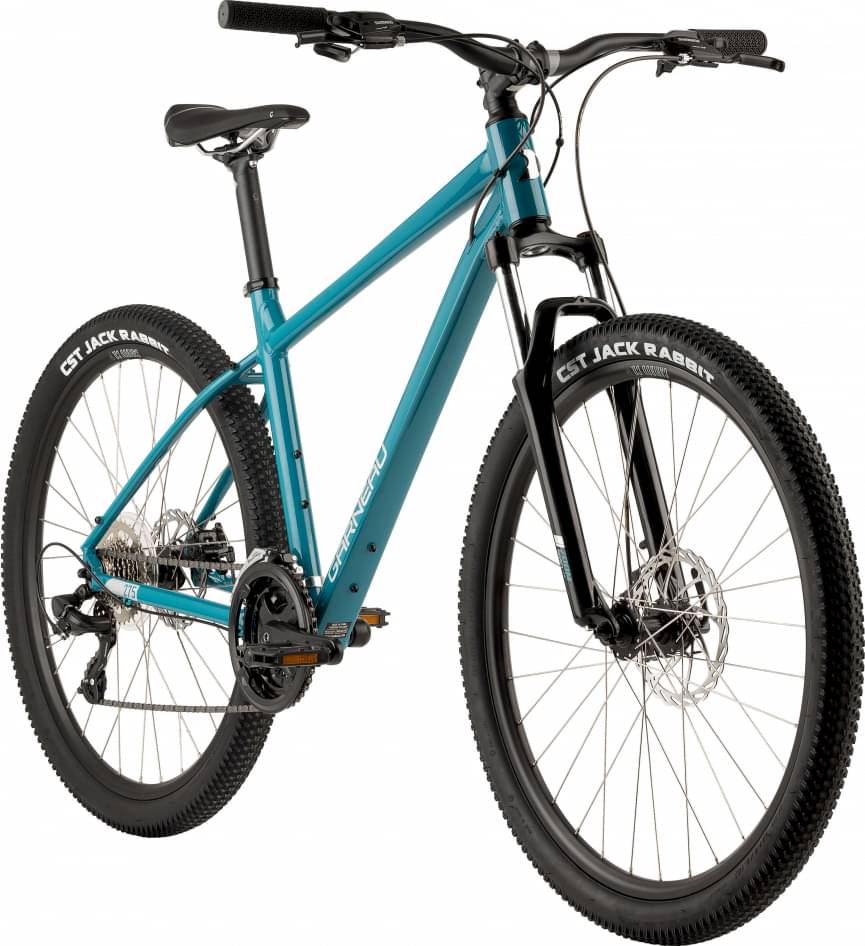

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-6 LT aluminum
Suspension Fork
Zoom 565 suspension, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Tourney TY300
Front Derailleur
Shimano Tourney TY500, 7-speed
Shift Levers
Shimano EF500, EZ-Fire Plus
Cassette
Freewheel 14-34T, 7-speed
Crank
PW, 42/34/24T
Bottom Bracket
Square taper, 68 x 120 mm
Chain
KMC Z7
Pedals
Platform
Wheels
Front Hub
KT disc 6 bolt, QR 9 x 100 mm
Rear Hub
KT disc, freewheel, QR 10 x 135 mm
Rims
Torngat D21-27.5’’, alloy, disc, 32h
Spokes
14g, stainless steel
Tires
CST Jack Rabbit, 27.5 x 2.1"
Brakes
Brakes
Jieke ZJ-5, mechanical disc brake
Brake Levers
Shimano EF500
Cockpit
Stem
Aluminum, AheadSet, 6°
Handlebar
Aluminum, 30 mm rise, Ø31.8 mm
Grips
Garneau
Headset
ZS44/28.6 | ZS44/30.0, 1 1/8''
Seat
Saddle
Garneau explore
Seatpost
Aluminum, 2-bolt, Ø27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.527 mm | 1.489 mm | 1.482 mm | 1.457 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 643 mm | 664 mm | 686 mm | 706 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 585 mm | 594 mm | 612 mm | 631 mm |
| Reach | 383 mm | 399 mm | 413 mm | 433 mm |
| Top Tube Length | 550 mm | 575 mm | 595 mm | 620 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1073 mm | 1094 mm | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 707 mm | 724 mm | 765 mm | 780 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
