Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Platinum Series 6066 butted & hydroformed aluminum, eccentric BB, cold-forged dropouts, G2 29" Geometry
Drivetrain
Cassette
18T cog
Bottom Bracket
EBB, press-fit
Pedals
N/A
Wheels
Rims
Shimano M525, Bontrager Race Disc SS hubs, Bontrager Duster 29 rims 32h
Tires
Bontrager XDX 29x2.1, 120 TPI, aramid bead, tubeless ready
Brakes
Brakes
Avid BB7 mechanical disc, 185mm front/ 160mm rear rotors
Cockpit
Stem
Bontrager SSR OS
Handlebar
Bontrager Race Big Sweep, 620mm width, 12d backsweep, 31.8mm
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Race
Seatpost
Bontrager SSR, micro adjust, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

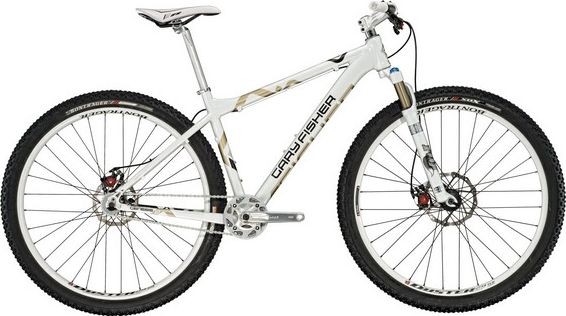

Rig Single Speed completes the Garyfisher Rig model. Gary Fisher released 6 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Rig Single Speed components
Wheels
The wheels on Rig Single Speed are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Gary Fisher Rig Single Speed is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Gary Fisher Rig Single Speed bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
