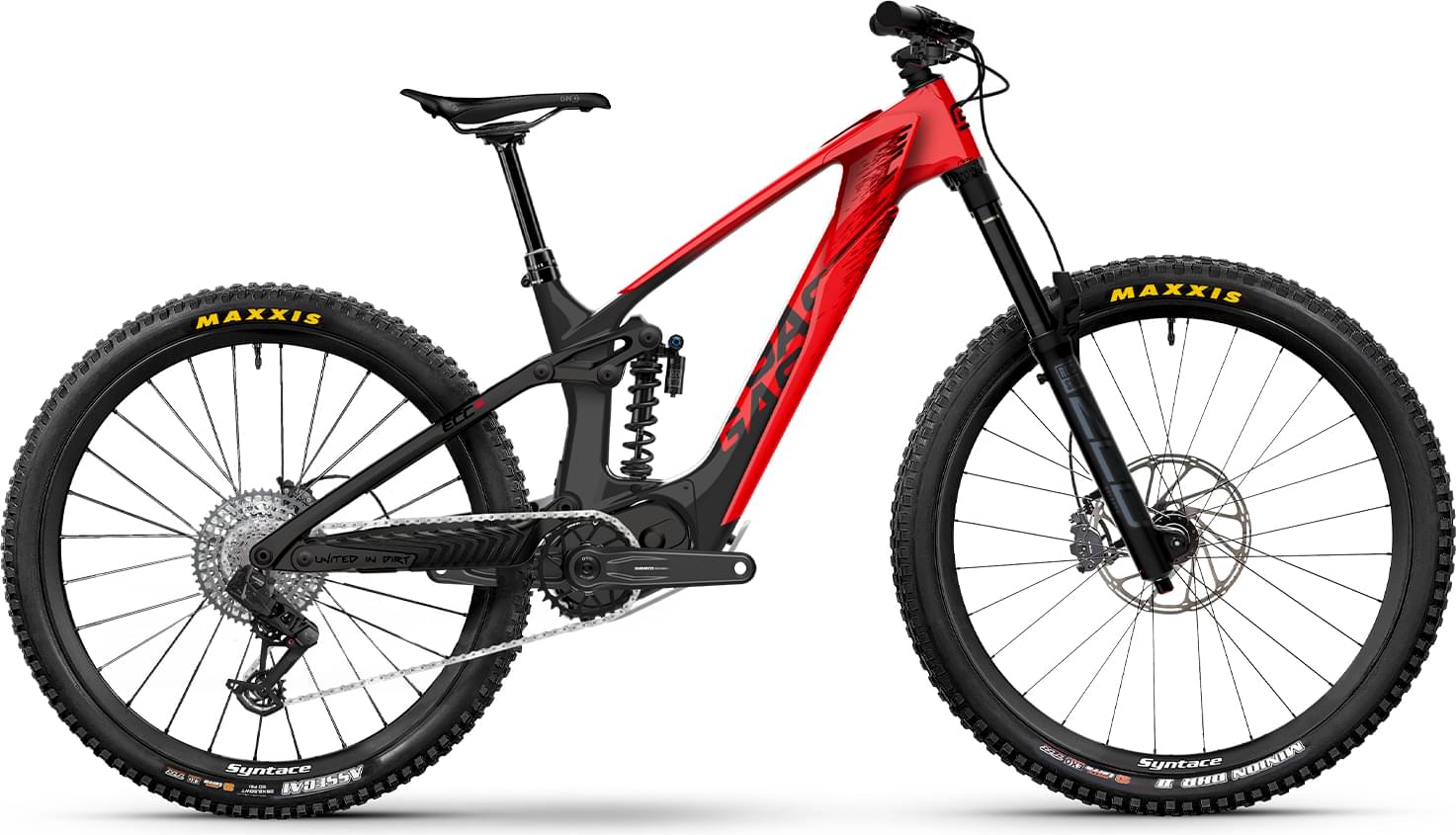

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox ZEB Select+
-
Groupset S1000 Eagle Transmission -
Suspension Full -
Motor SRAM 250W 90Nm hub-drive -
Battery SRAM Eagle Powertrain, 630 Wh -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Maven Bronze Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
MD
168cm - 179cm
LG
176cm - 187cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Carbon, Integrated battery, Boost, 160 mm
Suspension Fork
RockShox ZEB Select+, DebonAir+, Air, 170 mm, tapered
Rear Shock
RockShox Vivid Coil Select+, Coil, 205x65 mm
Drivetrain
Rear Derailleur
SRAM S1000 Eagle Transmission, 12-S
Shift Levers
SRAM AXS Pod Ultimate Controller
Cassette
SRAM XS-1270, 10-52 T
Crank
SRAM Eagle Transmission, 36 T
Chain
SRAM GX Eagle Transmission Flattop
Chain Guide
Direct Mount
Pedals
GASGAS, aluminum
Wheels
Rims
Front: Rim: Syntace W33i Straight Alu, With eyelets, Tubeless ready / Hub: Syntace PW, 6-hole, 15x110 mm, thru axle, Rear: Rim: Syntace W33i Straight Alu, With eyelets, Tubeless ready / Hub: Syntace PW, 6-hole, 12x148 mm, thru axle
Tires
Rear: Maxxis Minion DHR II, 62-622, 29 x 2.4
Brakes
Brakes
Front: SRAM Maven Bronze Stealth, 4-piston, Hydraulic disc brake, Rear: SRAM Maven Bronze Stealth, 4-piston, Hydraulic disc brake
Cockpit
Stem
Syntace Superforce 3.5, 6 °, adjustable
Handlebar
Syntace AL 6061 Advanced 31.8 mm, 780 mm, Sweep: 8 °, Rise: 20 mm
Grips
GASGAS MTB, Lock-on grips
Headset
Acros AZX-579 ZS56/ZS56
Seat
Saddle
Selle San Marco GND
Seatpost
GASGAS Pro, 34.9 mm, 402 mm, Dropper post
Motor & Battery
Motor
SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm
Battery
SRAM Eagle Powertrain, 630 Wh
Charger
SRAM Eagle Powertrain Charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.442 mm | 1.396 mm | 1.396 mm | 1.352 mm | 1.352 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 799 mm | 799 mm | 831 mm | 831 mm | 863 mm | 863 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 135 mm | 136 mm | 136 mm | 135 mm | 135 mm |
| Stack | 649 mm | 649 mm | 663 mm | 663 mm | 676 mm | 676 mm |
| Reach | 450 mm | 450 mm | 475 mm | 475 mm | 500 mm | 500 mm |
| Top Tube Length | 588 mm | 588 mm | 613 mm | 613 mm | 638 mm | 638 mm |
| Seat Tube Angle | 76 ° | 76 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 440 mm | 470 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 115 mm | 130 mm | 130 mm | 145 mm | 145 mm |
| Chainstay Length | 461 mm | 461 mm | 465 mm | 465 mm | 469 mm | 469 mm |
| Wheelbase | 1258 mm | 1258 mm | 1294 mm | 1294 mm | 1330 mm | 1330 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 176 cm | 176 cm |
| Rider Max Height | 170 cm | 170 cm | 179 cm | 179 cm | 187 cm | 187 cm |
