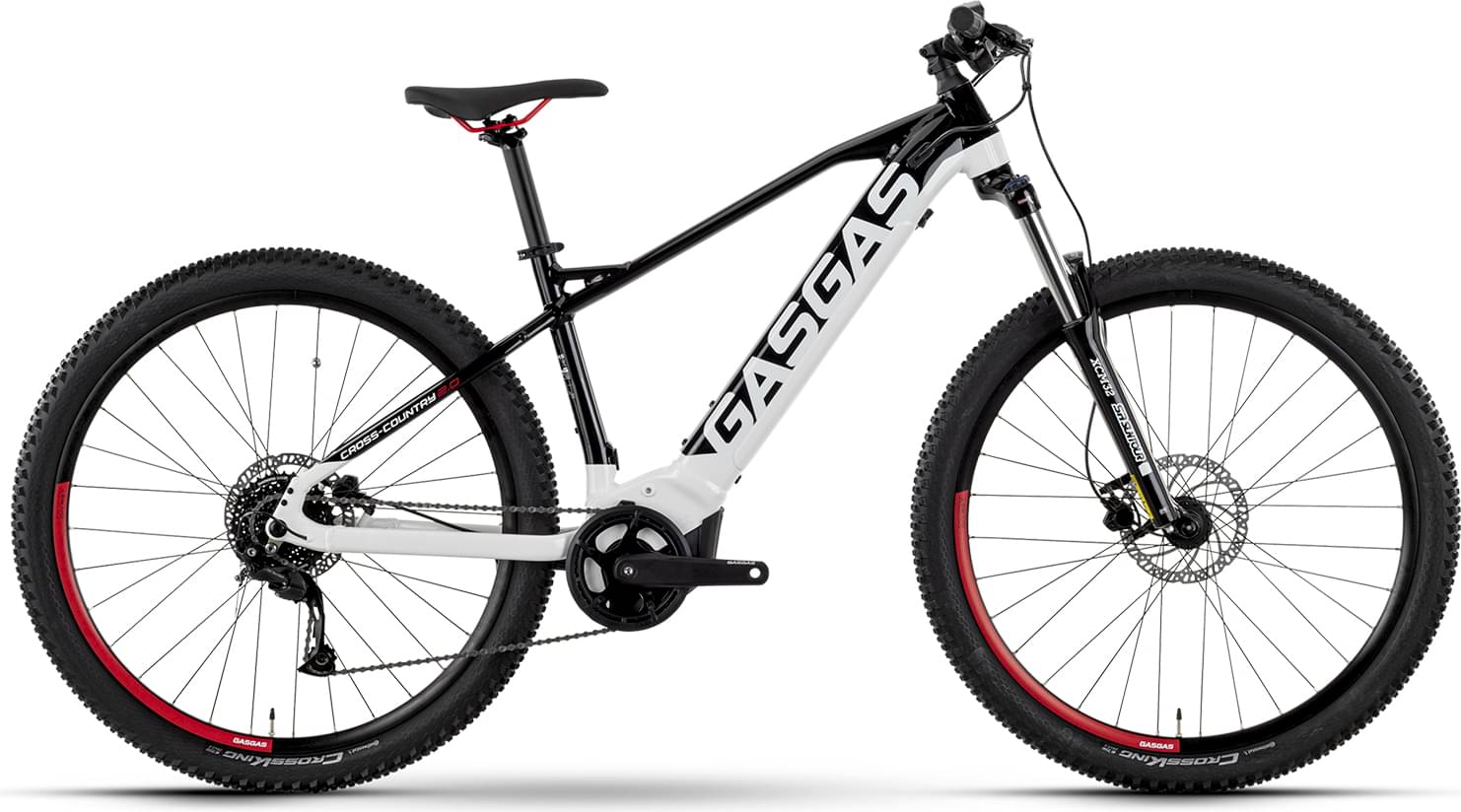

gasgas G CROSS COUNTRY 2.0 2024
2024 E-bike
Estimate price |
3,085$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Simplo, 630 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR XCM32 NLO, Coil, 120 mm, tapered
Drivetrain
Rear Derailleur
Tektro RD-T350, 9-S
Shift Levers
Tektro SL-M350R
Cassette
Tektro CS-M350, 11-46 T
Crank
GASGAS, 38 T
Chain
KMC e9S
Chain Guide
Direct Mount
Pedals
GASGAS, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRAXX, With eyelets / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRAXX, With eyelets / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle
Tires
Continental Cross King, 58-622, 29, 2.3
Brakes
Brakes
Front: Tektro HD-M275, 2-piston, Hydraulic disc brake, Rear: Tektro HD-M275, 2-piston, Hydraulic disc brake
Cockpit
Stem
GASGAS 31,8, 7 °, Ahead
Handlebar
GASGAS Riser 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
Grips
GASGAS MTB, Lock-on grips
Headset
GASGAS ZS44/ZS56
Seat
Saddle
GASGAS MTB
Seatpost
GASGAS, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Simplo, 630 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.458 mm | 1.446 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 737 mm | 751 mm | 764 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 113 mm | 113 mm | 114 mm |
| Stack | 646 mm | 656 mm | 665 mm |
| Reach | 440 mm | 450 mm | 460 mm |
| Top Tube Length | 625 mm | 638 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1206 mm | 1220 mm | 1233 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
