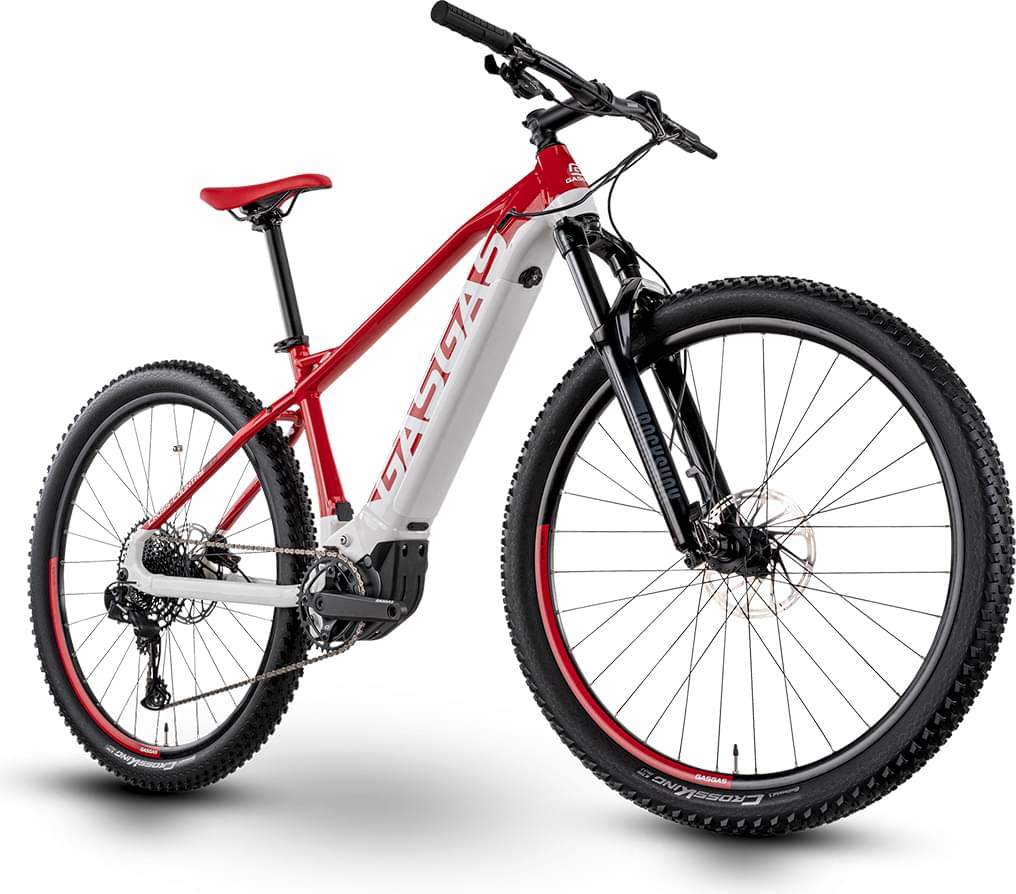

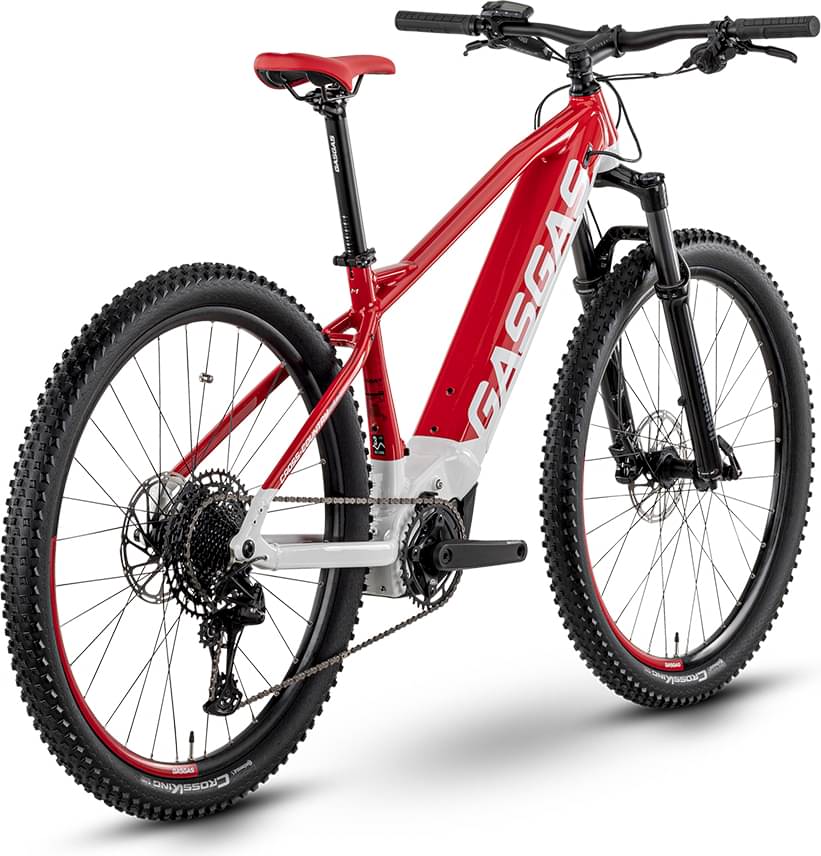

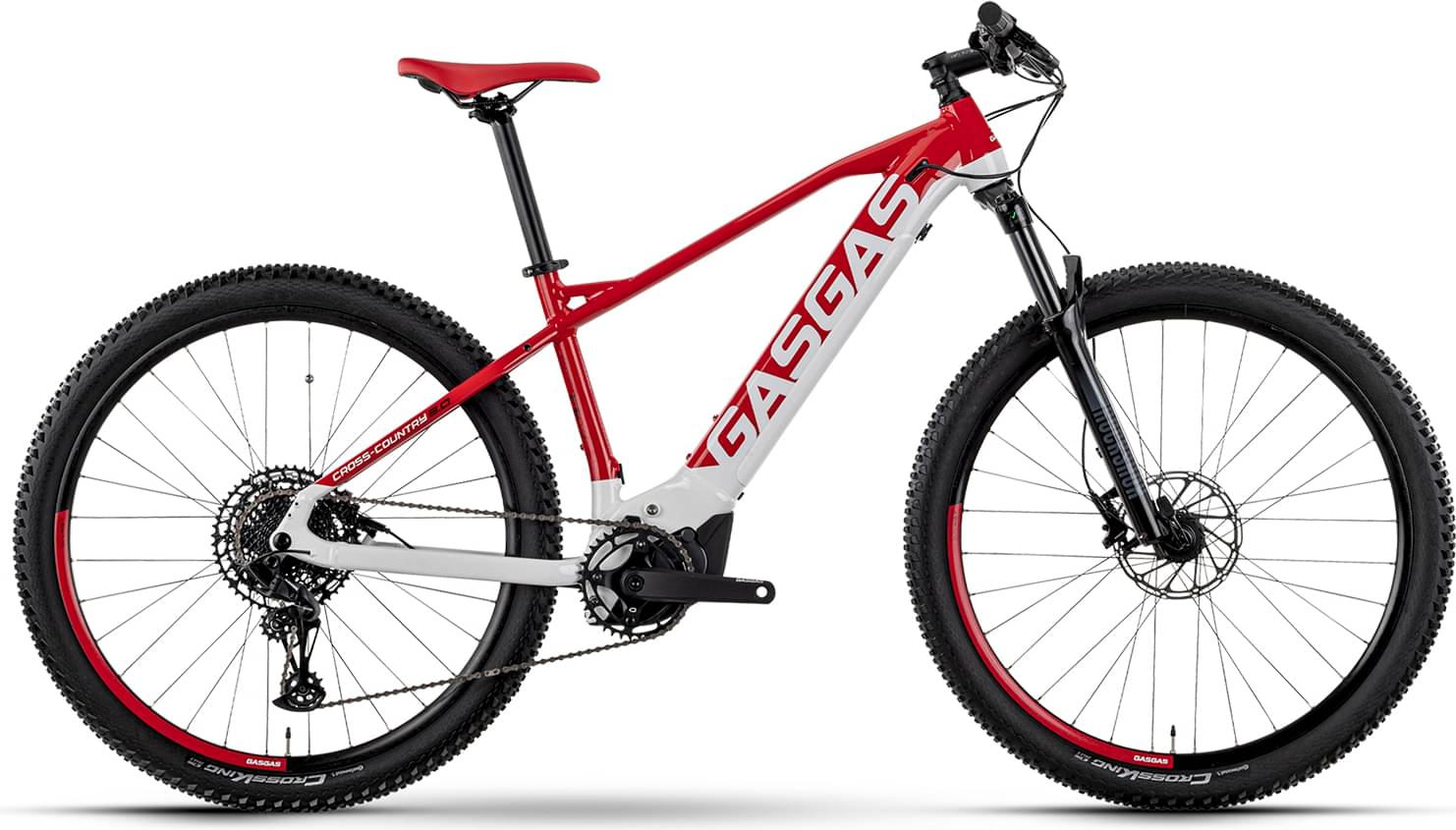

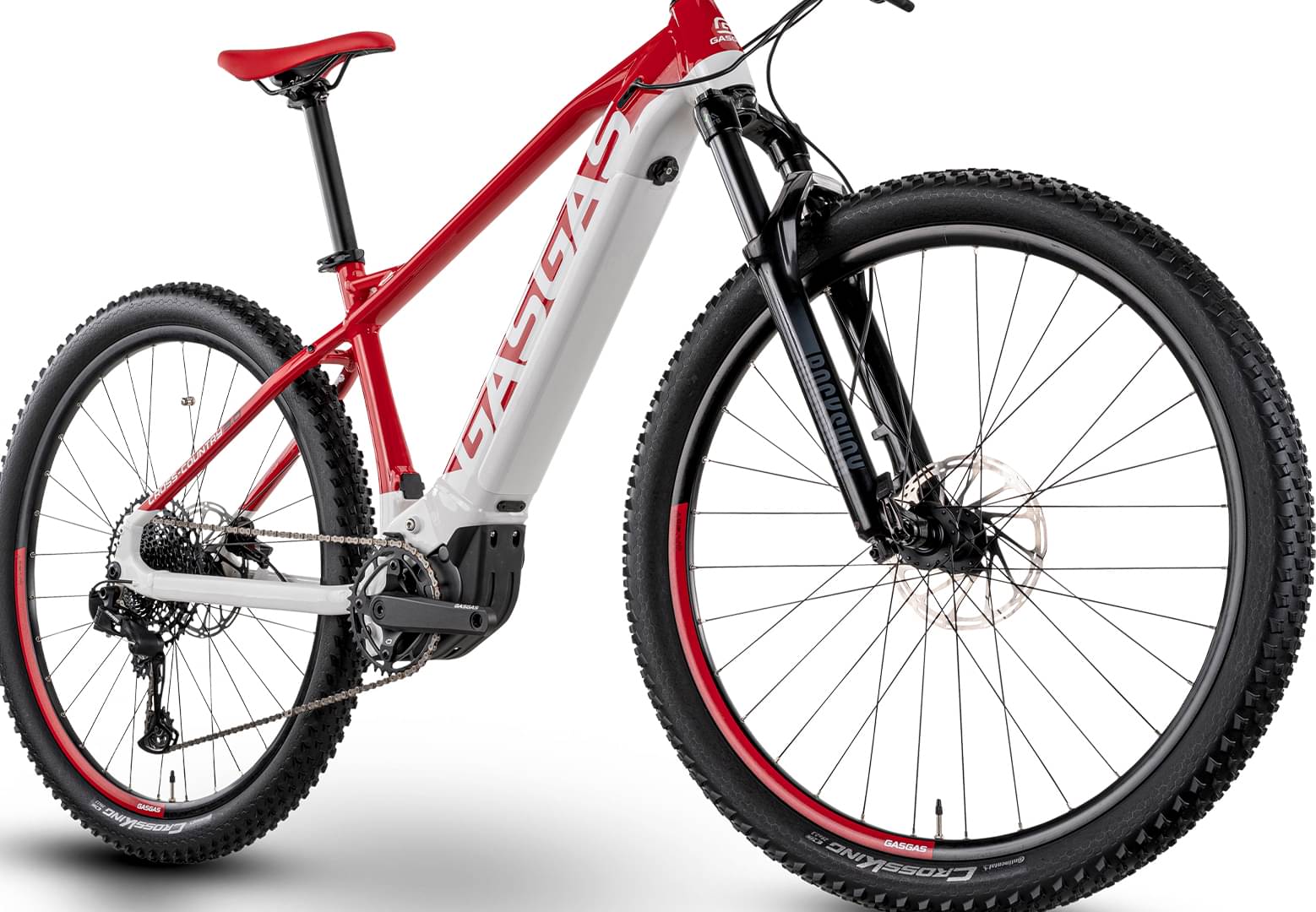

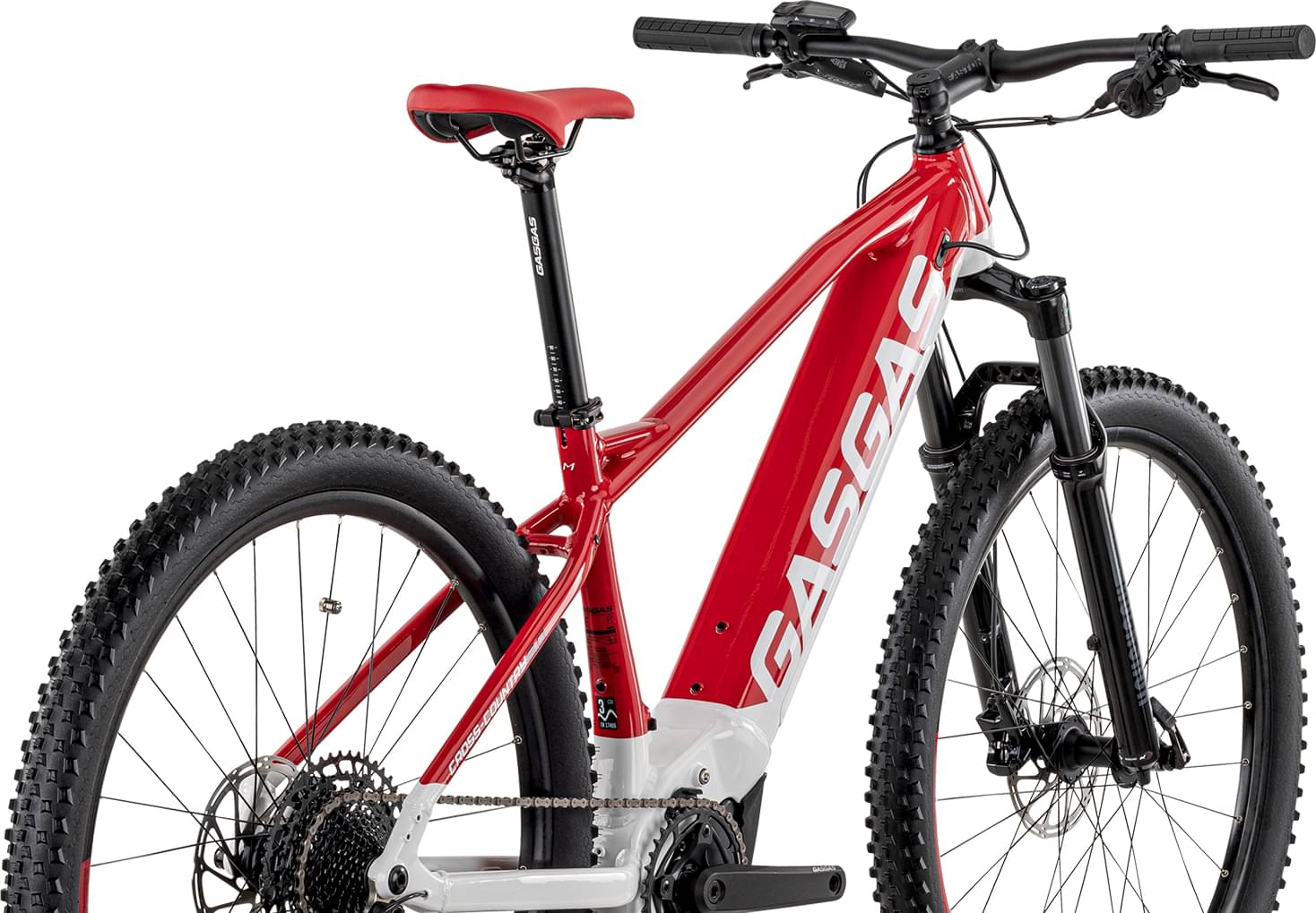

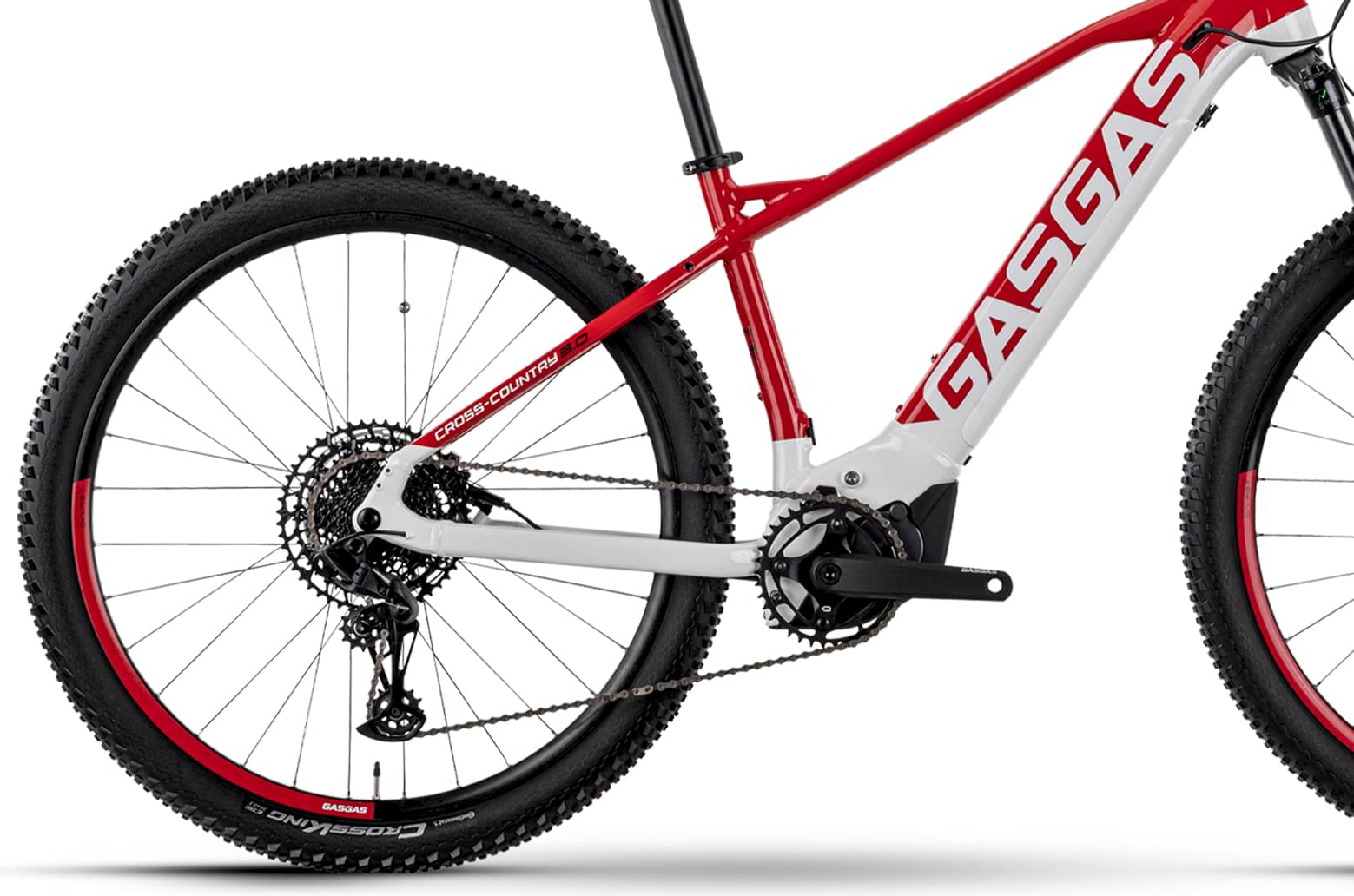

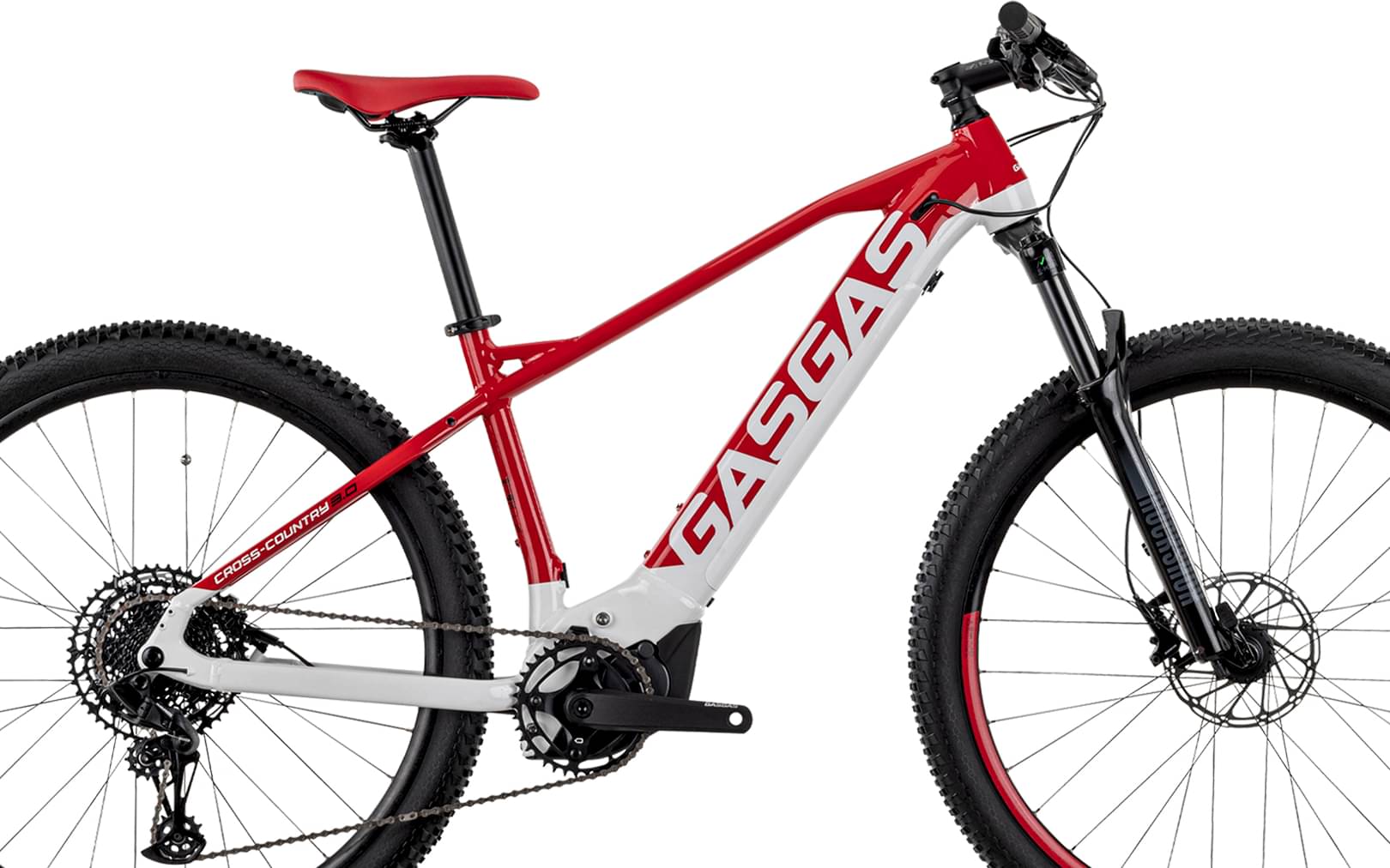

gasgas G CROSS COUNTRY 3.0 2024
2024 E-bike
Estimate price |
3,634$
Weight | 23.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Simplo, 630 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery
Suspension Fork
RockShox 35 Silver TK, Solo Air, Air, 120 mm, tapered
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-S
Shift Levers
SRAM SX Eagle, Single Click
Cassette
SRAM PG-1210, 11-50 T
Crank
SRAM X-Sync Eagle, 38 T
Chain
SRAM SX Eagle
Chain Guide
Direct Mount
Pedals
GASGAS, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRAXX, With eyelets / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRAXX, With eyelets / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle
Tires
Continental Cross King, 58-622, 29, 2.3
Brakes
Brakes
Front: SRAM Level T, 2-piston, Hydraulic disc brake, Rear: SRAM Level T, 2-piston, Hydraulic disc brake
Cockpit
Stem
GASGAS 31,8, 7 °, Ahead
Handlebar
GASGAS Riser 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
Grips
GASGAS MTB, Lock-on grips
Headset
GASGAS ZS44/ZS56
Seat
Saddle
GASGAS MTB
Seatpost
GASGAS, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-X3, 250 W, 85 Nm
Battery
Simplo, 630 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.458 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 737 mm | 751 mm |
| Rake | 42 mm | 42 mm |
| Trail | 113 mm | 113 mm |
| Stack | 646 mm | 656 mm |
| Reach | 440 mm | 450 mm |
| Top Tube Length | 623 mm | 638 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 475 mm | 475 mm |
| Wheelbase | 1206 mm | 1220 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
