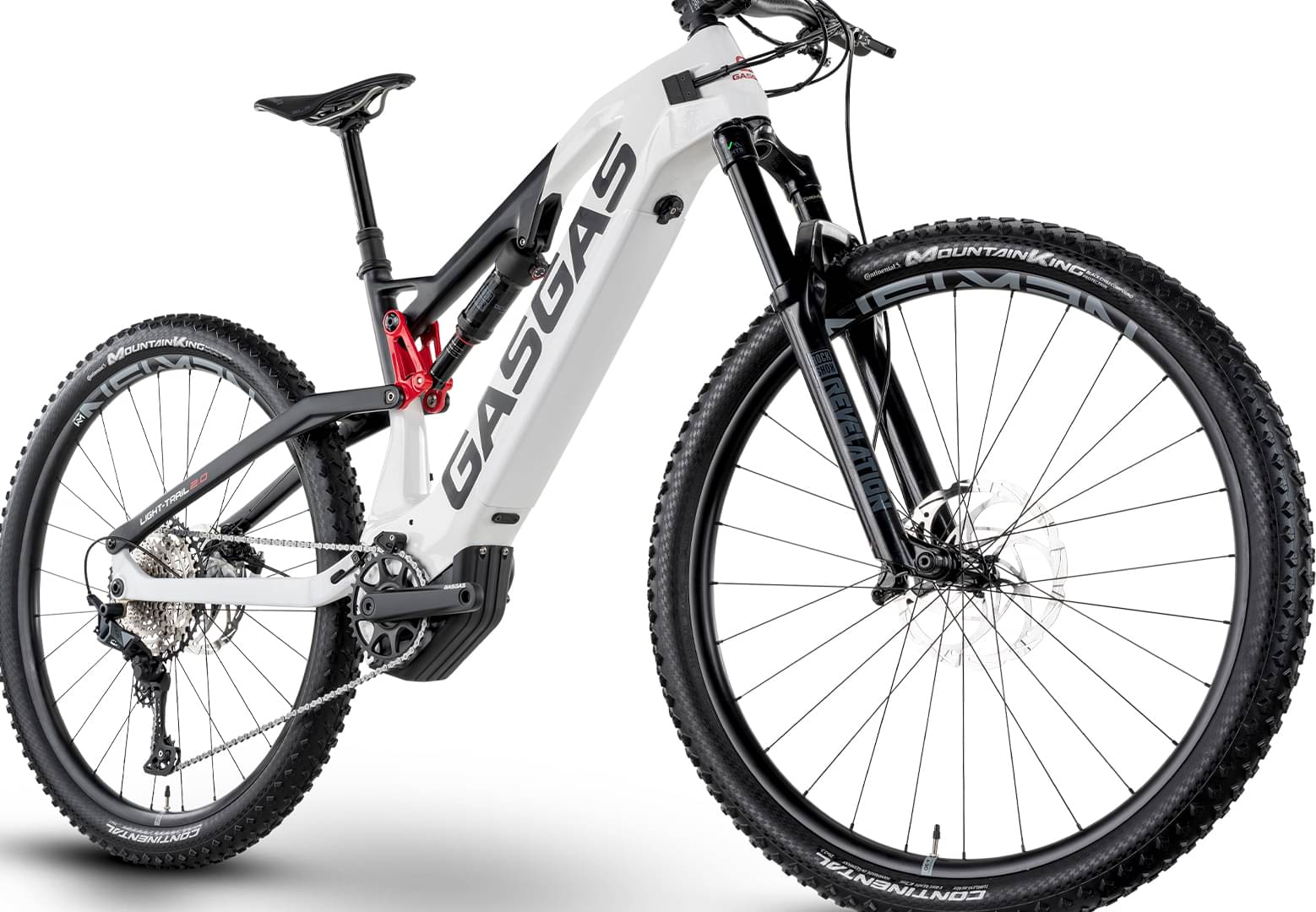

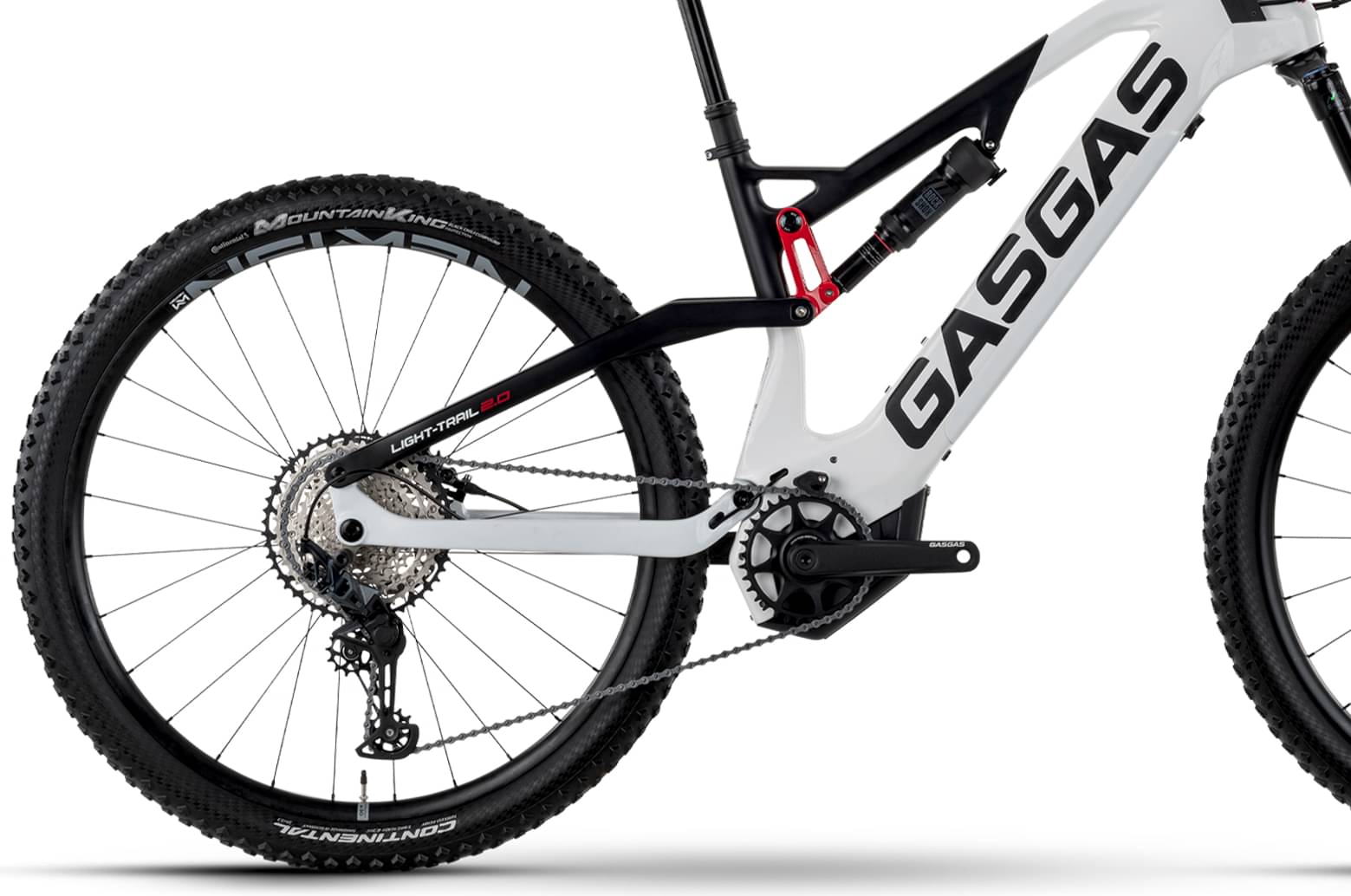

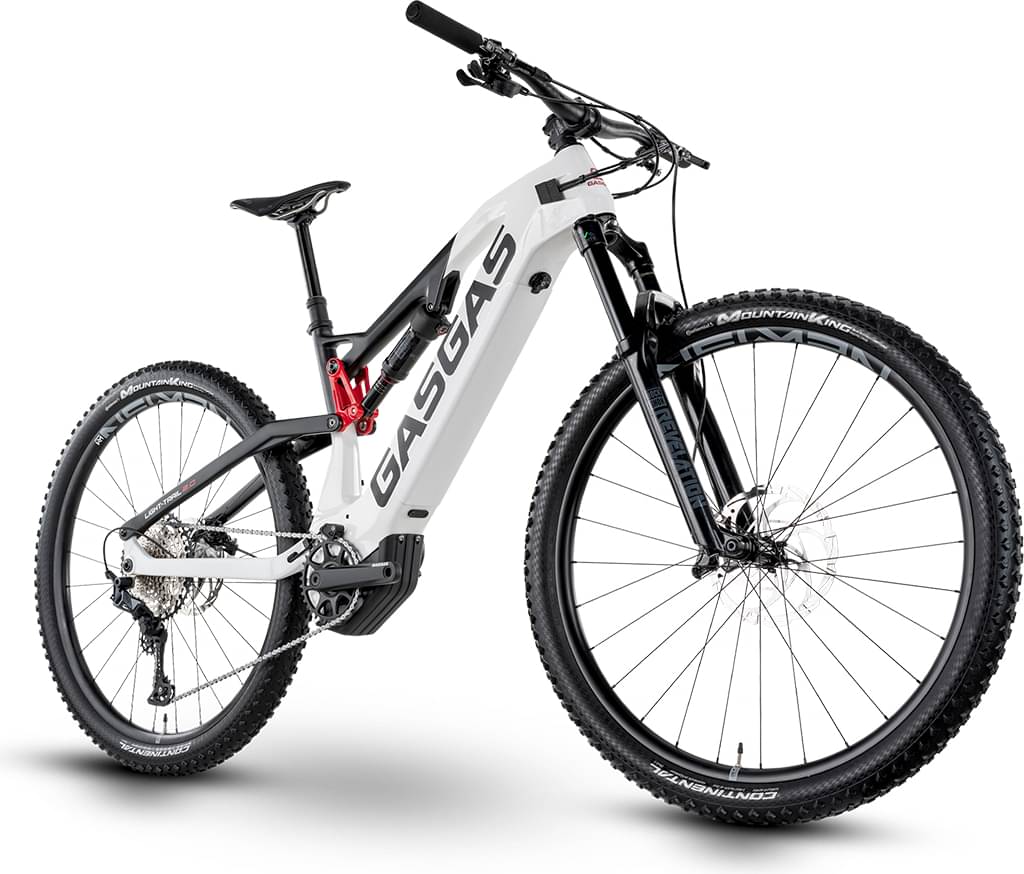

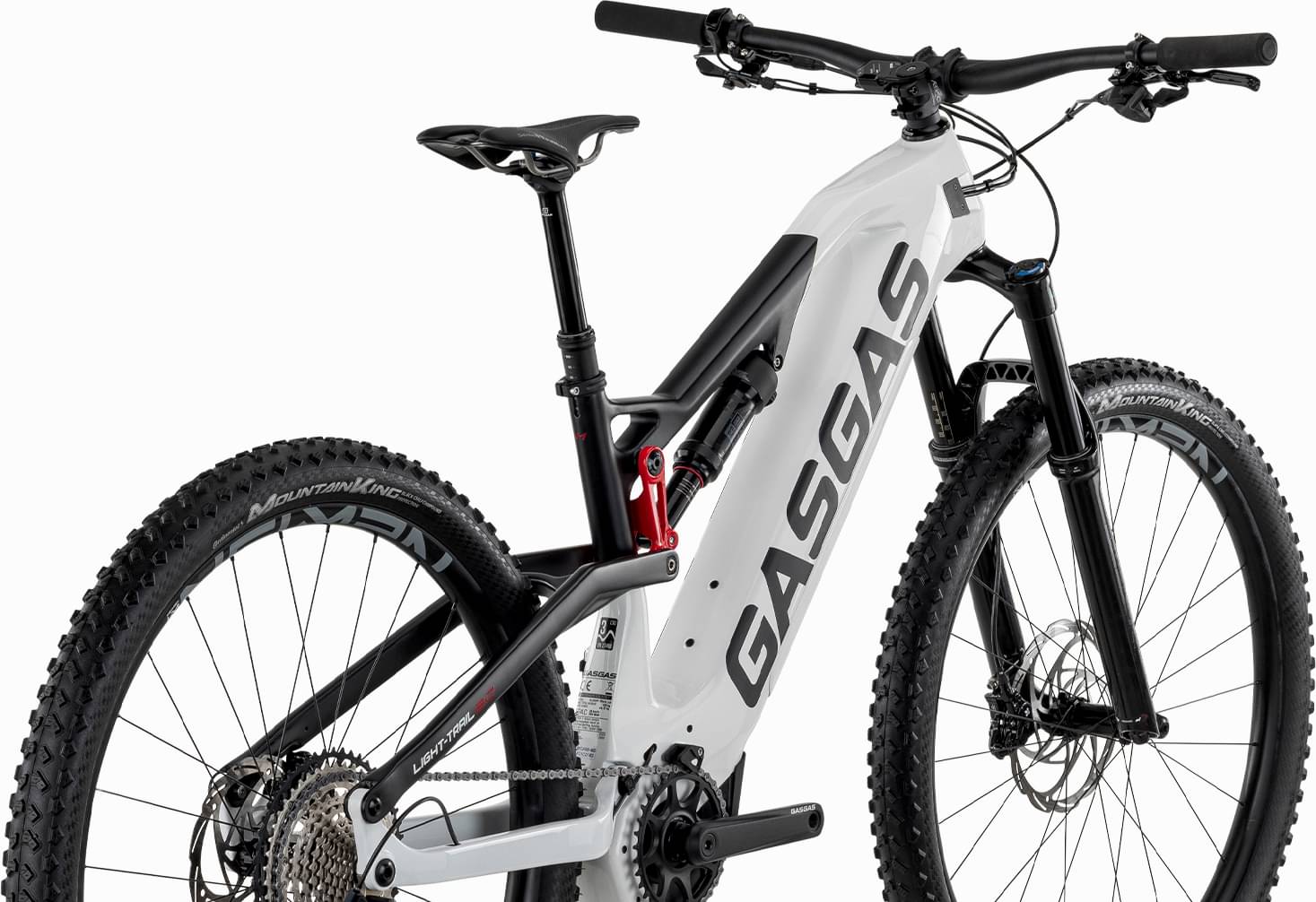

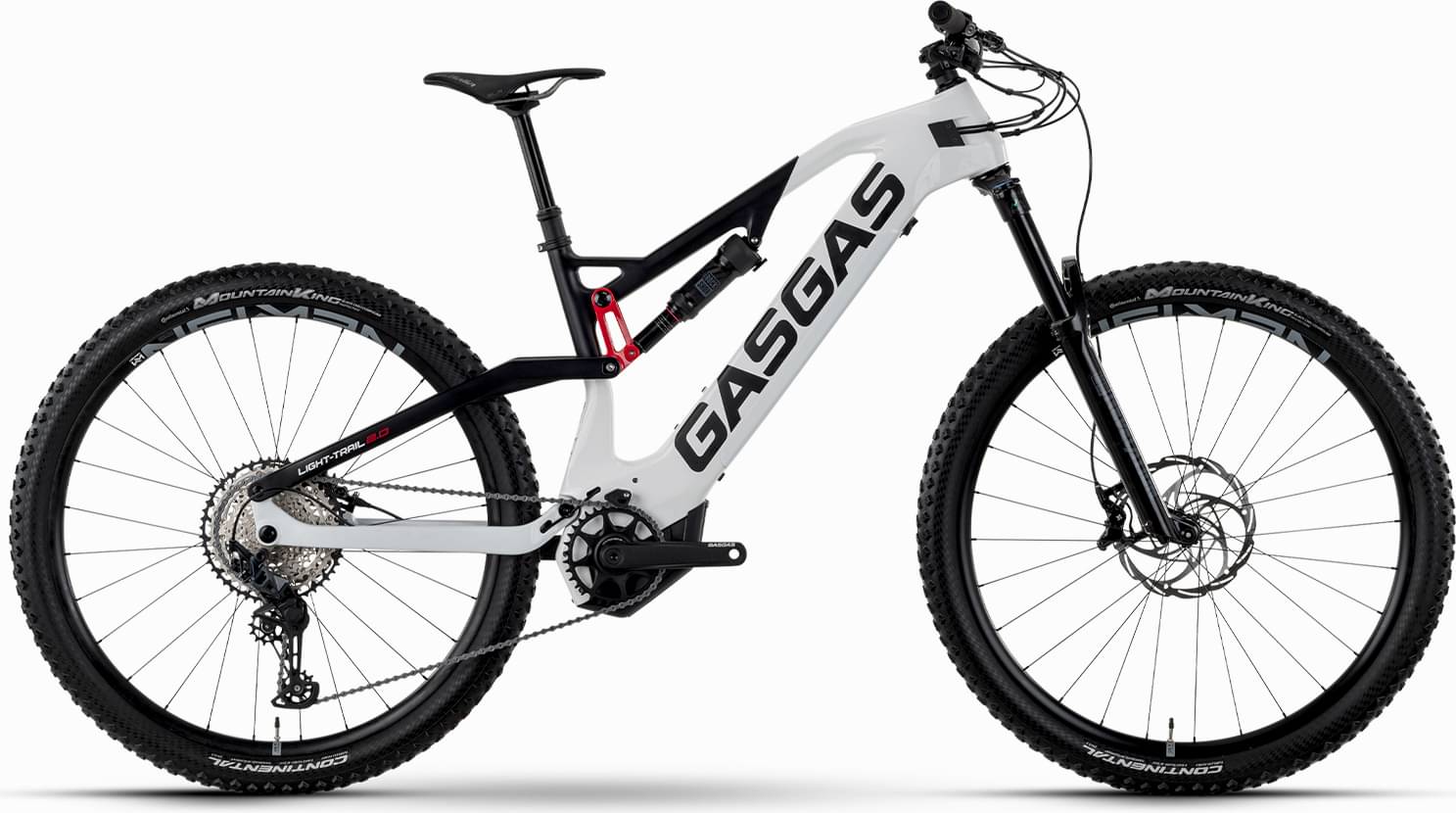

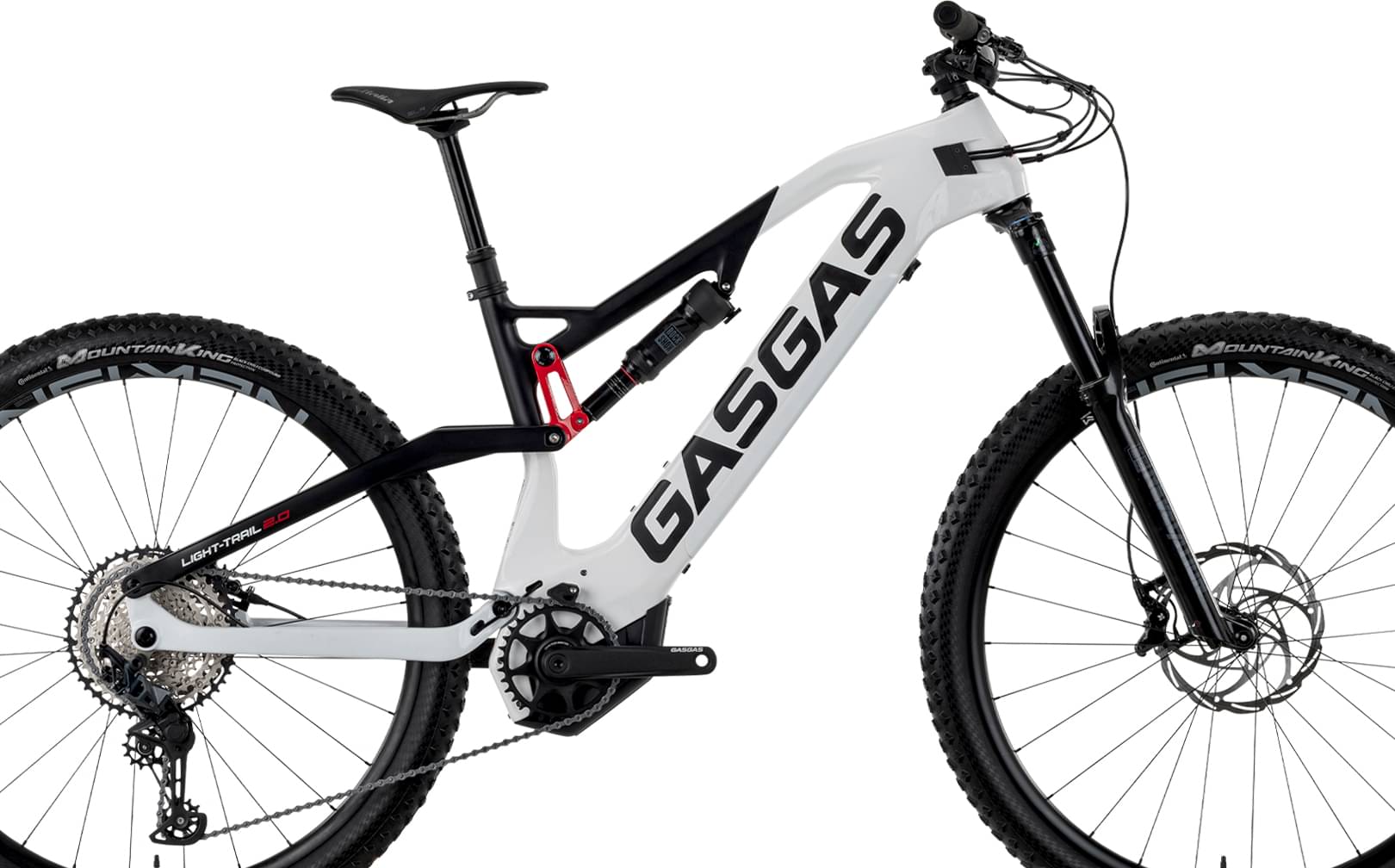

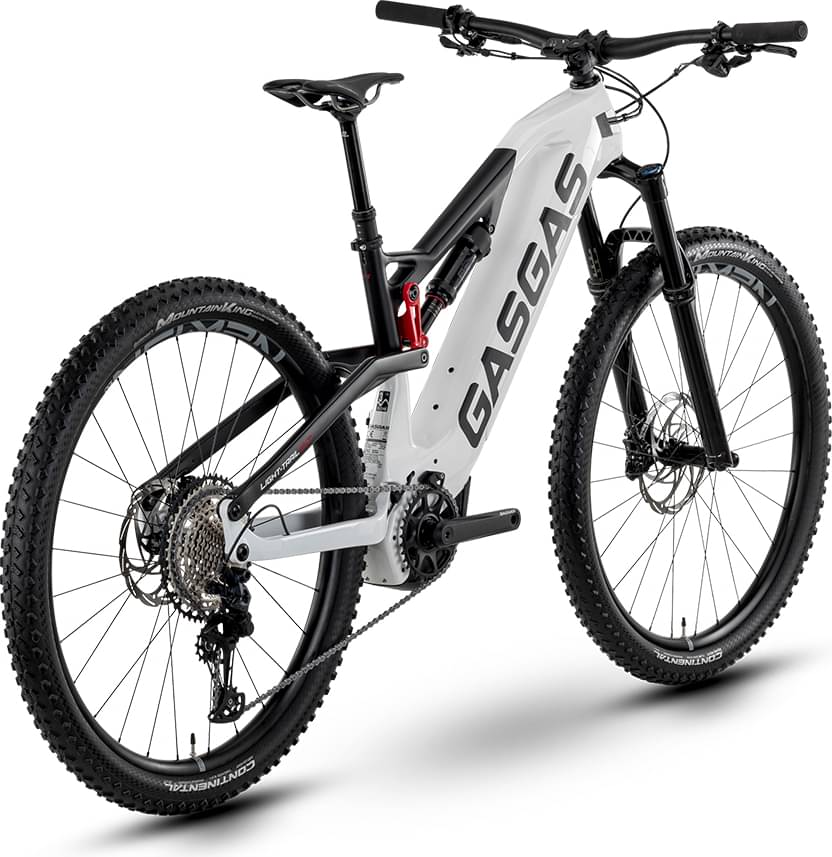

gasgas G LIGHT TRAIL 2.0 2024
2024 E-bike
Estimate price |
4,937$
Weight | 20.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Revelation RC
-
Groupset NX Eagle, SX Eagle -
Suspension Full -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Carbon, Integrated battery, Boost, 150 mm
Suspension Fork
RockShox Revelation RC, DebonAir, Air, 150 mm, tapered
Rear Shock
RockShox Deluxe Select, Air, 230x65 mm
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-S
Shift Levers
SRAM SX Eagle, Single Click
Cassette
SRAM PG-1210, 10-50 T
Crank
SRAM X-Sync Eagle, 34 T
Chain
SRAM SX Eagle
Chain Guide
Direct Mount
Wheels
Rims
NEWMEN Evolution A.30, Tubeless ready, 6-hole, 15x110/12x148 mm, thru axle
Tires
Continental Mountain King, 29, 2.3, Tubeless ready
Brakes
Brakes
Front: Formula Cura 4, 4-piston, Hydraulic disc brake, Rear: Formula Cura, 2-piston, Hydraulic disc brake
Brake Levers
Formula Cura X, Brake lever, adjustable, 2-finger
Cockpit
Stem
Race Face Affect 35, 0 °, Ahead
Handlebar
Race Face Turbine 35 mm, 780 mm, Sweep: 8 °, Rise: 20 mm
Grips
GASGAS MTB
Headset
GASGAS ZS44/ZS56
Seat
Saddle
Selle Italia SLR Boost, Titan
Seatpost
GASGAS Pro, 31.6 mm, Dropper post
Motor & Battery
Motor
AIR DRIVE powered by Yamaha, 250 W, 50 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.331 mm | 1.291 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Front Center | 791 mm | 816 mm | 843 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 123 mm | 122 mm |
| Stack | 642 mm | 647 mm | 656 mm |
| Reach | 462 mm | 486 mm | 508 mm |
| Top Tube Length | 605 mm | 630 mm | 655 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1265 mm | 1290 mm | 1317 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
