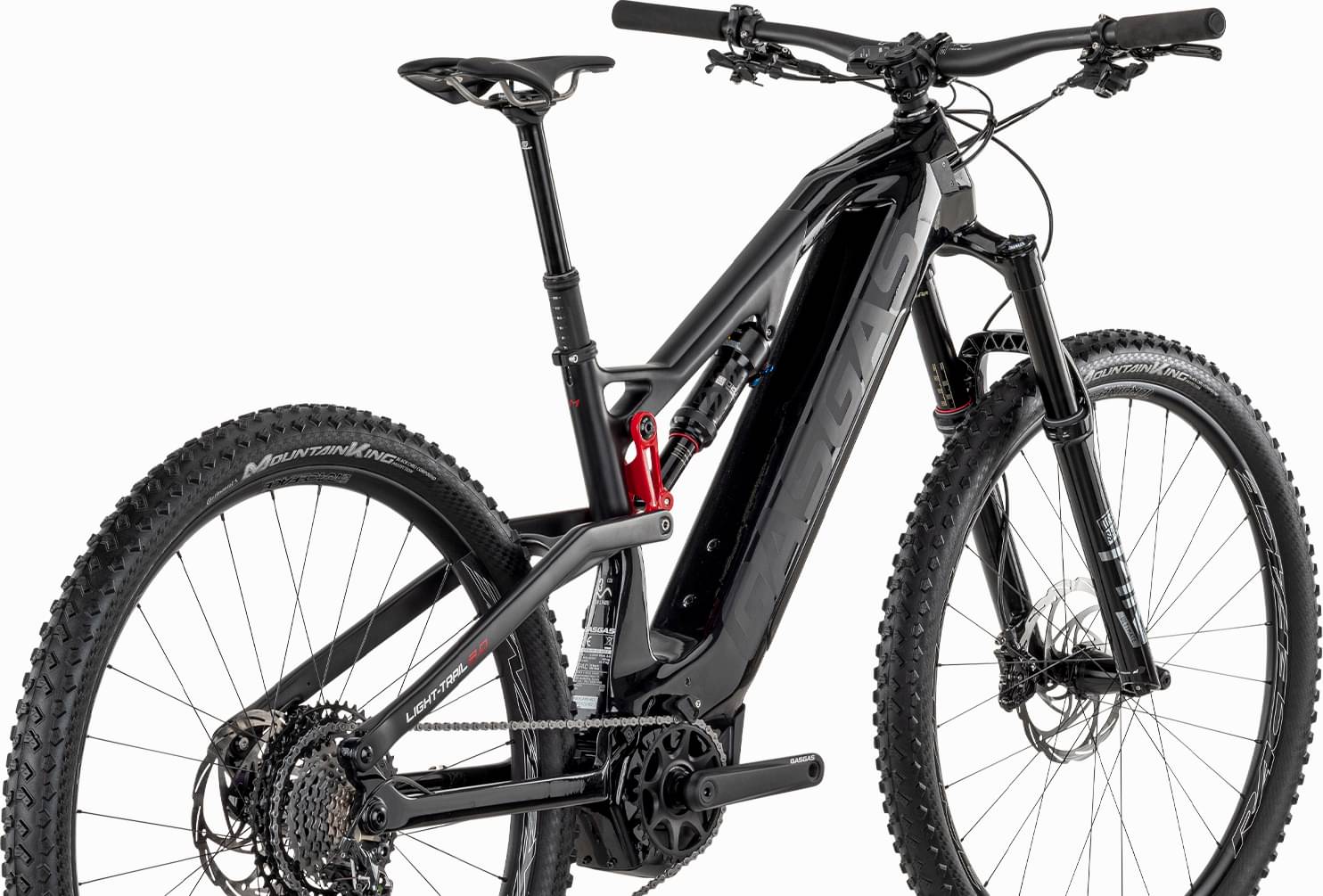

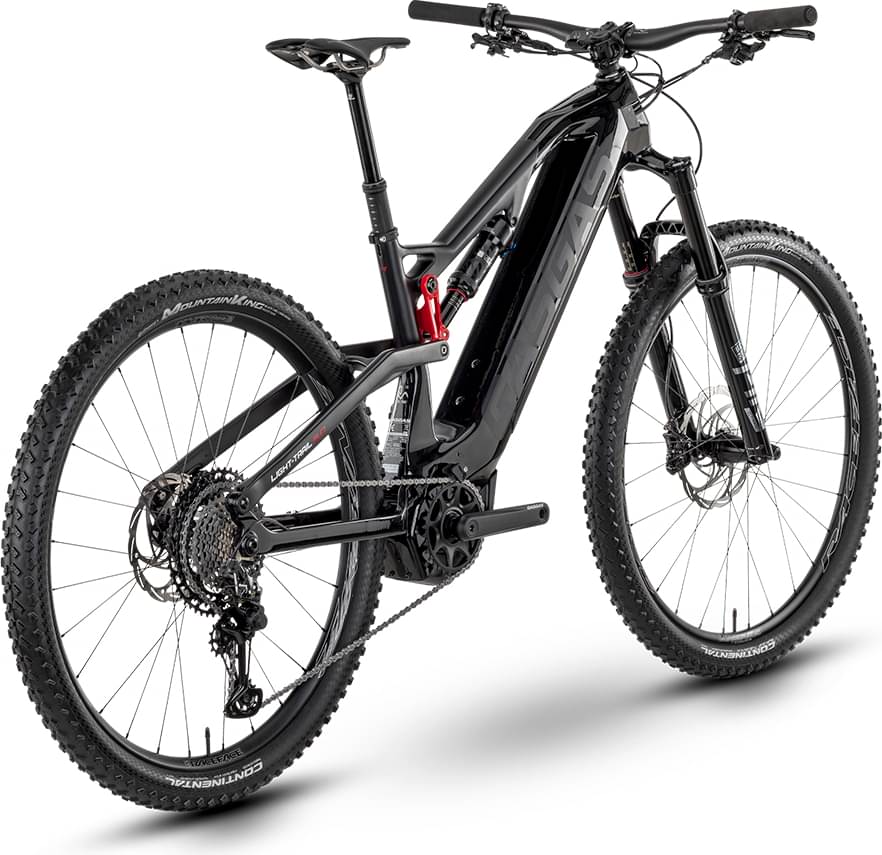

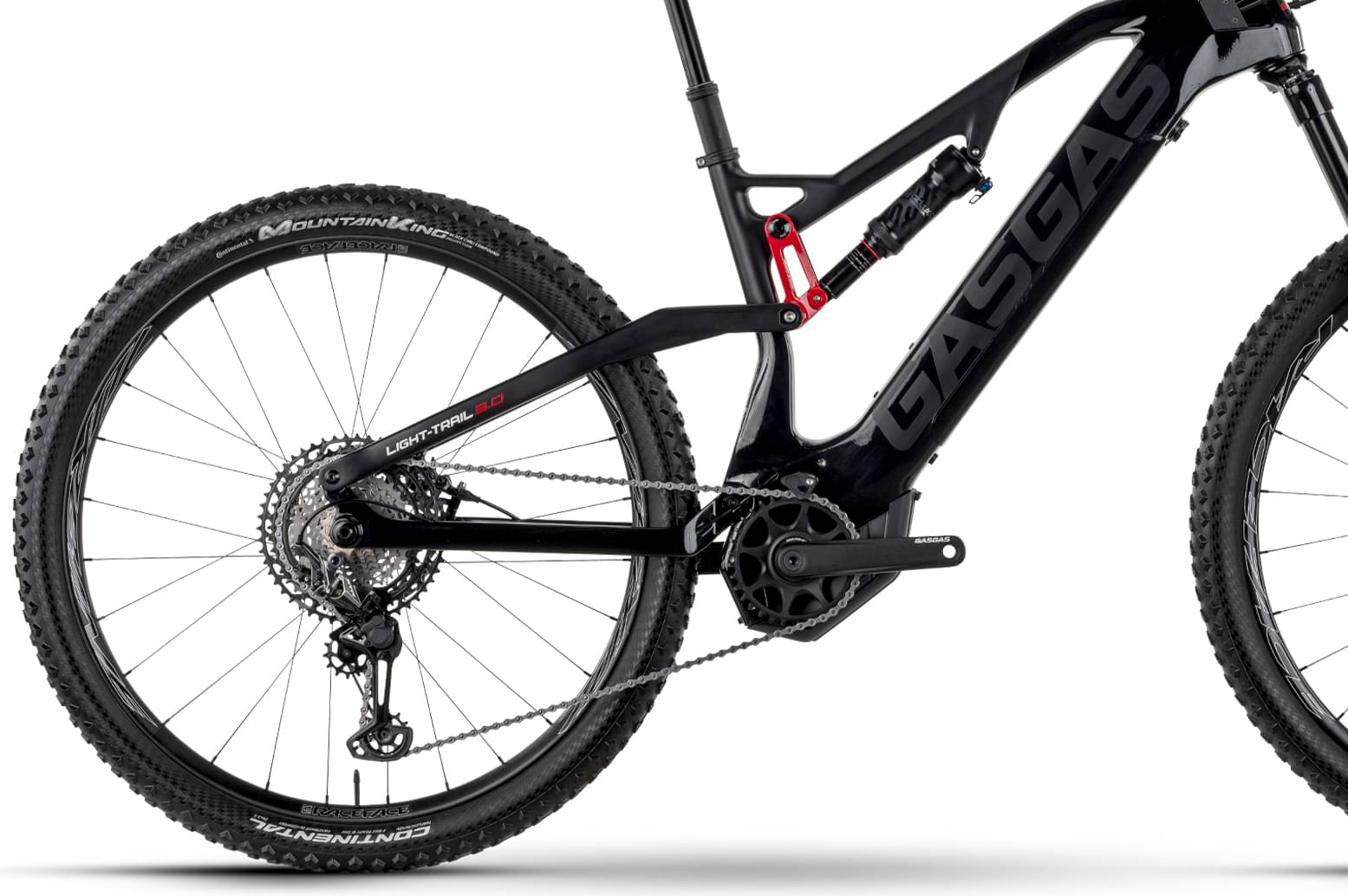

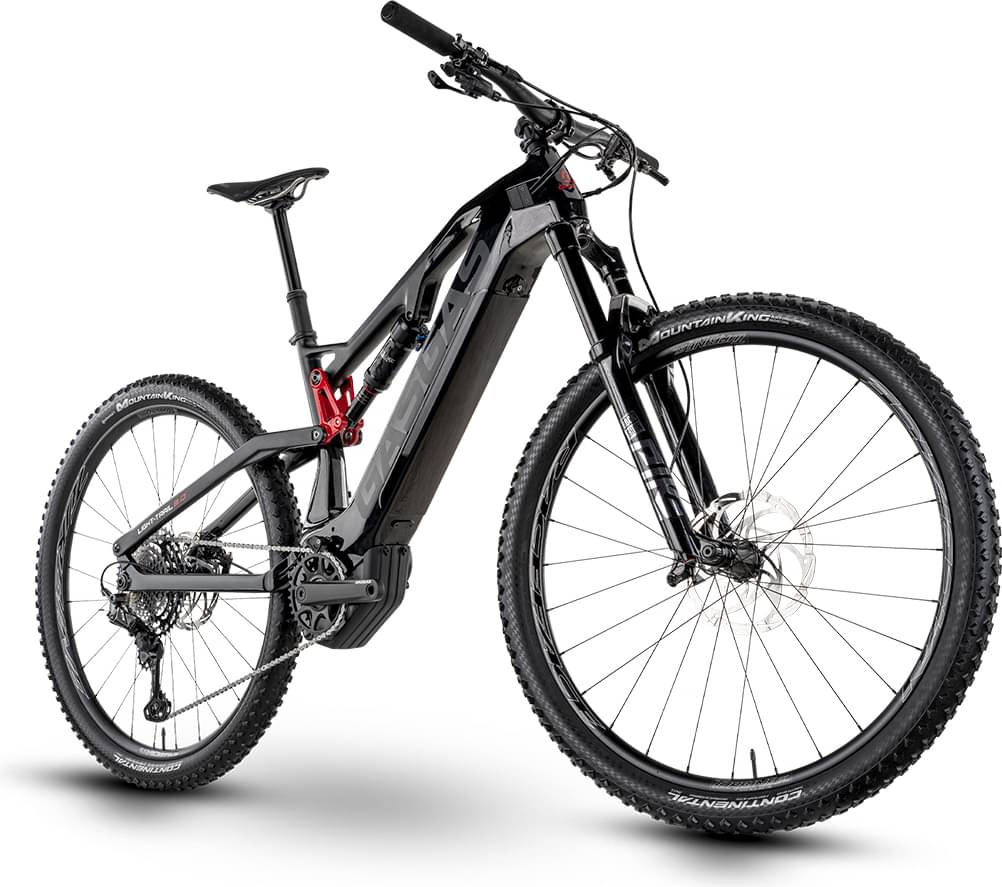

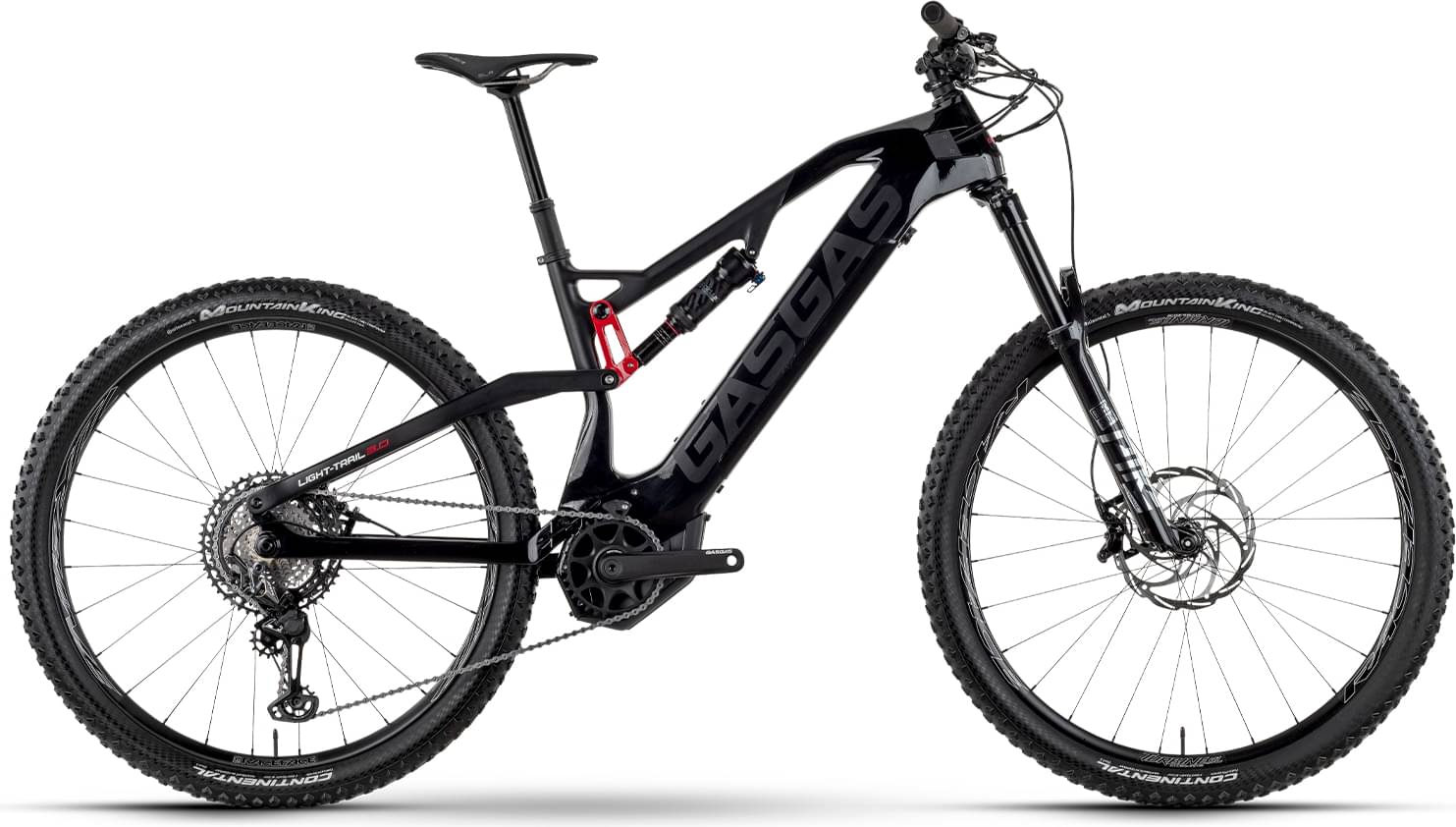

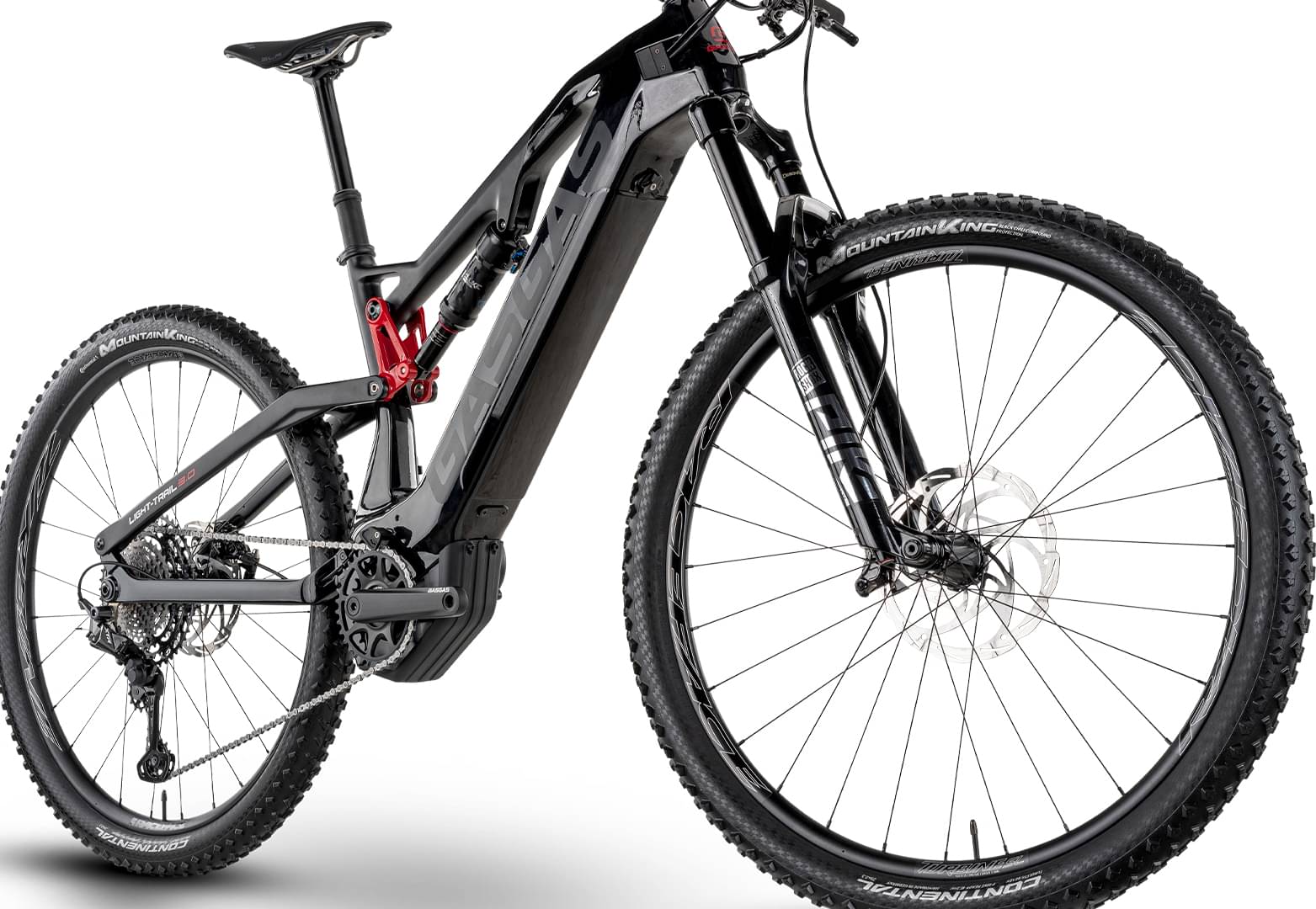

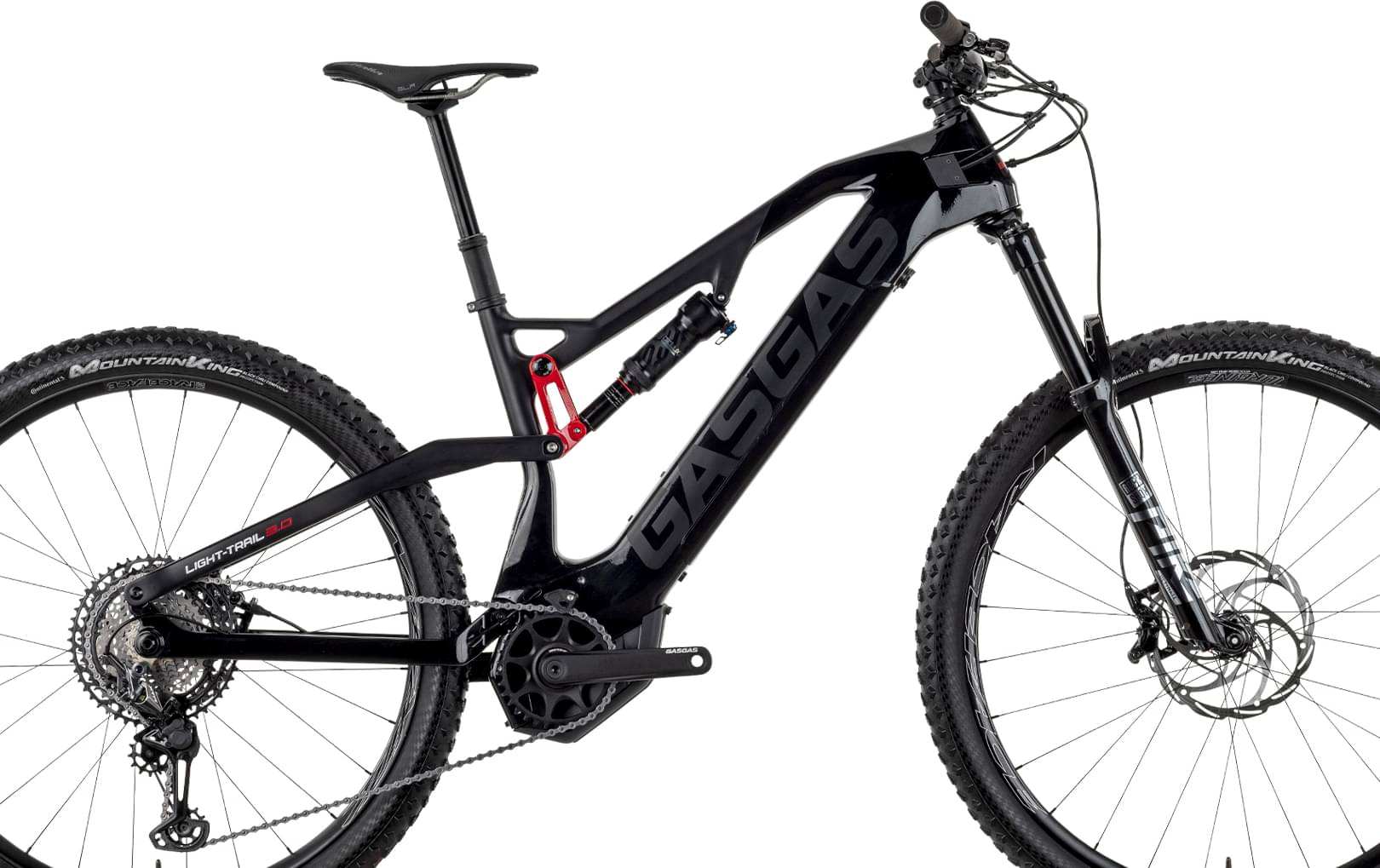

gasgas G LIGHT TRAIL 3.0 2024
2024 E-bike
Estimate price |
6,057$
Weight | 19.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset XTR -
Suspension Full -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha ML400, 410 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Carbon, Integrated battery, Boost, 150 mm
Suspension Fork
RockShox Lyrik Ultimate, DebonAir+, Air, 150 mm, tapered
Rear Shock
RockShox Deluxe Ultimate, Air, 230x65 mm
Drivetrain
Rear Derailleur
Shimano XTR, RD-M9100, Shadow Plus, 12-S
Shift Levers
Shimano XTR, SL-M9100, Rapidfire Plus
Cassette
Shimano CS-M9101, 10-50 T
Crank
GASGAS, Narrow Wide, 34 T
Chain
KMC e12S
Chain Guide
Direct Mount
Wheels
Rims
Race Face Turbine SL 25, Tubeless ready, 6-hole, 15x110/12x148 mm, thru axle
Tires
Continental Mountain King, 29, 2.3, Tubeless ready
Brakes
Brakes
Front: Formula Cura 4, 4-piston, Hydraulic disc brake, Rear: Formula Cura, 2-piston, Hydraulic disc brake
Brake Levers
Formula Cura X, Brake lever, adjustable, 2-finger
Cockpit
Stem
Race Face Turbine 35, 0 °, Ahead
Handlebar
Race Face Next Carbon 35 mm, 780 mm, Sweep: 8 °, Rise: 20 mm
Grips
GASGAS MTB
Headset
GASGAS ZS44/ZS56
Seat
Saddle
Selle Italia Superflow, Titan
Seatpost
GASGAS Pro, 31.6 mm, Dropper post
Motor & Battery
Motor
AIR DRIVE powered by Yamaha, 250 W, 50 Nm
Battery
Yamaha ML400, 410 Wh, 36 V
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.331 mm | 1.291 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Front Center | 791 mm | 816 mm | 843 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 123 mm | 122 mm |
| Stack | 642 mm | 647 mm | 656 mm |
| Reach | 462 mm | 486 mm | 508 mm |
| Top Tube Length | 605 mm | 630 mm | 655 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1265 mm | 1290 mm | 1317 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
