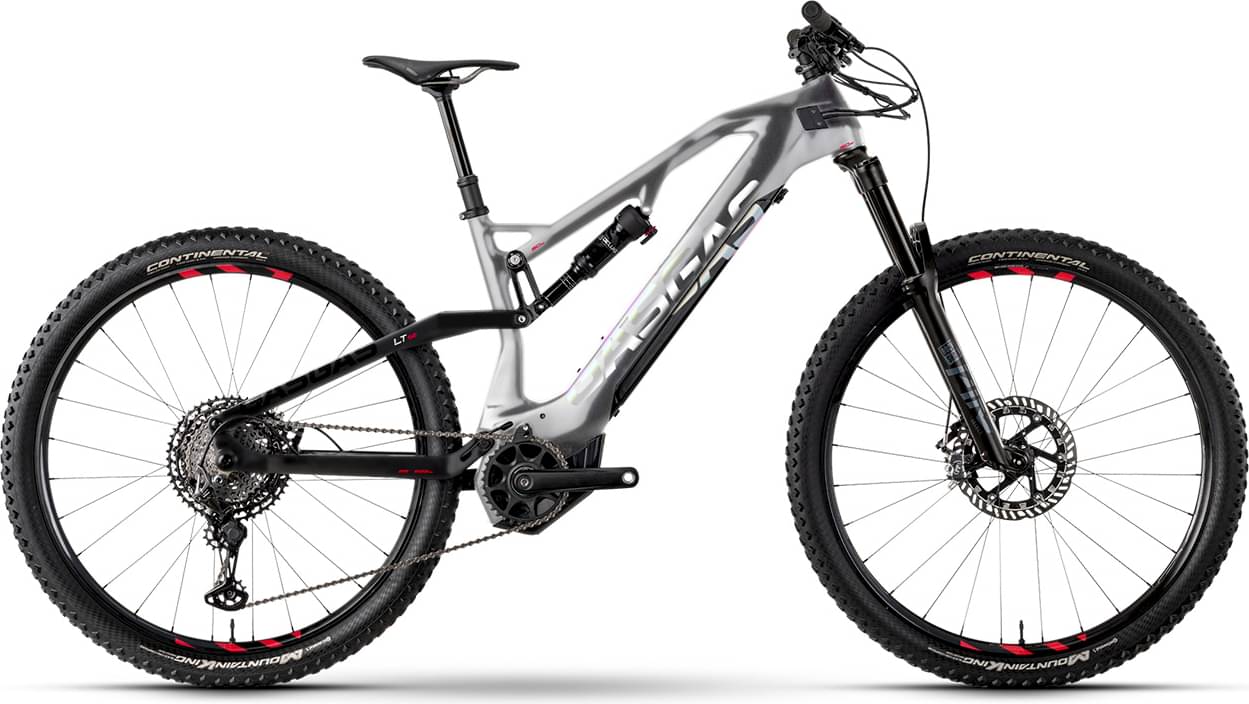

gasgas G LIGHT TRAIL SE 2024
2024 E-bike
Estimate price |
5,209$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork DT Swiss F 535 ONE
-
Groupset GX Eagle -
Suspension Full -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Formula Cura 4 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Carbon, Integrated battery, Boost, 150 mm
Suspension Fork
DT Swiss F 535 One, Air, 150 mm, tapered
Rear Shock
DT Swiss R 535 One, Air, 230x65 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-S
Shift Levers
SRAM GX Eagle, Single Click
Cassette
SRAM PG-1230, 11-50 T
Crank
SRAM X-Sync Eagle, 34 T
Chain
SRAM GX Eagle
Chain Guide
Direct Mount
Wheels
Rims
NEWMEN Evolution SL A.30, Tubeless ready, 6-hole, 15x110/12x148 mm, thru axle
Tires
Continental Mountain King, 29 x 2.3, Tubeless ready
Brakes
Brakes
Front: Formula Cura 4, 4-piston, Hydraulic disc brake, Rear: Formula Cura, 2-piston, Hydraulic disc brake
Brake Levers
Formula Cura X, Brake lever, adjustable, 2-finger
Cockpit
Stem
Race Face Affect 35, 0 °, Ahead
Handlebar
Race Face Next Carbon 35 mm, 780 mm, Sweep: 8 °, Rise: 20 mm
Grips
GASGAS MTB light
Headset
GASGAS ZS44/ZS56
Seat
Saddle
Selle Italia SLR Boost, Titan
Seatpost
GASGAS Pro, 31.6 mm, Dropper post
Motor & Battery
Motor
AIR DRIVE powered by Yamaha, 250 W, 50 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.39 mm | 1.331 mm | 1.291 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 776 mm | 791 mm | 816 mm | 843 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 123 mm | 122 mm |
| Stack | 642 mm | 642 mm | 647 mm | 656 mm |
| Reach | 447 mm | 462 mm | 486 mm | 508 mm |
| Top Tube Length | 590 mm | 605 mm | 630 mm | 655 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 125 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1250 mm | 1265 mm | 1290 mm | 1317 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
