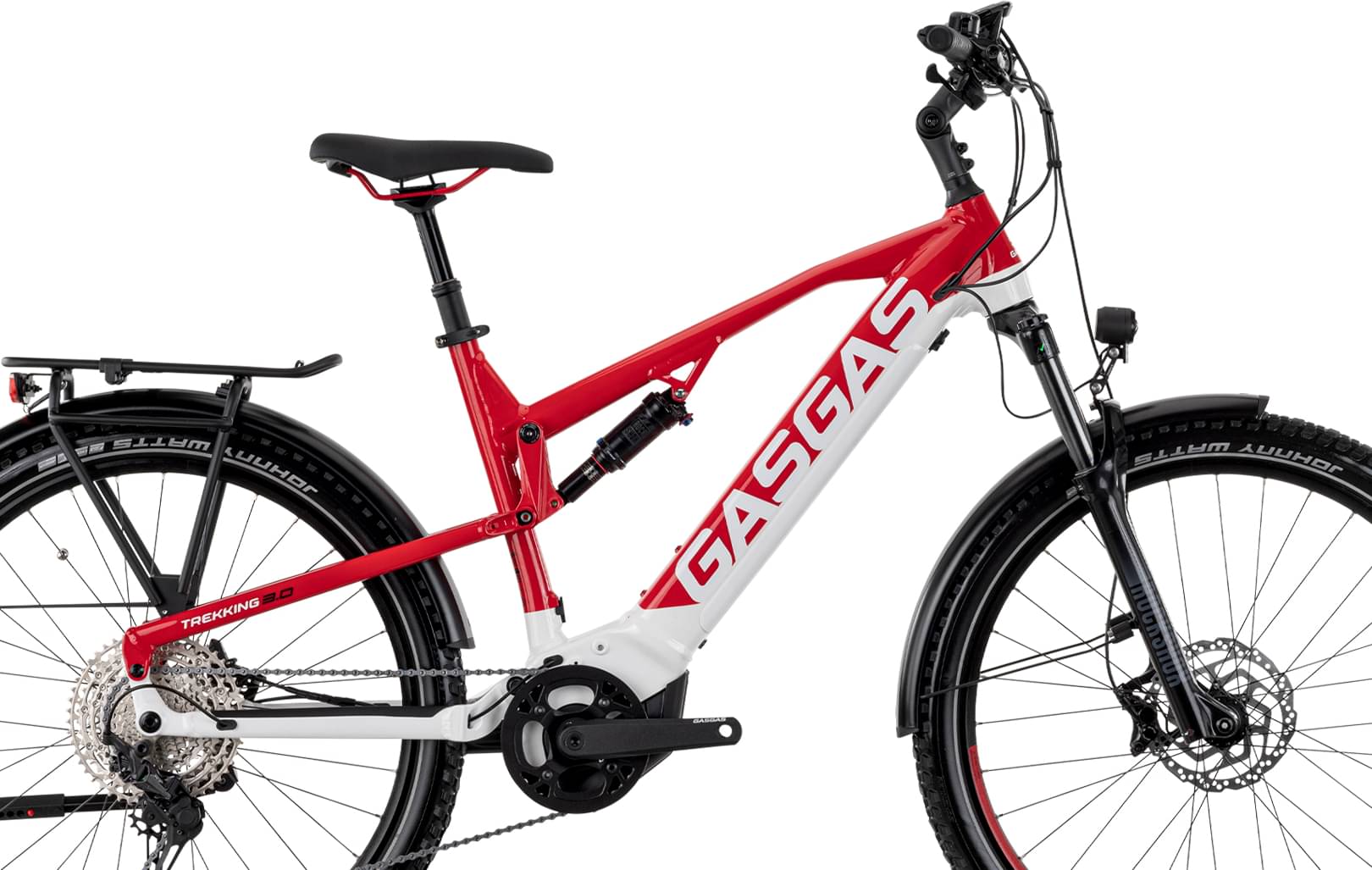

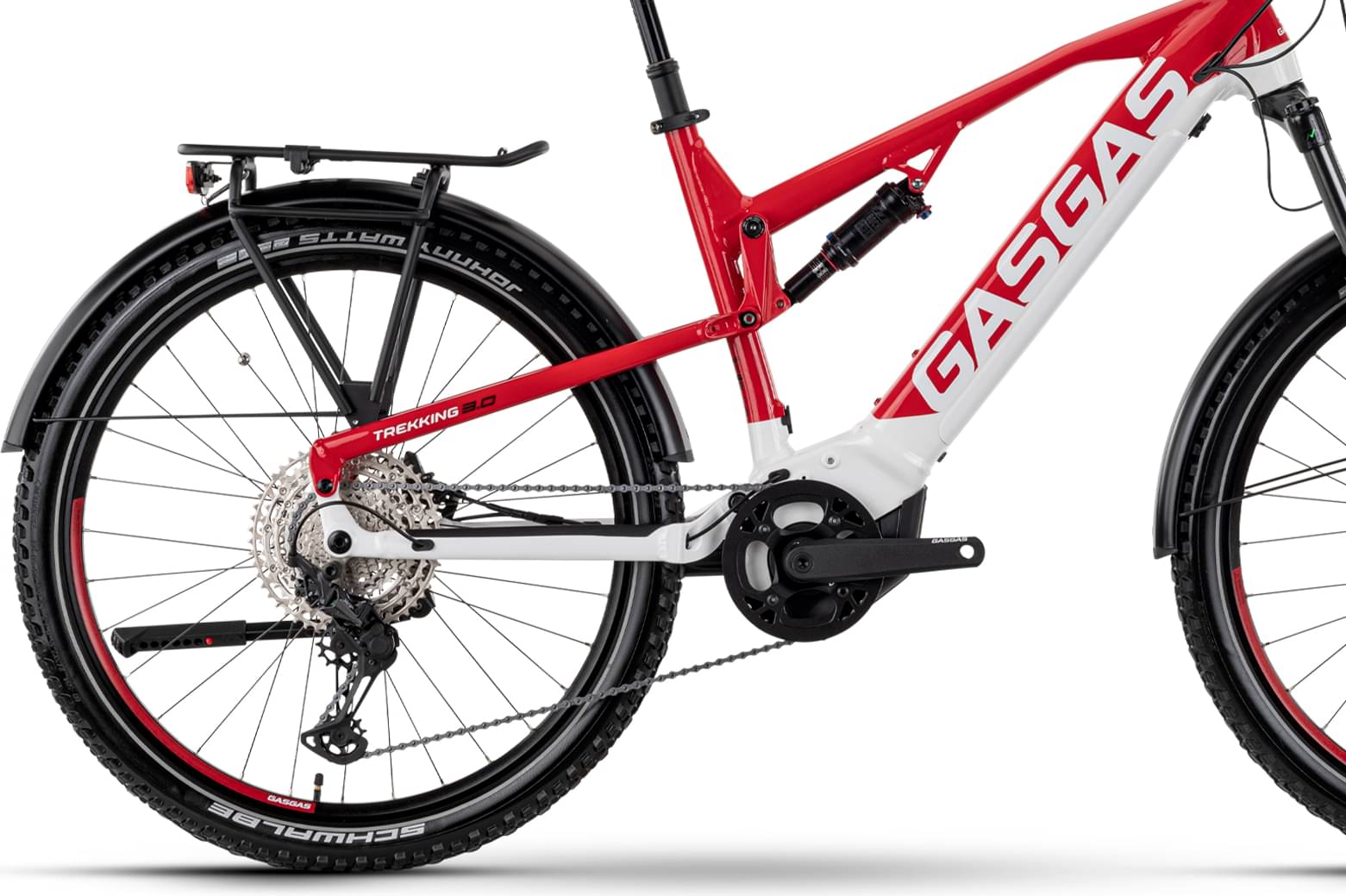

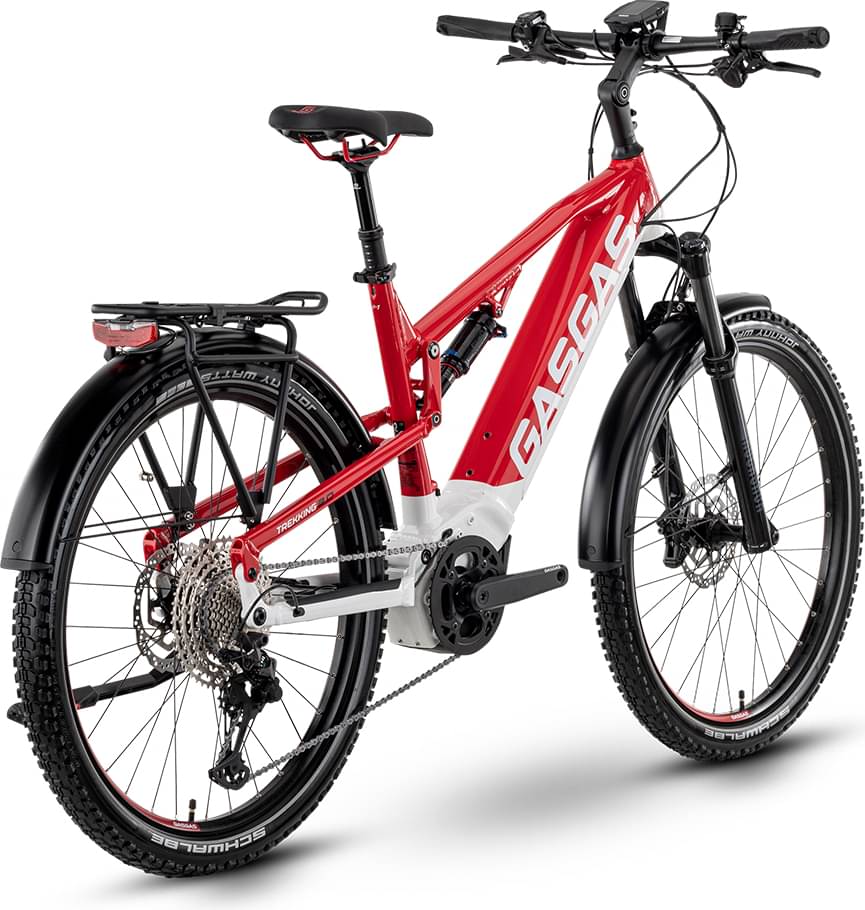

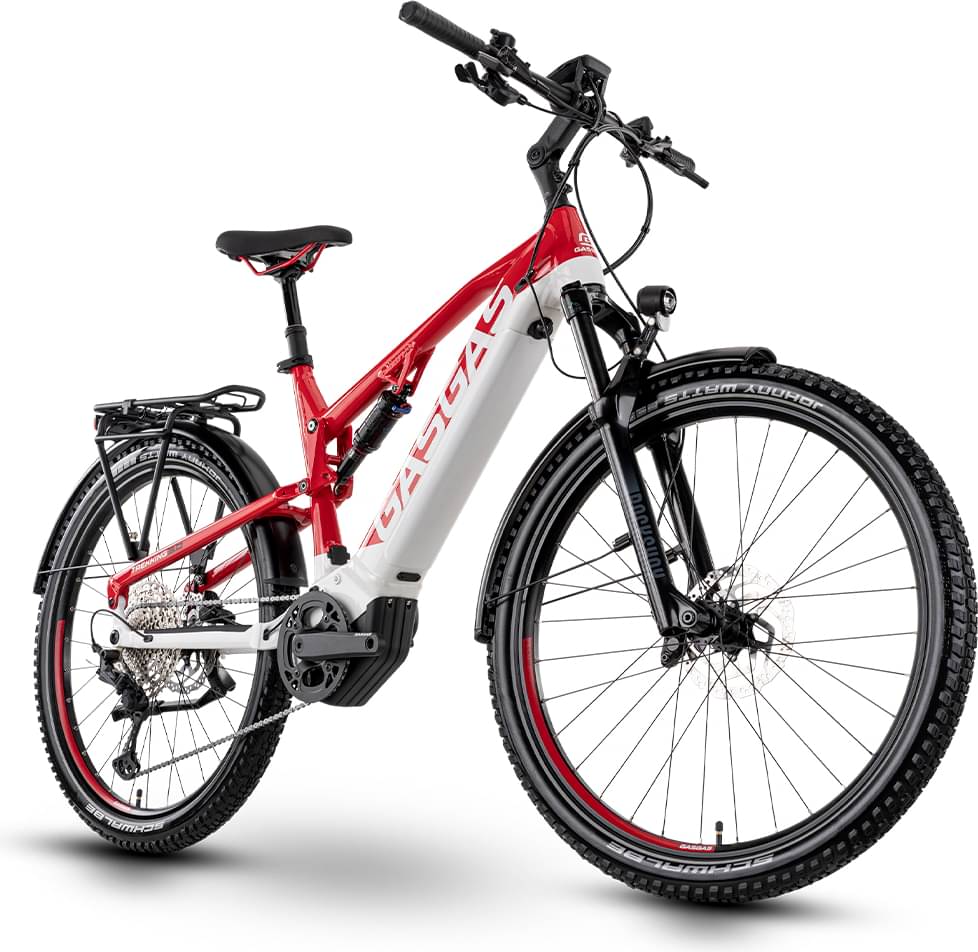

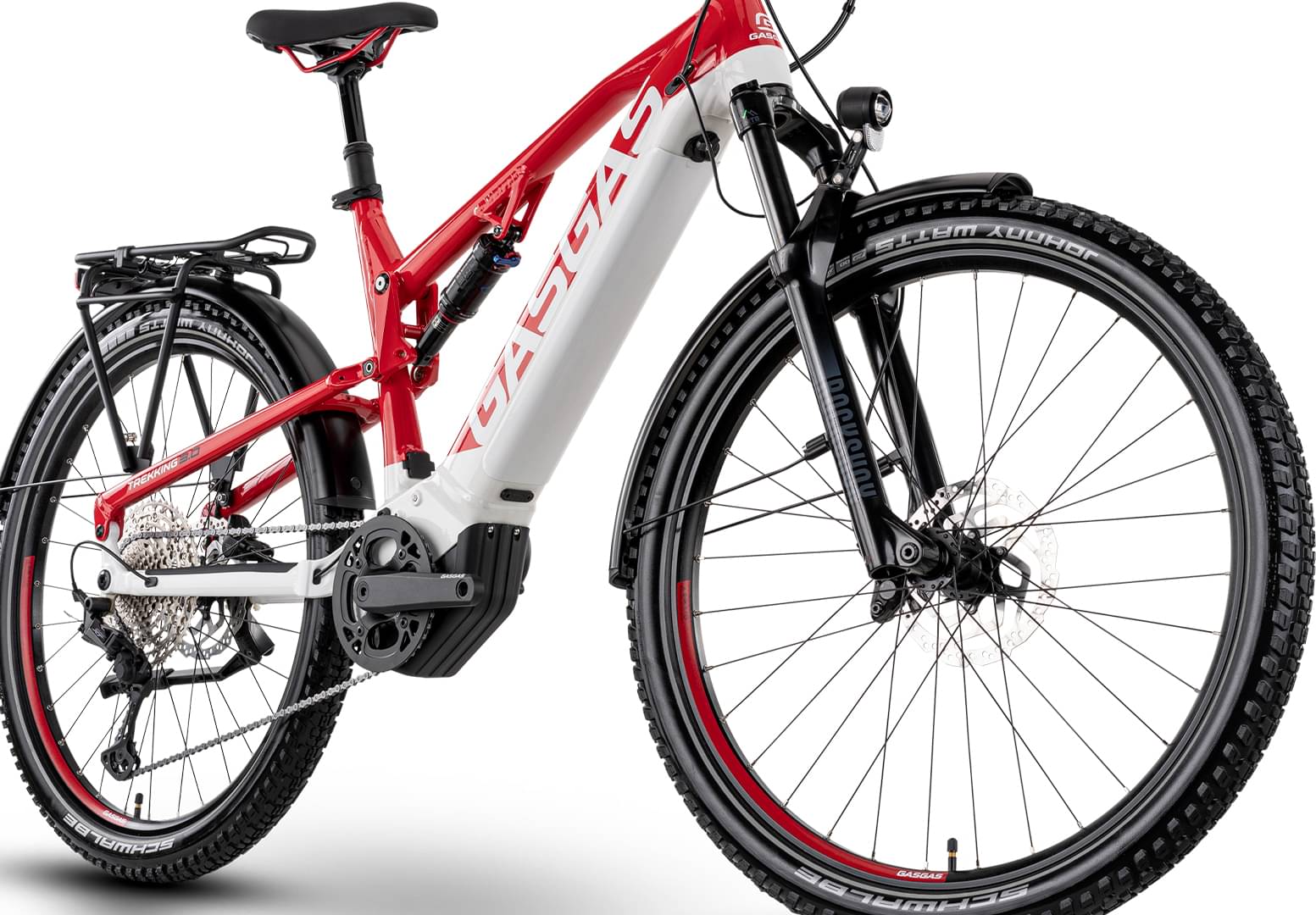

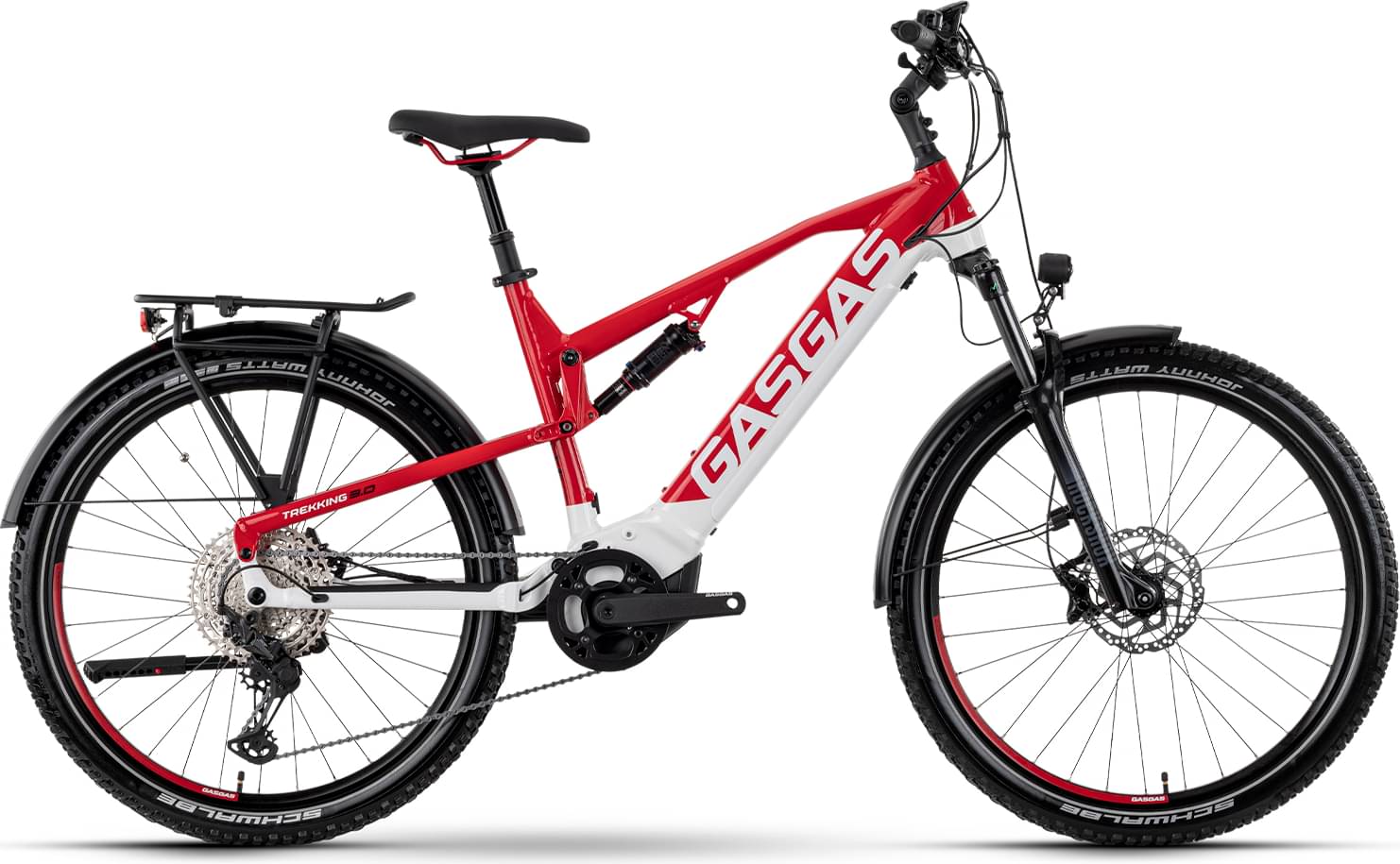

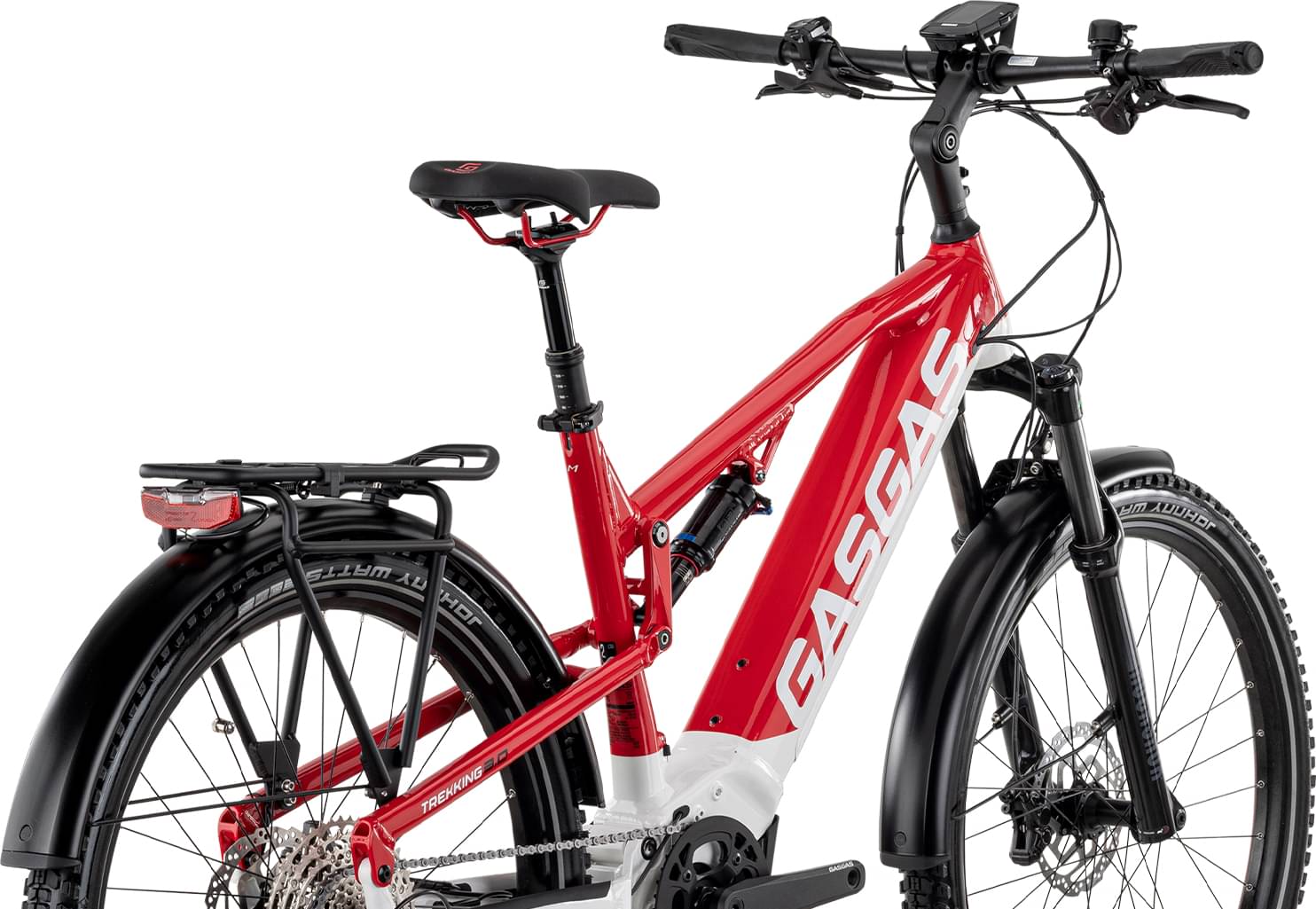

gasgas G TREKKING 3.0 2024
2024 E-bike
Estimate price |
3,949$
Weight | 27.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset GX Eagle, SX Eagle -
Suspension Full -
Motor Yamaha 250W 70Nm mid-drive -
Battery Simplo, 630 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, Integrated battery, 120 mm
Suspension Fork
RockShox Recon Silver RL, Solo Air, Air, 130 mm, tapered
Rear Shock
RockShox Monarch RT, Air, 190x51 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-S
Shift Levers
SRAM SX Eagle, Single Click
Cassette
SRAM PG-1230, 11-50 T
Crank
GASGAS, Narrow Wide, 38 T
Chain
SRAM GX Eagle
Chain Guide
Direct Mount
Pedals
GASGAS, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 12x148 mm, thru axle
Tires
Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5, 2.35
Brakes
Brakes
Front: Shimano BR-MT420, 4-piston, Hydraulic disc brake, Rear: Shimano BR-MT410, 2-piston, Hydraulic disc brake
Brake Levers
Shimano BL-MT402, Brake lever, adjustable, 3-finger
Cockpit
Stem
GASGAS 31,8, Ahead, adjustable
Handlebar
GASGAS Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm
Grips
GASGAS Ergo, Lock-on grips
Headset
GASGAS ZS44/ZS56
Seat
Saddle
GASGAS Ergo
Seatpost
GASGAS, 31.6 mm, Dropper post
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Simplo, 630 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.363 mm | 1.318 mm |
| Bottom Bracket Height | 351 mm | 351 mm |
| Front Center | 710 mm | 766 mm |
| Rake | 42 mm | 42 mm |
| Trail | 109 mm | 73 mm |
| Stack | 608 mm | 613 mm |
| Reach | 446 mm | 465 mm |
| Top Tube Length | 620 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 135 mm |
| Chainstay Length | 477 mm | 477 mm |
| Wheelbase | 1187 mm | 1243 mm |
| Bottom Bracket Drop | 16 mm | 16 mm |
| Wheels | 650 | 650 |
