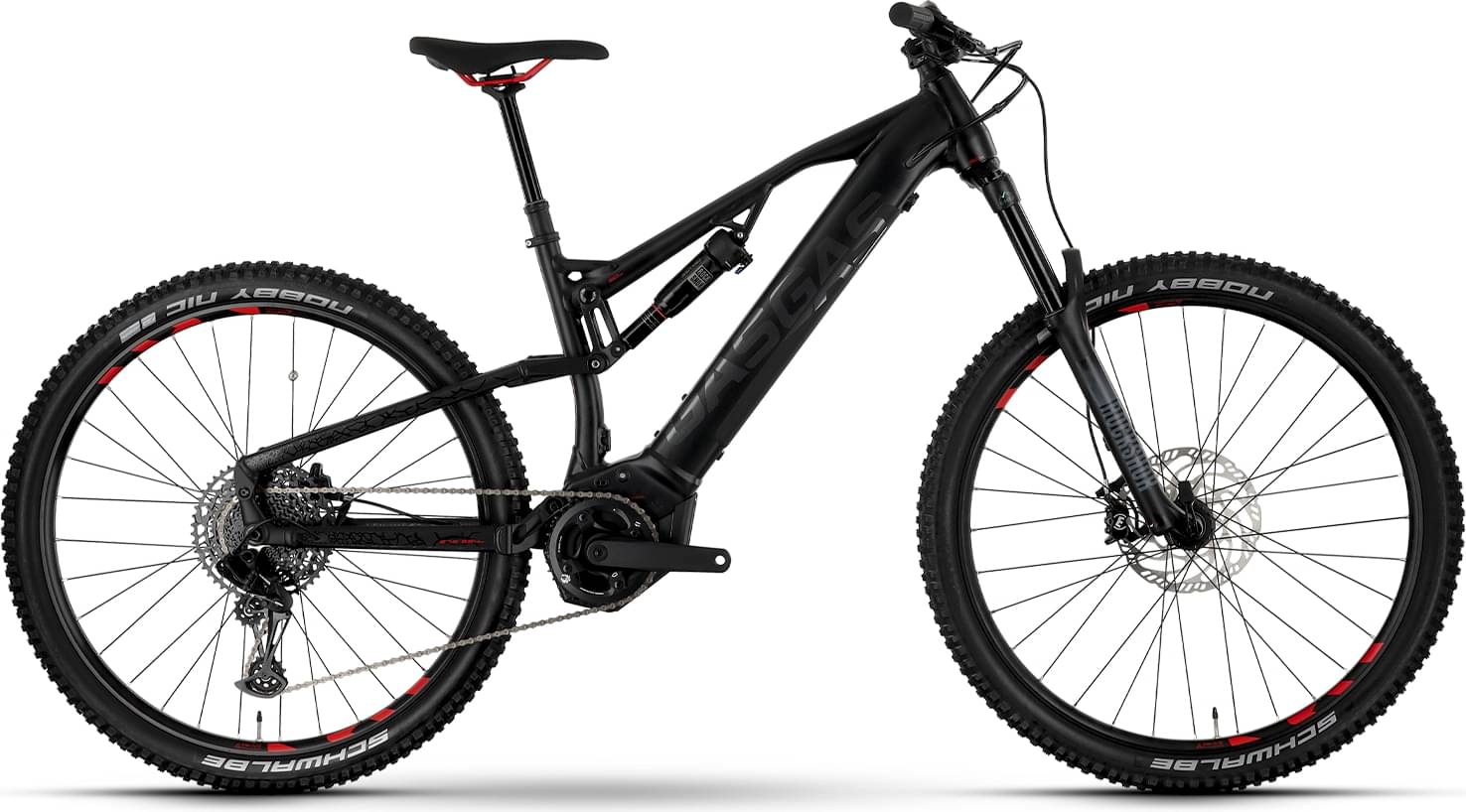

gasgas TRA SE 2023
2023 E-bike
Estimate price |
4,420$
Weight | 25.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Tektro -
Suspension Full -
Motor Yamaha 250W 70Nm mid-drive -
Battery Simplo, 630 Wh, 36 V -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery, Boost, 150 mm
Suspension Fork
RockShox 35 Gold RL, DebonAir, Air, 150 mm, tapered
Rear Shock
RockShox Deluxe Select+, Air, 230x65 mm
Drivetrain
Rear Derailleur
Tektro RD-M550, 11-S
Shift Levers
Tektro SL-M550R
Cassette
Tektro CS-M530, 11-50 T
Crank
GASGAS, Narrow Wide, 38 T
Chain
KMC e11S
Chain Guide
Direct Mount
Pedals
GASGAS, aluminum
Wheels
Rims
Front: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle
Tires
Schwalbe Nobby Nic, Performance, 62-622, 29x2.4, Tubeless ready
Brakes
Brakes
Front: SRAM DB8, 4-piston, Hydraulic disc brake, Rear: SRAM DB8, 4-piston, Hydraulic disc brake
Cockpit
Stem
GASGAS 31,8, 0 °, Ahead
Handlebar
GASGAS Riser 31.8 mm, 780 mm, Sweep: 9 °, Rise: 15 mm
Grips
GASGAS MTB, Lock-on grips
Headset
GASGAS ZS44/ZS56
Seat
Saddle
GASGAS MTB
Seatpost
GASGAS, 31.6 mm, Dropper post
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Simplo, 630 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.489 mm | 1.427 mm | 1.362 mm | 1.312 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 744 mm | 778 mm | 802 mm | 834 mm |
| Rake | 39 mm | 44 mm | 41 mm | 43 mm |
| Trail | 119 mm | 114 mm | 117 mm | 115 mm |
| Stack | 633 mm | 642 mm | 647 mm | 656 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 565 mm | 592 mm | 618 mm | 645 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1218 mm | 1252 mm | 1276 mm | 1308 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
