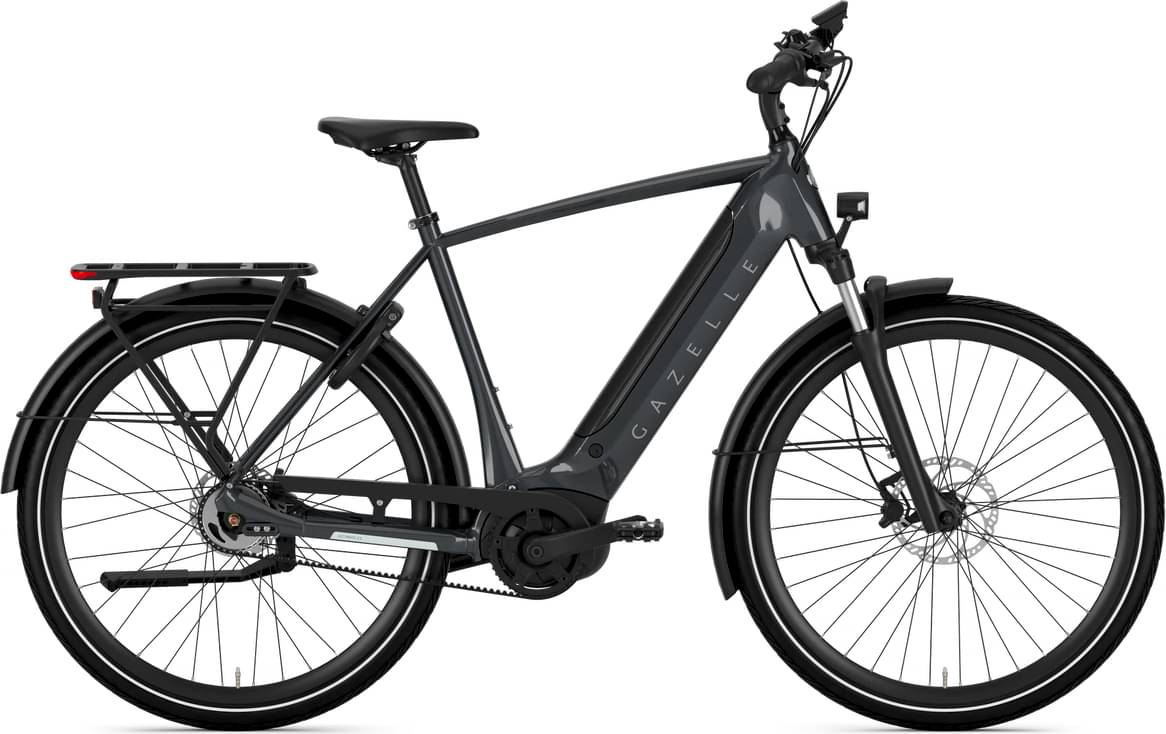

Gazelle Ultimate C5 HMB High-Step 2025
2025 E-bike
Estimate price |
5,012$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NVX -
Groupset Shimano -
Suspension Hardtail -
Motor Bosch 75Nm hub-drive -
Battery Intergrated in the frame -
Drivetrain Internally Geared Hub -
Brakes Magura Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Suspension Fork
SR Suntour NVX30
Drivetrain
Shift Levers
Shimano
Crank
46
Chain Guide
Chain guard
Wheels
Front Hub
Shimano
Rear Hub
Shimano Nexus 5
Rims
Ryde Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
Tires
Front: Schwalbe Energizer Plus, Rear: Schwalbe Energizer Plus
Brakes
Brakes
Front: Magura MT-C4, 180 mm, Rear: Magura MT-C4, 160 mm
Cockpit
Handlebar
Gazelle Aero Leather, luxury leather handlebar grips for a sophisticated feel and extra comfort
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
No
Motor & Battery
Motor
Bosch Smart System, Position: Mid, Max speed: 25, Max speed: 25, Torque: 75
Battery
Intergrated in the frame
Charger
Bosch Standard Charger,
