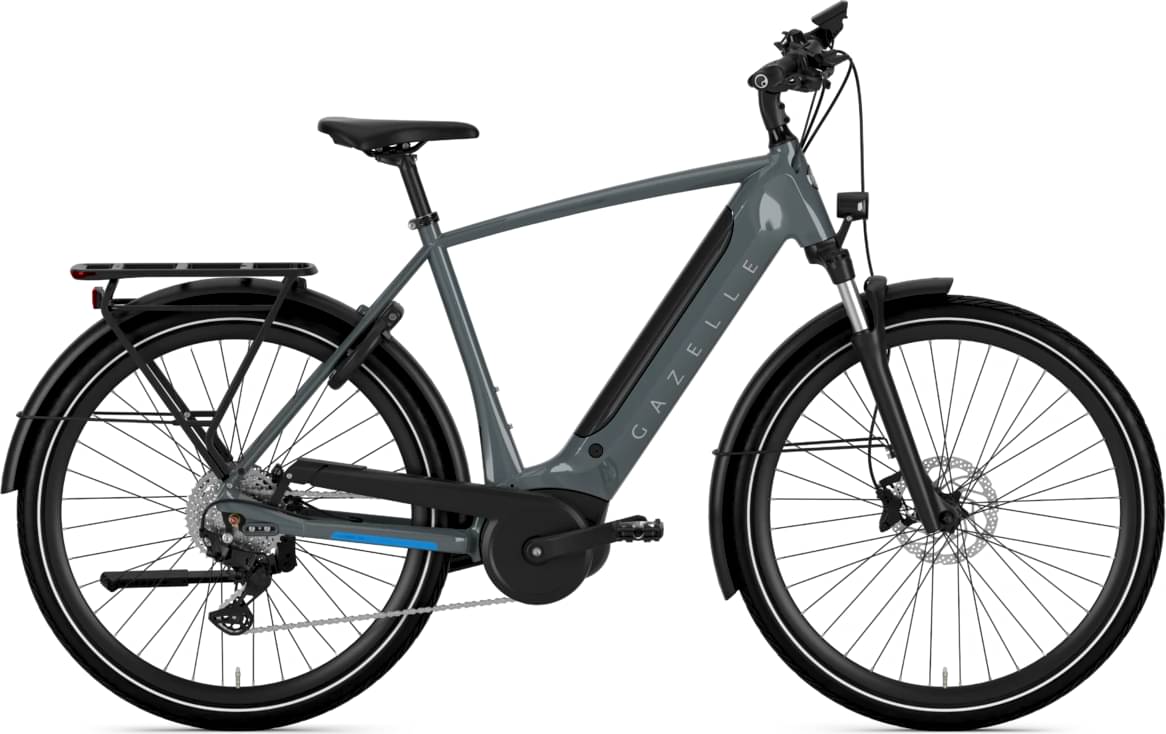

Gazelle Ultimate T10 High-Step 2025
2025 E-bike
Estimate price |
4,652$
Weight | 24.31 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NVX -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 75Nm hub-drive -
Battery Intergrated in the frame -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Suspension Fork
SR Suntour NVX30
Drivetrain
Rear Derailleur
Shimano Deore
Shift Levers
Shimano
Cassette
11-42
Crank
38
Wheels
Front Hub
Shimano
Rear Hub
Shimano Deore
Rims
Dutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
Tires
Front: Schwalbe Energizer Plus, Rear: Schwalbe Energizer Plus
Brakes
Brakes
Front: Shimano BR-MT420, 180 mm, Rear: Shimano BR-MT410, 160 mm
Cockpit
Handlebar
Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
No
Motor & Battery
Motor
Bosch Smart System, Position: Mid, Max speed: 20, Torque: 75
Battery
Intergrated in the frame
Charger
Bosch
