Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Genesis MjÖlnir Seamless Double-Butted Cromoly
Suspension Fork
Cr-Mo Unicrown Disc
Drivetrain
Shift Levers
Shimano Alfine SL-S503 / 8 speed RH
Cassette
Shimano SM-GEAR 20T freewheel
Crank
Samox AF22 / 40T / S, 165mm / M-XL 170mm
Bottom Bracket
Prestine PT-6621 68-124.5mm
Chain
KMC x9
Pedals
NW-91K
Wheels
Front Hub
KT TC7F/Shimano Nexus SG-C6001-8speed 32h / front / rear / centre lock
Rear Hub
KT TC7F/Shimano Nexus SG-C6001-8speed 32h / front / rear / centre lock
Rims
Jalco XCD22 / 32h
Spokes
Steel 14g
Tires
CST Sensamo Speed 700x35c 60TPI w/skinwall
Brakes
Brakes
Shimano BR-TX805 mechanical brakes w/ Shimano SMRT10 160mm rotors
Brake Levers
Tektro CL-331A-RS
Cockpit
Stem
Genesis AS-007 / + 12deg / 70mm
Handlebar
Genesis alloy / 630mm width / 32mm rise / 46deg backsweep
Headset
Prestine PT-1606 1-1/8" semi cartridge
Seat
Saddle
Genesis Urban Comfort
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.57 mm | 1.55 mm |
| Front Center | 619 mm | 646 mm | 674 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 60 mm | 60 mm | 60 mm |
| Stack | 606 mm | 625 mm | 649 mm |
| Reach | 378 mm | 398 mm | 418 mm |
| Top Tube Length | 574 mm | 600 mm | 628 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 480 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 165 mm | 185 mm | 210 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1062 mm | 1089 mm | 1117 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm |
| Standover Height | 647 mm | 648 mm | 651 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

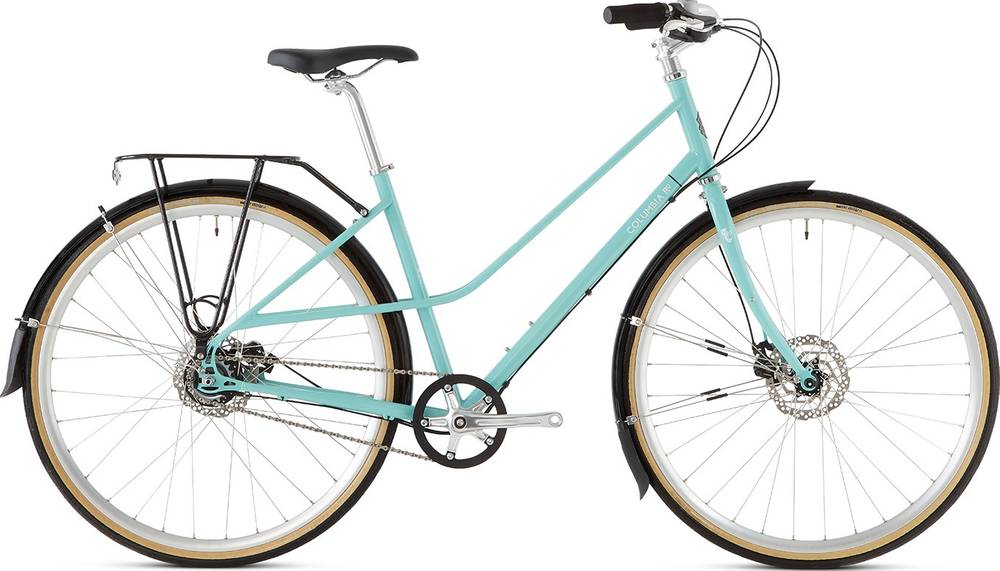

Columbia Rd is part of the Genesis Columbia model. There are 3 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Urban bikes
If you want to purchase a solid General Urban bike, it is important to know that the average cost is 499$. However, even though the average price of a General Urban bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Genesis released this model in 2018, its price was 1094$. If we compare this with the average General Urban bike cost we notice that the price is 119.24% higher.
Columbia Rd components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
As for the wheels, Genesis Columbia Rd 2018, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Genesis Columbia Rd has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Genesis Columbia Rd bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
