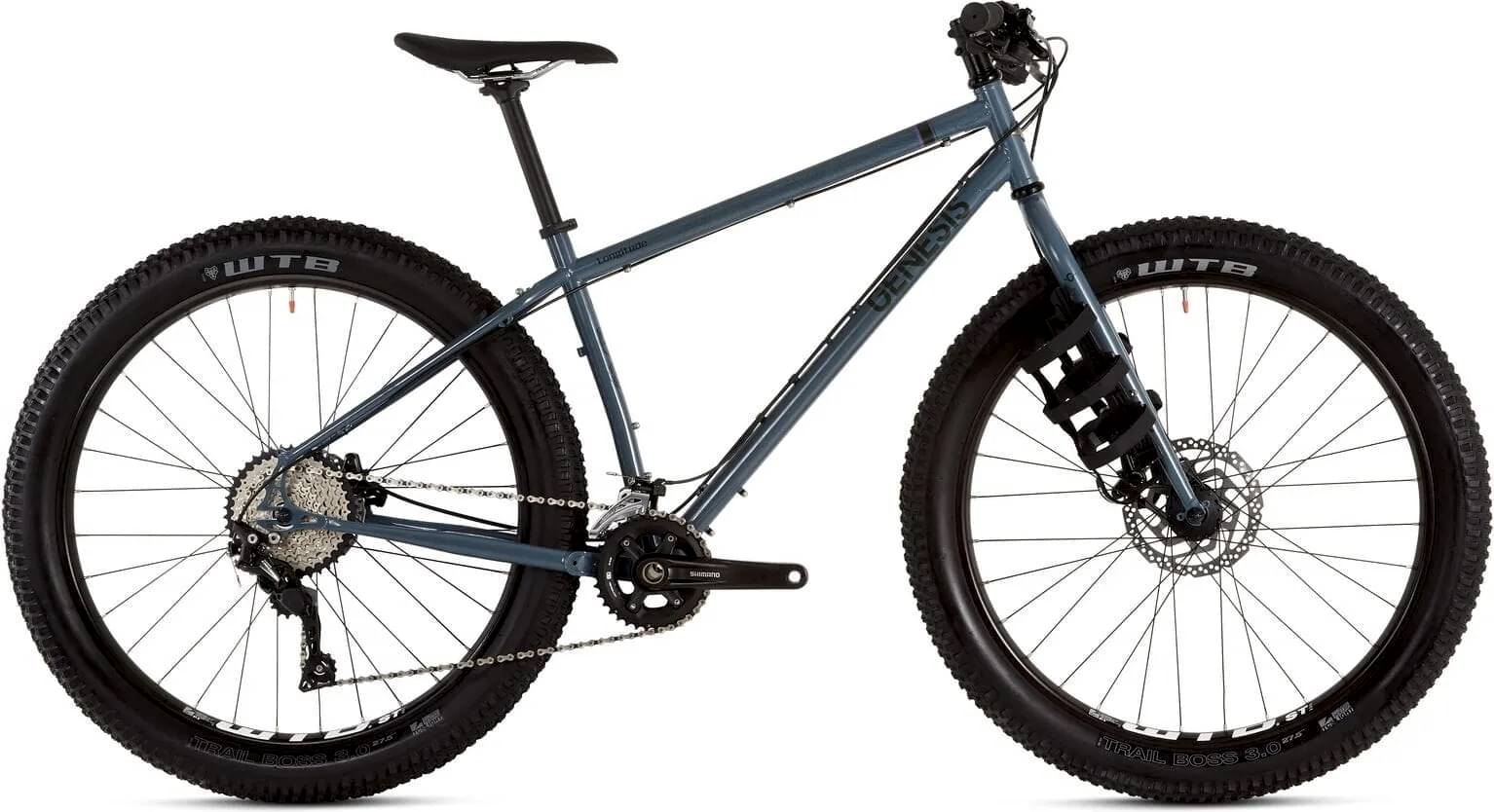

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Groupset Deore -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Genesis Chromoly Disc
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-GS 10 Speed
Front Derailleur
Shimano Deore FD-M6020 L
Shift Levers
Shimano Deore SL-M6000 2 x 10 Speed
Cassette
Shimano CS-HG500-10 11-42T
Bottom Bracket
Shimano
Chain
KMC X10
Pedals
NW-303
Wheels
Front Hub
Shimano Deore M252
Rear Hub
Shimano Deore M252
Rims
WTB ST i35 TCS 2.0
Spokes
Steel 14 g
Tires
WTB Tubeless Ready ail Blazer 27.5 x 2.8
Brakes
Brakes
Shimano BR-MT400 Hydraulic Disc
Brake Levers
Shimano BL-MT401 hydraulic brakes
Cockpit
Stem
Genesis Alloy 60 mm
Handlebar
Genesis Alloy 760 mm
Headset
PT-1767F 1 1/8 inch Upper EC34 / Lower EC34
Seat
Saddle
Genesis
Seatpost
Genesis Alloy 27.2 x 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.554 mm | 1.49 mm | 1.431 mm | 1.383 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 656 mm | 685 mm | 700 | 739 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 106 mm | 107 mm | 121 mm | 105 mm |
| Stack | 614 mm | 626 mm | 637 mm | 643 mm |
| Reach | 395 mm | 420 mm | 445 mm | 465 mm |
| Top Tube Length | 582 mm | 610 mm | 638 mm | 663 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 406 mm | 445 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1105 mm | 1134 mm | 1149 mm | 1188 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 766 mm | 787 mm | 806 mm | 837 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
