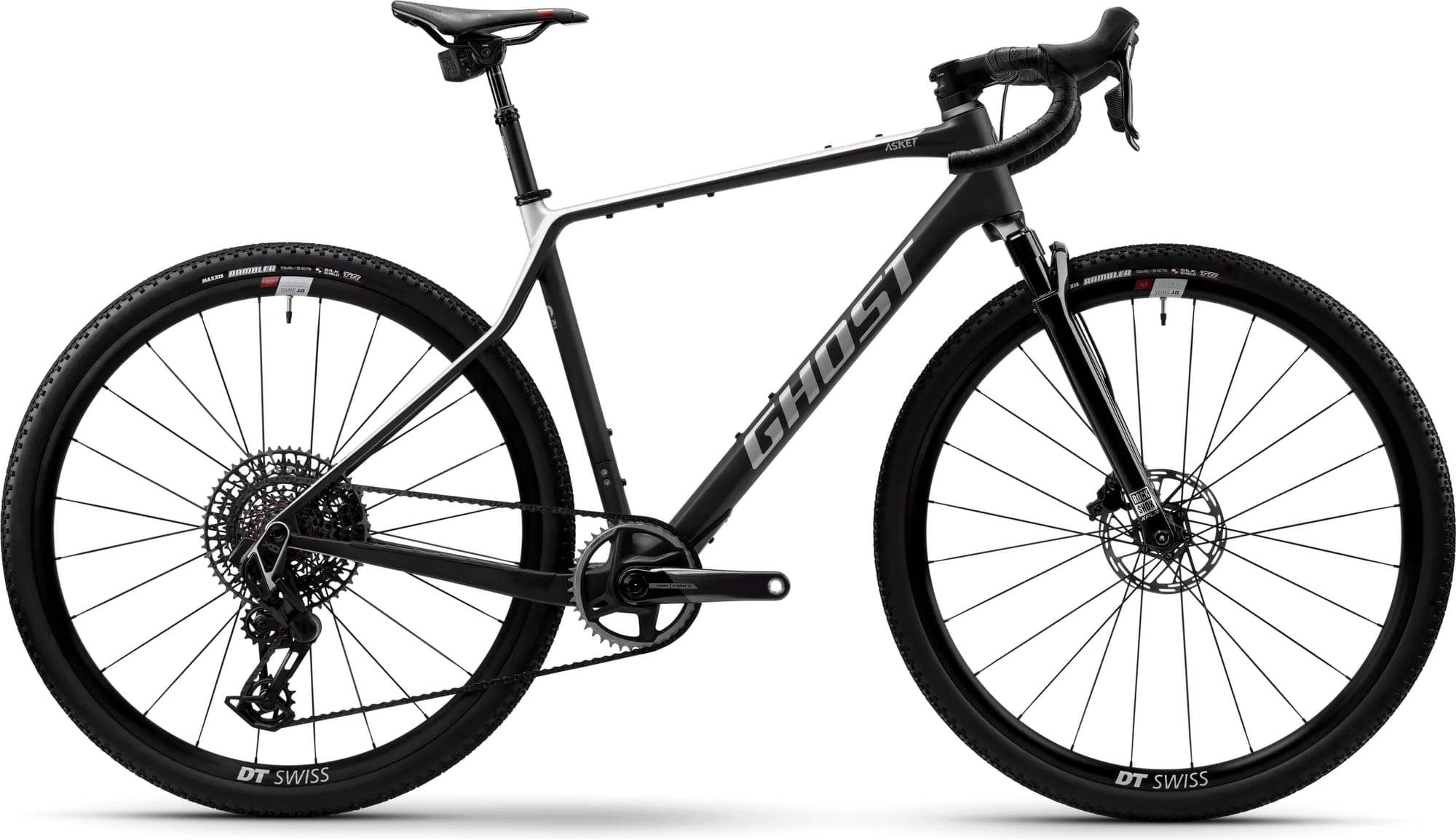

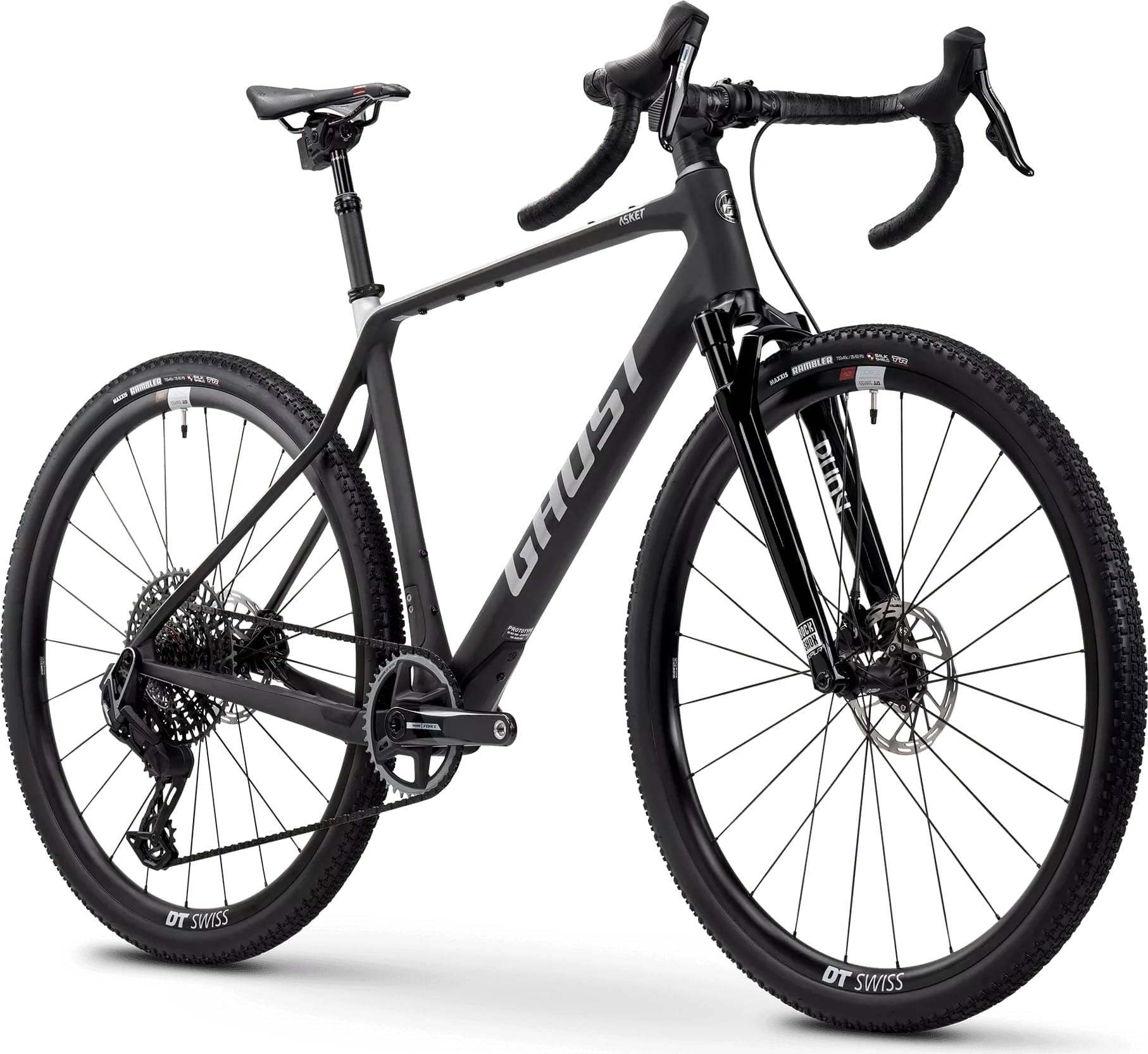

Ghost ASKET CF 30 2025
2025 Road
Estimate price |
6,980$
Weight | 10 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 40mm -
Fork RockShox Rudy Ultimate XPLR
-
Groupset X0 Eagle Transmission, Force -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
XS
153cm - 164cm
SM
162cm - 171cm
MD
169cm - 178cm
LG
176cm - 188cm
XL
186cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Carbon Uni
Suspension Fork
Rockshox FS Rudy Ultimate 40 mm
Drivetrain
Rear Derailleur
SRAM X0 Eagle T-Type 12s
Shift Levers
SRAM Shift-brake lever Force eTap AXS Shift-Brake Lever
Cassette
SRAM XS-1295 Eagle T-Type, XD
Crank
SRAM Force 1 DUB Wide 172.5
Bottom Bracket
SRAM PressFit DUB
Chain
SRAM X0 Eagle T-Type 12s
Wheels
Rims
DT Swiss G1800 Spline 12x100
Tires
Maxxis Rambler Silk Shield 45-622
Brakes
Brakes
SRAM Hydraulic Disc brake Force eTap AXS Shift-Brake Lever, 160 mm
Brake Levers
SRAM Force eTap AXS Shift-Brake Lever-BL
Cockpit
Stem
Ghost Dia. 31.8 mm, L: 70 mm
Handlebar
Easton Drop bar EC70 AX Riserbar Dia. 31.8 mm
Headset
Acros Integrated AiX-589 IS52/28,6/ICR - IS52/40/IPS
Seat
Saddle
Prologo Gravel Dimension
Seatpost
Rockshox Dropperpost Reverb AXS XPLR, Dia. 27.2 mm, Travel: 75 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.447 mm | 1.453 mm | 1.468 mm | 1.449 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 622 mm | 641 mm | 657 mm | 680 mm | 709 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm | 55 mm |
| Trail | 74 mm | 74 mm | 71 mm | 67 mm | 65 mm |
| Stack | 542 mm | 560 mm | 581 mm | 612 mm | 642 mm |
| Reach | 375 mm | 387 mm | 400 mm | 417 mm | 443 mm |
| Top Tube Length | 526 mm | 544 mm | 564 mm | 590 mm | 624 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 95 mm | 115 mm | 135 mm | 165 mm | 195 mm |
| Chainstay Length | 430 mm | 430 mm | 435 mm | 435 mm | 440 mm |
| Wheelbase | 1044 mm | 1063 mm | 1084 mm | 1107 mm | 1142 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 750 mm | 775 mm | 800 mm | 829 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 162 cm | 169 cm | 176 cm | 186 cm |
| Rider Max Height | 164 cm | 171 cm | 178 cm | 188 cm | 197 cm |
