Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 165cm
SM
163cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components

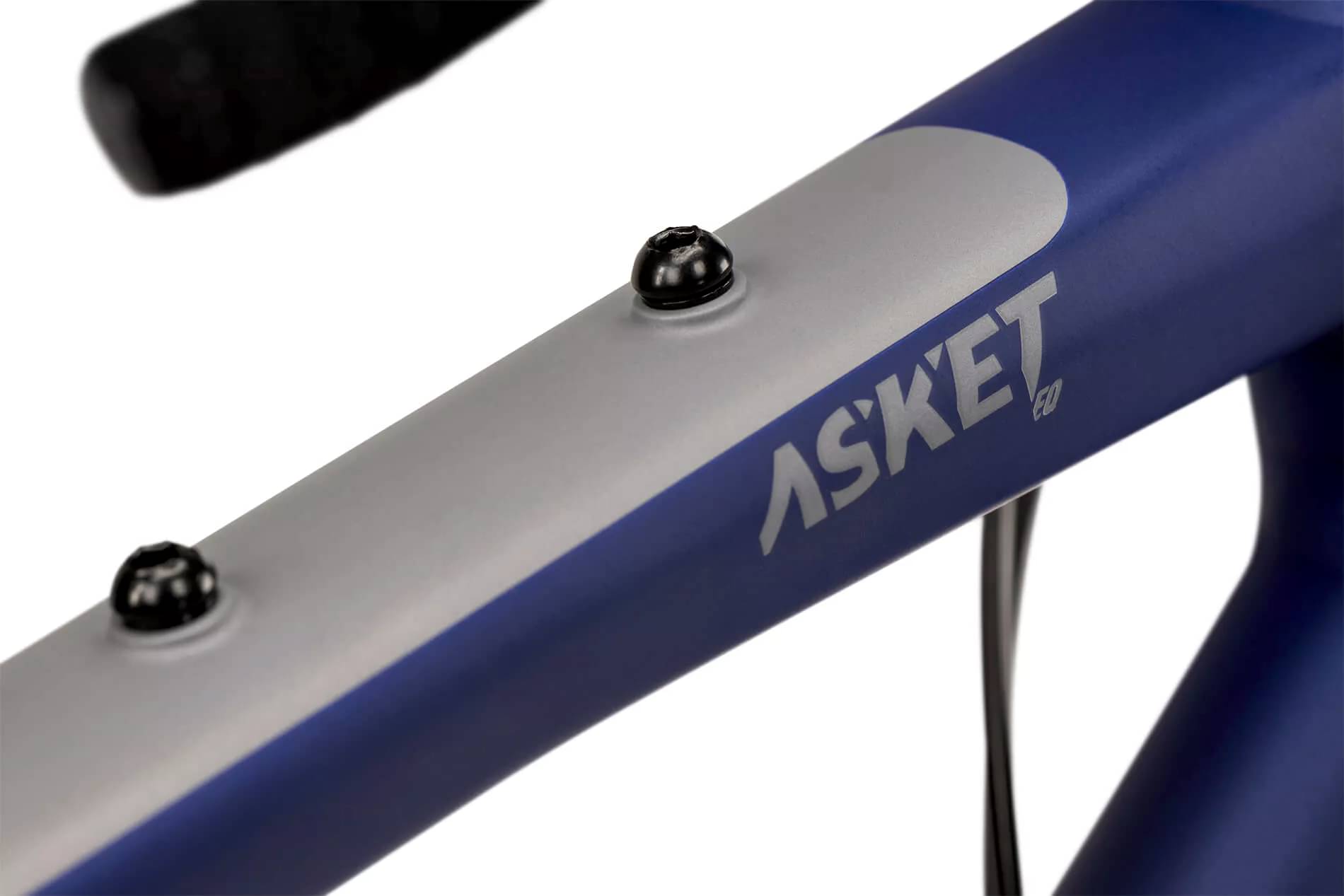

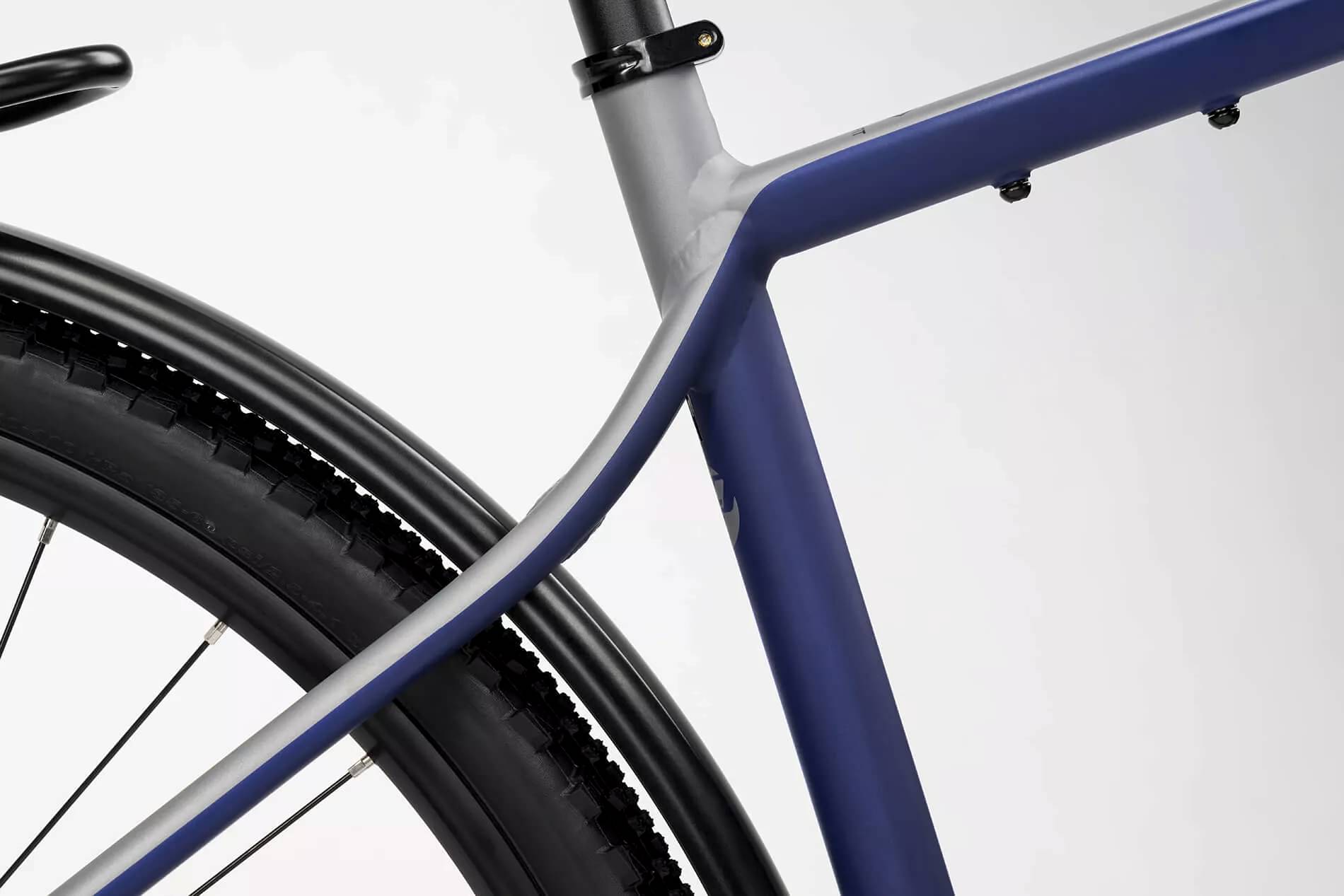

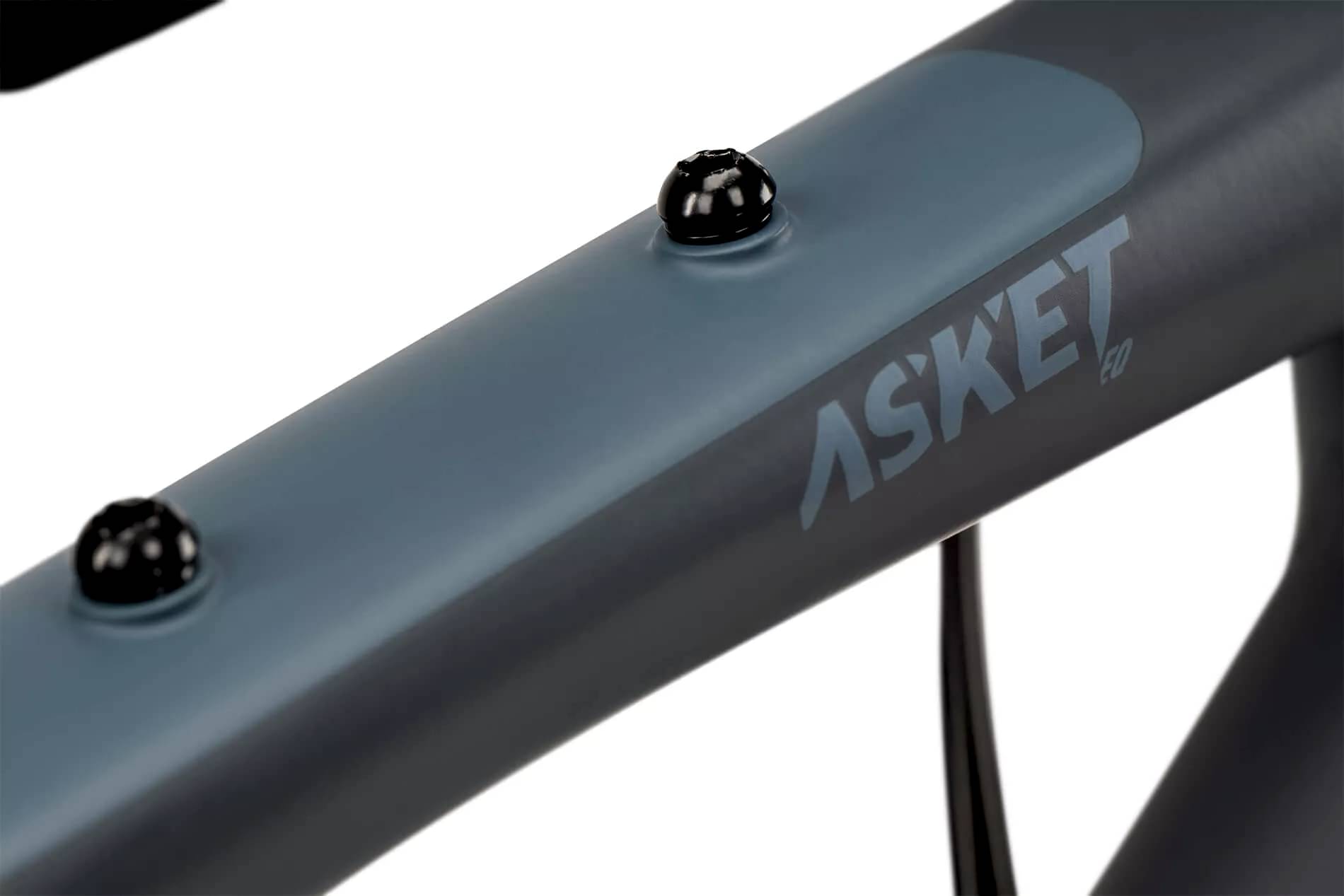

Frame
Frame
ASKET AL

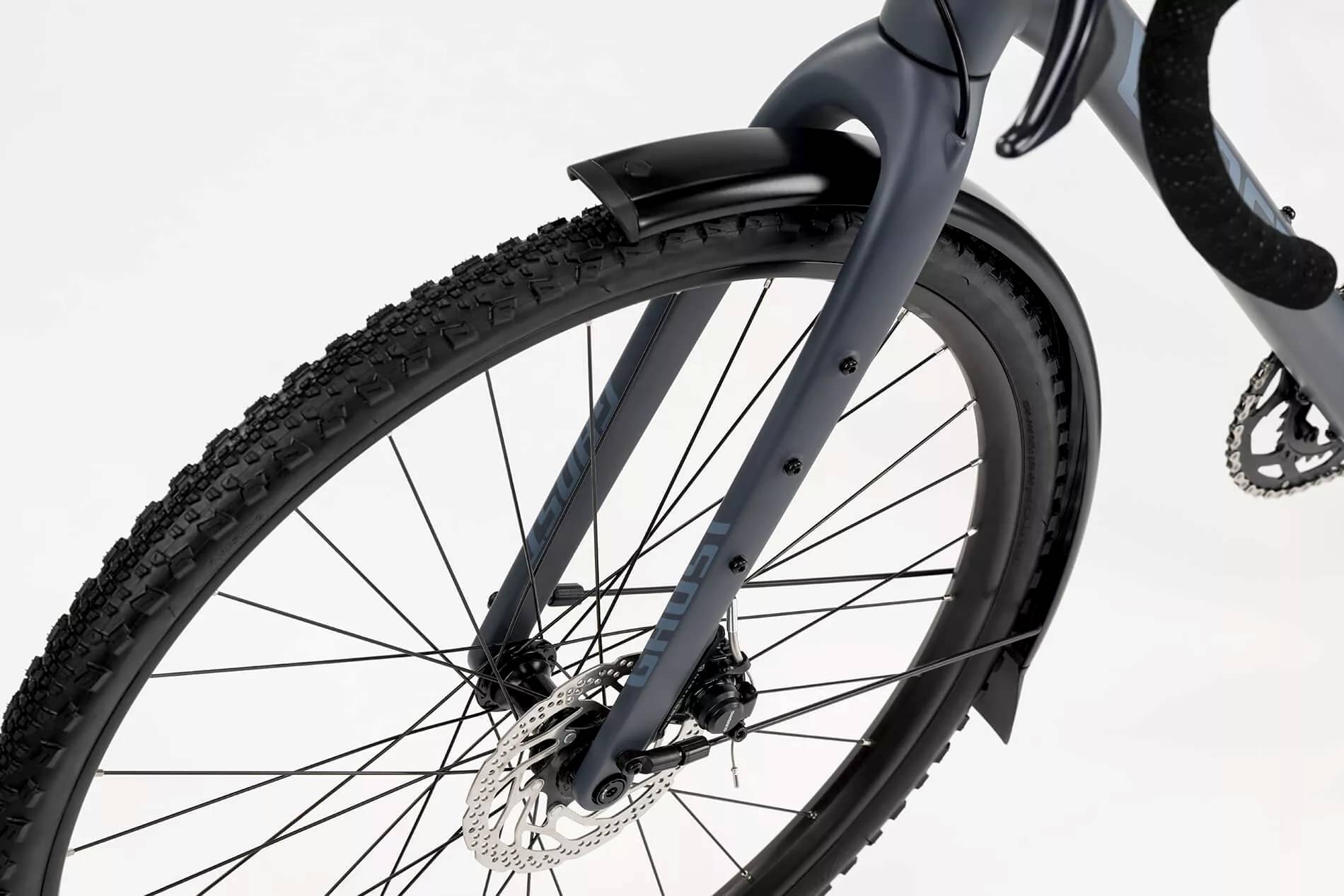

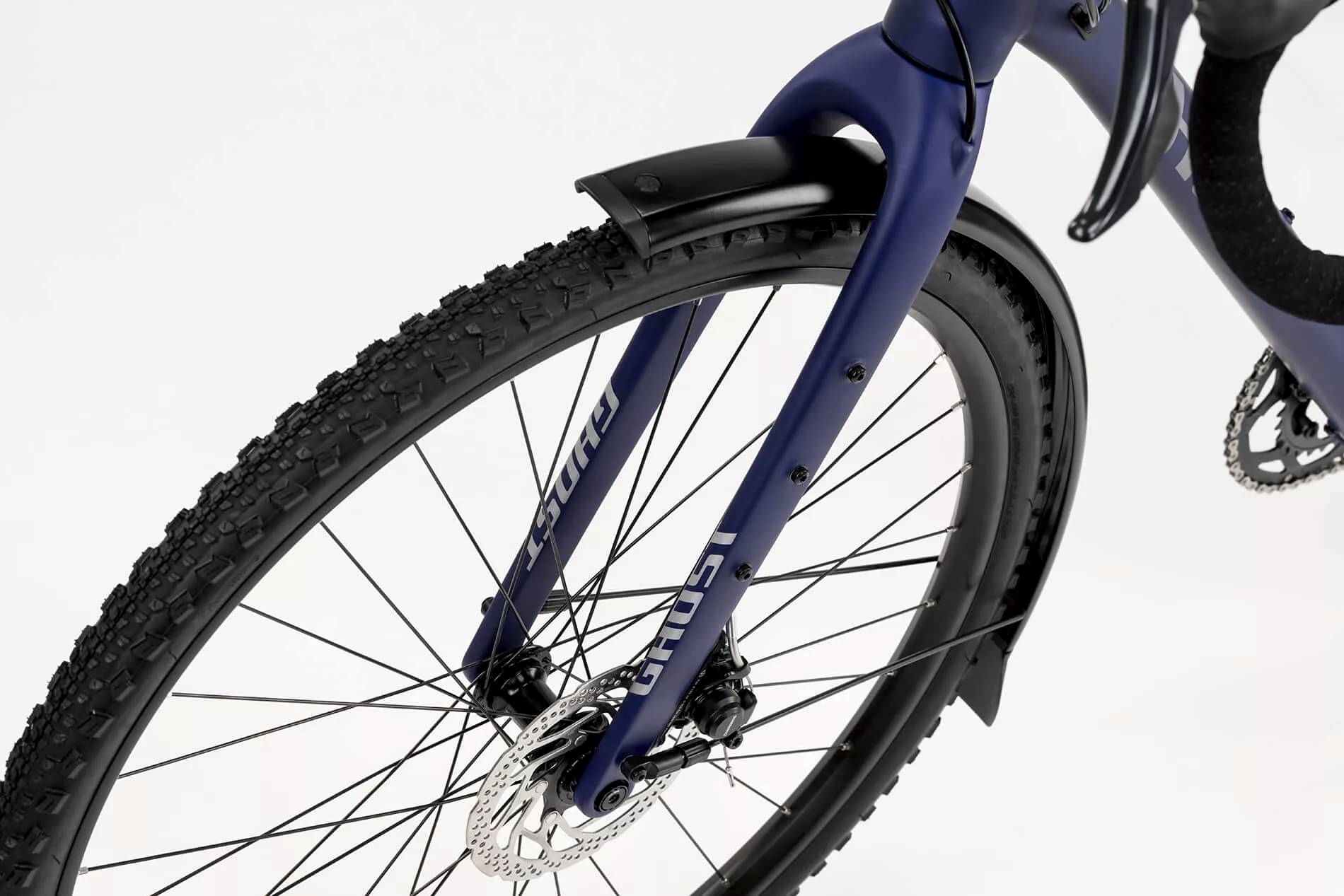

Suspension Fork
GHOST Carbon
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000 9-S
Front Derailleur
Shimano Sora FD-R3030
Cassette
Shimano CS-HG400-9 11-34
Crank
FSA CK-C201ST 46-30T
Bottom Bracket
Feimin FP-B908N
Chain
KMC X9
Pedals
FPD NW-91K
Wheels
Rims
Front: WTB ST i25, Rear: WTB ST i25
Tires
Front: Maxxis Ravager Exo TR 40-622, Rear: Maxxis Ravager Exo TR 40-622
Brakes
Brakes
Shimano BR-RS305 160 mm Disc
Brake Levers
Shimano Sora ST-R3000
Cockpit
Stem
Ghost Dia. 31.8 mm
Handlebar
Gravel Bar RA120A 420 mm (XS) 440 mm (S) 460 mm (M) 480 mm (L) 500 mm (XL)
Grips
Fizik Tempo Bondcrush
Seat
Saddle
Selle Royal SRX
Seatpost
GND 51 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.497 mm | 1.504 mm | 1.501 mm | 1.5 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 282 mm | 282 mm | 287 mm |
| Front Center | 619 mm | 646 mm | 667 mm | 694 mm | 717 mm |
| Rake | 56 mm | 57 mm | 55 mm | 56 mm | 56 mm |
| Trail | 71 mm | 68 mm | 68 mm | 65 mm | 63 mm |
| Stack | 558 mm | 587 mm | 612 mm | 641 mm | 666 mm |
| Reach | 373 mm | 392 mm | 407 mm | 427 mm | 444 mm |
| Top Tube Length | 535 mm | 563 mm | 586 mm | 615 mm | 639 mm |
| Seat Tube Angle | 73.8 ° | 73.7 ° | 73.7 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 410 mm | 450 mm | 485 mm | 525 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 69.8 ° | 70.1 ° | 70.4 ° | 70.7 ° |
| Head Tube Length | 100 mm | 130 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1049 mm | 1076 mm | 1098 mm | 1126 mm | 1150 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 67 mm | 67 mm | 62 mm |
| Standover Height | 680 mm | 710 mm | 750 mm | 780 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 165 cm | 173 cm | 181 cm | 189 cm | 196 cm |
