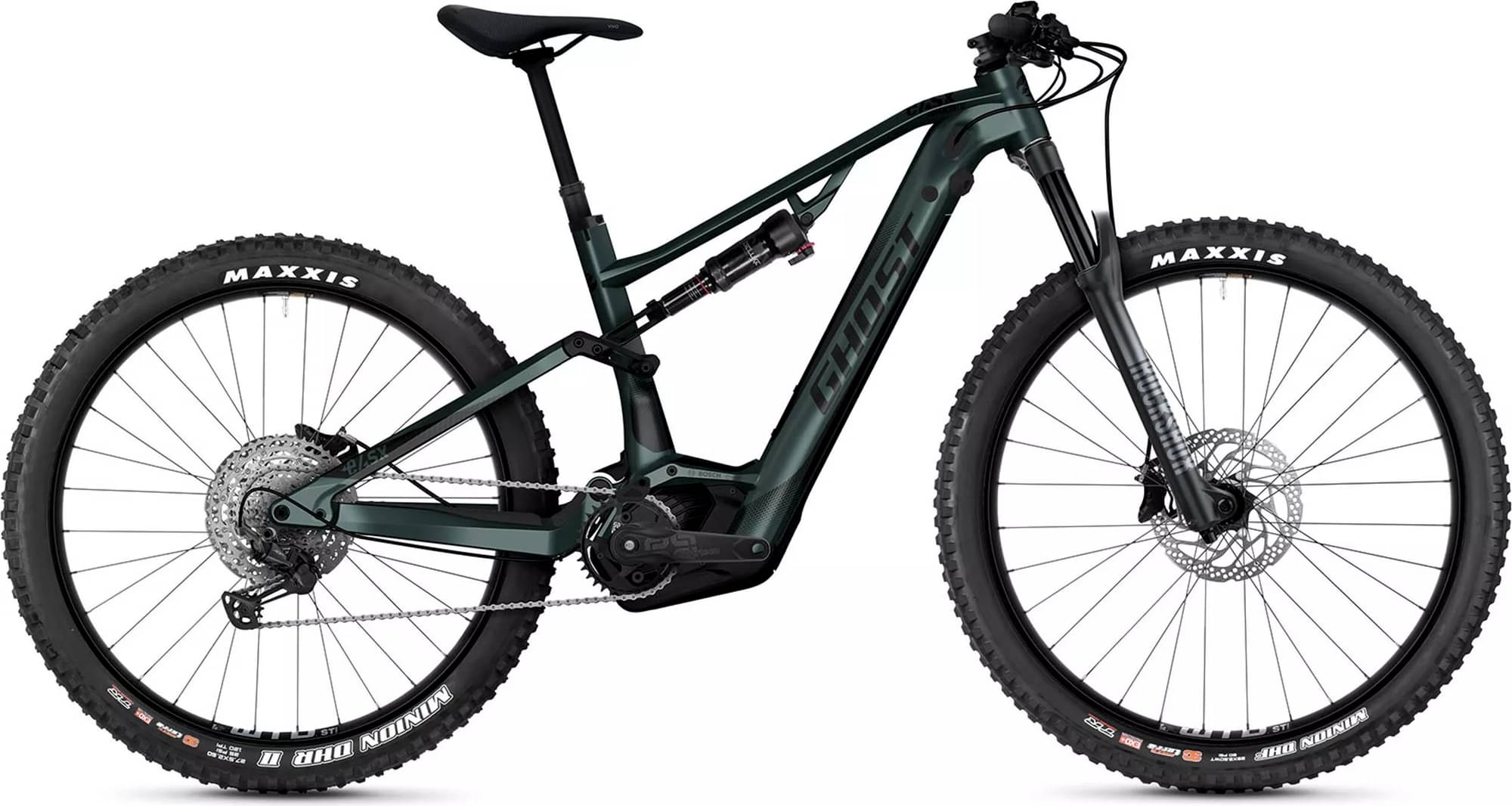

Ghost E-ASX 130 ADVANCED 2025
2025 E-bike
Estimate price |
6,192$
Weight | 26.66 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox 35 Gold RL
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh, Capacity: 750 Wh, Location: Downtube -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Rockshox 35 Gold RL 130 mm
Rear Shock
Rockshox Deluxe Select+ RT 130 mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12-S
Shift Levers
Shimano Deore SL-M6100
Cassette
Shimano Deore CS-M6100
Crank
E Thirteen e*spec Plus 170
Chain
Shimano Deore CN-M6100
Pedals
VP VPE-527
Wheels
Front Hub
Shimano HB-MT400-B 15x110 mm
Rear Hub
FH-MT510-B 12x148 mm
Rims
WTB ST i30
Tires
Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5
Brakes
Brakes
Shimano BR-MT420 203 mm Disc
Brake Levers
Shimano BL-M4100
Cockpit
Stem
Ghost Ground Fiftyone Dia. 31.8 mm
Handlebar
Ghost Ground Fiftyone Dia. 31.8 mm
Headset
Acros AZX-205
Seat
Saddle
Selle Royal Vivo
Seatpost
Limotec Dropperpost Alpha 1
Motor & Battery
Motor
Bosch Performance Line CX Performance Line CX
Battery
Bosch Power Tube 750 Wh, Capacity: 750 Wh, Location: Downtube
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.365 mm | 1.347 mm | 1.316 mm |
| Front Center | 758 mm | 775 mm | 803 mm | 836 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 115 mm | 111 mm | 111 mm | 111 mm |
| Stack | 611 mm | 621 mm | 640 mm | 658 mm |
| Reach | 436 mm | 455 mm | 475 mm | 500 mm |
| Top Tube Length | 588 mm | 610 mm | 634 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 65.5 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1216 mm | 1233 mm | 1261 mm | 1294 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
