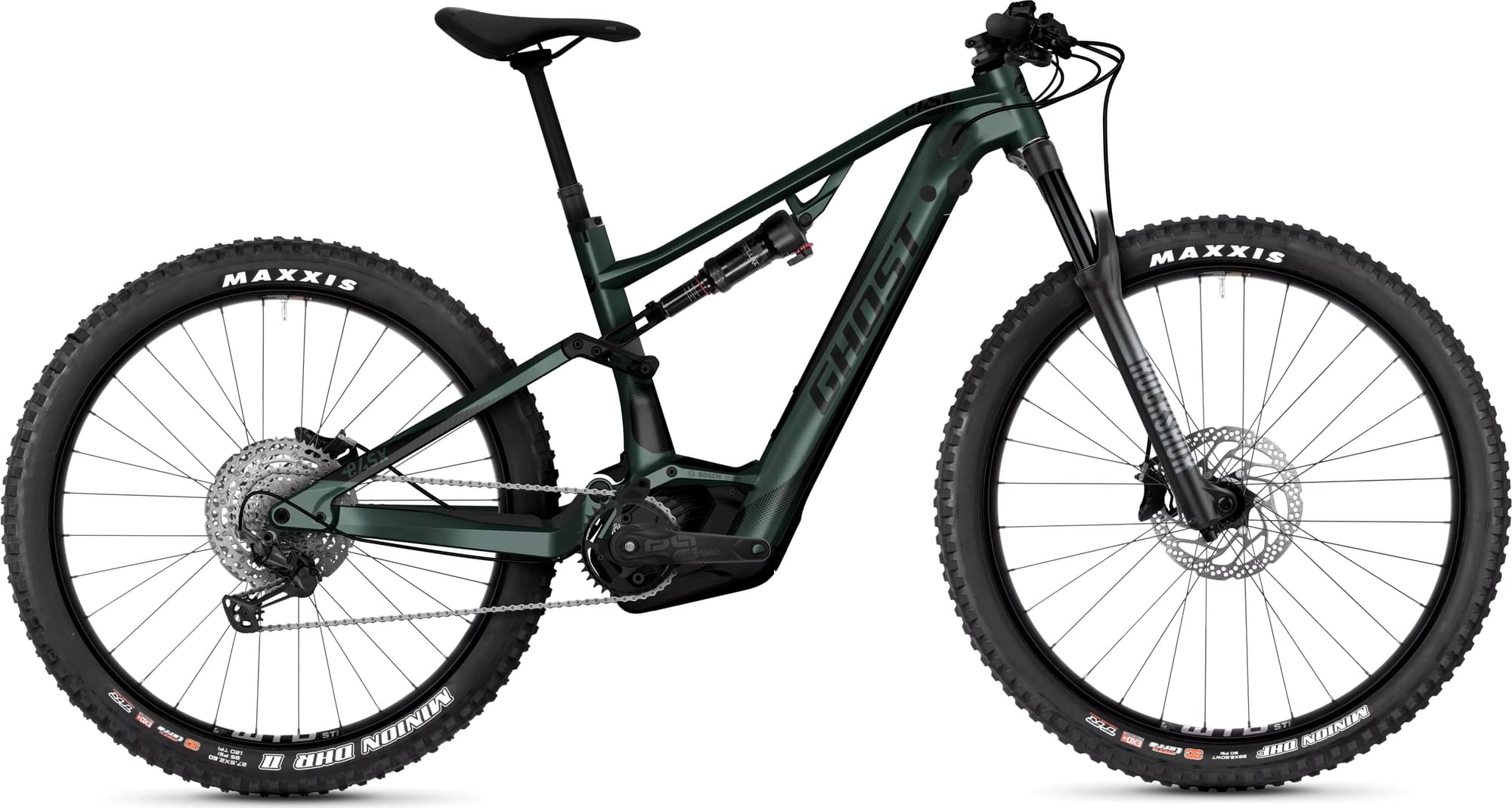

Ghost E-ASX 130 Advanced AL 2024
2024 E-bike
Estimate price |
6,514$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox 35 Gold RL
-
Groupset XT -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-ASX AL (29/27.5+)
Suspension Fork
Rock Shox 35 Gold RL 130 mm
Rear Shock
Rock Shox Deluxe Select+ RT 130 mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12-S
Cassette
Shimano Deore CS-M6100 10-51
Crank
e*thirteen e*spec Plus 34T
Chain
Shimano Deore CN-M6100
Pedals
VPE-527
Wheels
Rims
Front: WTB ST i30, Rear: WTB ST i30
Tires
Front: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 29", Rear: Maxxis Minion DHR II 3C MaxxTerra Exo+ 2.6 27.5"
Brakes
Brakes
Shimano BR-MT420 203 mm Disc
Brake Levers
Shimano BL-M4100
Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/15 (M-L) 780/40 (XL)
Grips
Velo VLG-1751D2
Seat
Saddle
Selle Royal Vivo
Seatpost
Ghost Alpha 1 31.6 mm 125 (S) 150 (M) 170 (L/XL)
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 750 Wh
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.365 mm | 1.347 mm | 1.316 mm |
| Front Center | 758 mm | 775 mm | 803 mm | 836 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 115 mm | 111 mm | 111 mm | 111 mm |
| Stack | 611 mm | 621 mm | 640 mm | 658 mm |
| Reach | 436 mm | 455 mm | 475 mm | 500 mm |
| Top Tube Length | 588 mm | 610 mm | 634 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 65.5 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1216 mm | 1233 mm | 1261 mm | 1294 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
