Ghost E-ASX 160 ESSENTIAL 2025
2025 E-bike
Estimate price |
5,467$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork RockShox
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch InTube 625 Wh, Capacity: 625 Wh, Location: Powertube -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Rockshox Silver TK Solo Air 160 mm

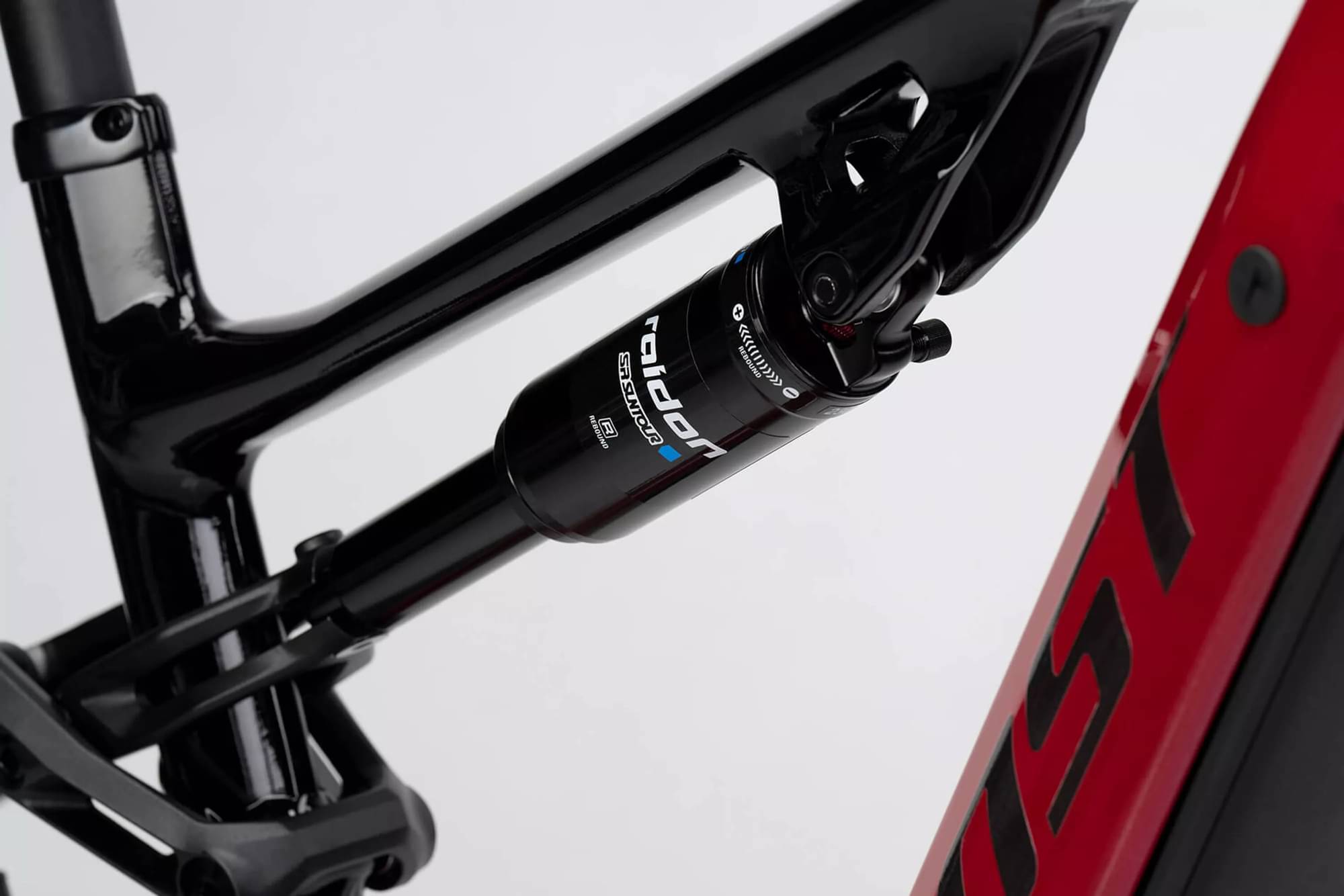

Rear Shock
Suntour Raidon R 230x60mm
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM Triggershift SX Eagle Single Click
Cassette
SRAM PG-1210 Eagle, HG
Crank
E Thirteen e*spec Plus 170
Chain
SRAM SX Eagle 12s
Pedals
VP VPE-527
Wheels
Front Hub
Shimano HB-MT400-B 15x110 mm
Rear Hub
Shimano FH-MT400-B 12x148 mm
Rims
WTB ST i25 TCS 2.0
Tires
Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5
Brakes
Brakes
Shimano Hydraulic Disc brake Deore BR-MT420, 203 mm
Brake Levers
Shimano BL-M4100

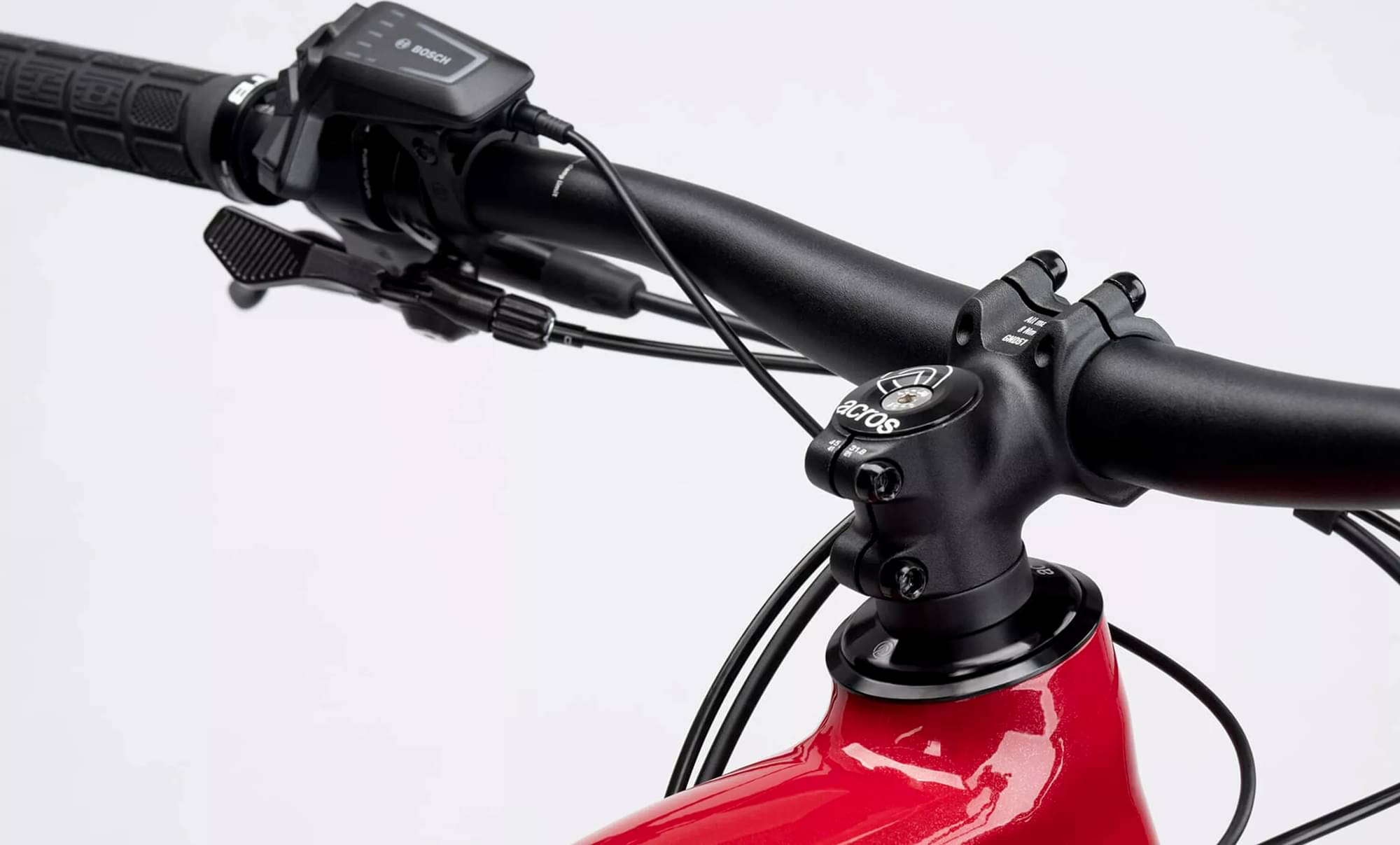

Cockpit
Stem
Ghost Ground Fiftyone Dia. 31.8 mm, L: 45 mm
Handlebar
Ghost Riser Bar Ground Fiftyone Dia. 31.8 mm, Rise: 25 mm
Headset
Acros Semi-integrated AZX-205, ZS56/56 ALU BLACK
Seat
Saddle
Selle Royal MTB Vivo
Seatpost
Limotec Dropperpost Alpha 1, Dia. 34.9 mm, Travel: 170 mm
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch InTube 625 Wh, Capacity: 625 Wh, Location: Powertube
Charger
Bosch Charger 4A 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.409 mm | 1.387 mm | 1.356 mm |
| Front Center | 772 mm | 790 mm | 818 mm | 852 mm |
| Rake | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 126 mm | 126 mm | 126 mm |
| Stack | 631 mm | 641 mm | 659 mm | 678 mm |
| Reach | 435 mm | 455 mm | 475 mm | 500 mm |
| Top Tube Length | 587 mm | 609 mm | 633 mm | 663 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 64.5 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1230 mm | 1248 mm | 1276 mm | 1310 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 735 mm | 749 mm | 748 mm | 757 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 200 cm |
