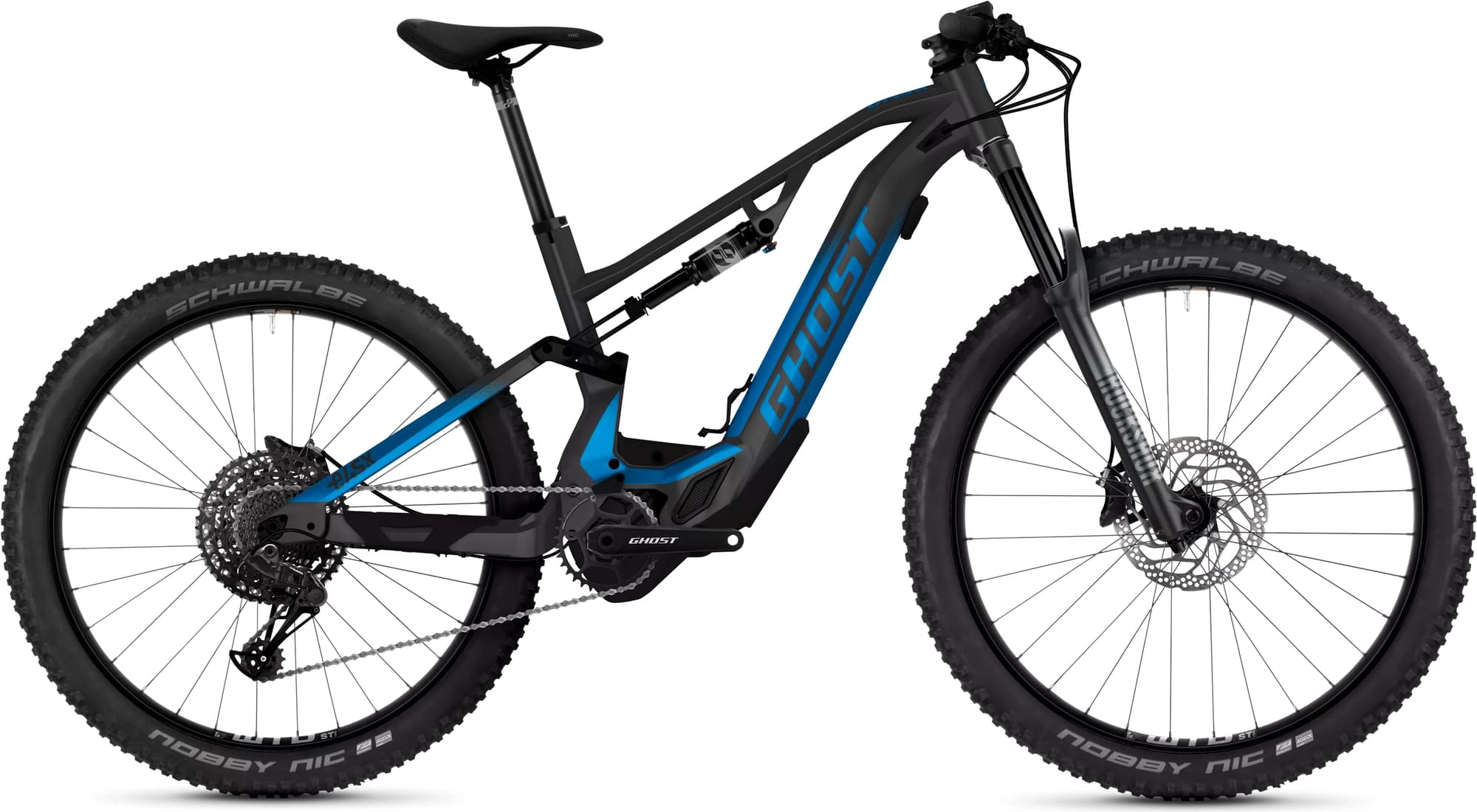

Ghost E-ASX 160 Essential AL 2024
2024 E-bike
Estimate price |
5,467$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 178cm
LG
176cm - 187cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-ASX AL (29/27.5+)
Suspension Fork
Rock Shox 35 Silver TK Solo Air 160 mm
Rear Shock
Hodaka Rear Shock 160 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle 12-S
Cassette
SRAM PG-1210 11-50
Crank
Ground Fiftyone 34T
Chain
SRAM SX Eagle
Pedals
VPE-527
Wheels
Rims
Front: WTB ST i30, Rear: WTB ST i30
Tires
Front: Schwalbe Nobby Nic Performance 2.6 29", Rear: Schwalbe Nobby Nic Performance 2.6 27.5"
Brakes
Brakes
Shimano BR-MT420 203 mm Disc
Brake Levers
Shimano BL-MT401
Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/15 (M-L) 780/40 (XL)
Grips
Velo VLG-1751D2
Seat
Saddle
Selle Royal Vivo
Seatpost
GHOST SP DC1 31.6 mm
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 625 Wh
Charger
Bosch Charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.371 mm | 1.327 mm | 1.286 mm |
| Front Center | 736 mm | 771 mm | 803 mm | 841 mm |
| Rake | 42 mm | 43 mm | 42 mm | 42 mm |
| Trail | 121 mm | 120 mm | 121 mm | 121 mm |
| Stack | 615 mm | 624 mm | 637 mm | 656 mm |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 584 mm | 611 mm | 633 mm | 661 mm |
| Seat Tube Angle | 75.5 ° | 76 ° | 76.5 ° | 77 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1175 mm | 1210 mm | 1243 mm | 1281 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 15 mm | 15 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm | 185 cm |
| Rider Max Height | 170 cm | 178 cm | 187 cm | 195 cm |
