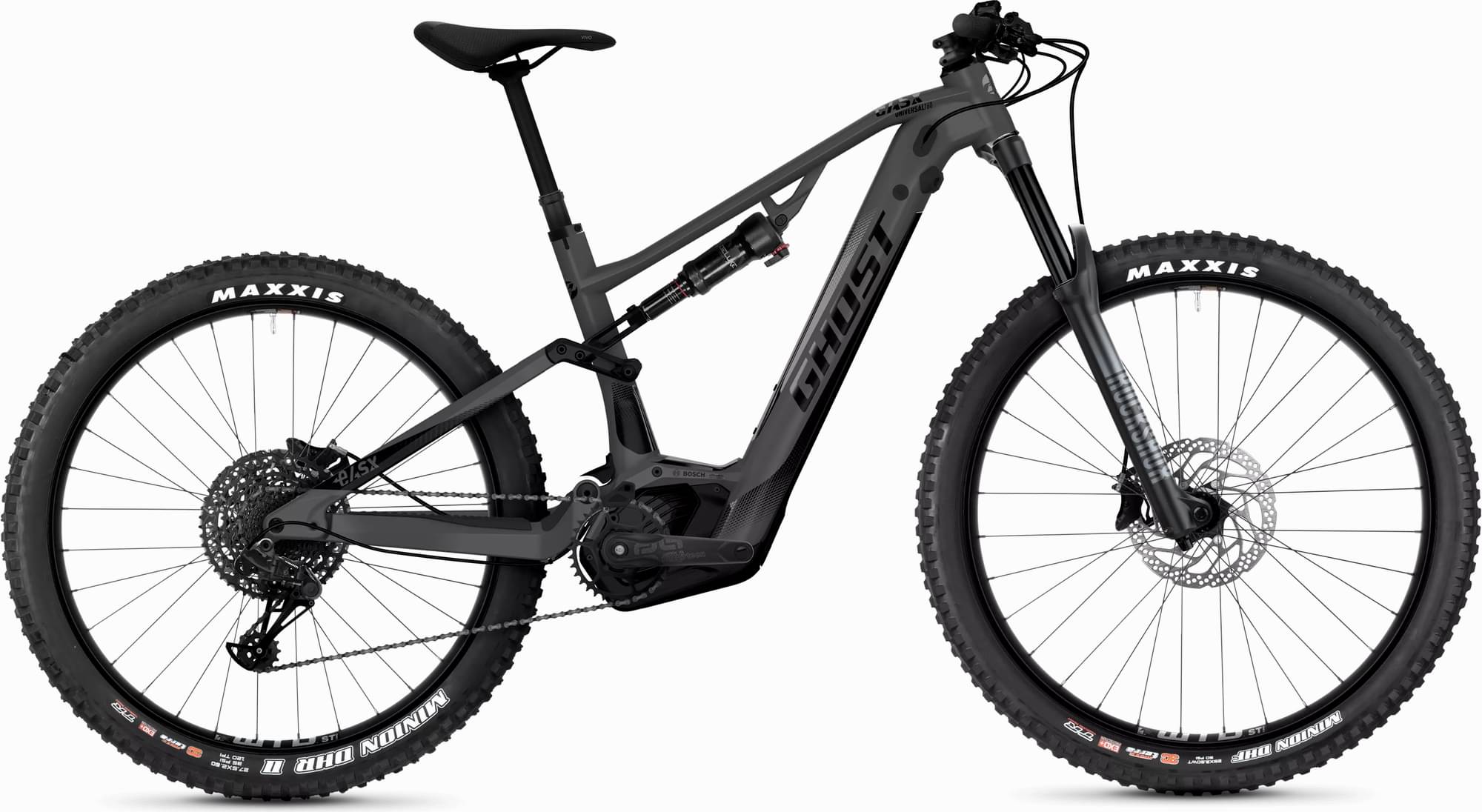

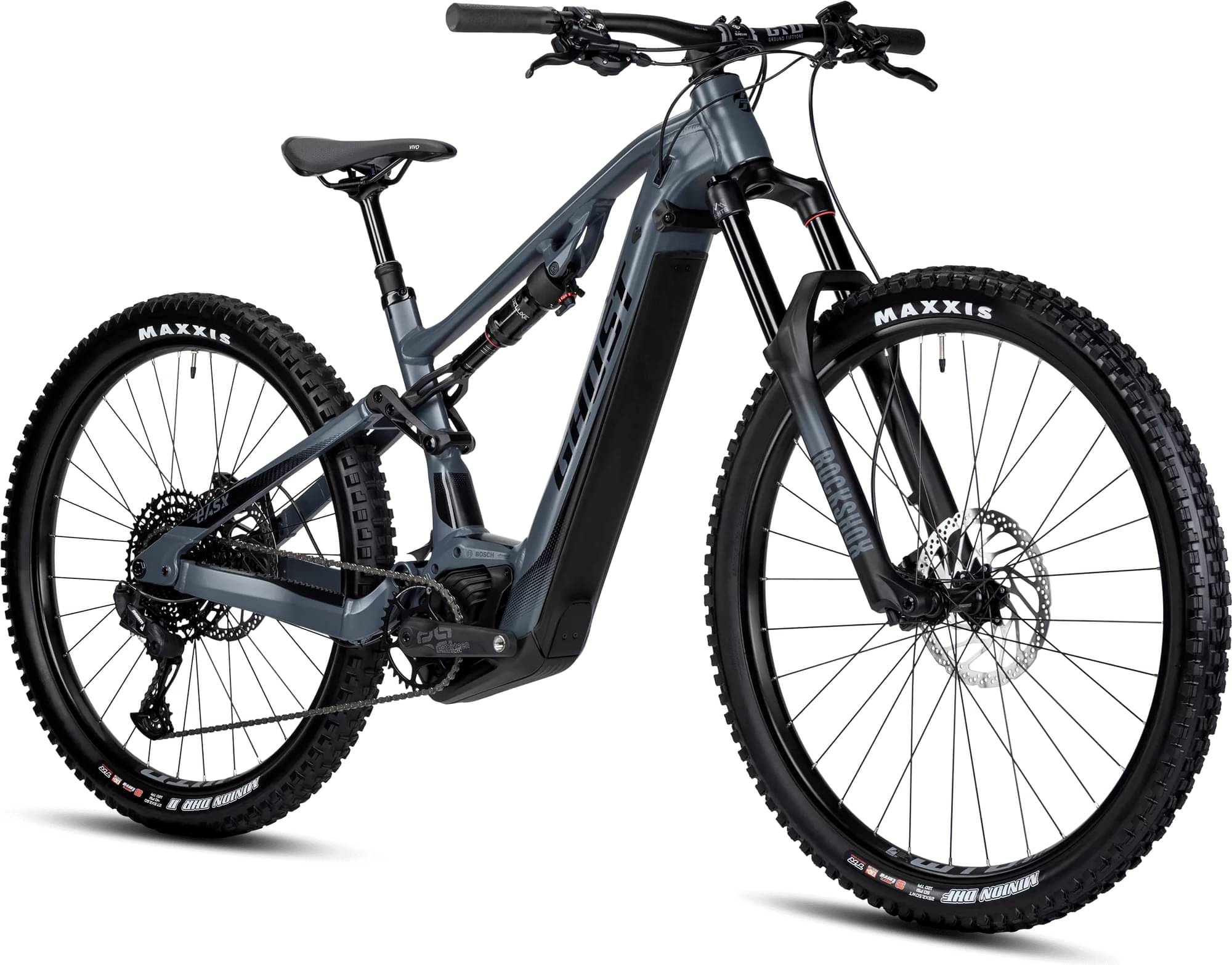

Ghost E-ASX 160 Universal AL 2024
2024 E-bike
Estimate price |
6,281$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

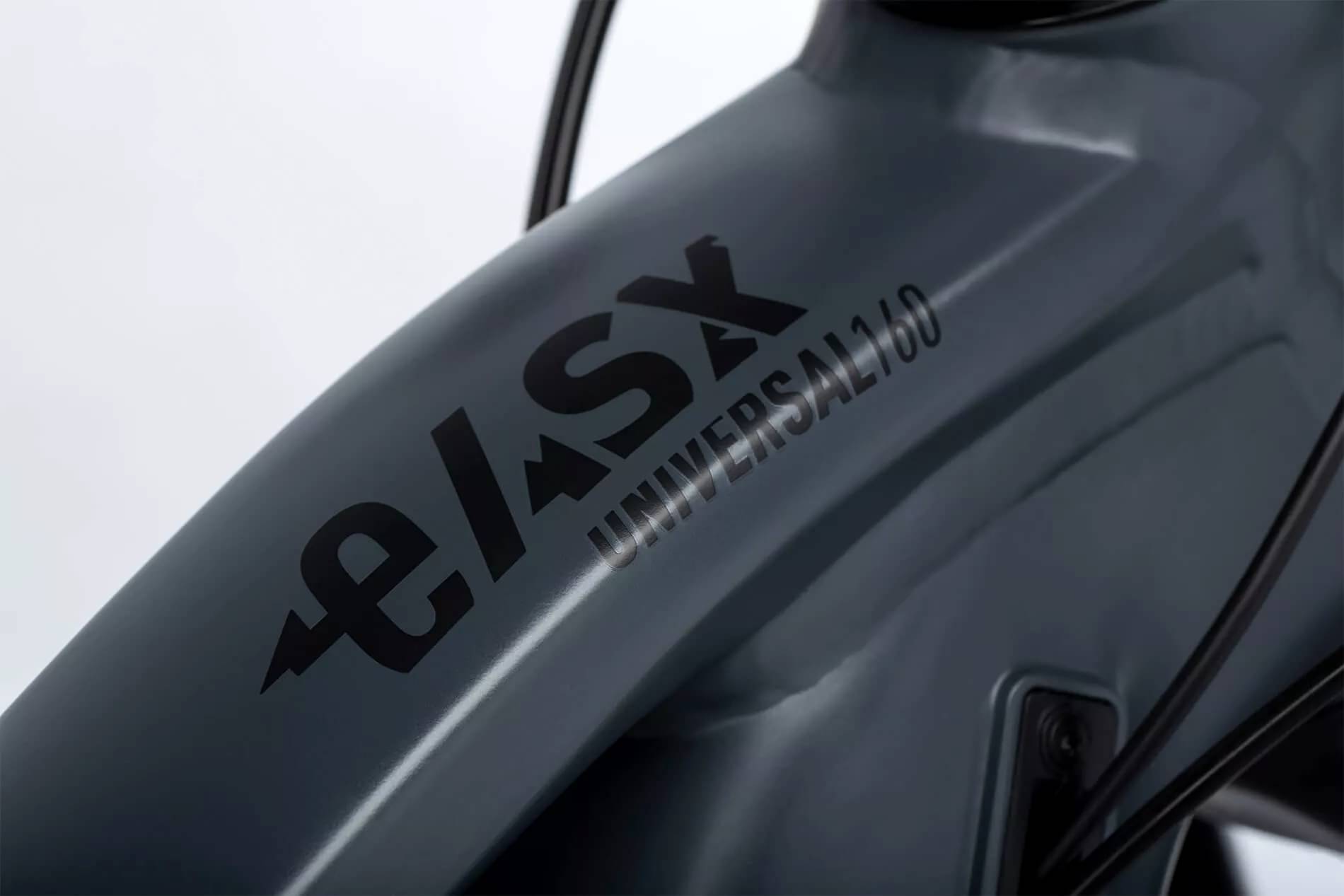

E-ASX AL (29/27.5+)

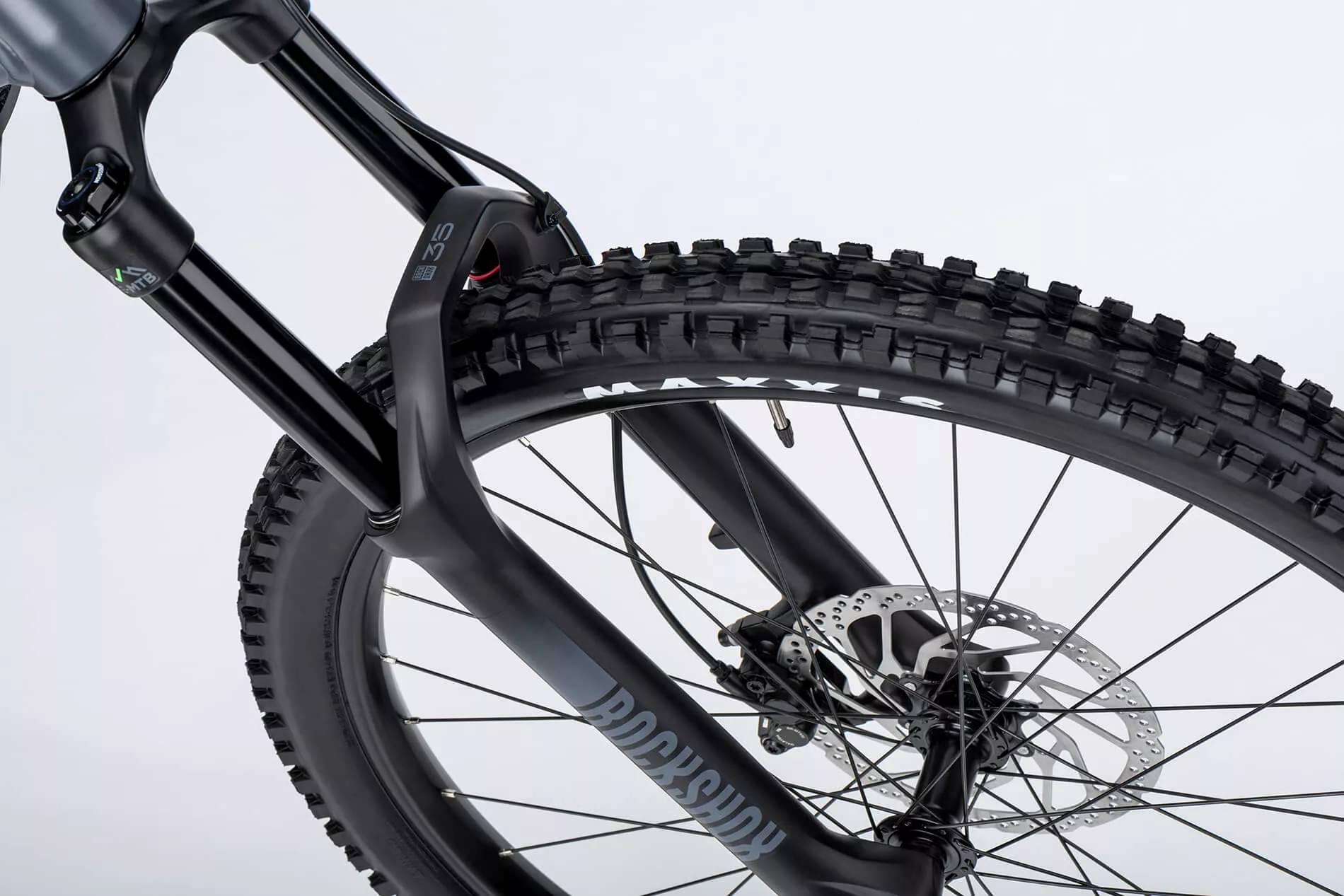

Suspension Fork
Rock Shox 35 Gold RL 160 mm

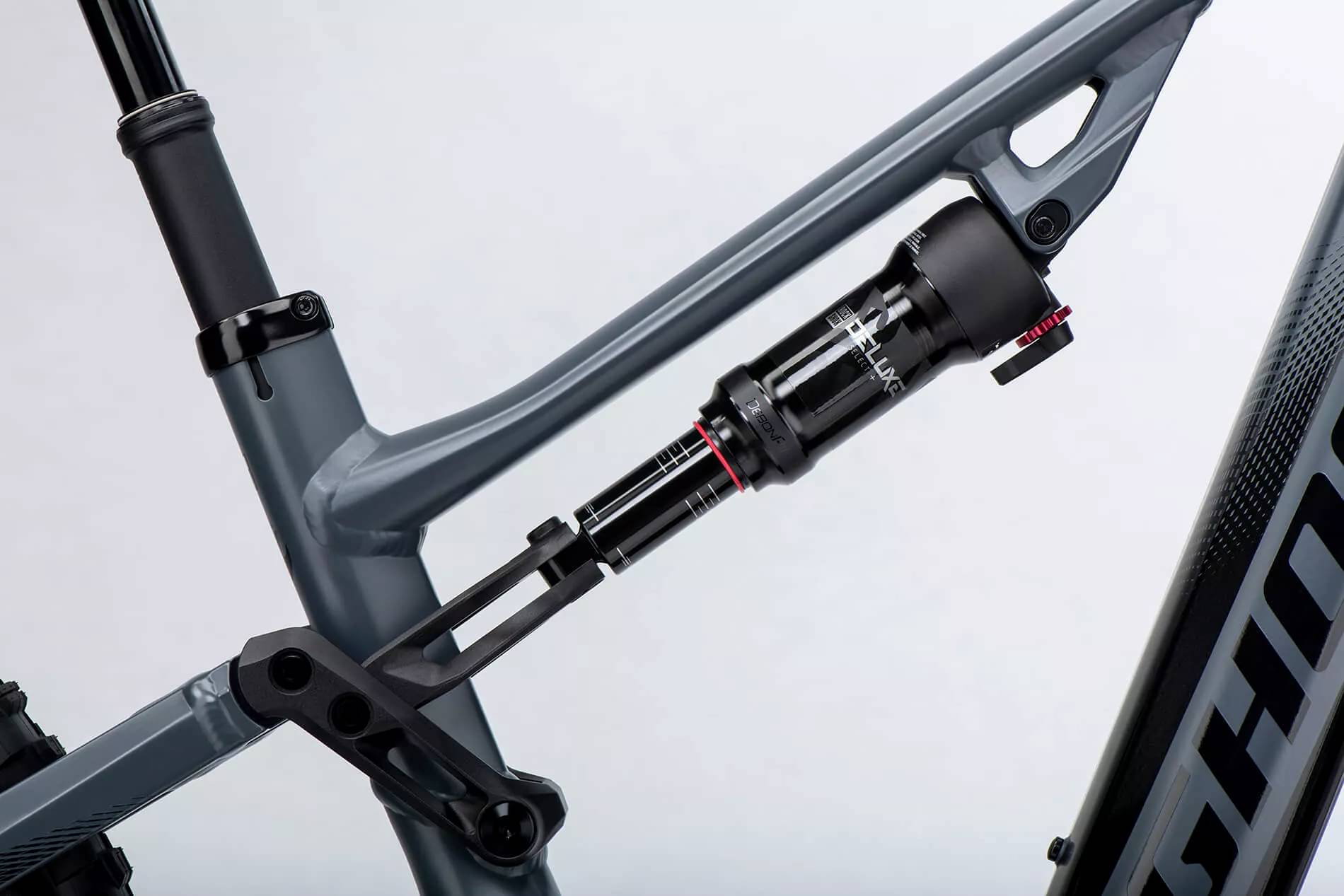

Rear Shock
Rock Shox Deluxe Select+ RT 160 mm

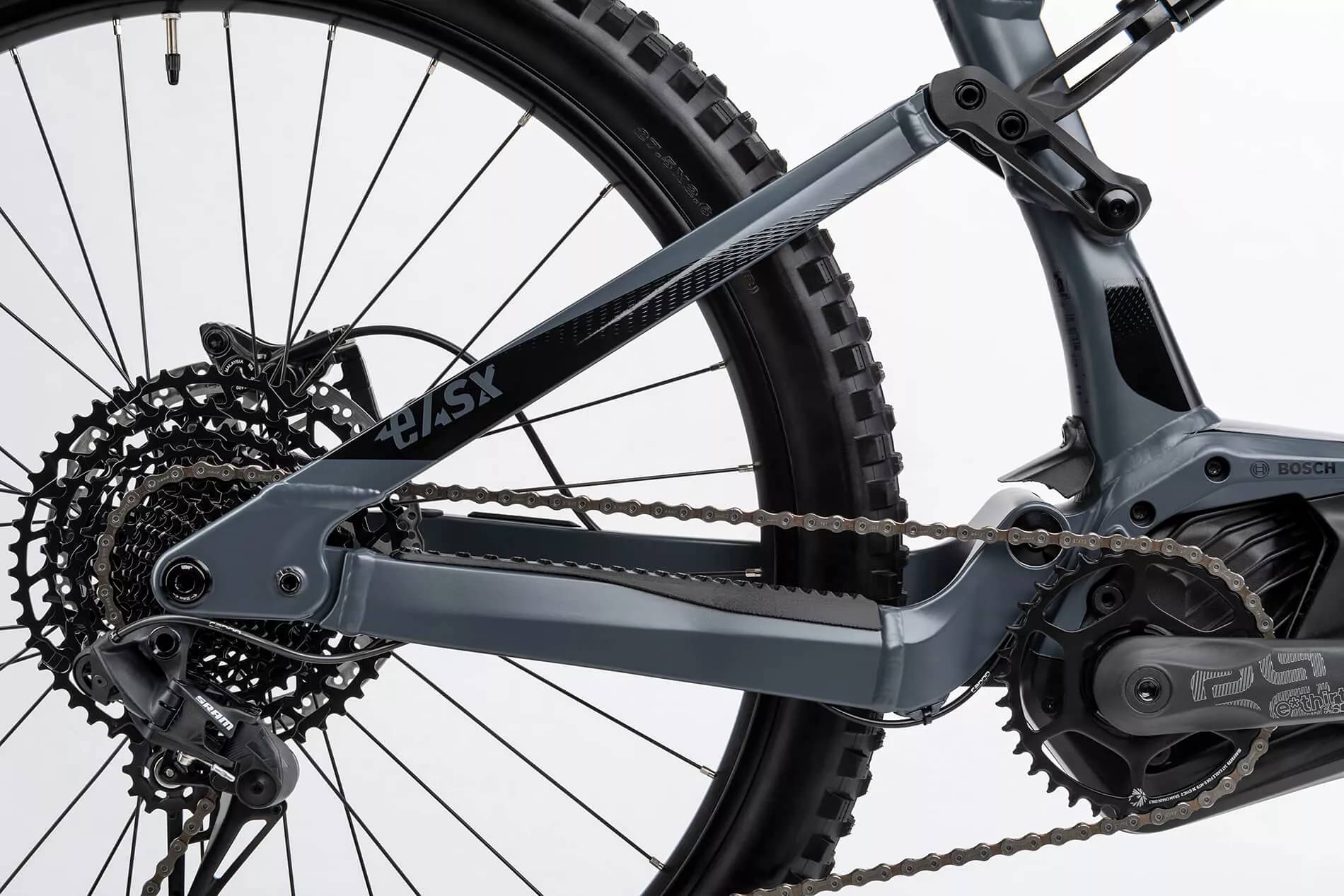

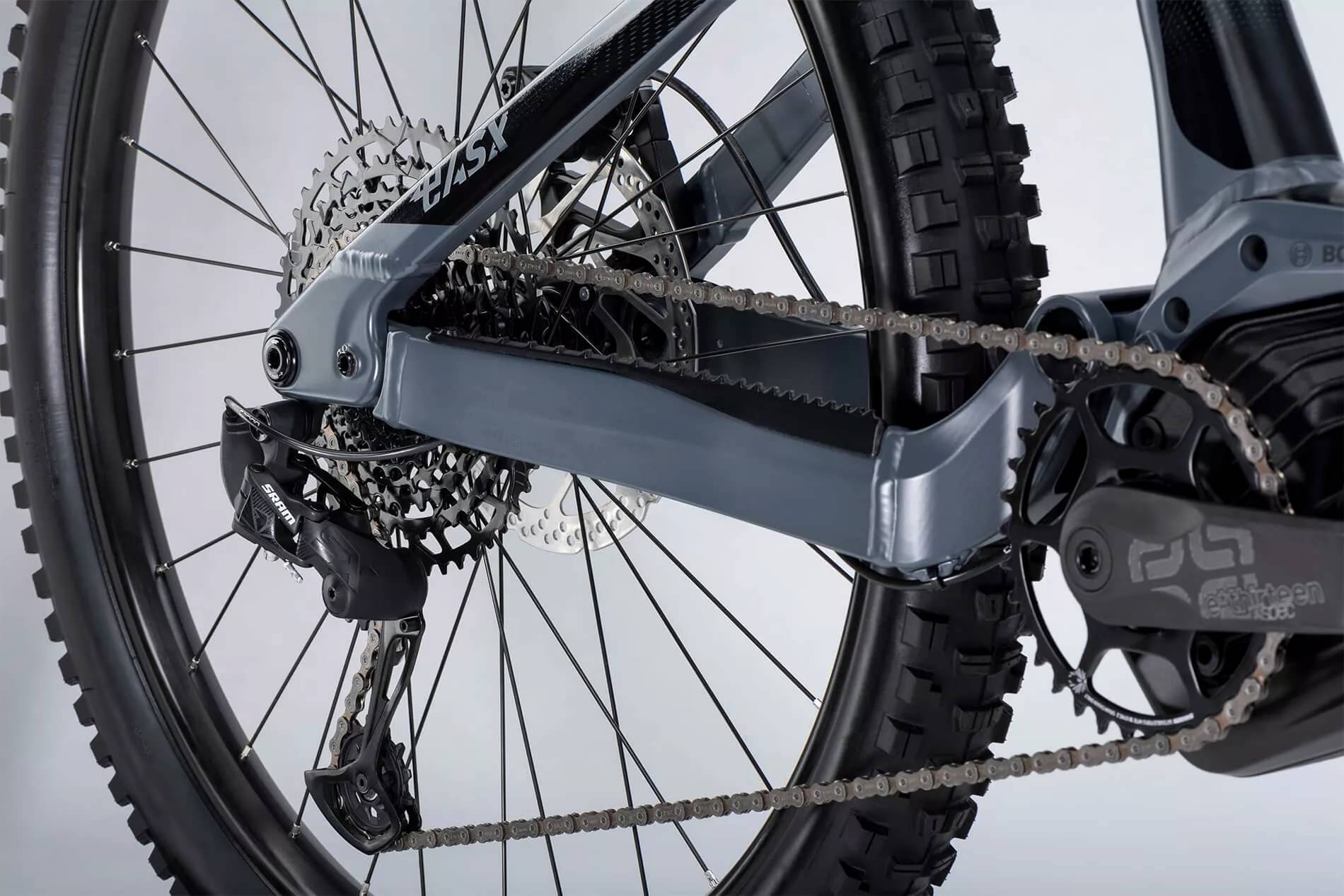

Drivetrain
Rear Derailleur
SRAM SX Eagle 12-S
Cassette
SRAM PG-1210 11-50
Crank
e*thirteen e*spec Plus 34T
Chain
SRAM SX Eagle
Pedals
VPE-527
Wheels
Rims
Front: WTB ST i30, Rear: WTB ST i30
Tires
Front: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 29", Rear: Maxxis Minion DHR II 3C MaxxTerra Exo+ 2.6 27.5"

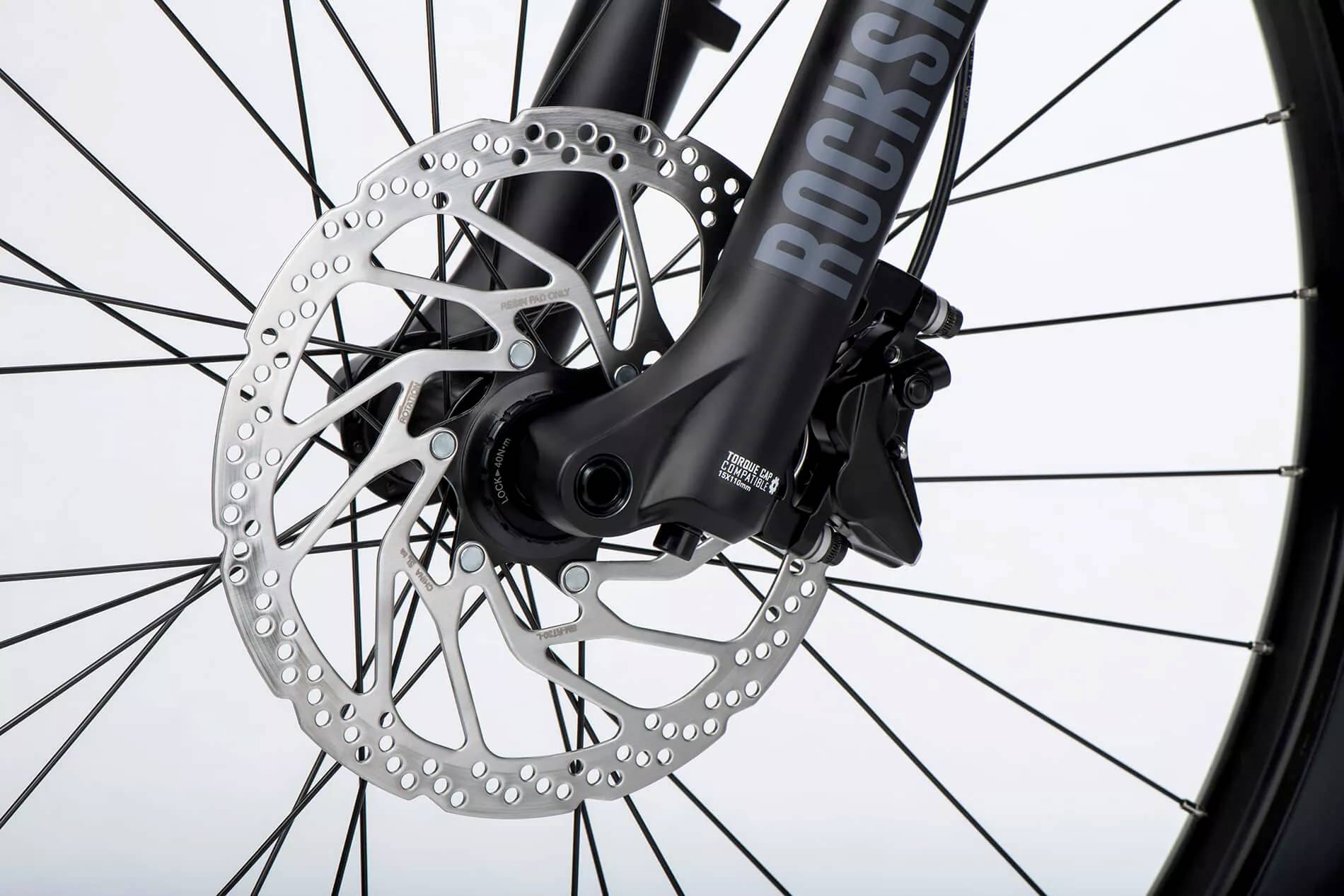

Brakes
Brakes
Shimano BR-MT420 203 mm Disc
Brake Levers
Shimano BL-M4100
Cockpit

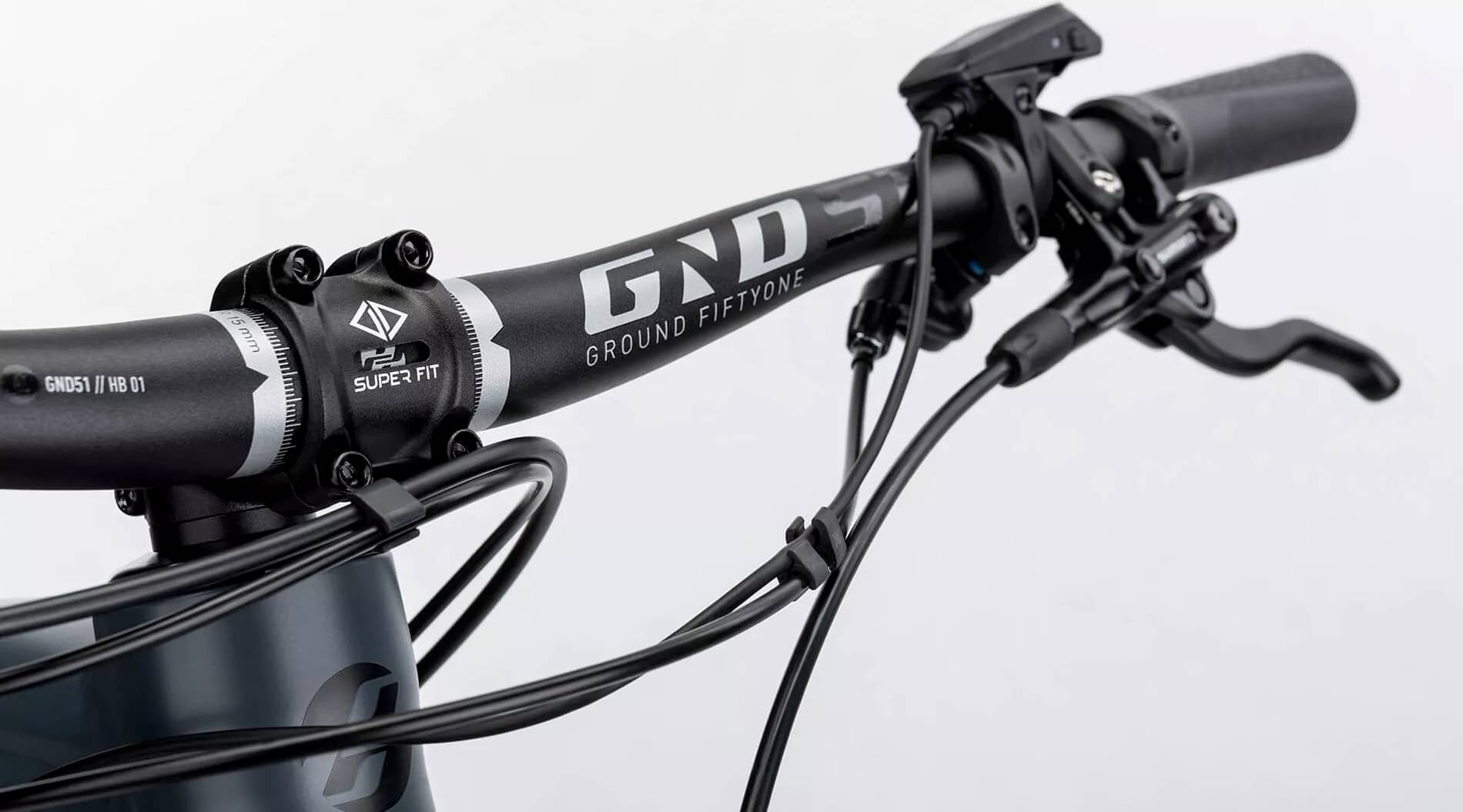

Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/15 (M-L) 780/40 (XL)
Grips
Velo VLG-1751D2
Seat
Saddle
Selle Royal Vivo
Seatpost
Limotec Alpha 1 31.6 mm 125 (S) 150 (M) 170 (L/XL)
Motor & Battery

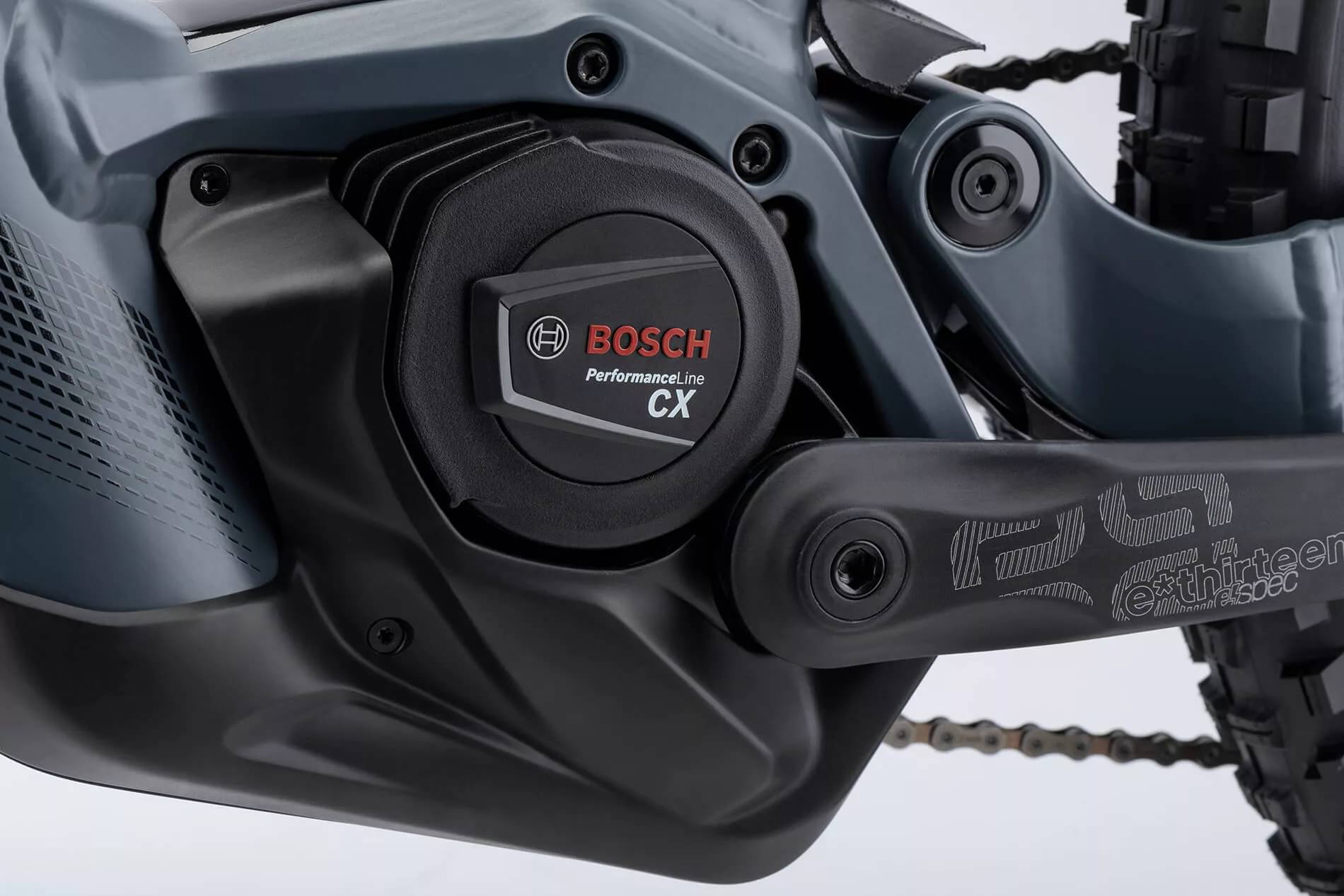

Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 750 Wh
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.409 mm | 1.387 mm | 1.356 mm |
| Front Center | 772 mm | 790 mm | 818 mm | 852 mm |
| Rake | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 126 mm | 126 mm | 126 mm |
| Stack | 631 mm | 641 mm | 659 mm | 678 mm |
| Reach | 435 mm | 455 mm | 475 mm | 500 mm |
| Top Tube Length | 587 mm | 609 mm | 633 mm | 663 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 64.5 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1230 mm | 1248 mm | 1276 mm | 1310 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 200 cm |
