Ghost E-ASX UNIVERSAL EQ 2025
2025 E-bike
Estimate price |
6,746$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -

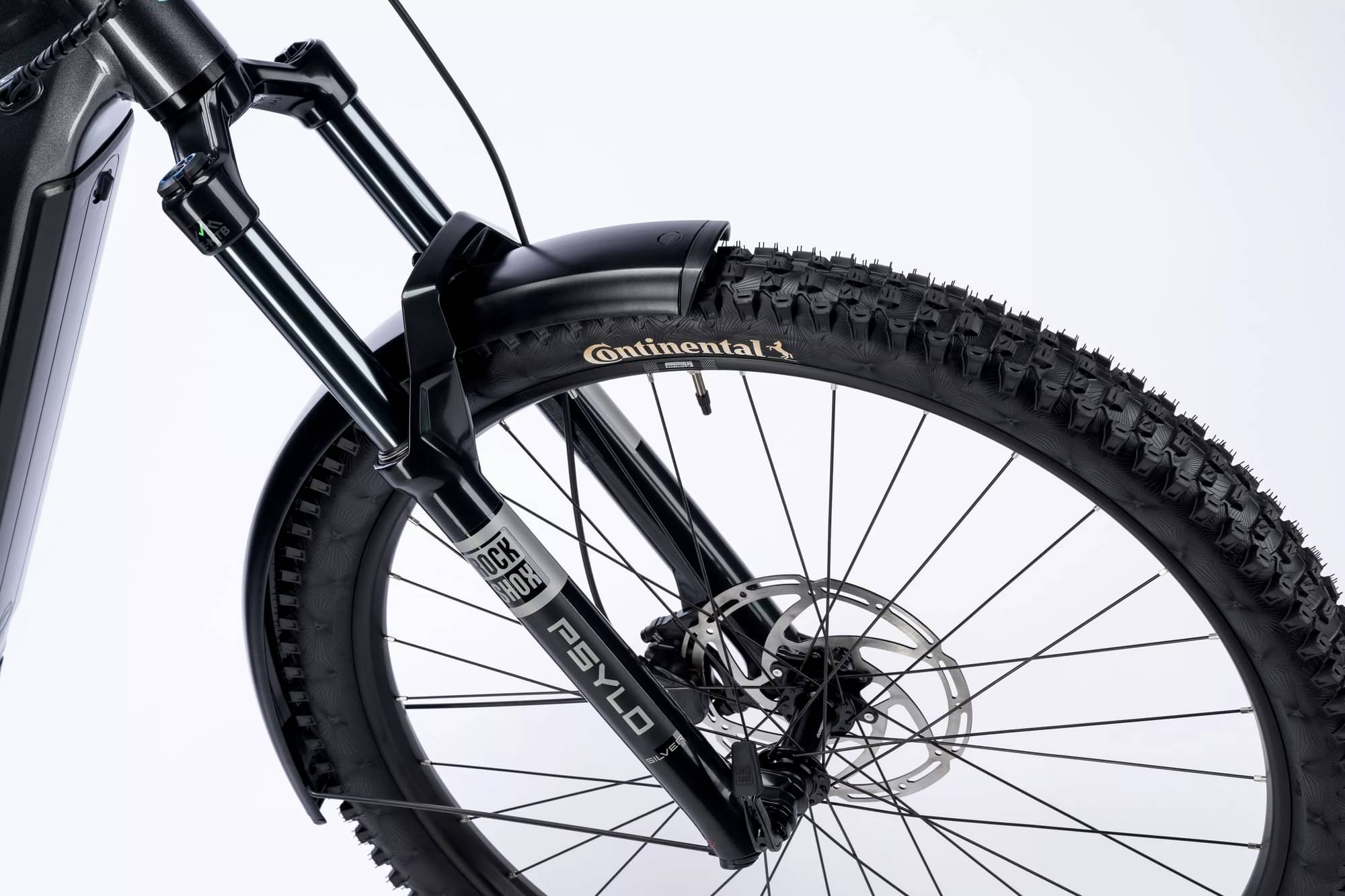

Fork RockShox Psylo
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch InTube 800 Wh, Capacity: 800 Wh, Location: Powertube -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 173cm
MD
171cm - 181cm
LG
179cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LOW Aluminium Uni
Suspension Fork
Rockshox Psylo Silver RC, Crown Adjust, Solo Air, 140 mm
Rear Shock
Rockshox Deluxe Select R 185x55mm, Trunnion, DebonAir+
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM Triggershift SX Eagle Single Click Trigger
Cassette
SRAM PG-1210 Eagle, HG
Crank
Miranda Crius ISIS CRNKS+SRAM CR T-Type Bosch DU38, DM 165
Bottom Bracket
Bosch, press-fit
Chain
SRAM SX Eagle 12s
Pedals
VP VPE-527 Alloy w/ Reflector
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm, 32H, Centerlock
Rear Hub
Shimano FH-TC500-HM-B 12x148 mm, 32H, Centerlock, HG
Rims
WTB ST i30 TCS 2.0 27.5" 32H
Tires
Schwalbe Johnny Watts Performance, DD, RaceGuard, 67EPI 60-584
Brakes
Brakes
Shimano Hydraulic Disc brake Deore BR-MT420, 4 pistons, 203 mm
Brake Levers
Shimano Deore BL-M4100
Cockpit
Stem
Ghost Not Adjustable Dia. 31.8 mm, L: 60 mm, A-Head
Handlebar
Ghost Riser Bar JD-MTB502A, Dia. 31.8 mm, 15° backsweep, Rise: 25 mm
Headset
Acros Semi-integrated Blocklock 120° Tapered, Semi-Int. ZS56/ZS56
Seat
Saddle
Selle Royal MTB Vivo 1216HRN
Seatpost
Limotec Dropperpost Alpha 1 Dropper, Dia. 34.9 mm, Travel: 125 mm
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch InTube 800 Wh, Capacity: 800 Wh, Location: Powertube
Charger
Bosch Charger 4A 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.473 mm | 1.417 mm | 1.357 mm |
| Front Center | 740 mm | 767 mm | 799 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm |
| Stack | 623 mm | 632 mm | 642 mm |
| Reach | 423 mm | 446 mm | 473 mm |
| Top Tube Length | 590 mm | 615 mm | 645 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1204 mm | 1231 mm | 1263 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Standover Height | 570 mm | 570 mm | 570 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 171 cm | 179 cm |
| Rider Max Height | 173 cm | 181 cm | 190 cm |
