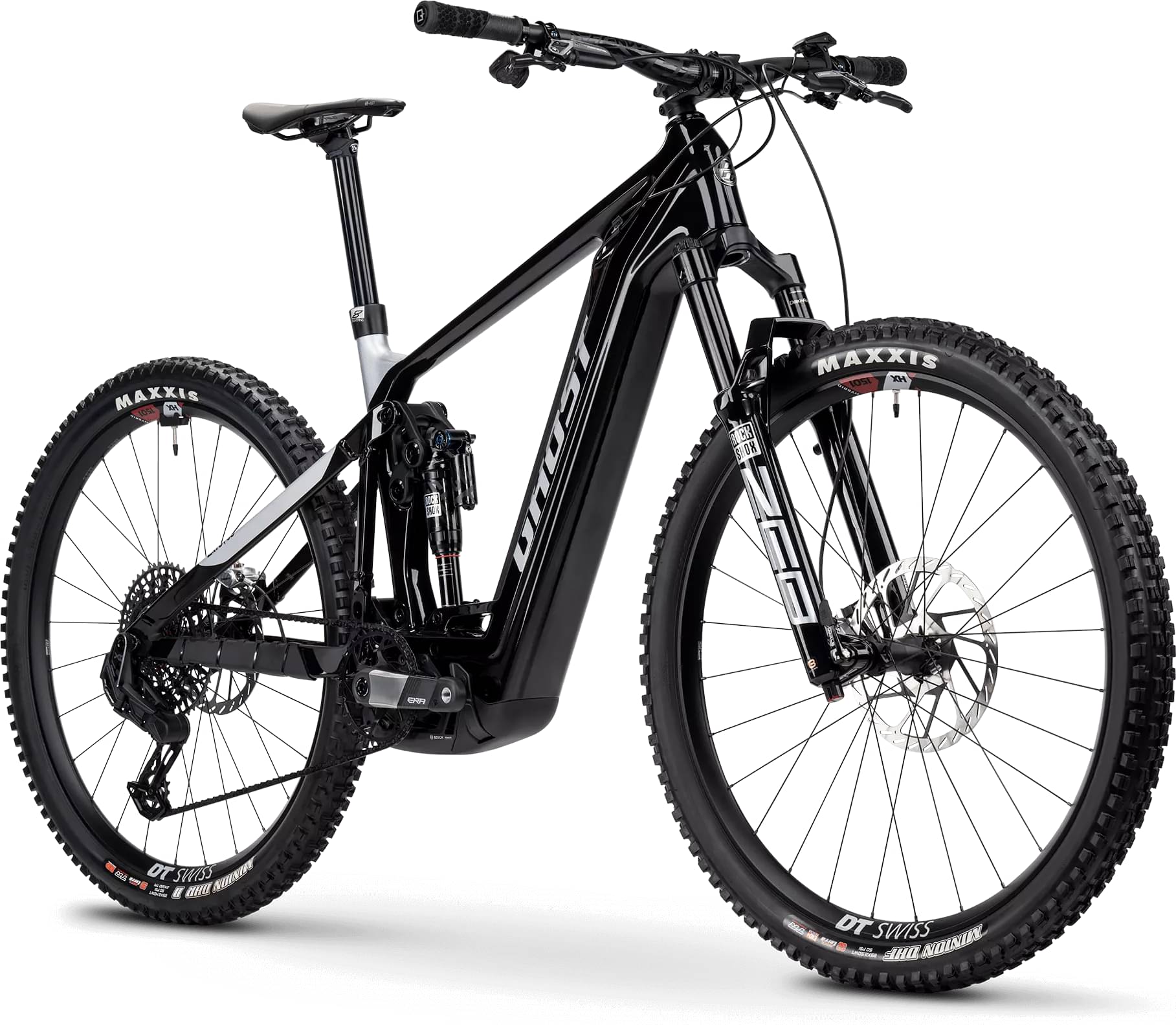

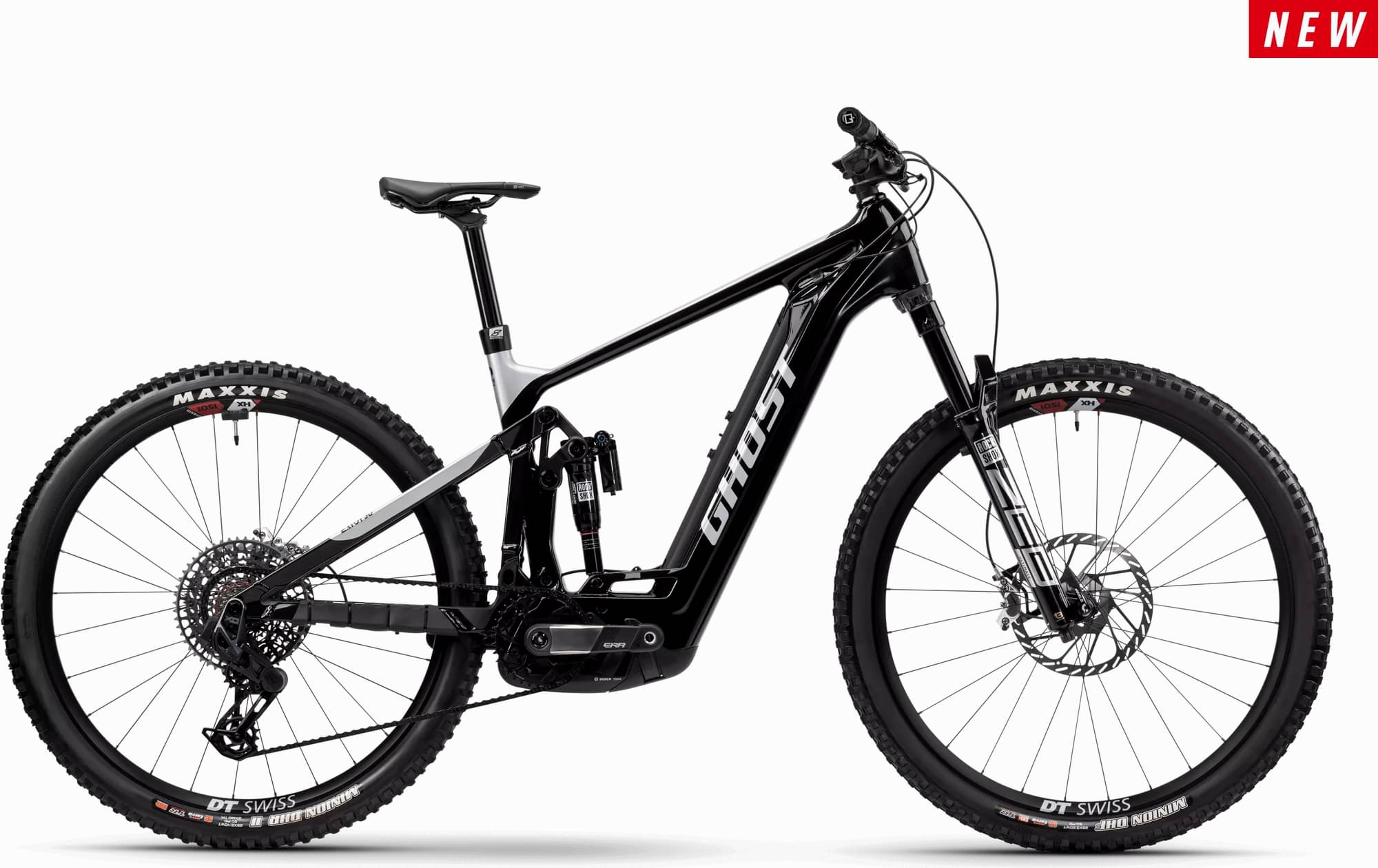

Ghost E-Riot AM 30 2024
2024 E-bike
Estimate price |
12,617$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset X0 Eagle Transmission -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 172cm
MD
170cm - 180cm
LG
178cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-RIOT CF (S:27.5 M-XL:29)

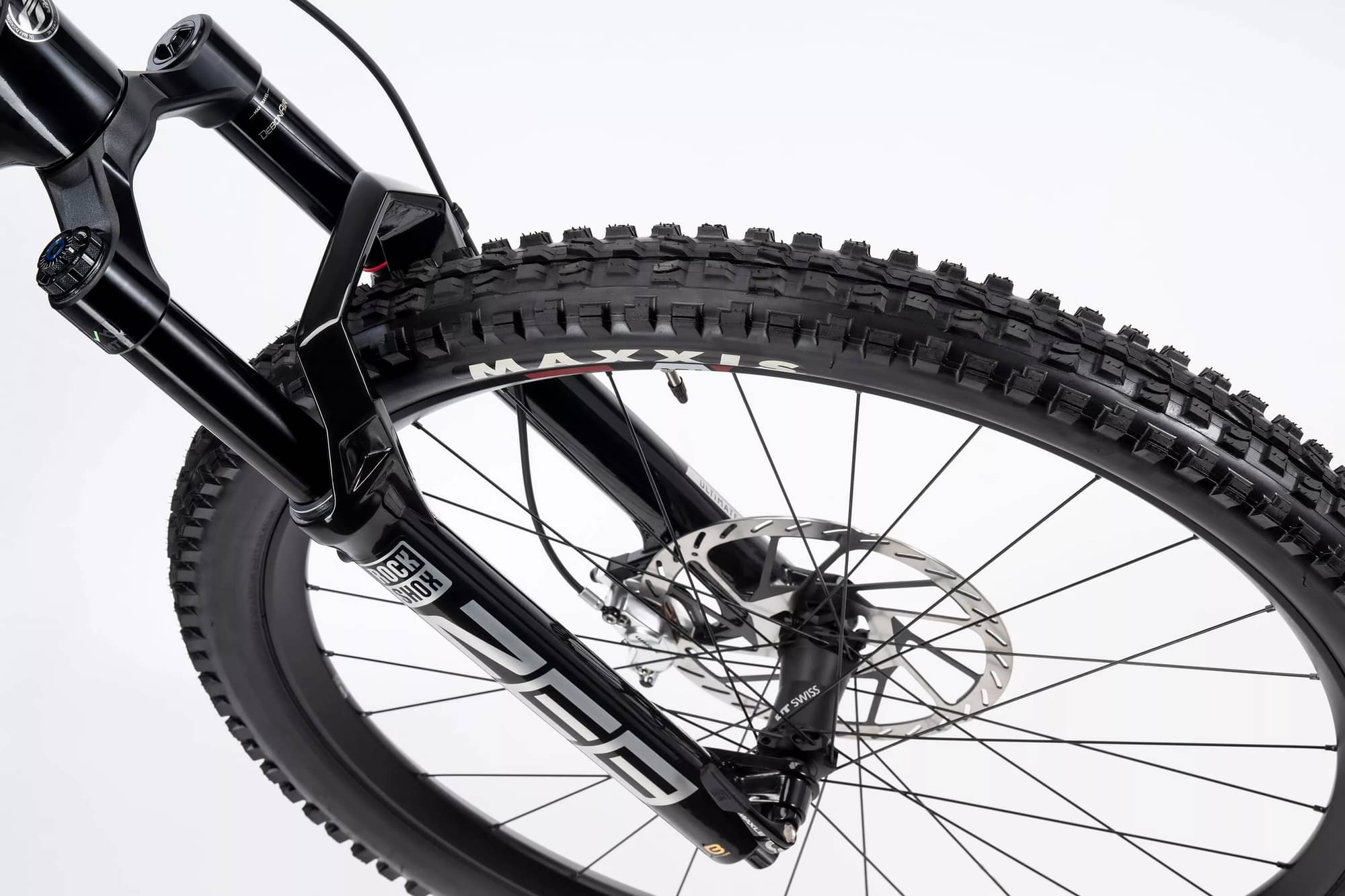

Suspension Fork
Rock Shox ZEB Ultimate 160 mm

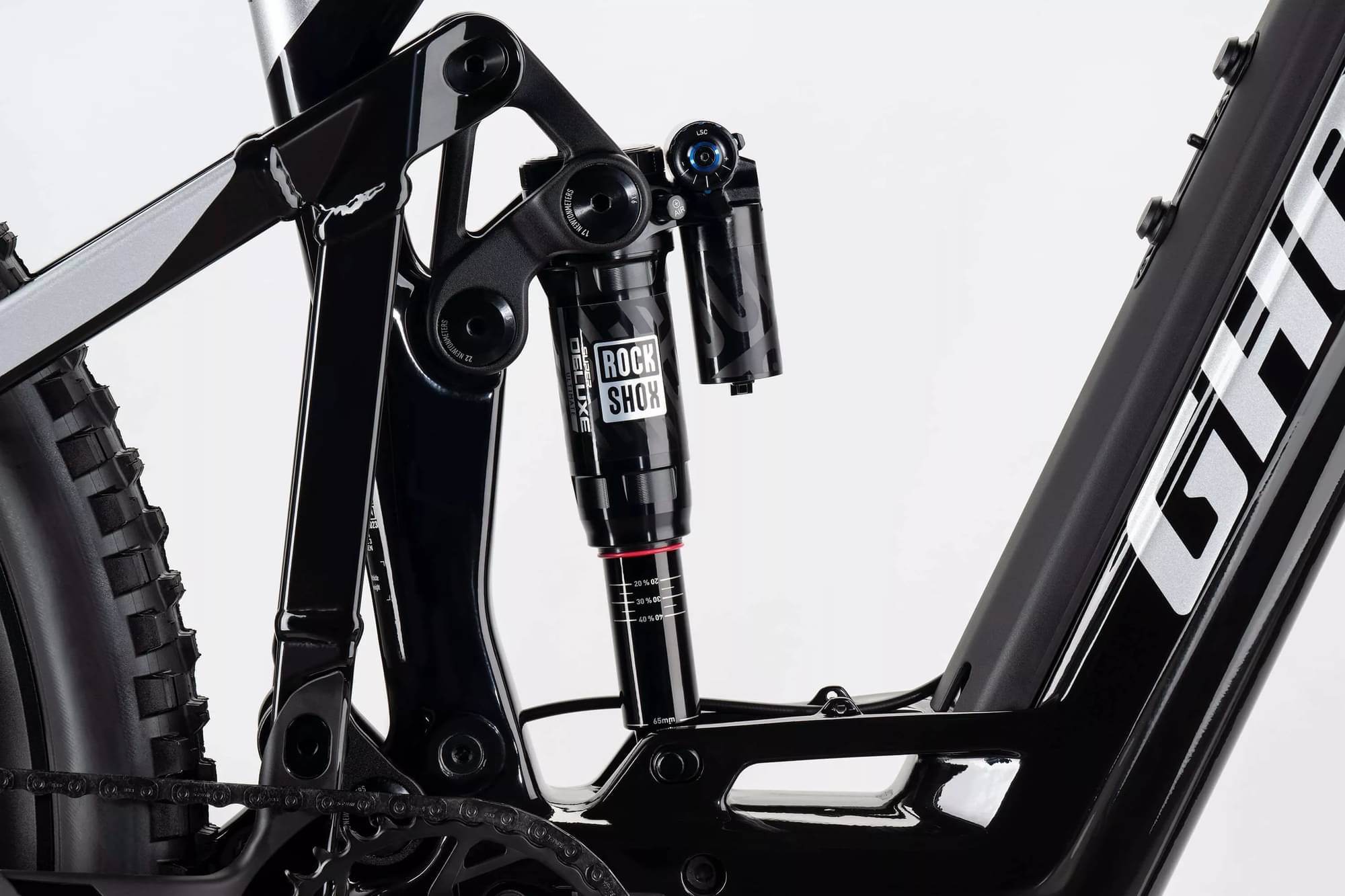

Rear Shock
Rock Shox Super Deluxe Ultimate RC2T 160 mm
Drivetrain

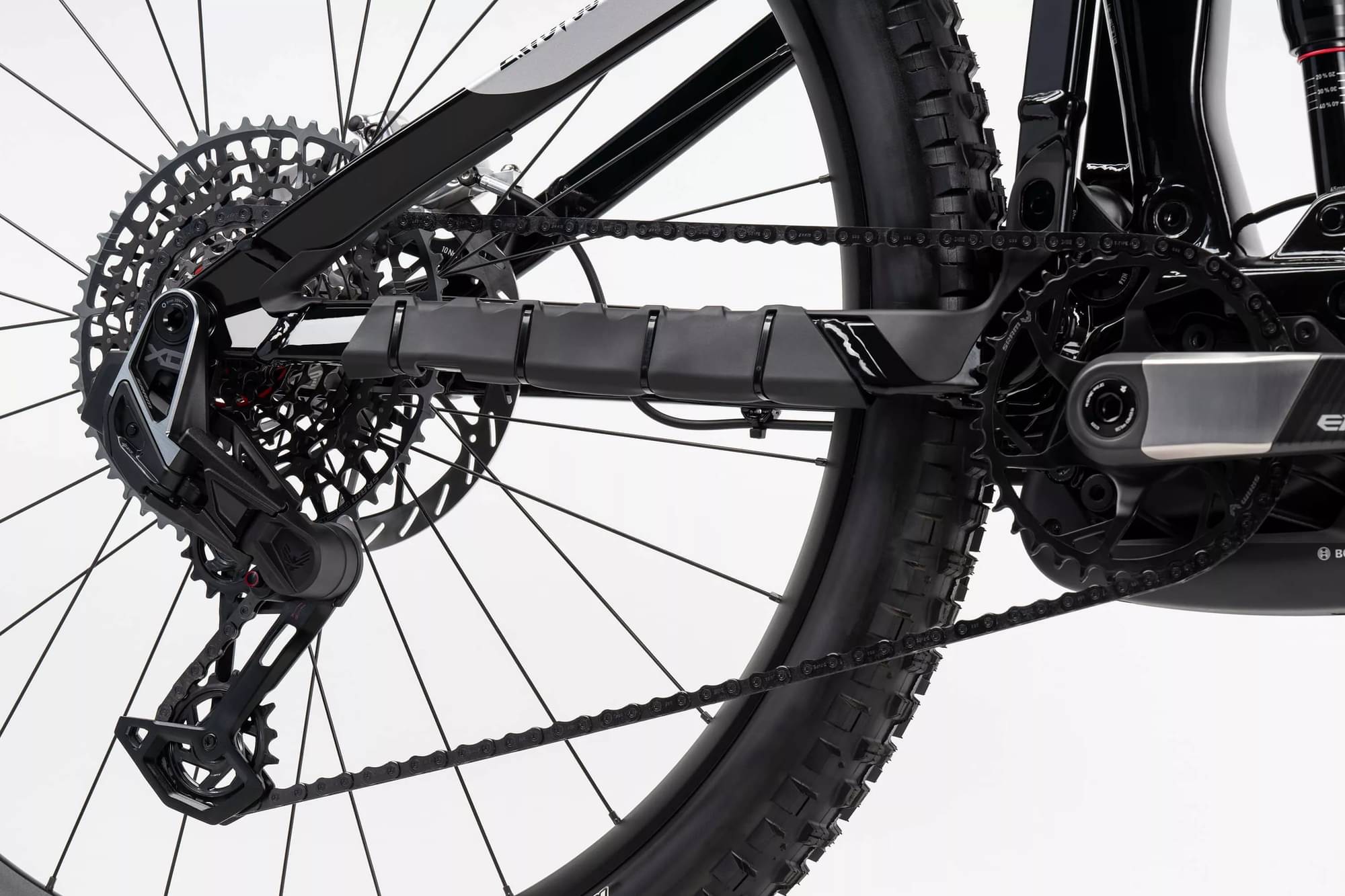

Rear Derailleur
SRAM X0 Eagle Transmission 12-S
Cassette
SRAM CS XS 1295 T-Type 10-52
Crank
Race Face Era-E 36T
Chain
SRAM X0 T-Type
Chain Guide
MRP 1x
Pedals
VP-503
Wheels
Rims
DT Swiss HX1501 Spline One 30 mm 15x110 mm
Tires
Front: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5, Rear: Maxxis Minion DHR II 3C MaxxTerra Double Down 2.4
Brakes
Brakes
SRAM Code Ultimate Stealth 220 / 200 mm
Brake Levers
SRAM Code Ultimate

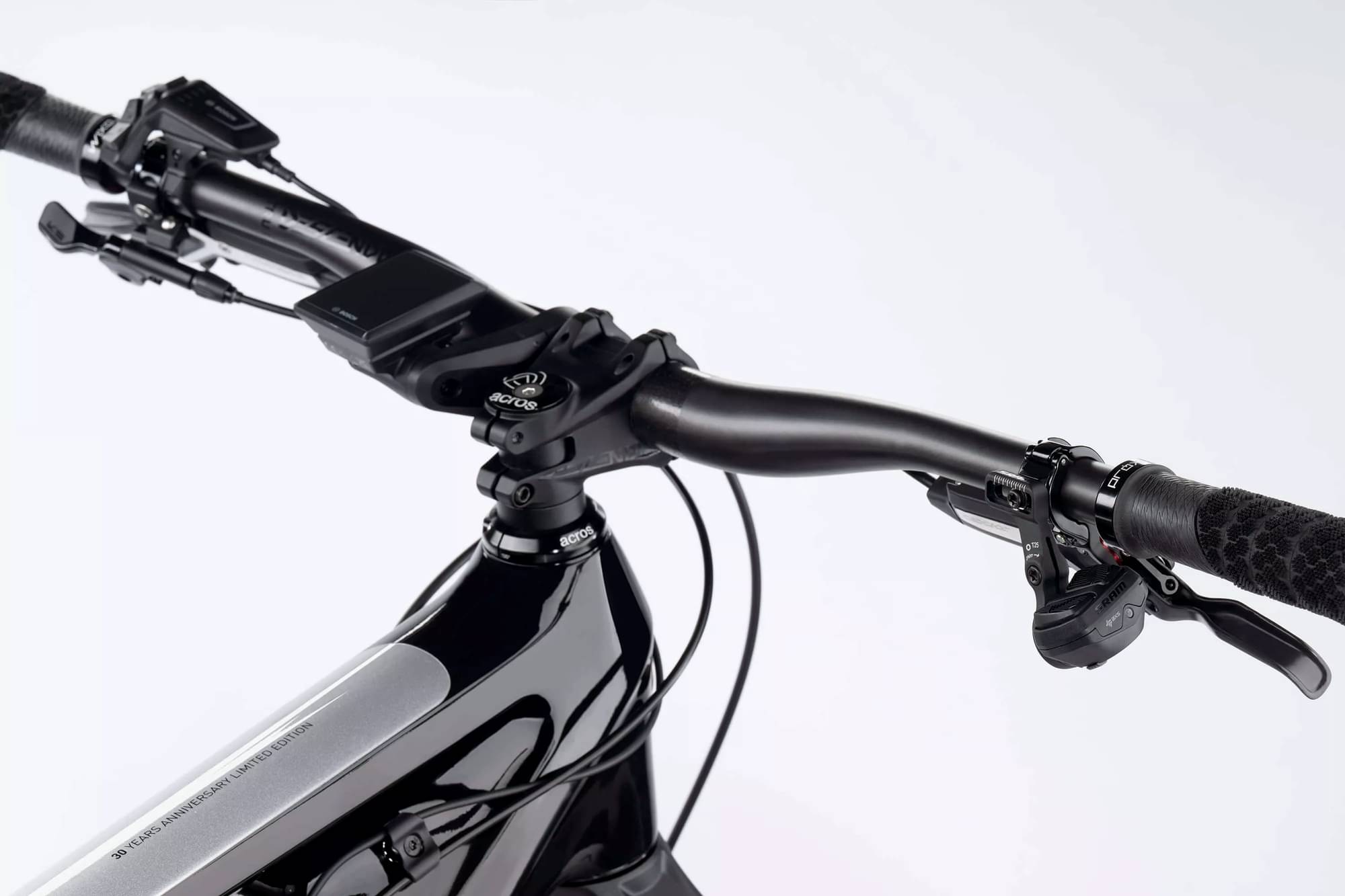

Cockpit
Stem
Truvativ Descendant 35 mm
Handlebar
Truvativ Descendant Riser Carbon Downhill 35 mm 800/25 mm
Grips
Prologo X-Shred
Seat
Saddle
Prologo Proxim W450 Performance
Seatpost
Eightpins hydraulic 34.9 mm
Motor & Battery

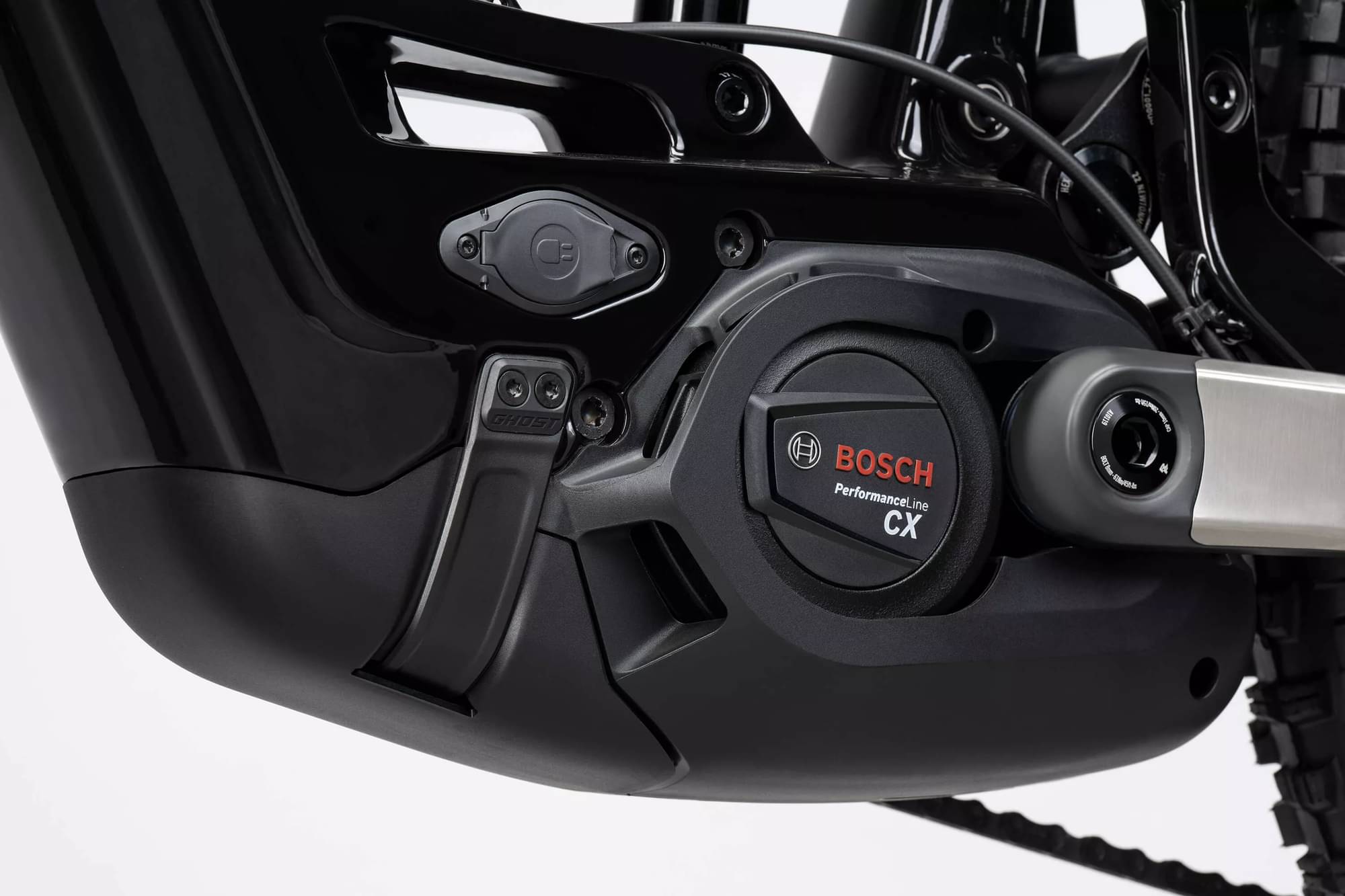

Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 750 Wh
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.34 mm | 1.356 mm | 1.314 mm |
| Bottom Bracket Height | 331 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 763 mm | 795 mm | 832 mm | 870 mm |
| Rake | 46 mm | 53 mm | 53 mm | 52 mm |
| Trail | 111 mm | 112 mm | 112 mm | 114 mm |
| Stack | 617 mm | 627 mm | 663 mm | 682 mm |
| Reach | 442 mm | 468 mm | 489 mm | 519 mm |
| Top Tube Length | 570 mm | 587 mm | 617 mm | 650 |
| Seat Tube Angle | 78.3 ° | 79.3 ° | 79.1 ° | 79.1 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1197 mm | 1248 mm | 1285 mm | 1323 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 746 mm | 740 mm | 748 mm | 751 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 161 cm | 170 cm | 178 cm | 187 cm |
| Rider Max Height | 172 cm | 180 cm | 189 cm | 198 cm |
