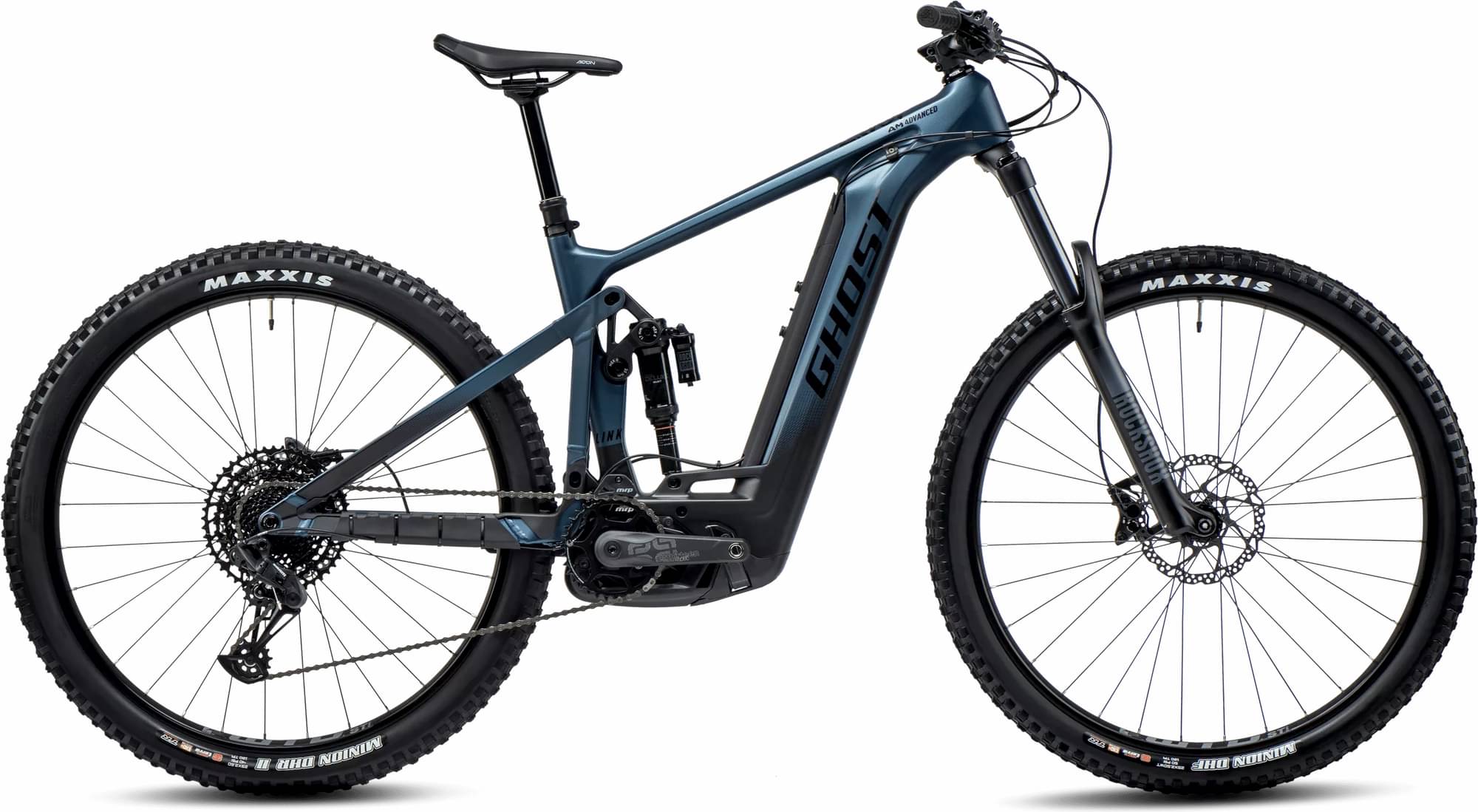

Ghost E-RIOT AM ADVANCED 2025
2025 E-bike
Estimate price |
7,793$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch InTube 750 Wh, Capacity: 750 Wh, Location: Powertube -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

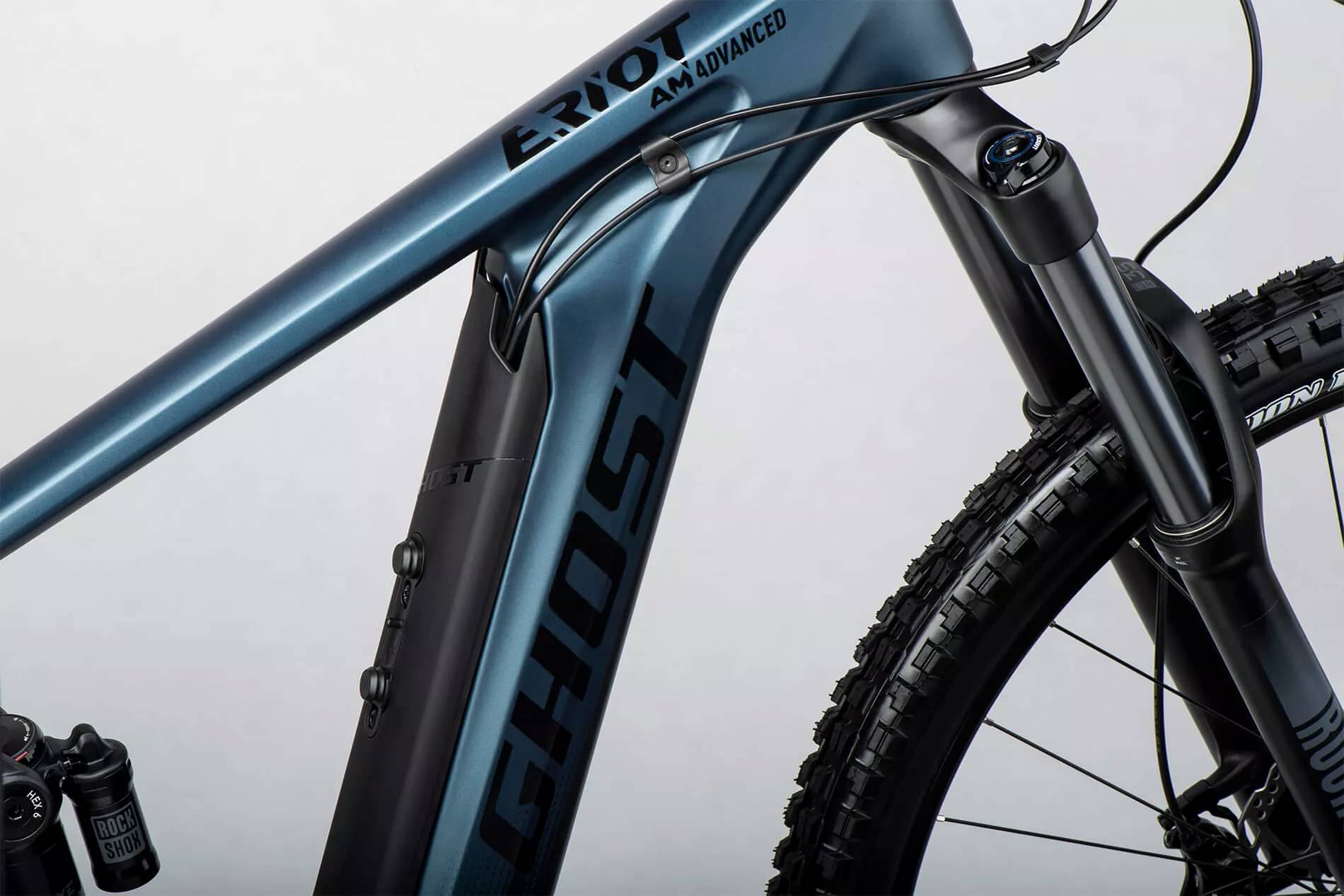

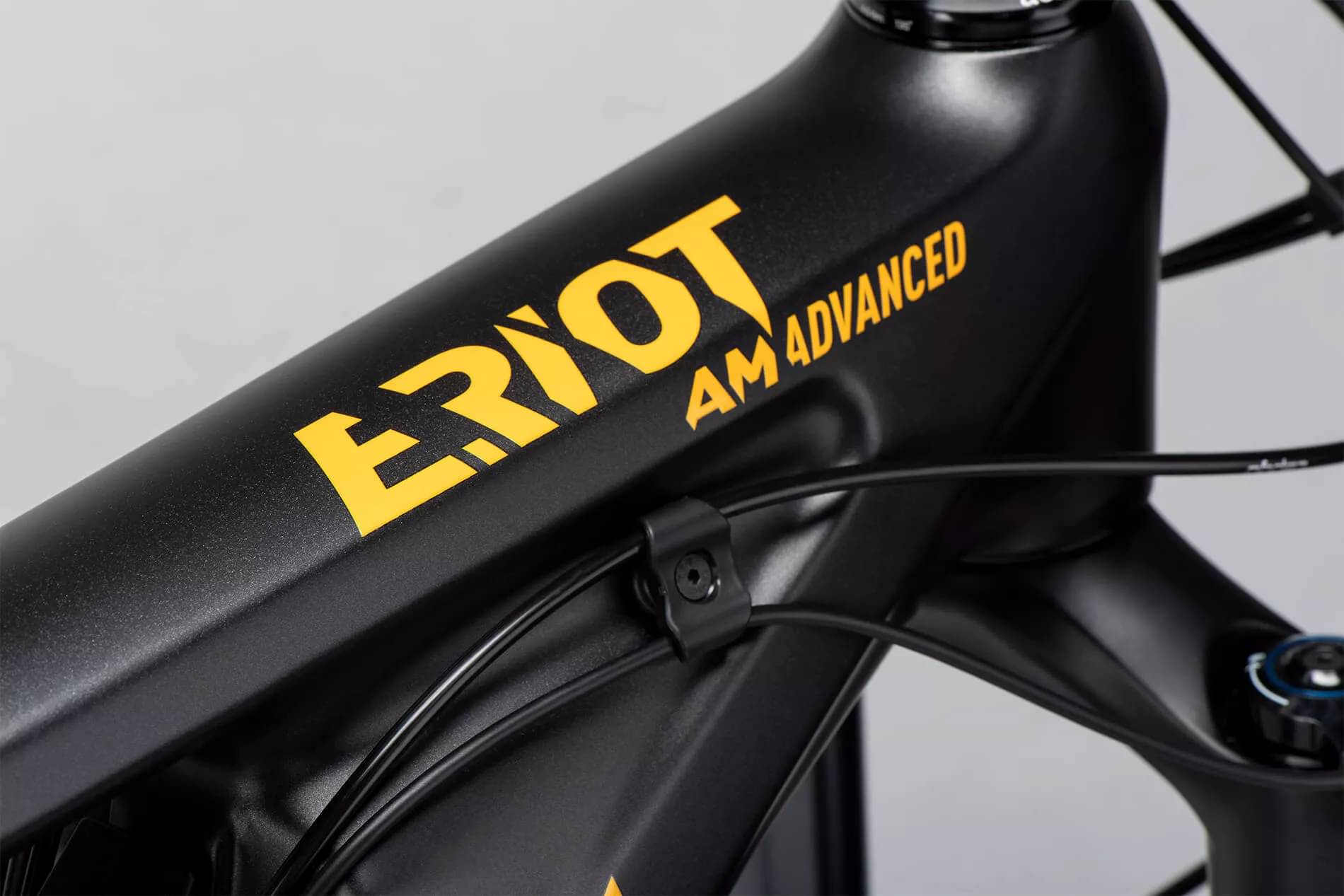

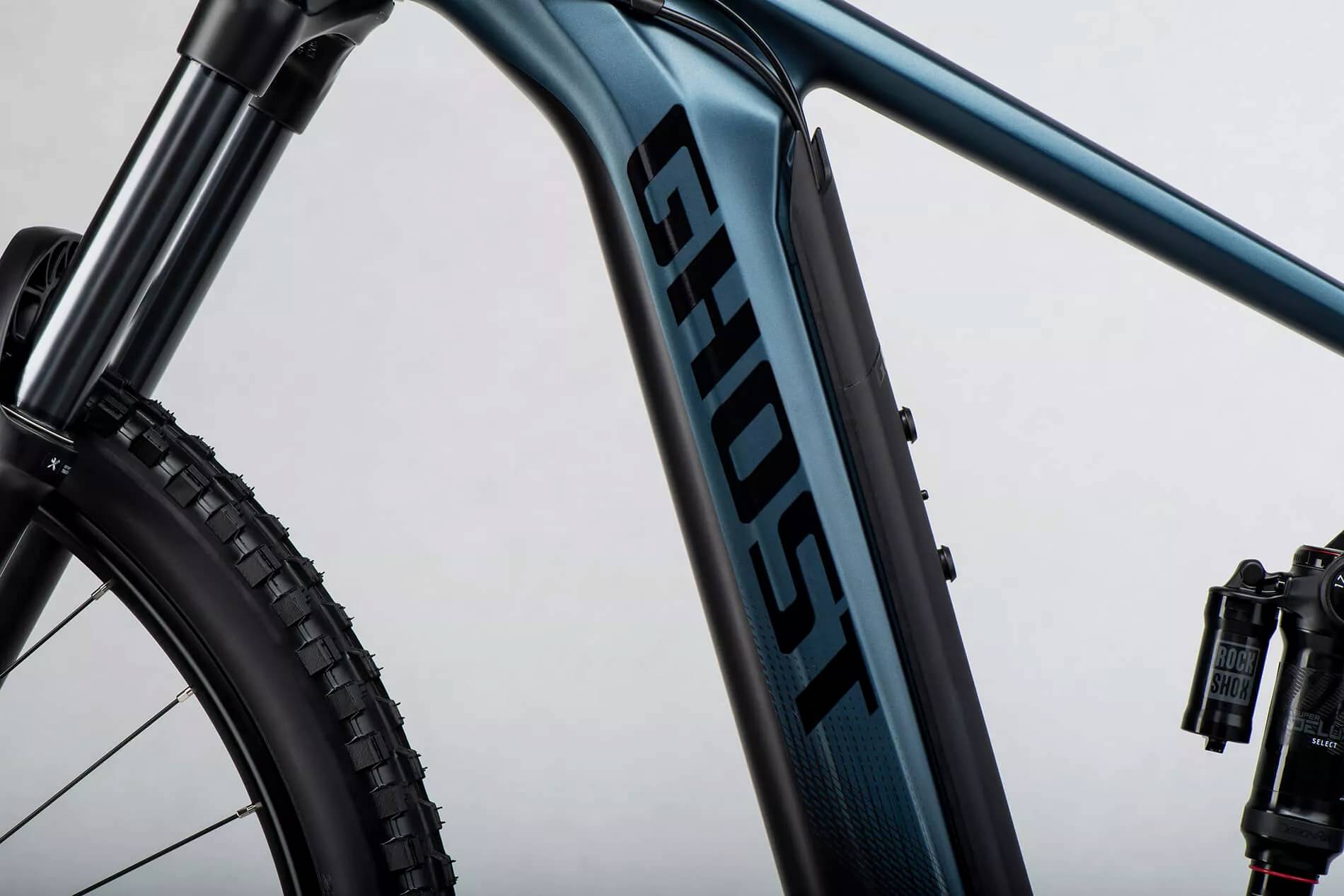

HIGH Carbon Uni
Suspension Fork

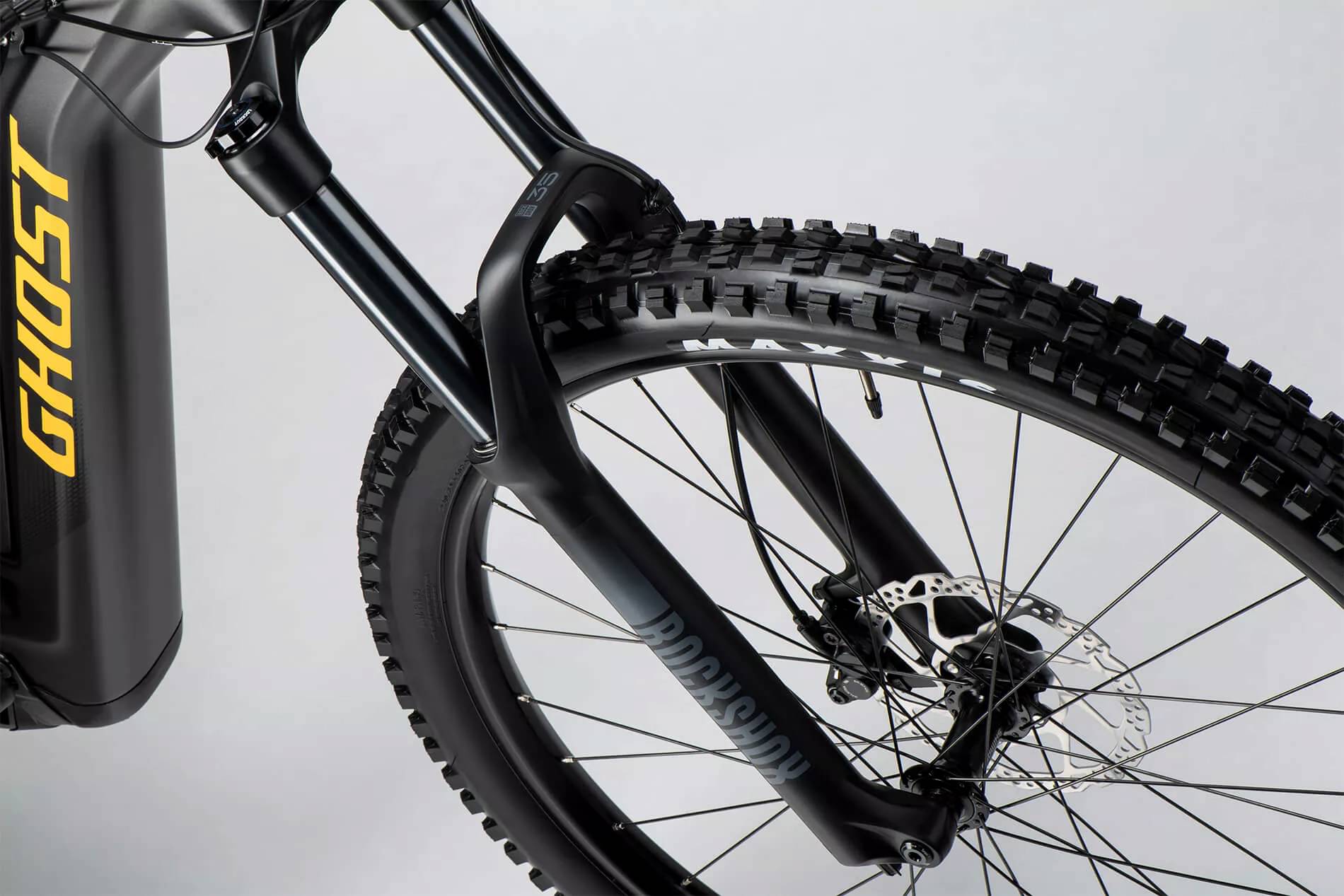

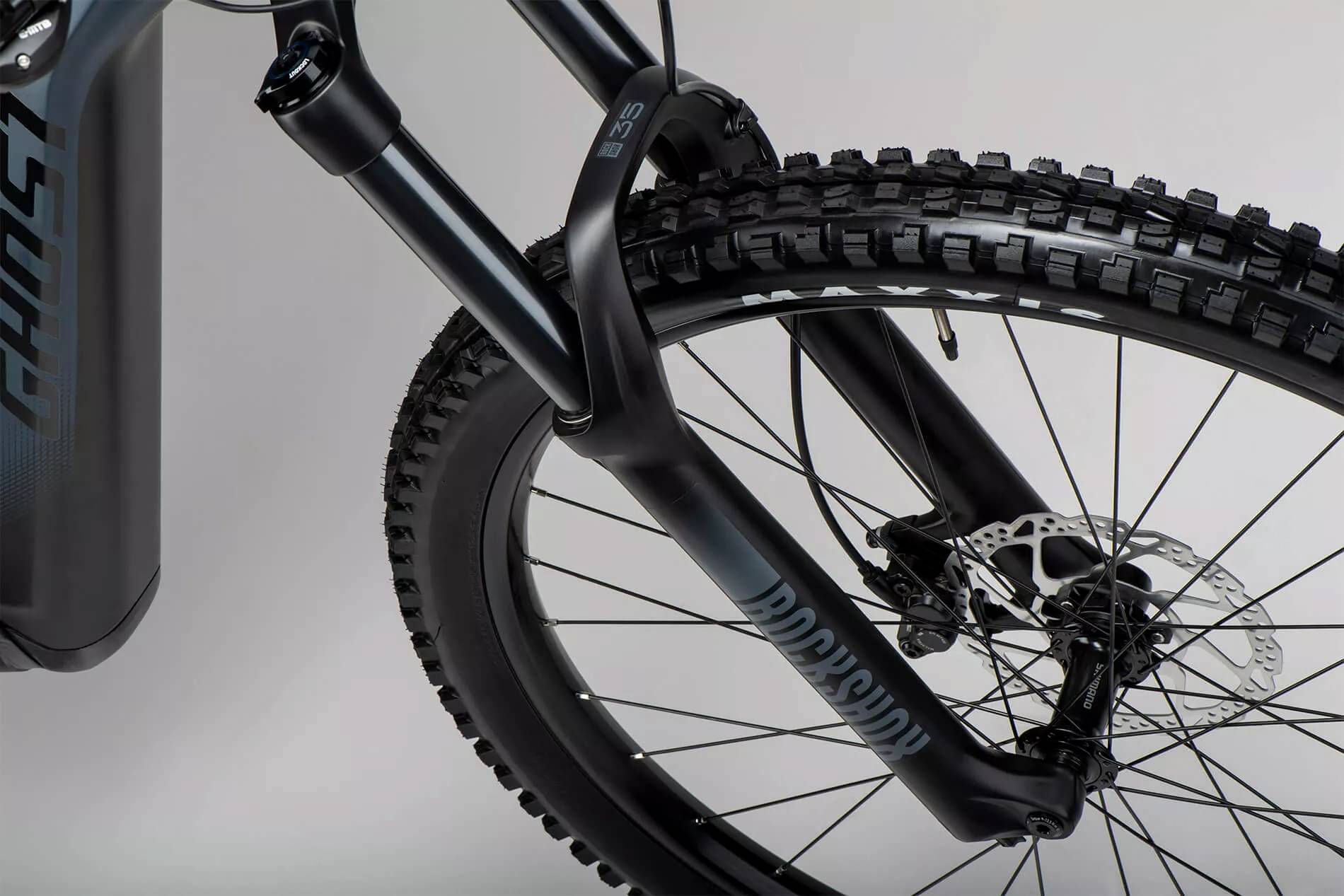

Rockshox 35 Silver TK Solo Air 160 mm
Rear Shock

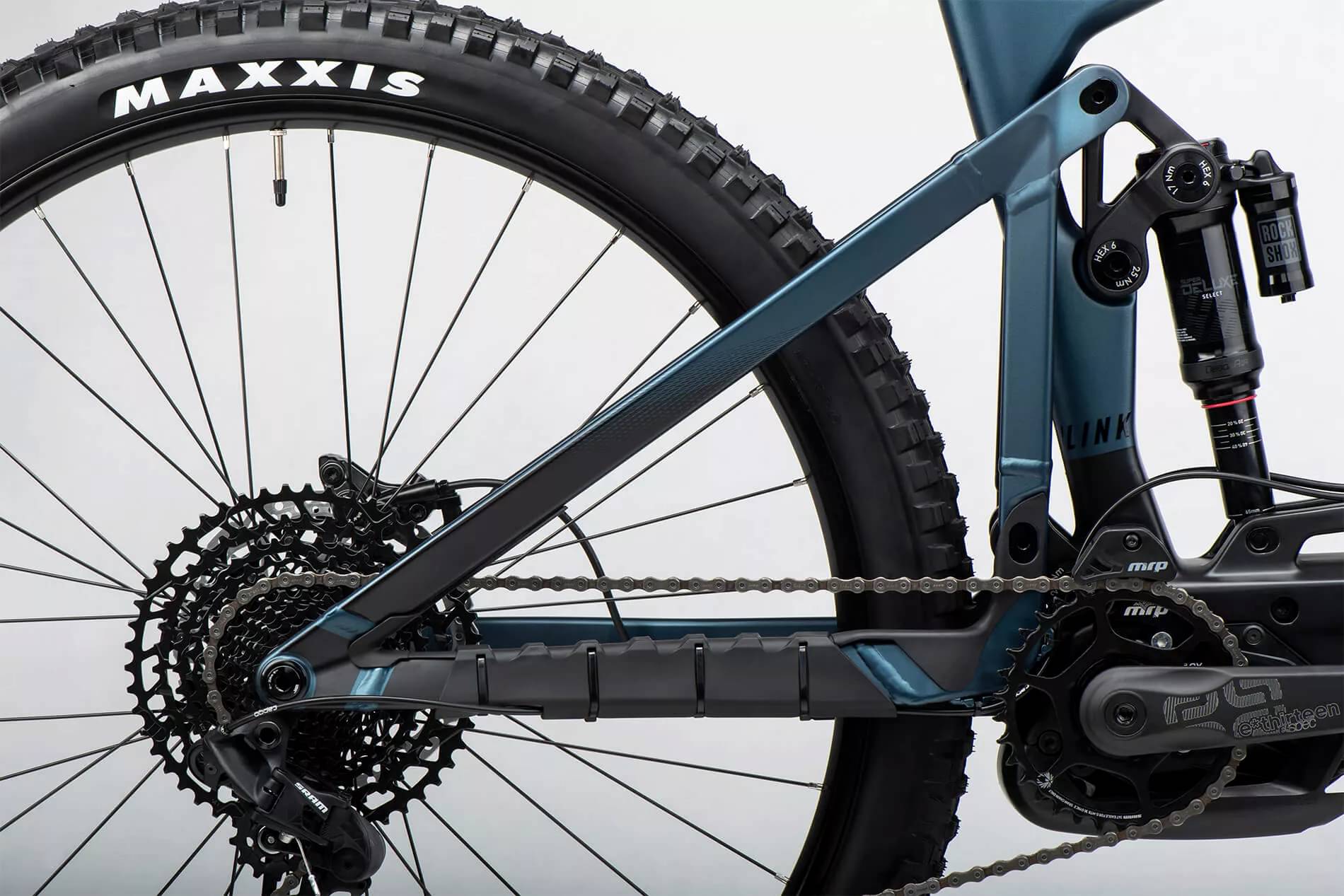

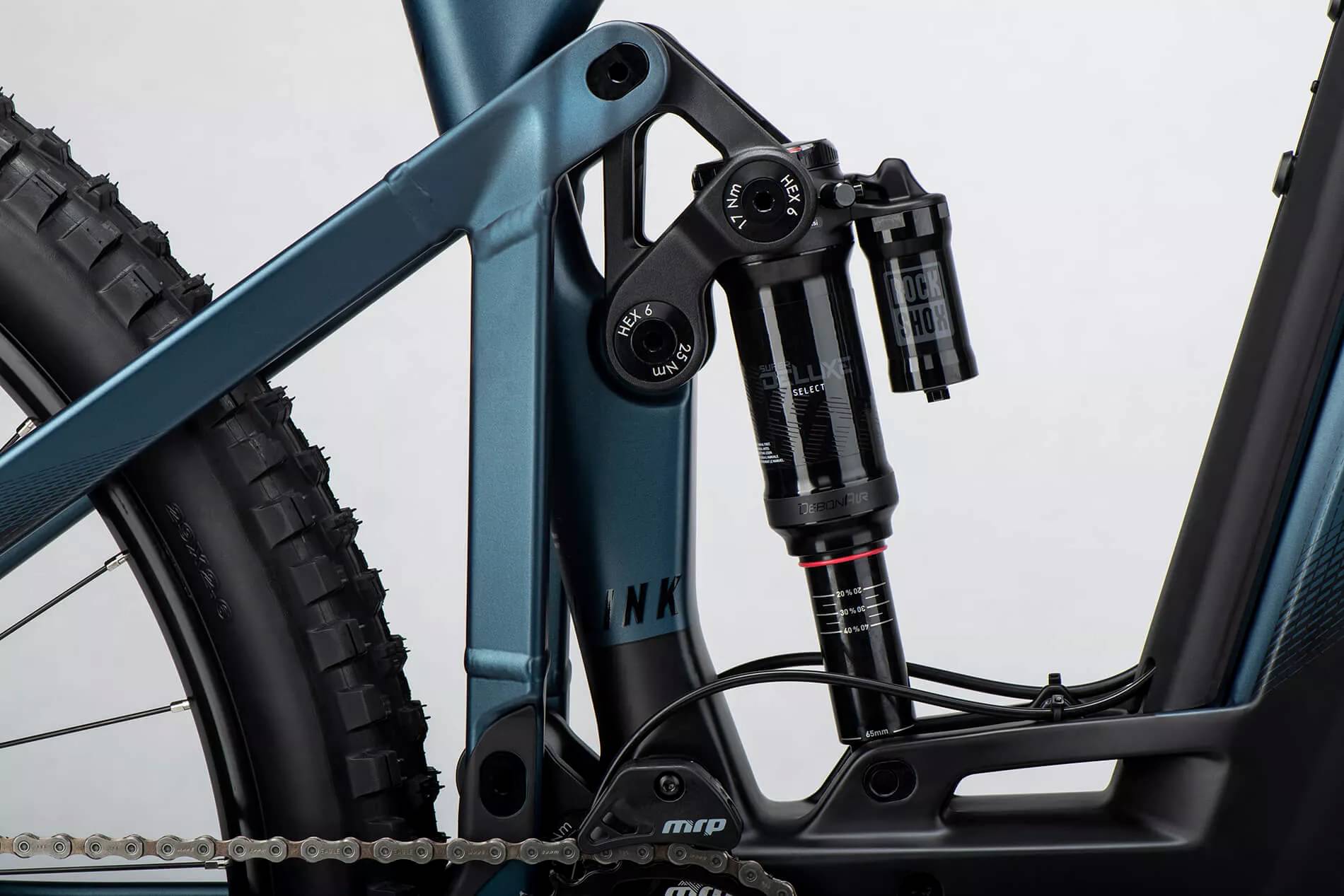

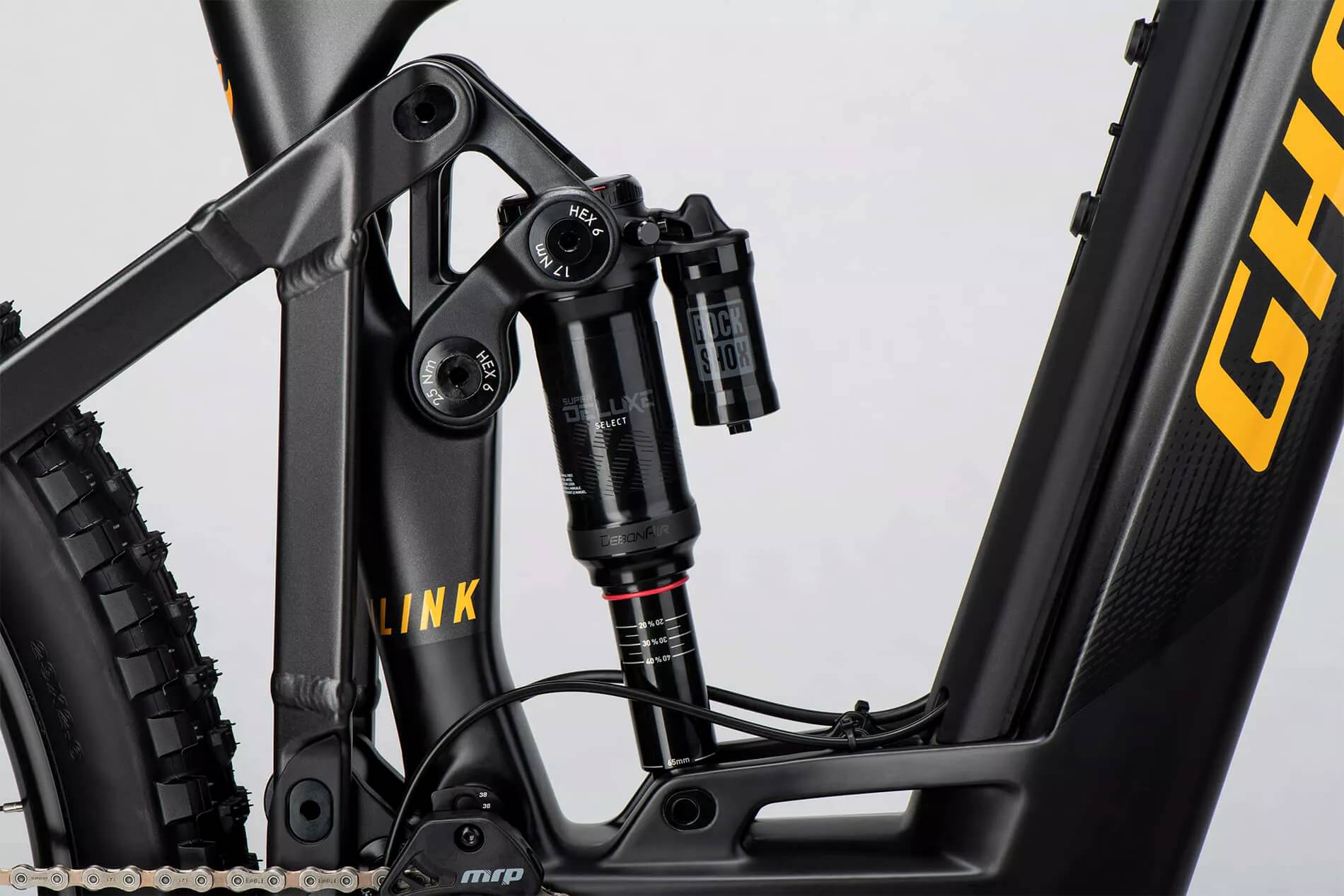

Rockshox Super Deluxe Select R 205x65mm, Trunnion
Drivetrain
Rear Derailleur

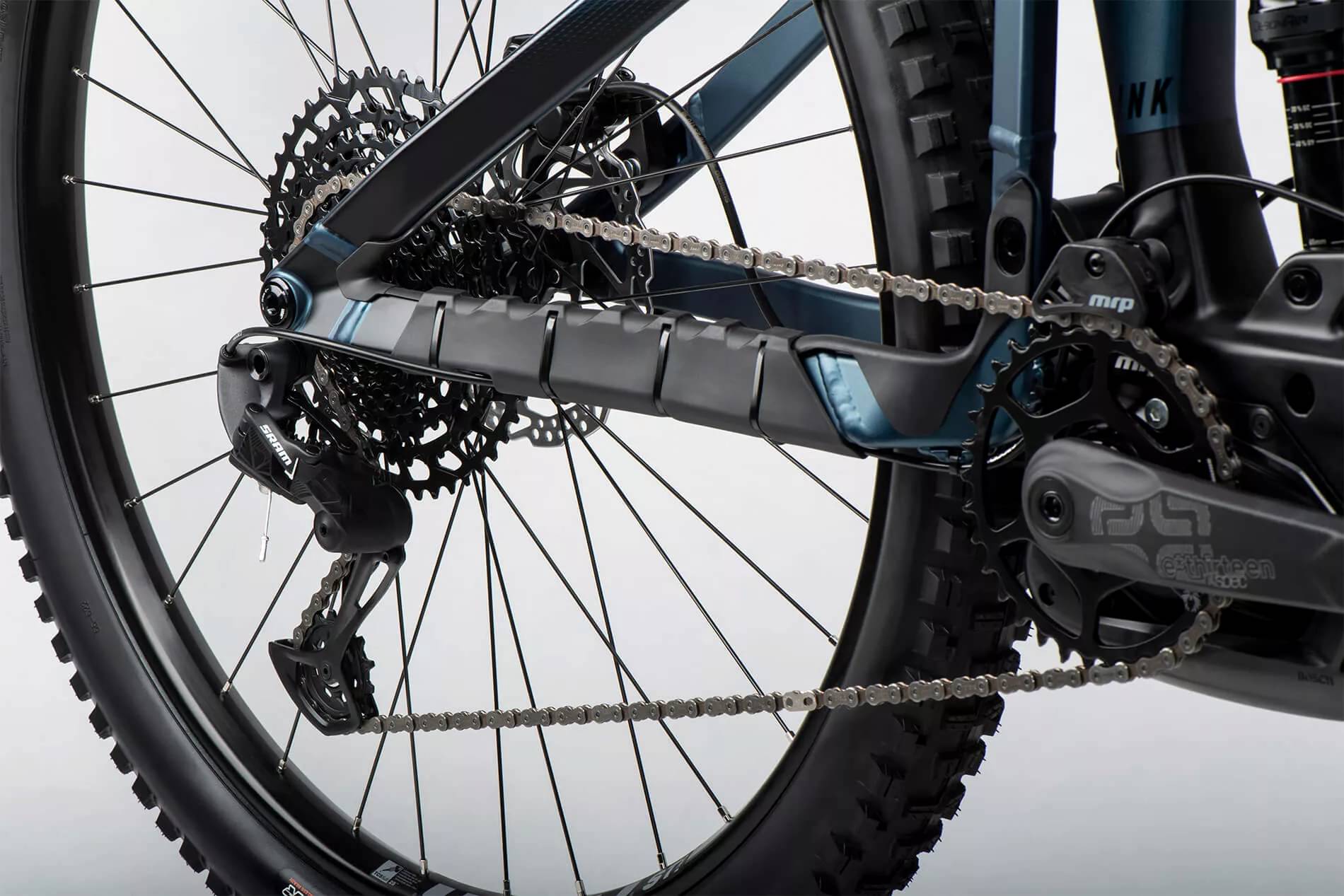

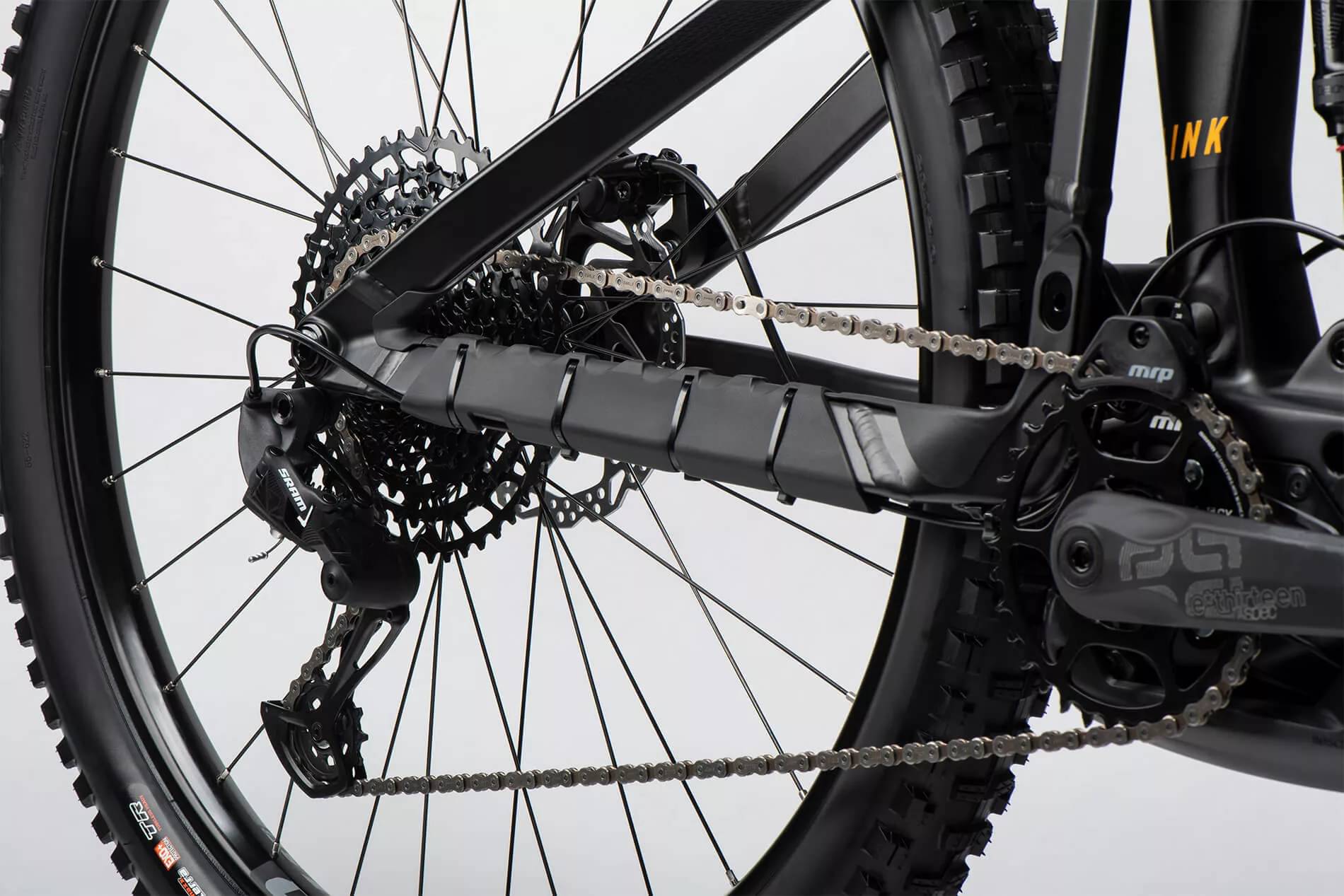

SRAM SX Eagle 12s
Shift Levers
SRAM Triggershift SX Eagle Single Click
Cassette
SRAM PG-1210 Eagle, HG
Crank
E Thirteen e*spec Plus 165
Chain
SRAM SX Eagle 12s
Chain Guide
MRP 1x
Pedals
VP VPE-527
Wheels
Front Hub
Shimano HB-MT400-B 15x110 mm
Rear Hub
Shimano FH-MT400-B 12x148 mm
Rims
WTB ST i30 TCS 2.0
Tires
Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5
Brakes
Brakes

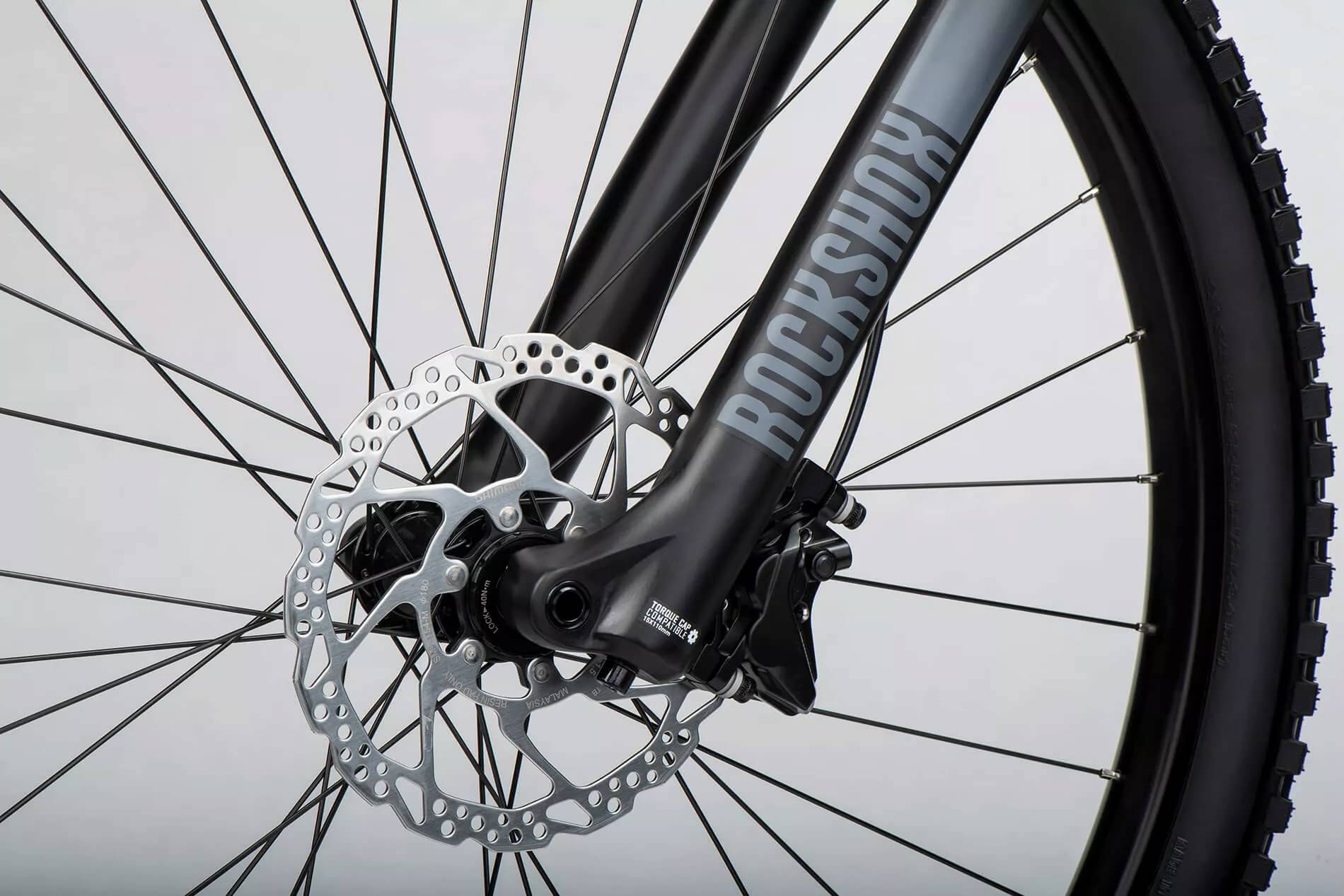

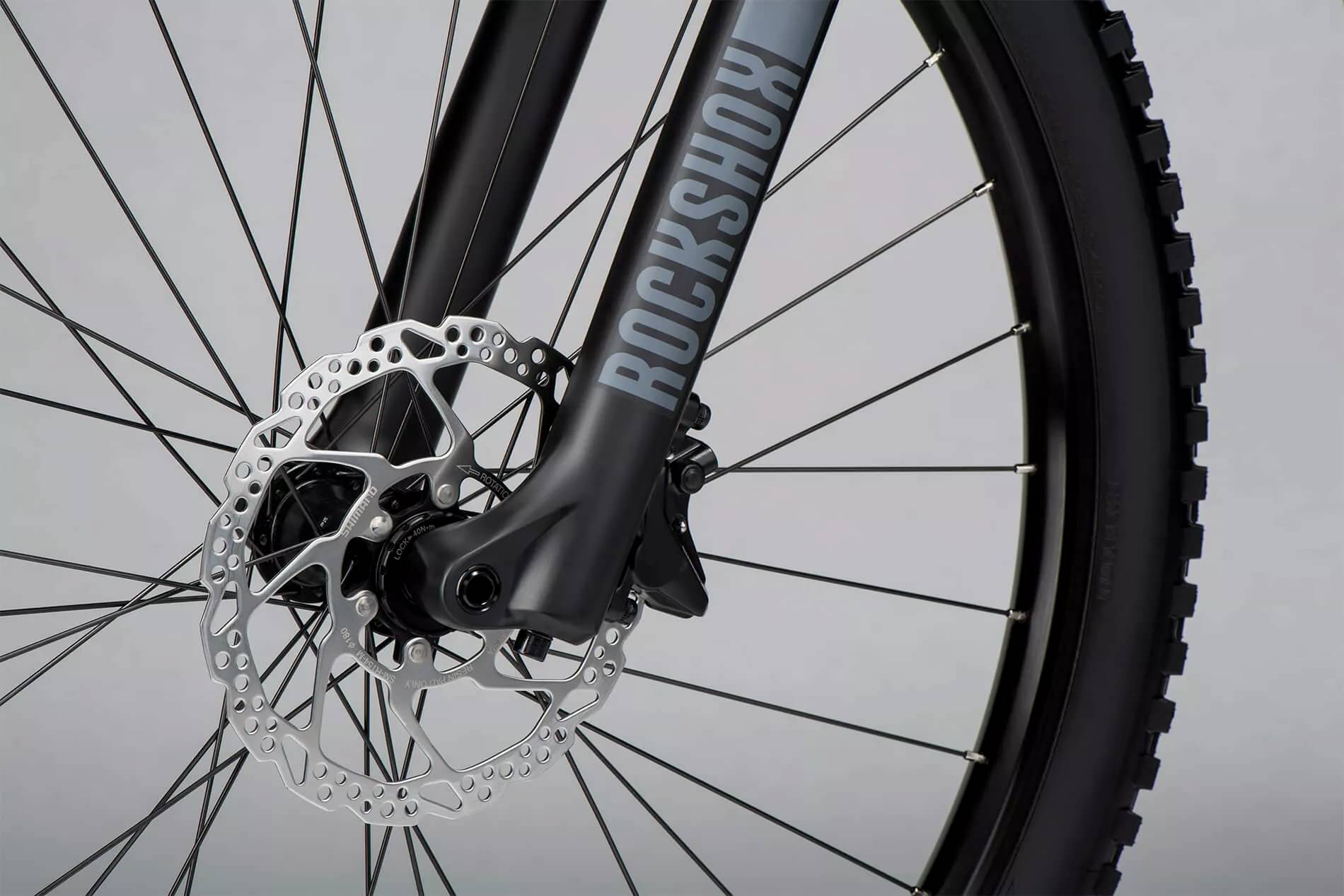

Shimano Hydraulic Disc brake Deore BR-MT420, 203 mm
Brake Levers
Shimano BL-M4100
Cockpit
Stem

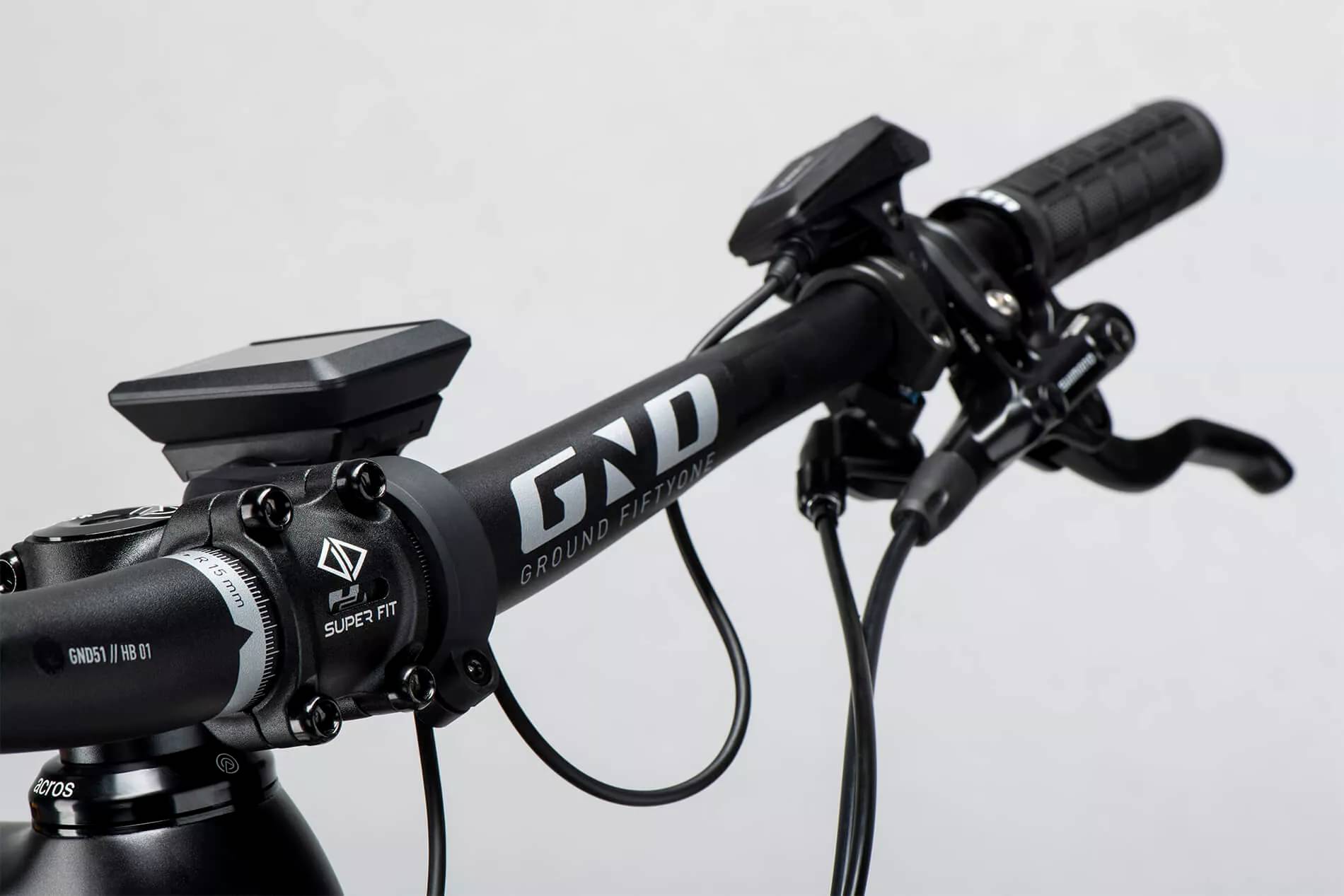

Ghost Ground Fiftyone Dia. 31.8 mm, L: 45 mm
Handlebar
Ghost Riser Bar Ground Fiftyone Dia. 31.8 mm, Rise: 15 mm
Headset
Acros Semi-integrated Blocklock 135° AZX-582 44/56 ALU
Seat
Saddle
Fizik MTB Terra Aidon
Seatpost
Limotec Dropperpost Alpha 1, Dia. 34.9 mm, Travel: 150 mm
Motor & Battery
Motor

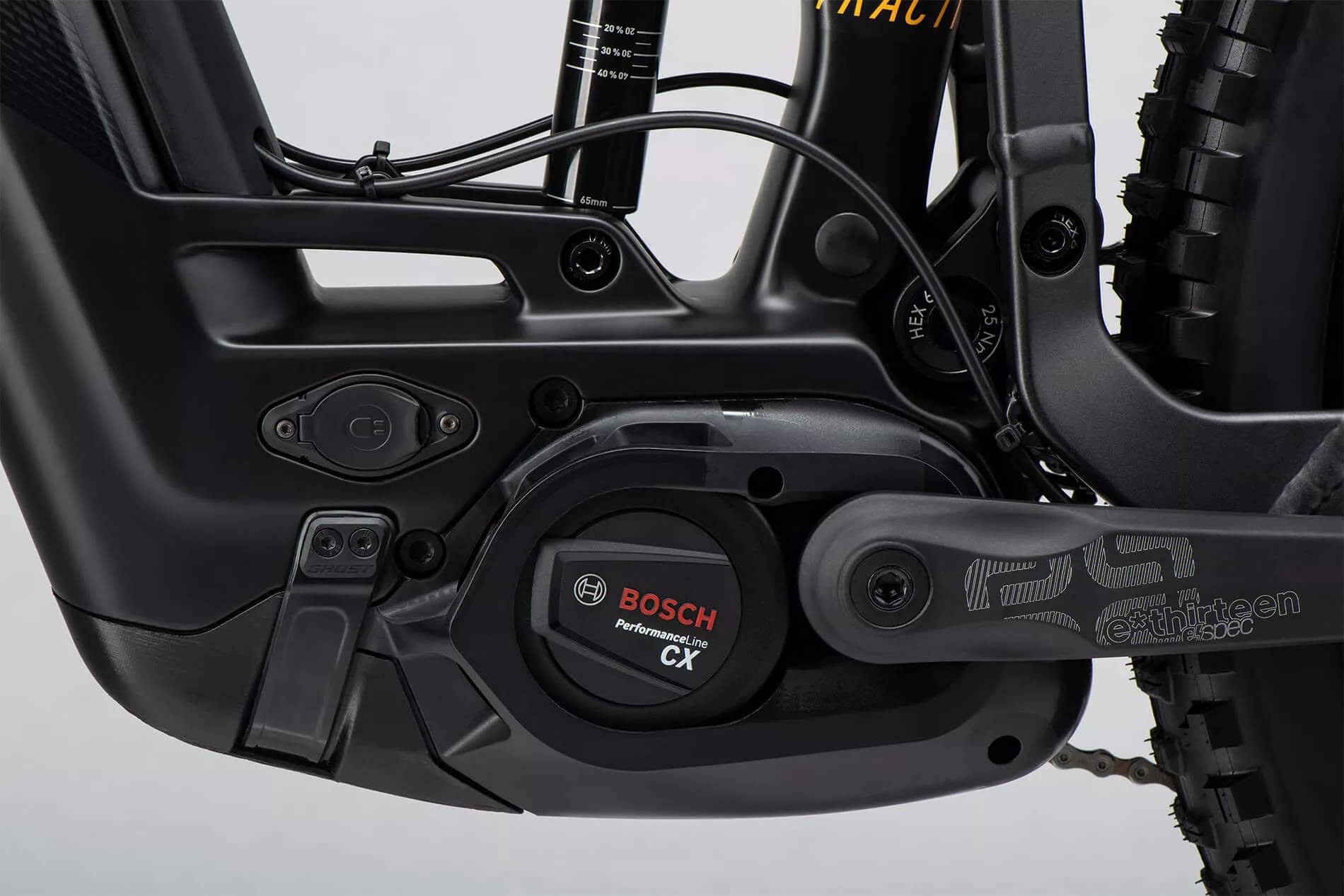

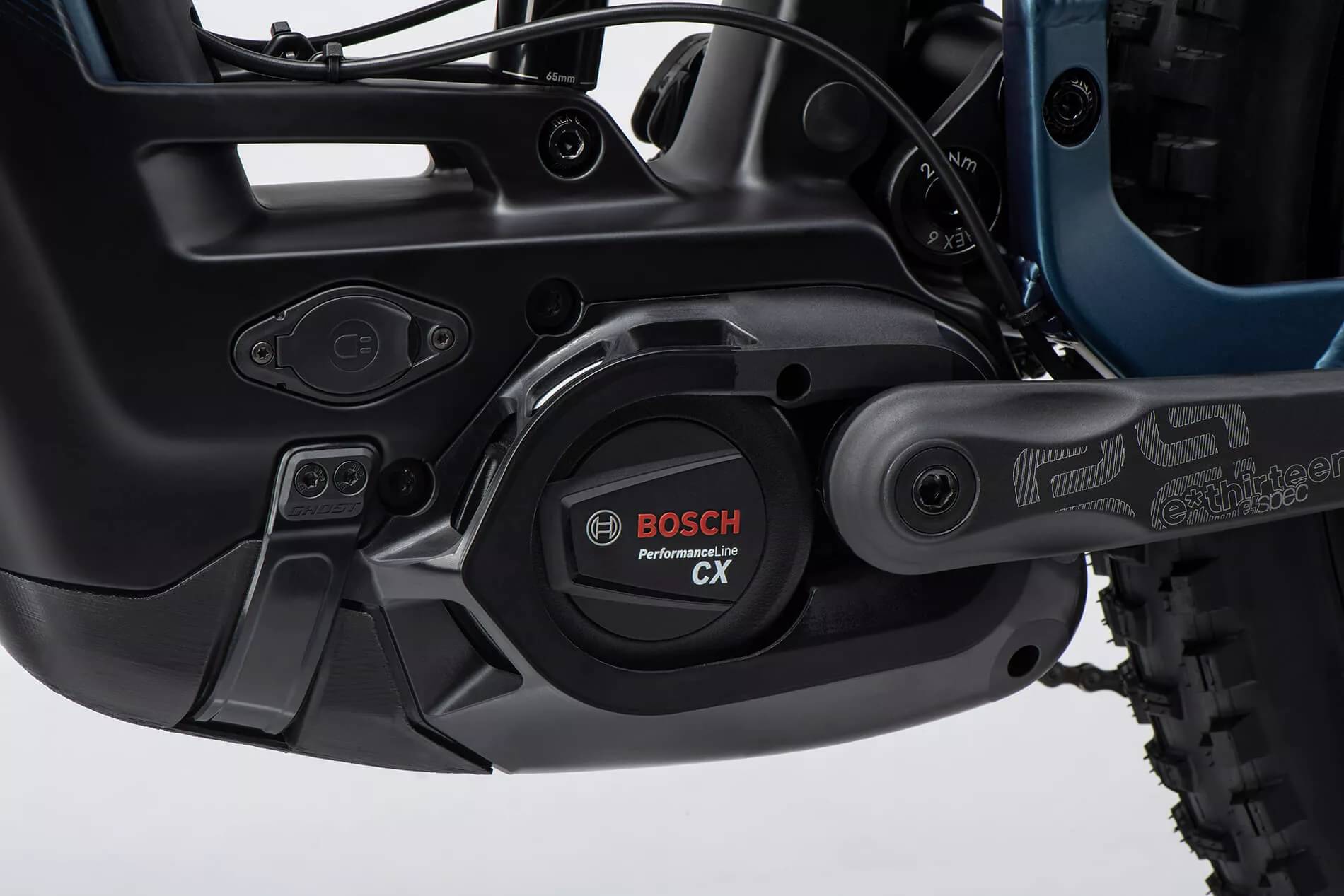

Bosch Performance Line CX
Battery
Bosch InTube 750 Wh, Capacity: 750 Wh, Location: Powertube
Charger
Bosch Charger 4A 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.34 mm | 1.356 mm | 1.314 mm |
| Bottom Bracket Height | 331 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 763 mm | 795 mm | 832 mm | 870 mm |
| Rake | 46 mm | 53 mm | 53 mm | 52 mm |
| Trail | 111 mm | 112 mm | 112 mm | 114 mm |
| Stack | 617 mm | 627 mm | 663 mm | 682 mm |
| Reach | 442 mm | 468 mm | 489 mm | 519 mm |
| Top Tube Length | 588 mm | 618 mm | 648 mm | 682 mm |
| Seat Tube Angle | 76 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1197 mm | 1248 mm | 1285 mm | 1323 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 746 mm | 740 mm | 748 mm | 751 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
