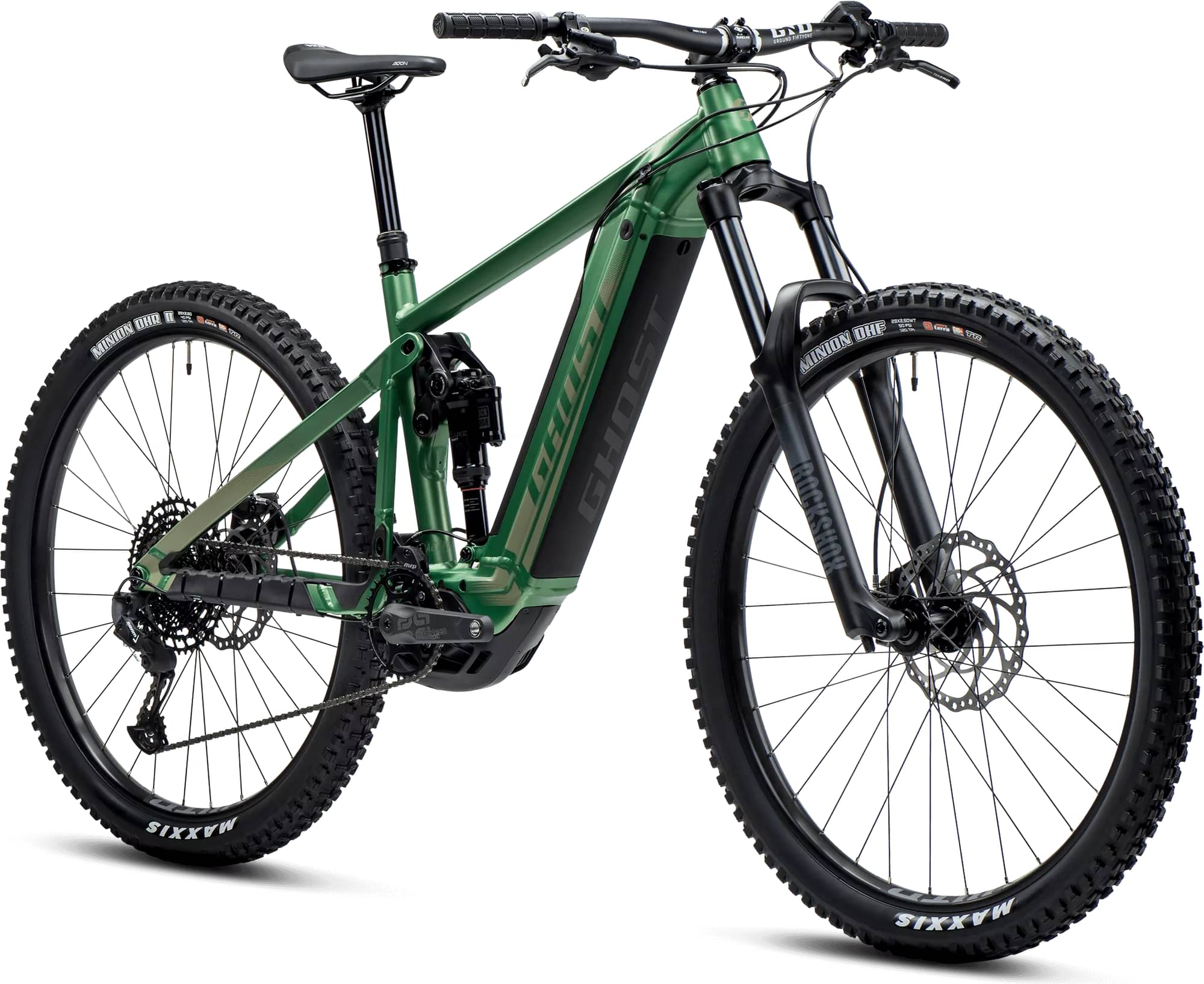

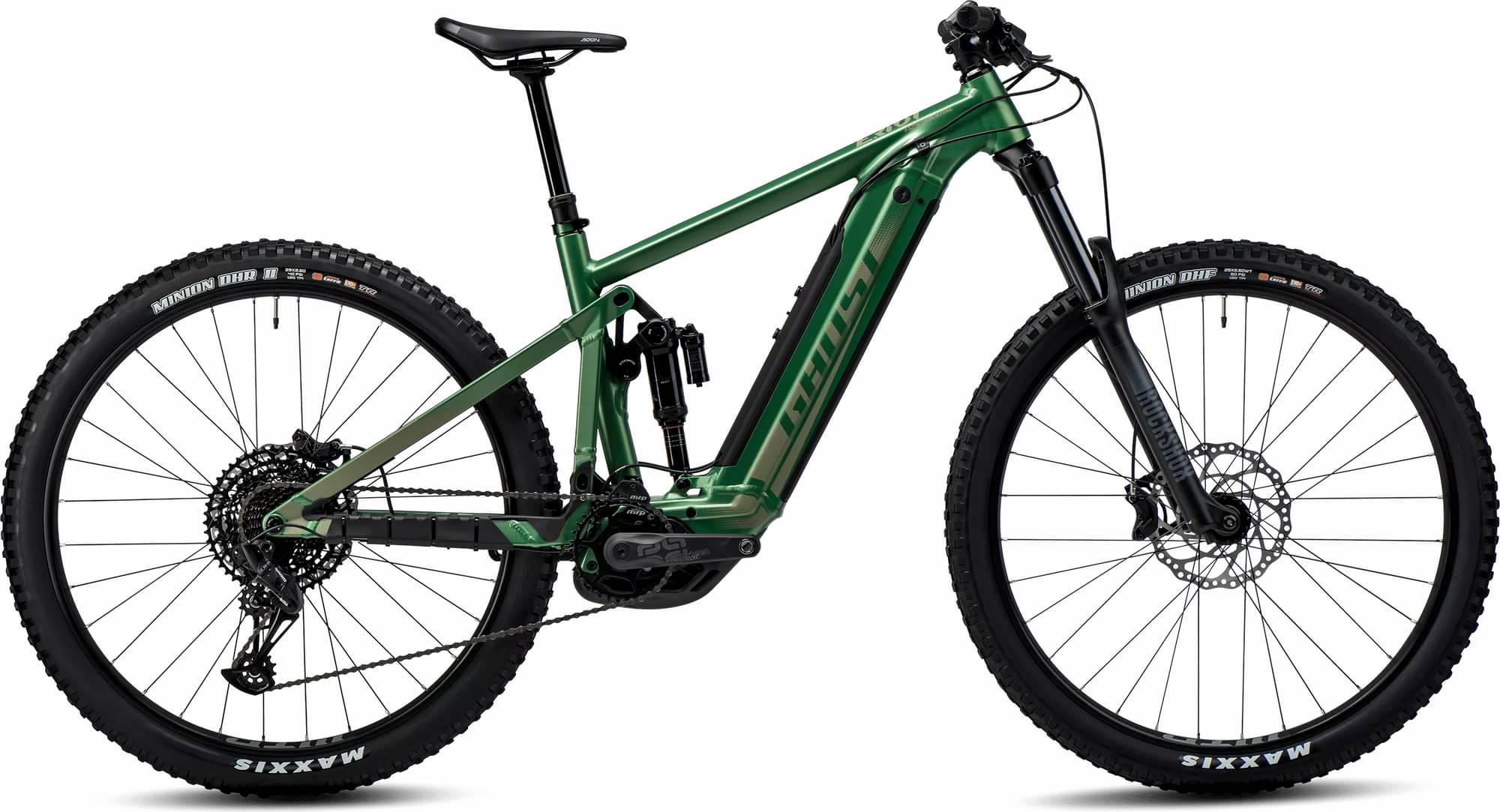

Ghost E-Riot AM AL Essential 2024
2024 E-bike
Estimate price |
6,048$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

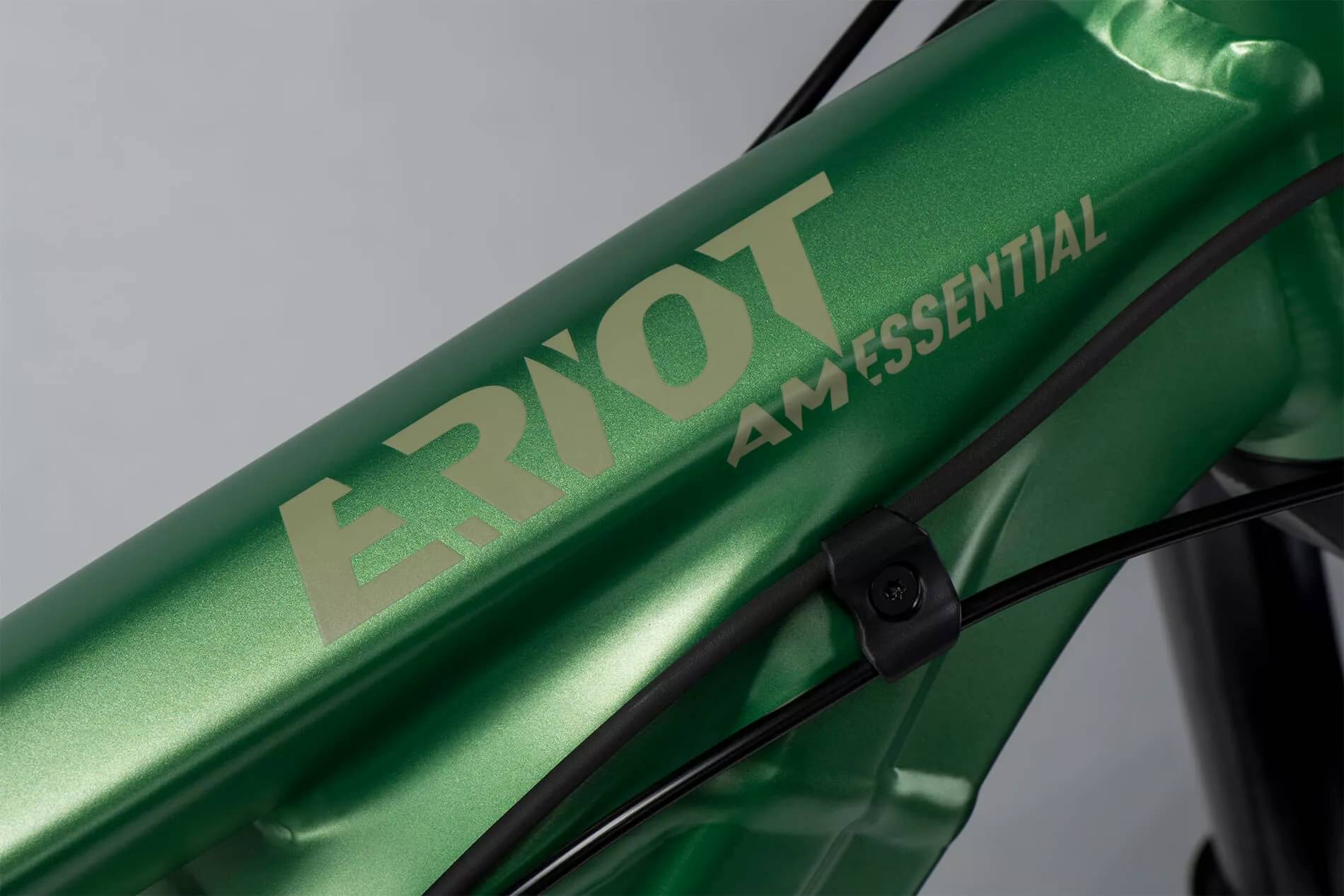

Frame
E-RIOT AL (S:27.5 M-XL:29)

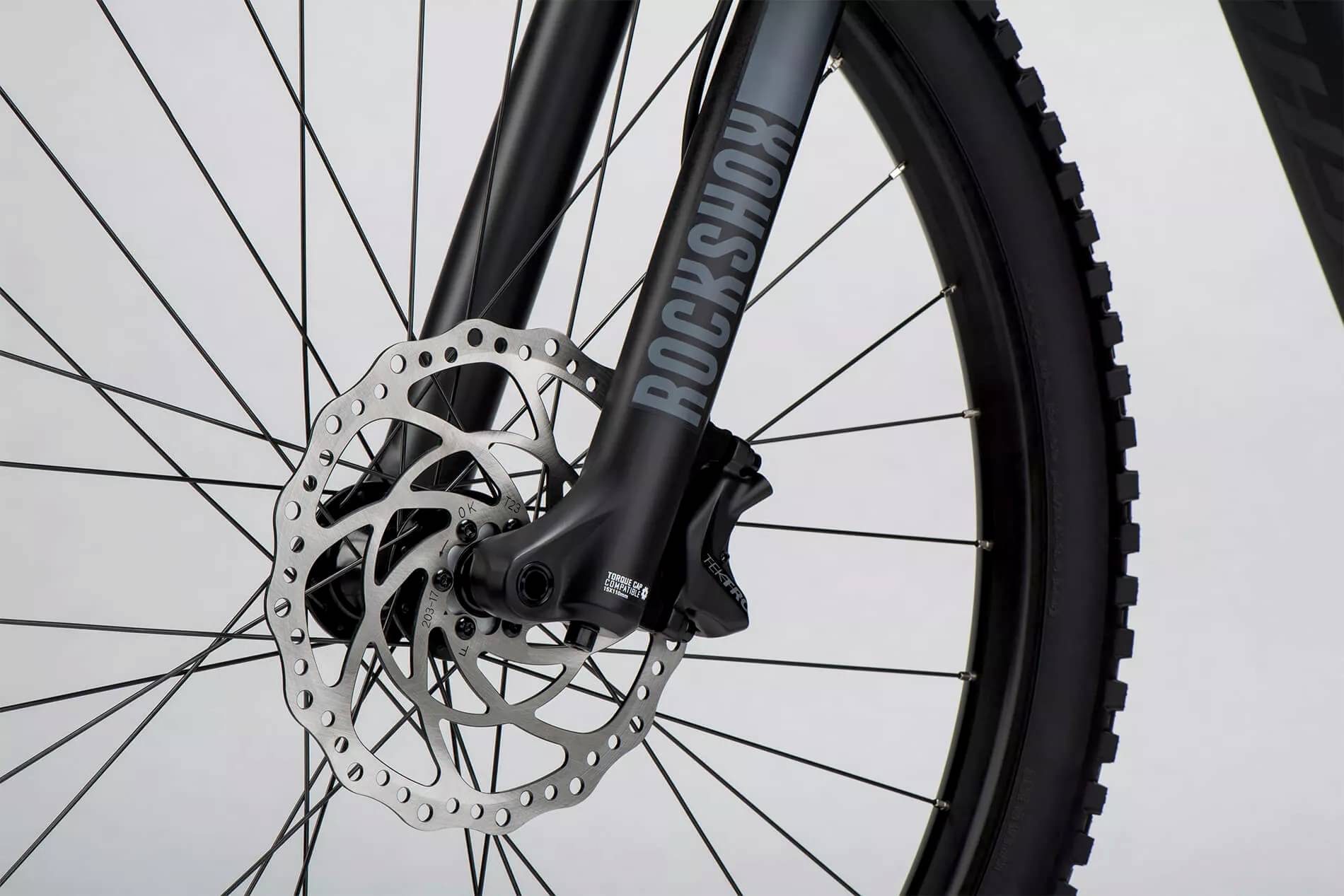

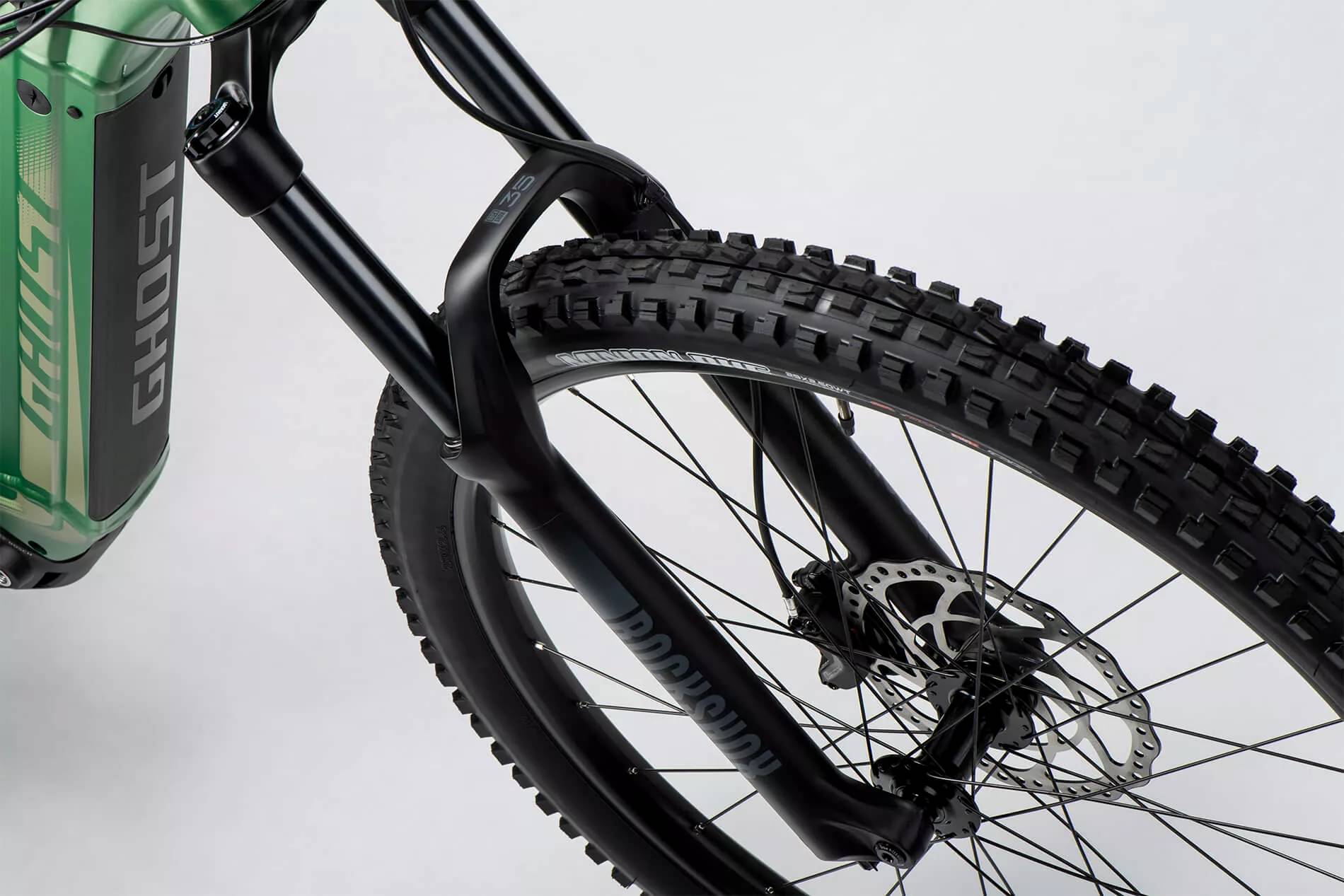

Suspension Fork
Rock Shox 35 Silver TK Solo Air 160 mm

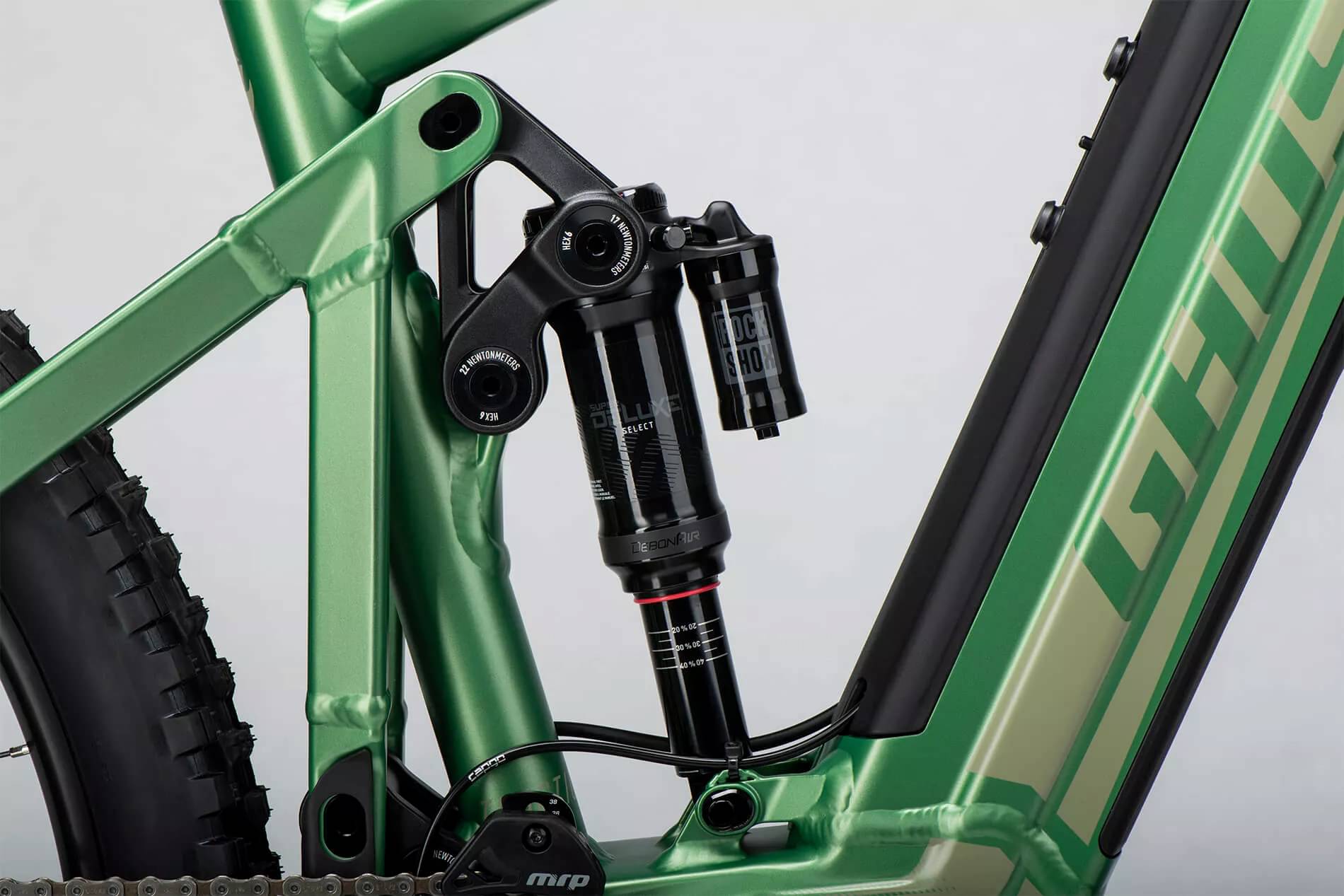

Rear Shock
Rock Shox Super Deluxe Select R 160 mm

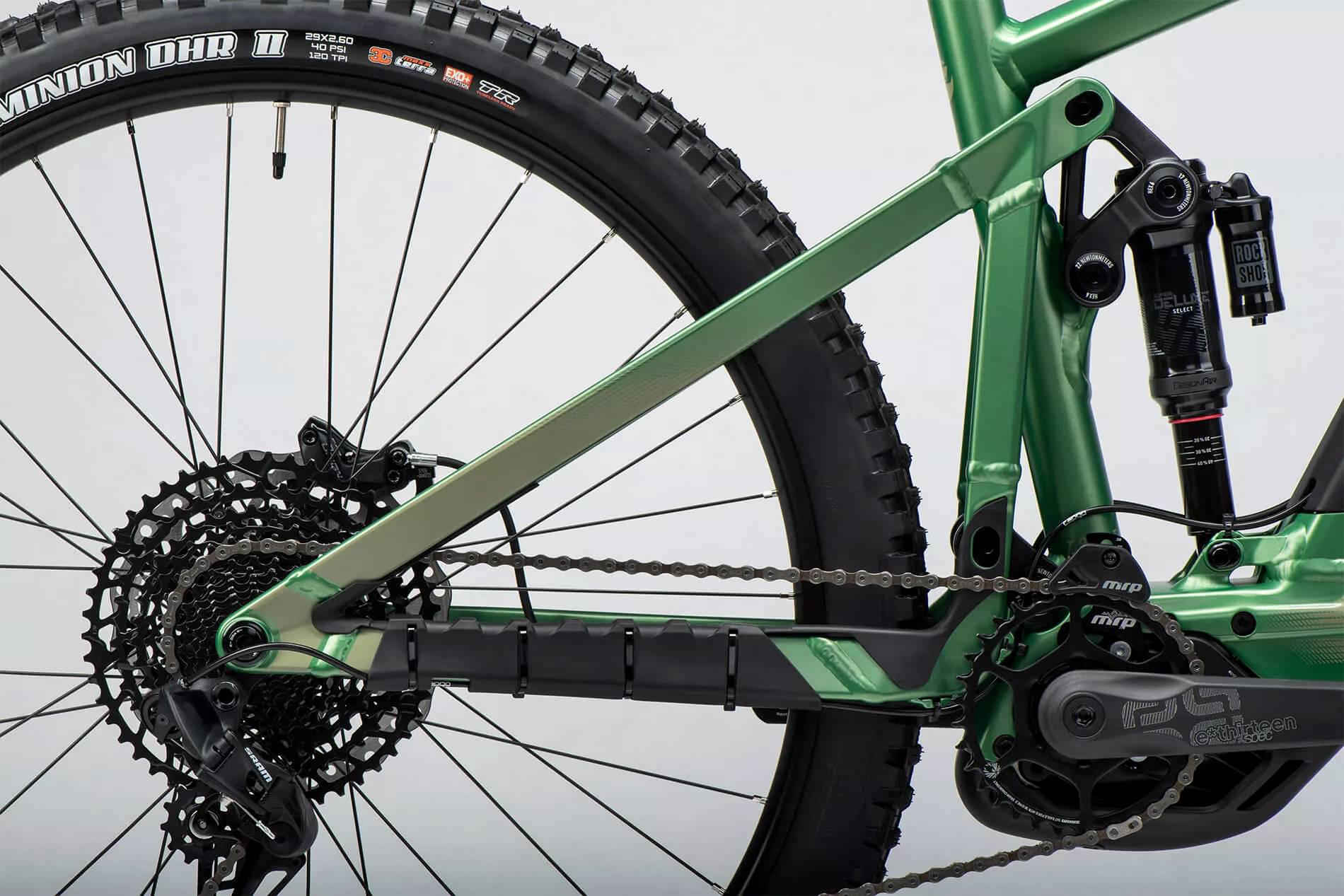

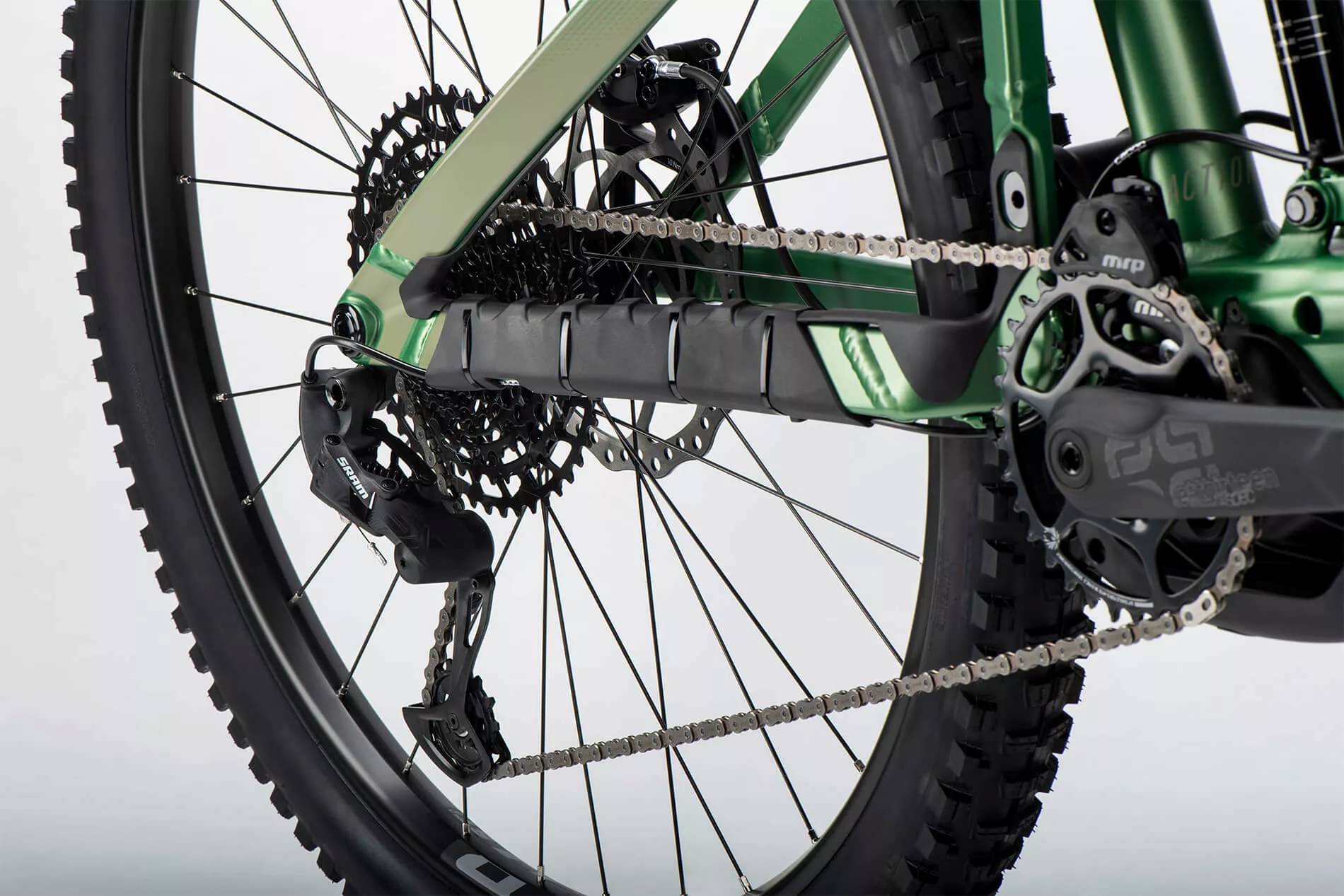

Drivetrain
Rear Derailleur
SRAM SX Eagle 12-S
Cassette
SRAM PG-1210 11-50
Crank
e*thirteen e*spec Plus 34T
Chain
SRAM SX Eagle
Chain Guide
MRP 1x
Pedals
VPE-527
Wheels
Rims
Front: WTB ST i30, Rear: WTB ST i30
Tires
Front: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 (S 27,5"; M-XL 29"), Rear: Maxxis Minion DHR II 3C MaxxTerra Exo+ 2.6 (S 27,5"; M-XL 29")
Brakes
Brakes
Tektro HD-M750 203 mm Disc
Brake Levers
Tektro HD-M750
Cockpit

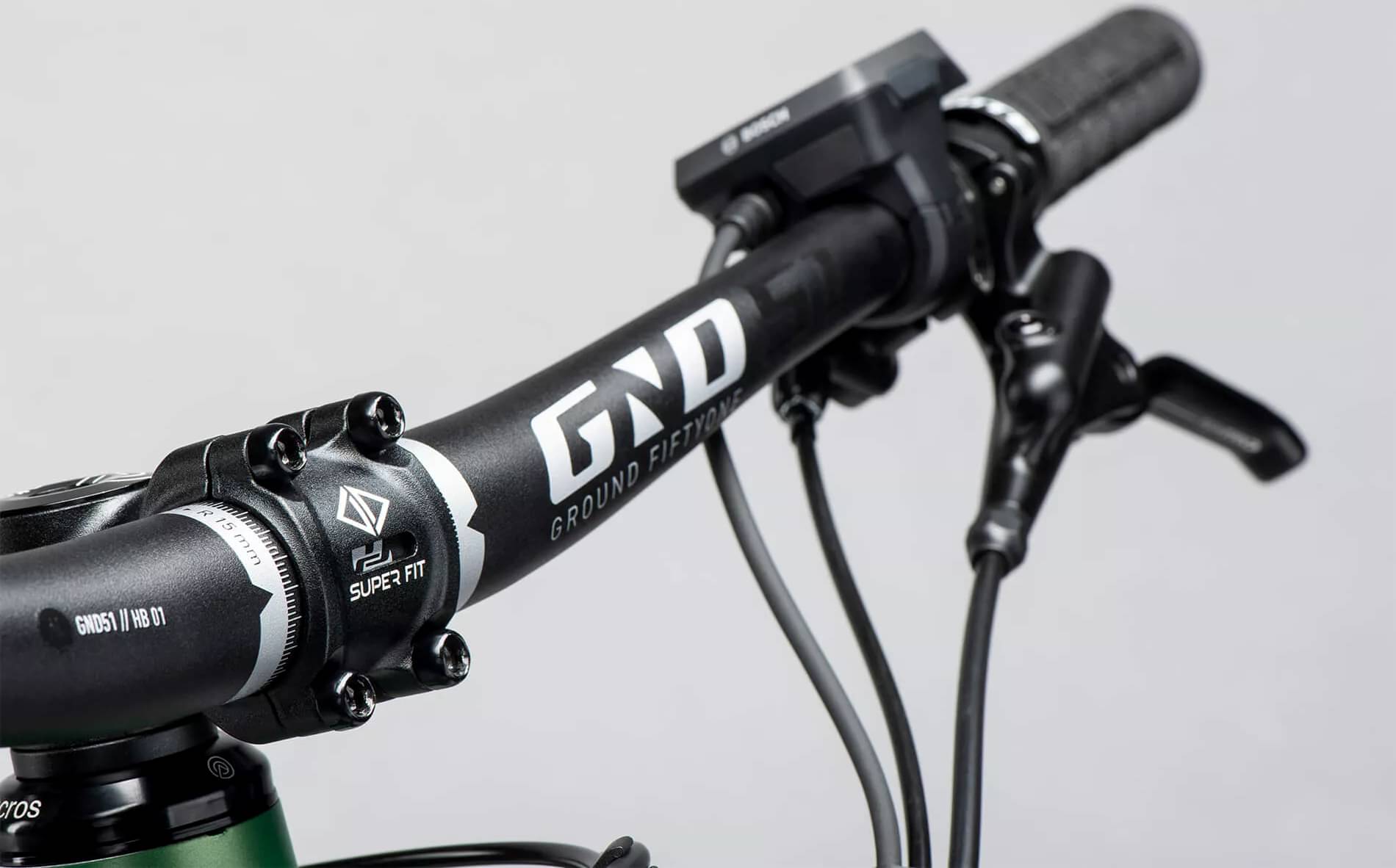

Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/15 (M-L) 780/40 (XL)
Grips
WTB Wafel
Seat
Saddle
Fizik Terra Aidon
Seatpost
Ghost Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)
Motor & Battery

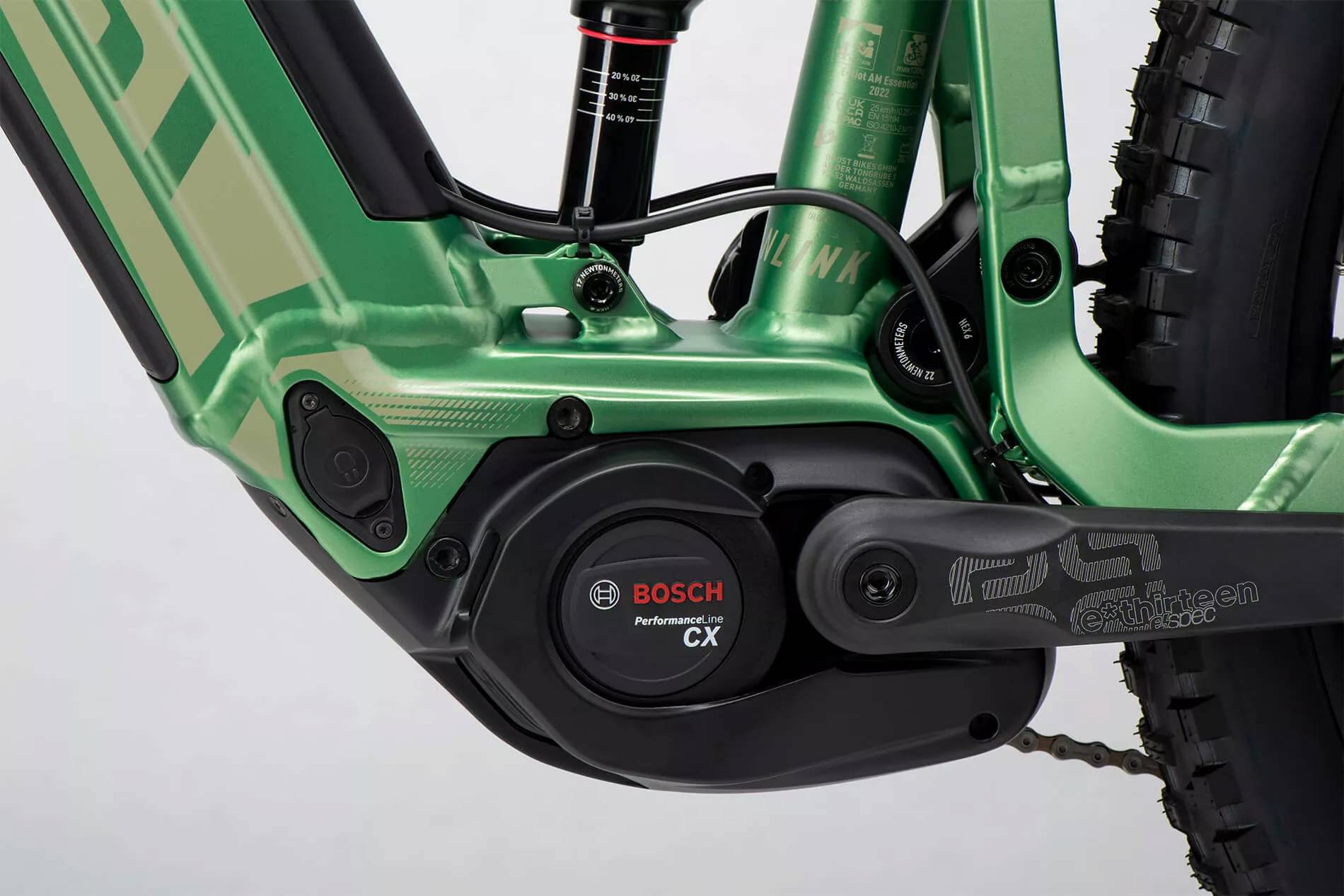

Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 625 Wh
Charger
Bosch Charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.348 mm | 1.297 mm | 1.315 mm | 1.274 mm |
| Bottom Bracket Height | 327 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 786 mm | 820 mm | 858 mm | 897 mm |
| Rake | 44 mm | 54 mm | 54 mm | 54 mm |
| Trail | 121 mm | 119 mm | 119 mm | 119 mm |
| Stack | 616 mm | 624 mm | 660 mm | 678 mm |
| Reach | 457 mm | 481 mm | 502 mm | 532 mm |
| Top Tube Length | 606 mm | 620 mm | 650 | 684 mm |
| Seat Tube Angle | 76.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1220 mm | 1272 mm | 1310 mm | 1349 mm |
| Bottom Bracket Drop | 28 mm | 41 mm | 41 mm | 41 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
