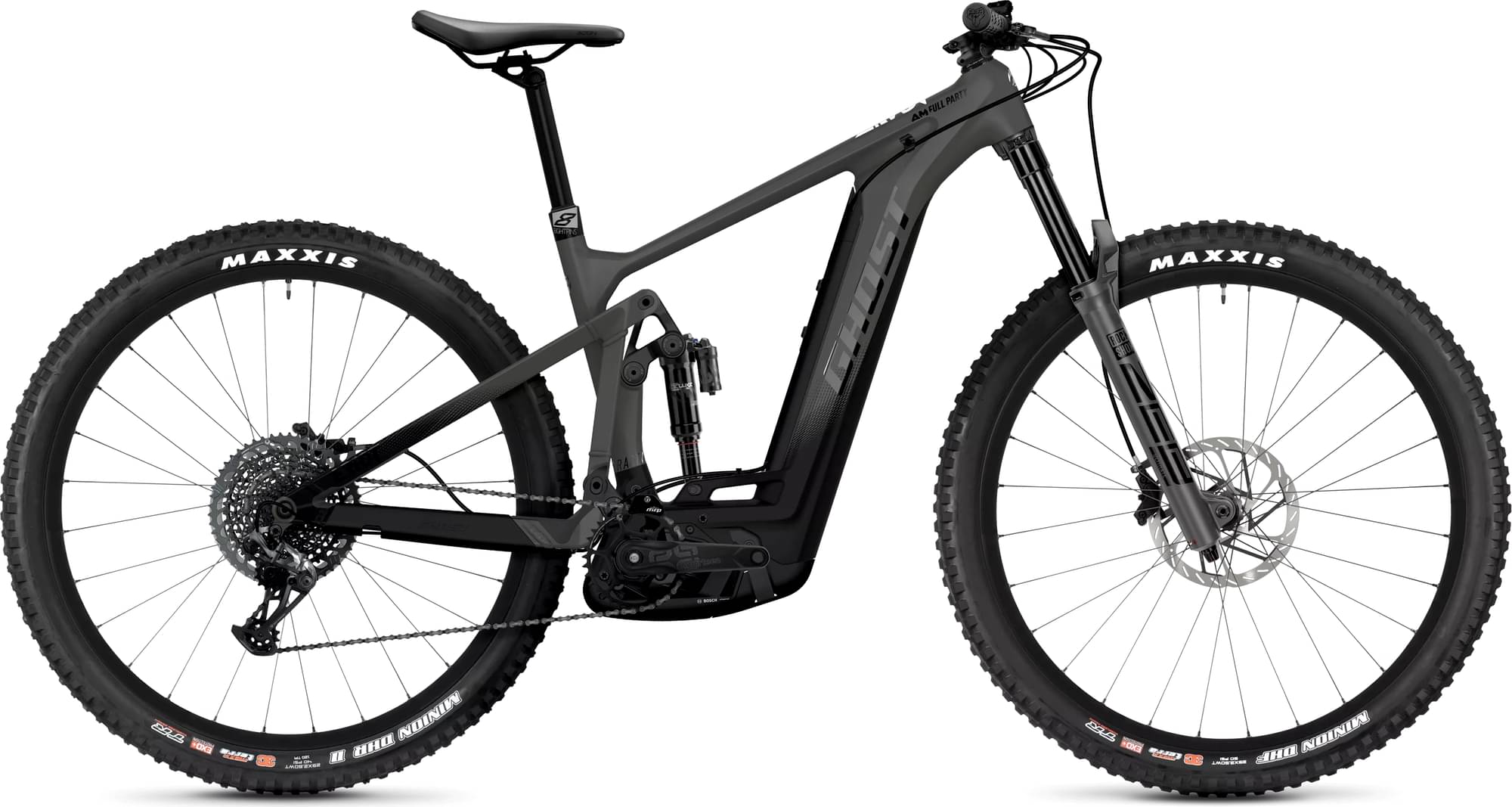

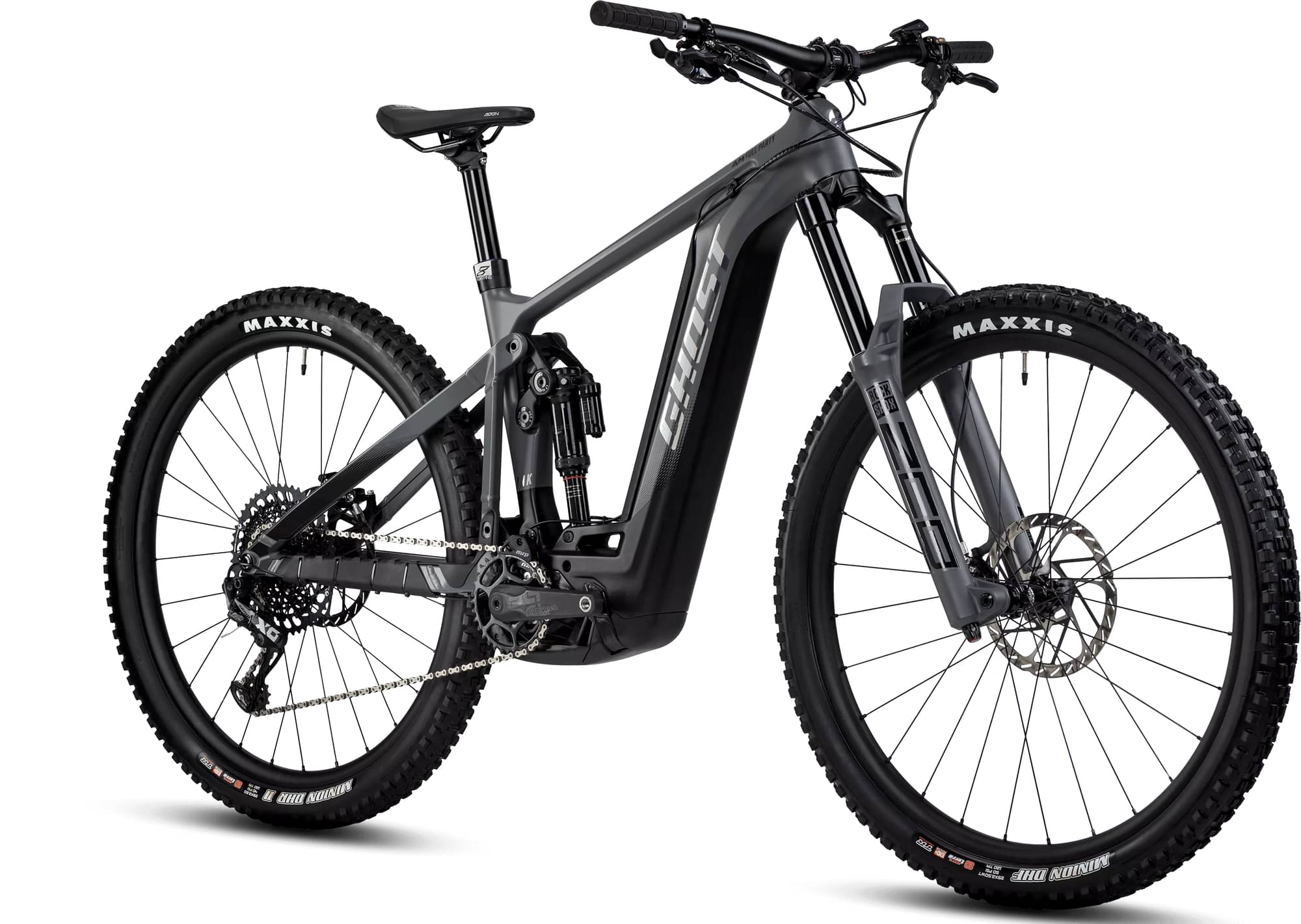

Ghost E-Riot AM CF Full Party 2024
2024 E-bike
Estimate price |
9,771$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-RIOT CF (S:27.5 M-XL:29)

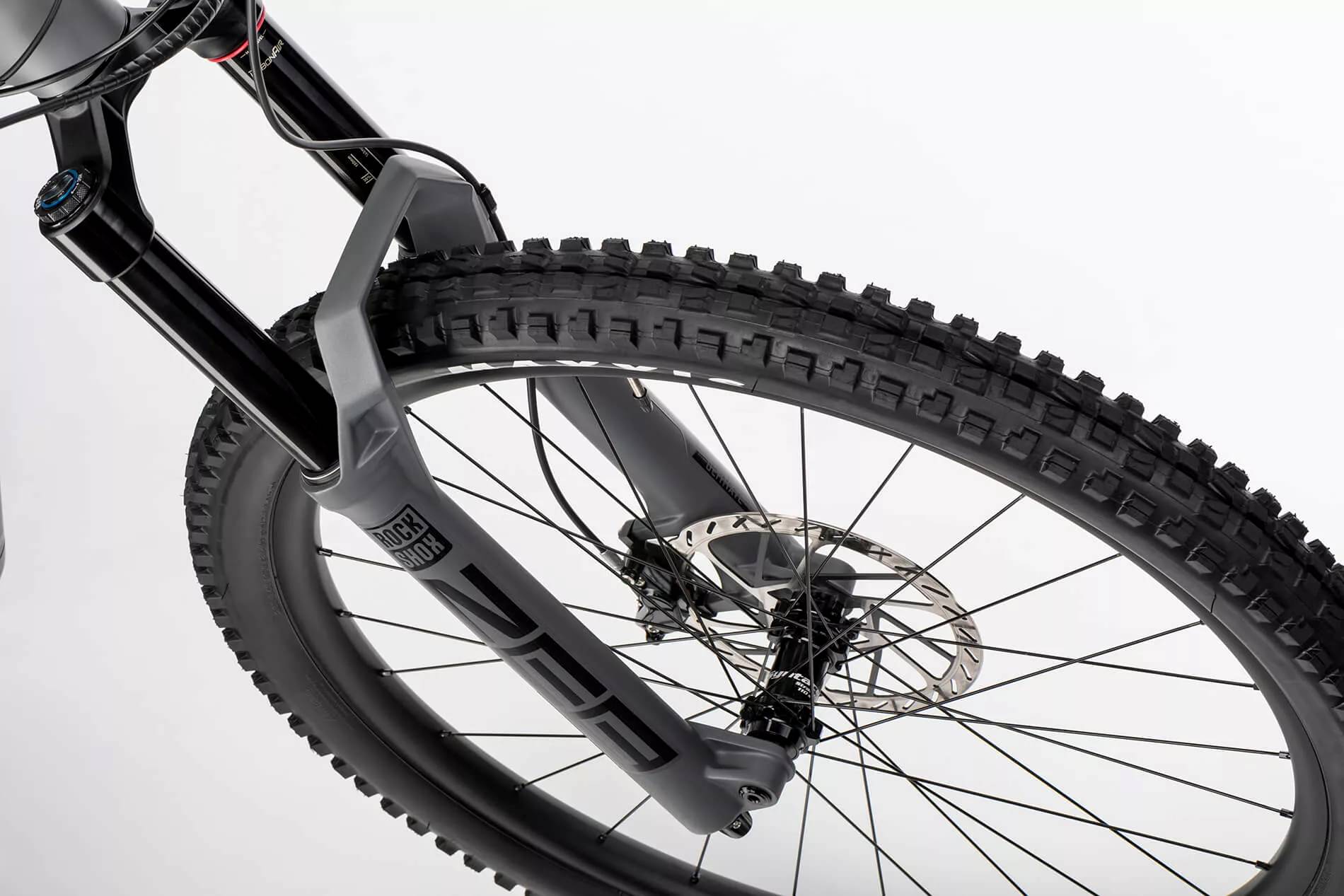

Suspension Fork
Rock Shox ZEB Ultimate 160 mm

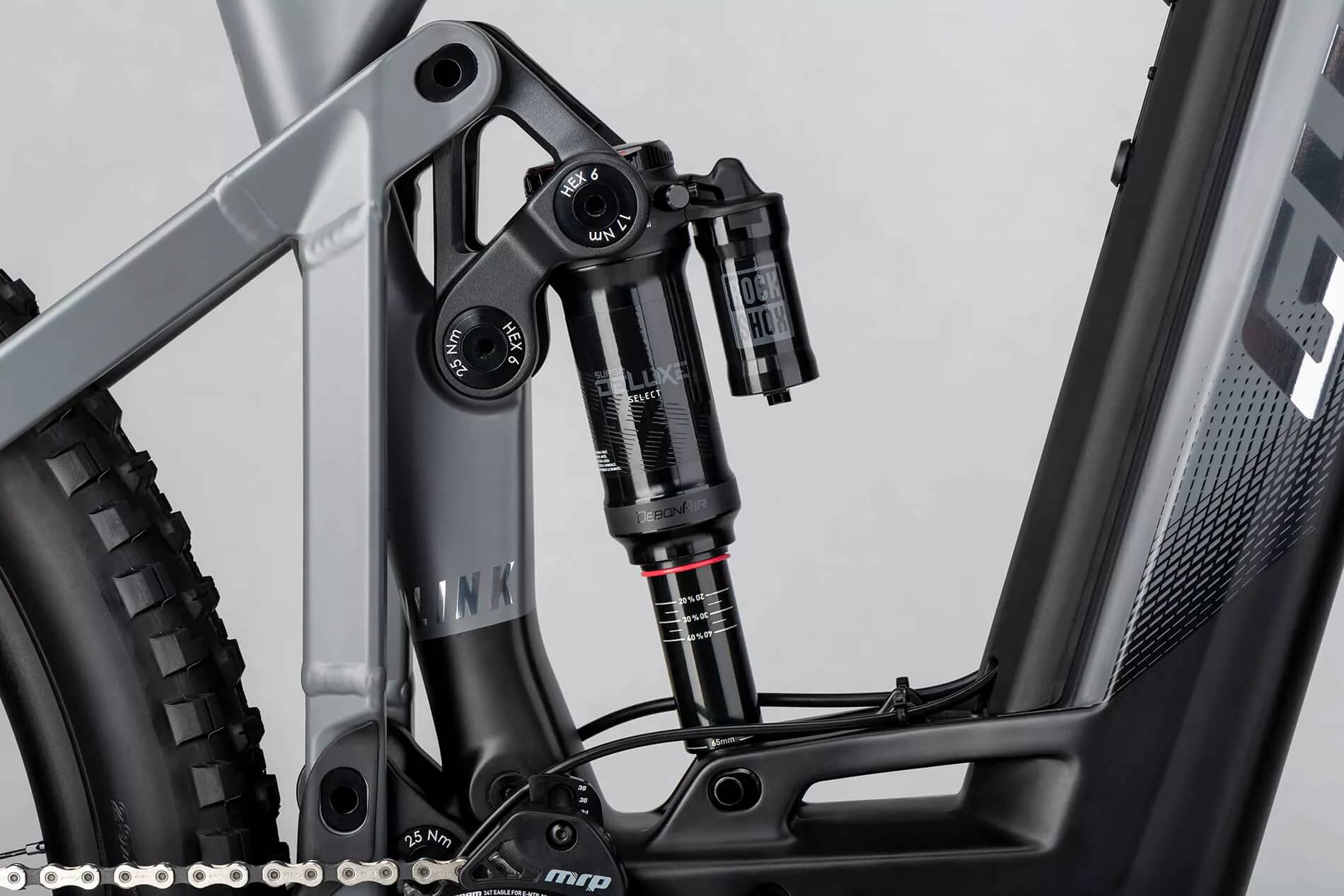

Rear Shock
Rock Shox Super Deluxe Ultimate RCT 160 mm

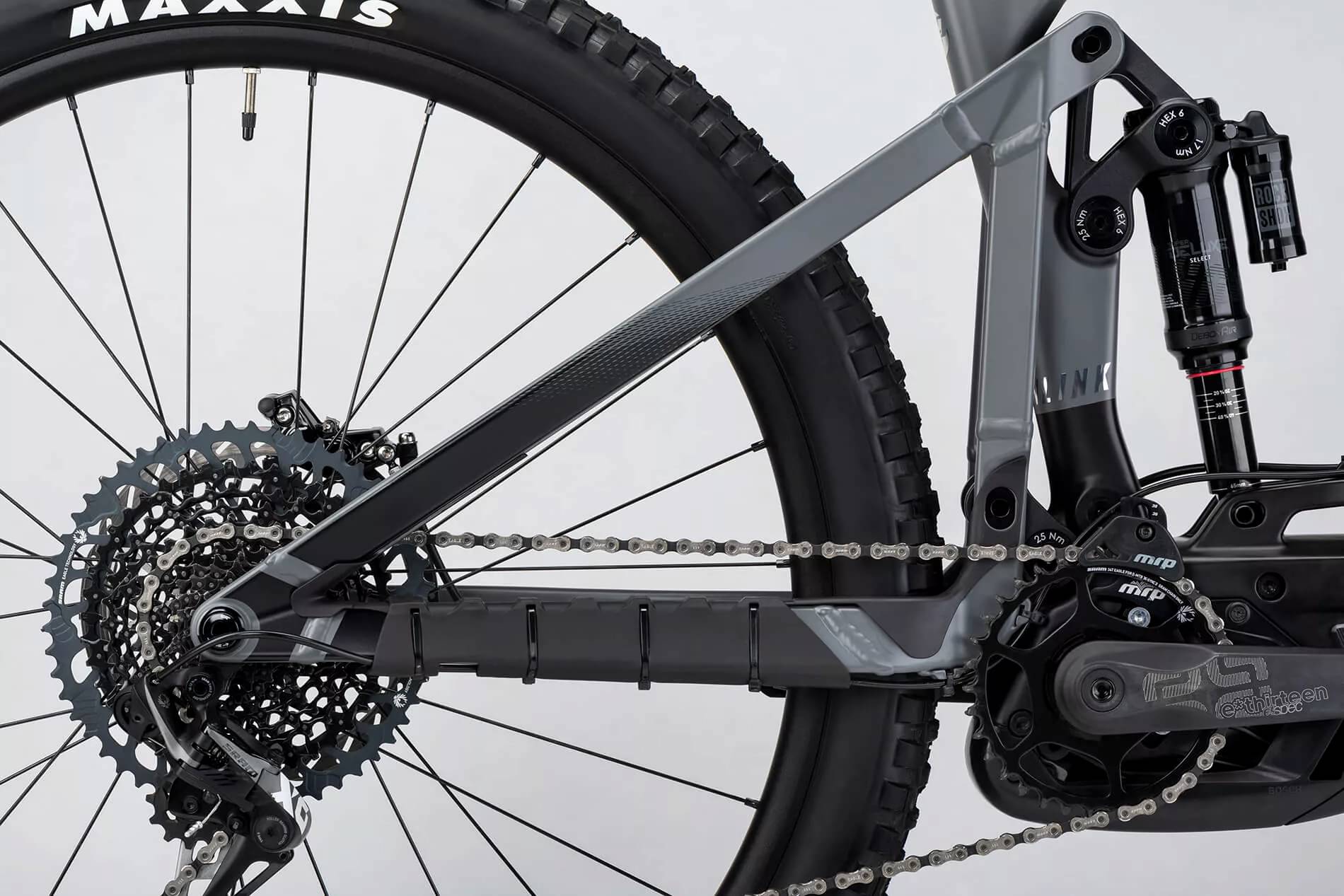

Drivetrain

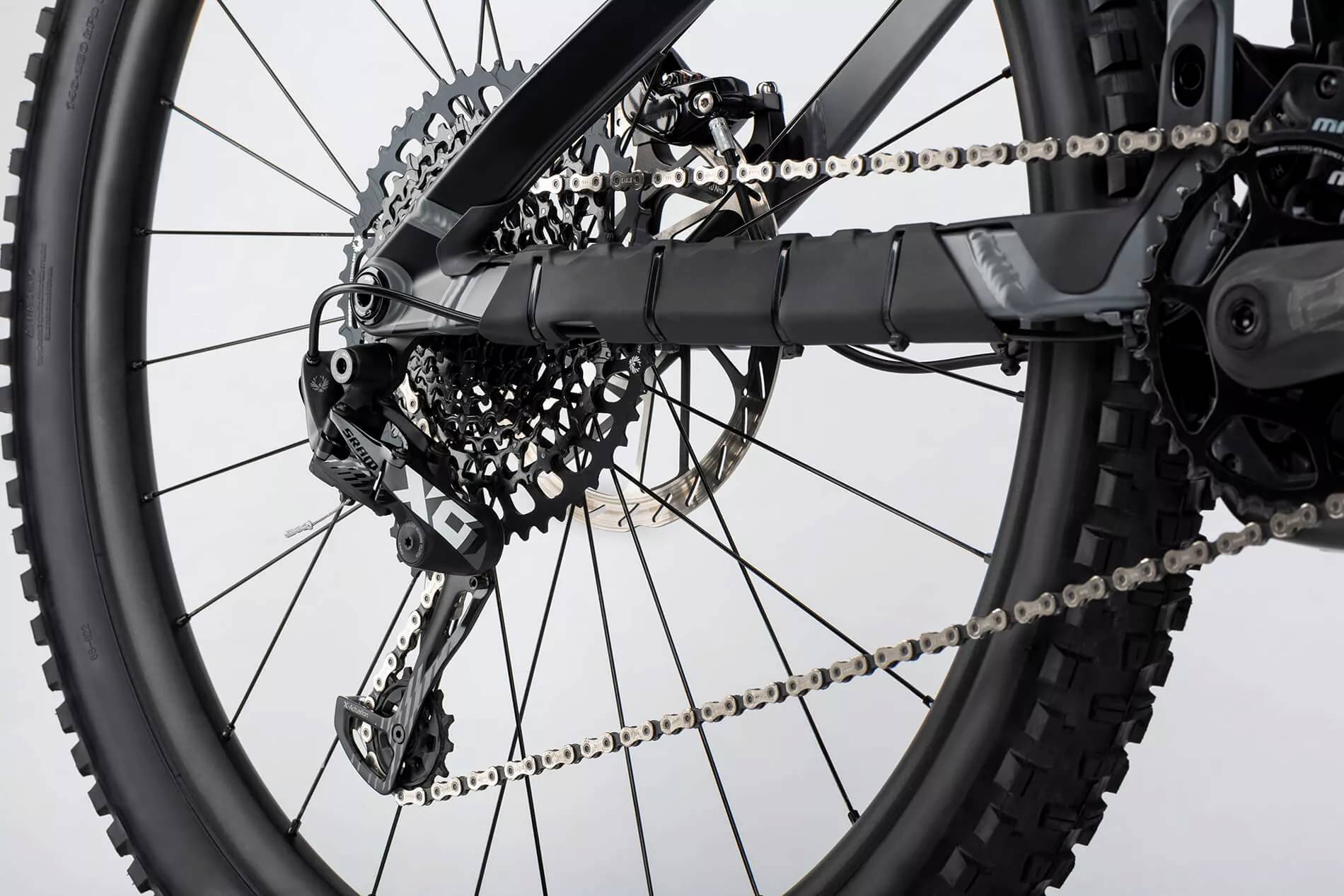

Rear Derailleur
SRAM X01 Eagle 12-S
Cassette
SRAM XG 1275 10-52
Crank
e*thirteen e*spec Plus 34T
Chain
SRAM GX Eagle
Chain Guide
MRP 1x
Pedals
VPE-527
Wheels
Rims
Syntace V30 12x148 mm
Tires
Front: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 (S 27,5"; M-XL 29"), Rear: Maxxis Minion DHR II 3C MaxxTerra Exo+ 2.6 (S 27,5"; M-XL 29")
Brakes

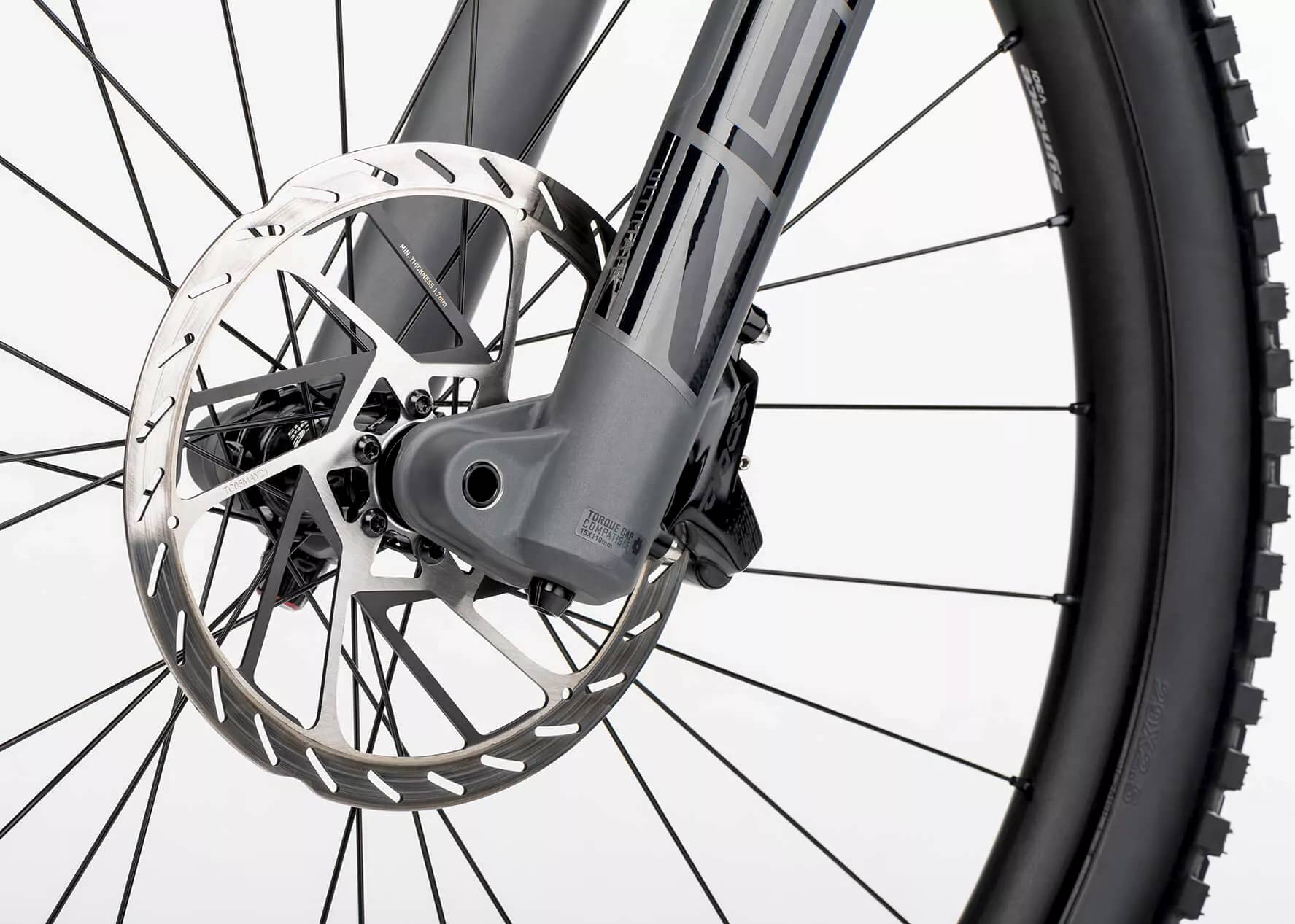

Brakes
SRAM Code RSC 200 mm Disc
Brake Levers
SRAM Code RSC
Cockpit
Stem
Syntace Megaforce2 Dia. 31.8 mm
Handlebar
Syntace Vector 7075 high20 780 mm
Grips
WTB Wafel
Seat
Saddle
Fizik Terra Aidon

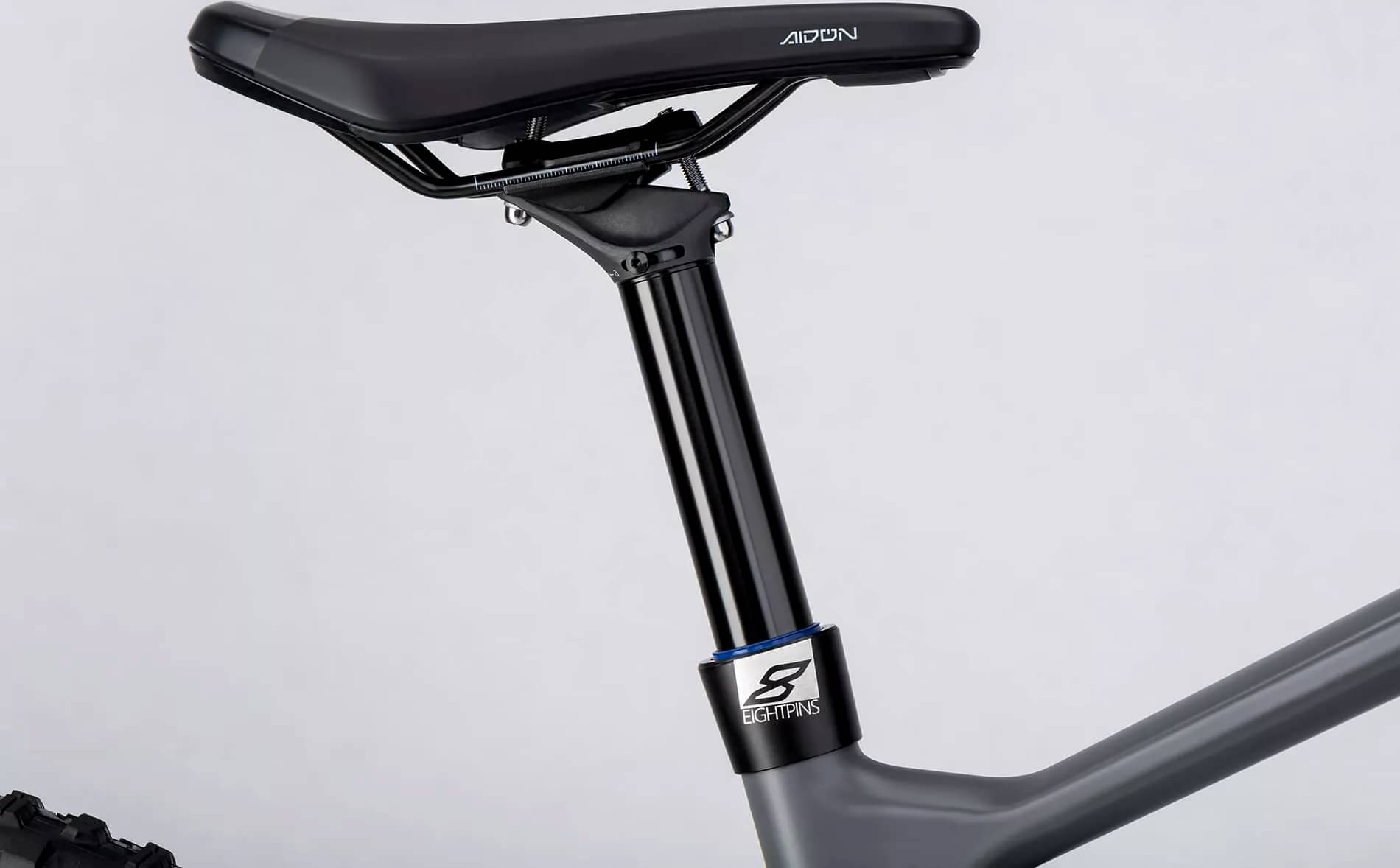

Seatpost
Eightpins hydraulic 34.9 mm
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 750 Wh
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.34 mm | 1.356 mm | 1.314 mm |
| Bottom Bracket Height | 331 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 763 mm | 795 mm | 832 mm | 870 mm |
| Rake | 46 mm | 53 mm | 53 mm | 52 mm |
| Trail | 111 mm | 112 mm | 112 mm | 114 mm |
| Stack | 617 mm | 627 mm | 663 mm | 682 mm |
| Reach | 442 mm | 468 mm | 489 mm | 519 mm |
| Top Tube Length | 588 mm | 618 mm | 648 mm | 682 mm |
| Seat Tube Angle | 76 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1197 mm | 1248 mm | 1285 mm | 1323 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
