Ghost E-Riot AM Full Party 2024
2024 E-bike
Estimate price |
10,469$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-RIOT CF (S:27.5 M-XL:29)
Suspension Fork
Rock Shox ZEB Ultimate 160 mm
Rear Shock
Rock Shox Super Deluxe Ultimate RC2T 160 mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-S
Cassette
SRAM XG 1275 10-52
Crank
e*thirteen e*spec Plus 34T
Chain
SRAM GX Eagle
Chain Guide
MRP 1x
Pedals
VPE-527
Wheels
Rims
DT Swiss H1900 Spline 30 mm 15x110 mm
Tires
Front: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 (S 27,5"; M-XL 29"), Rear: Maxxis Minion DHR II 3C MaxxTerra Exo+ 2.6 (S 27,5"; M-XL 29")
Brakes
Brakes
SRAM Code RSC 200 mm Disc
Brake Levers
SRAM Code RSC
Cockpit
Stem
Race Face Turbine R Dia. 35 mm
Handlebar
Race Face Turbine R Dia. 35 mm 780/20
Grips
Race Face Half Nelson
Seat
Saddle
Fizik Terra Aidon
Seatpost
Eightpins hydraulic 34.9 mm
Motor & Battery

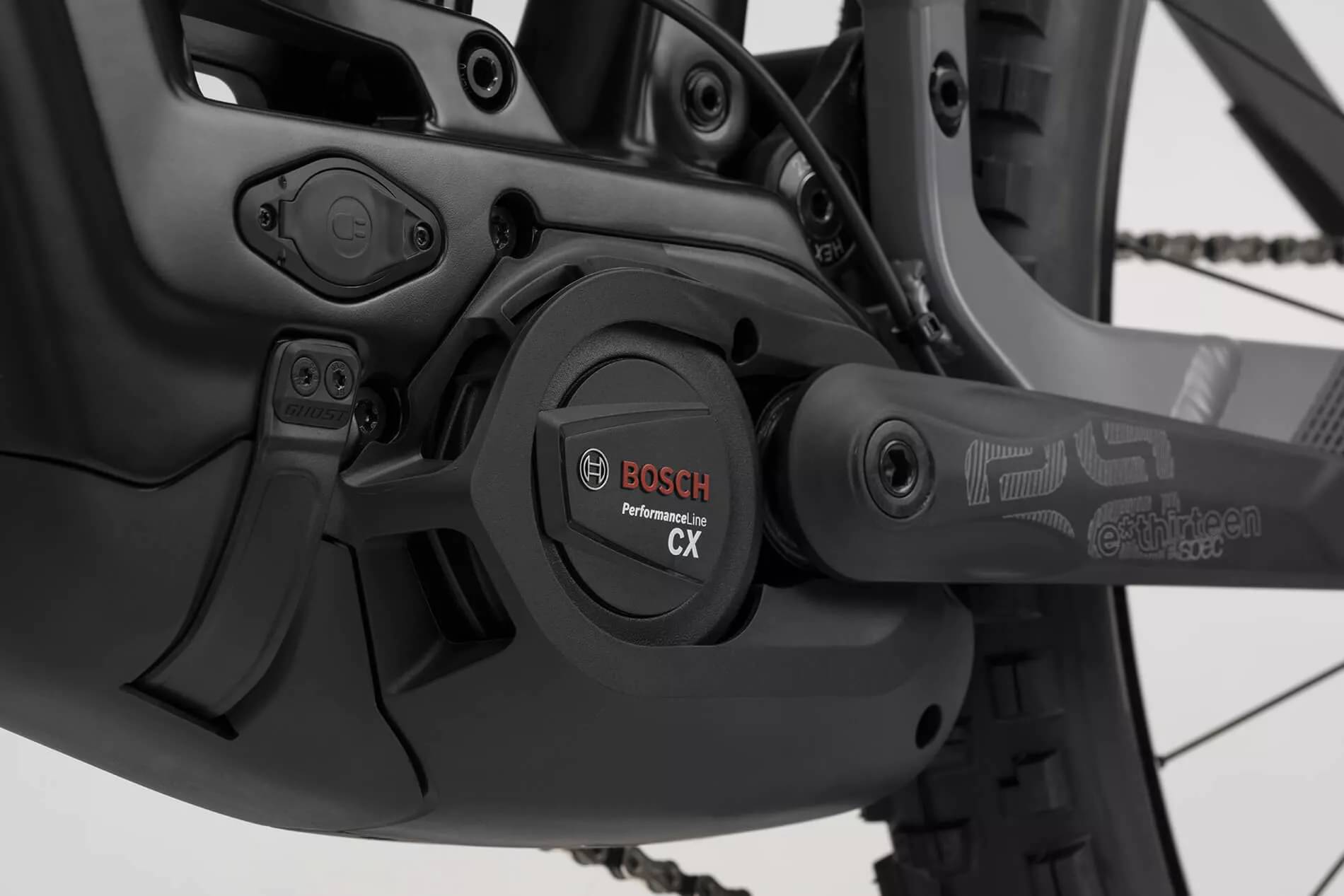

Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 750 Wh
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.34 mm | 1.356 mm | 1.314 mm |
| Bottom Bracket Height | 350 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 763 mm | 795 mm | 832 mm | 870 mm |
| Rake | 46 mm | 53 mm | 53 mm | 52 mm |
| Trail | 120 mm | 112 mm | 112 mm | 114 mm |
| Stack | 617 mm | 627 mm | 663 mm | 682 mm |
| Reach | 442 mm | 468 mm | 489 mm | 519 mm |
| Top Tube Length | 588 mm | 618 mm | 648 mm | 682 mm |
| Seat Tube Angle | 76 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1197 mm | 1248 mm | 1285 mm | 1323 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 746 mm | 740 mm | 748 mm | 751 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
