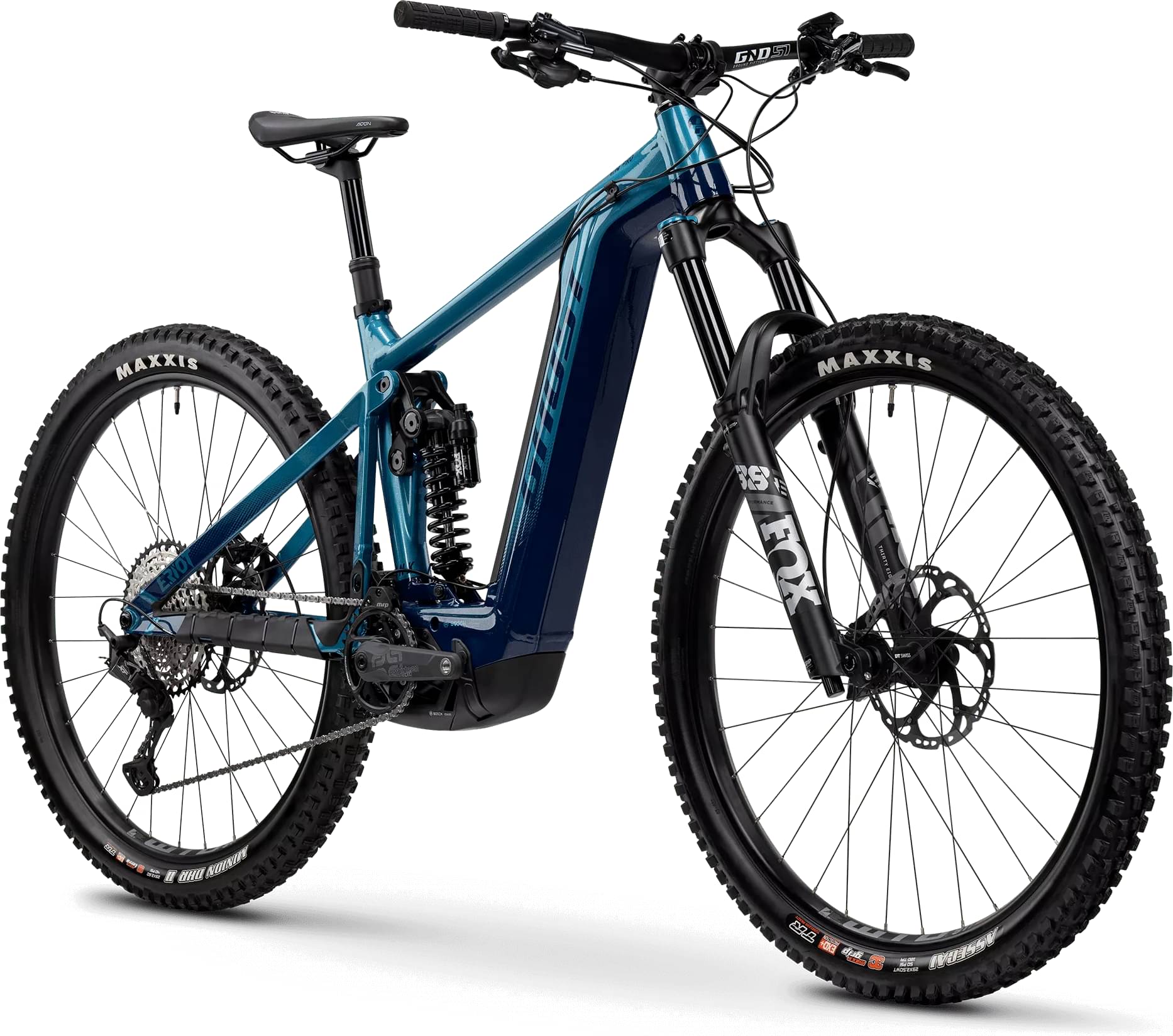

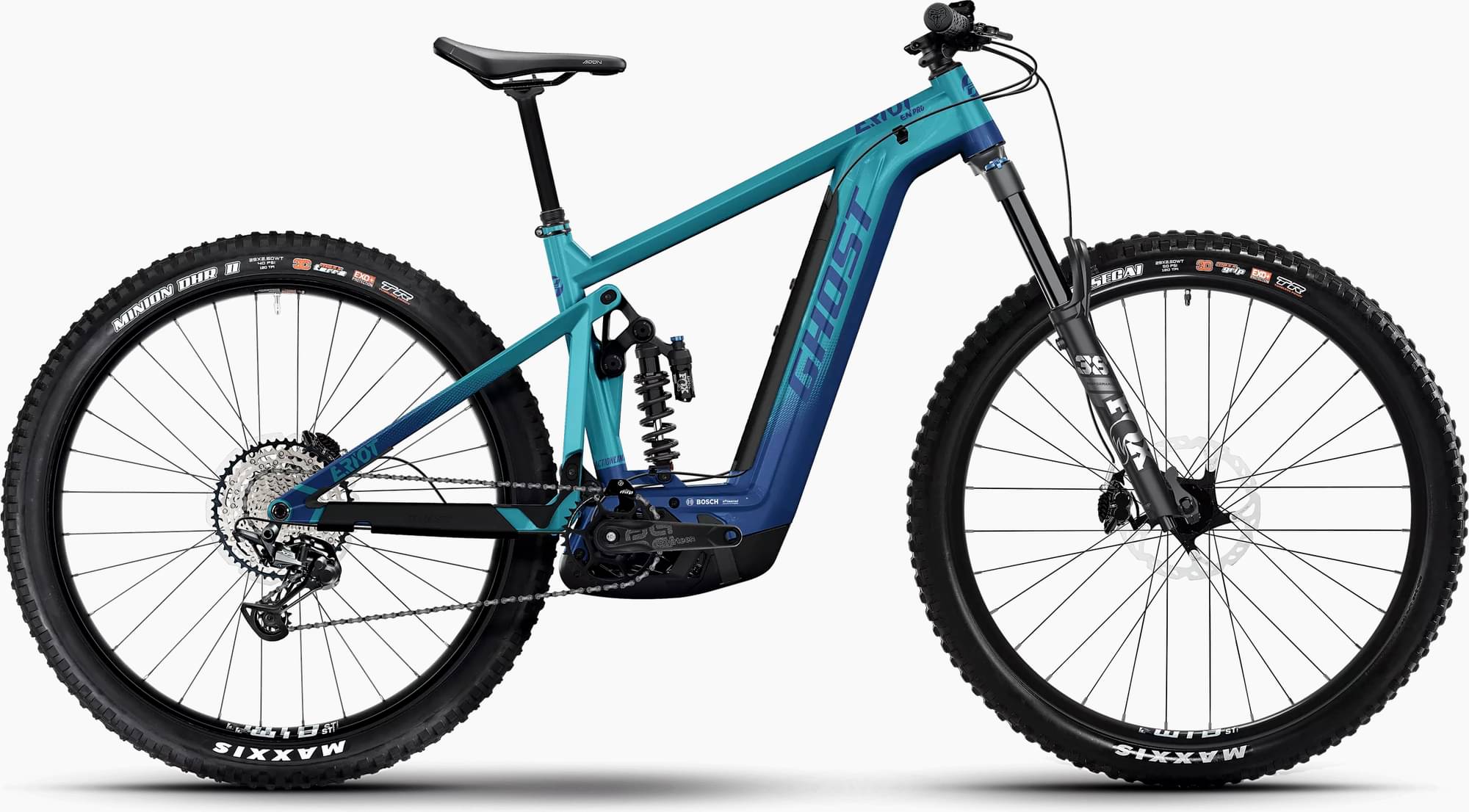

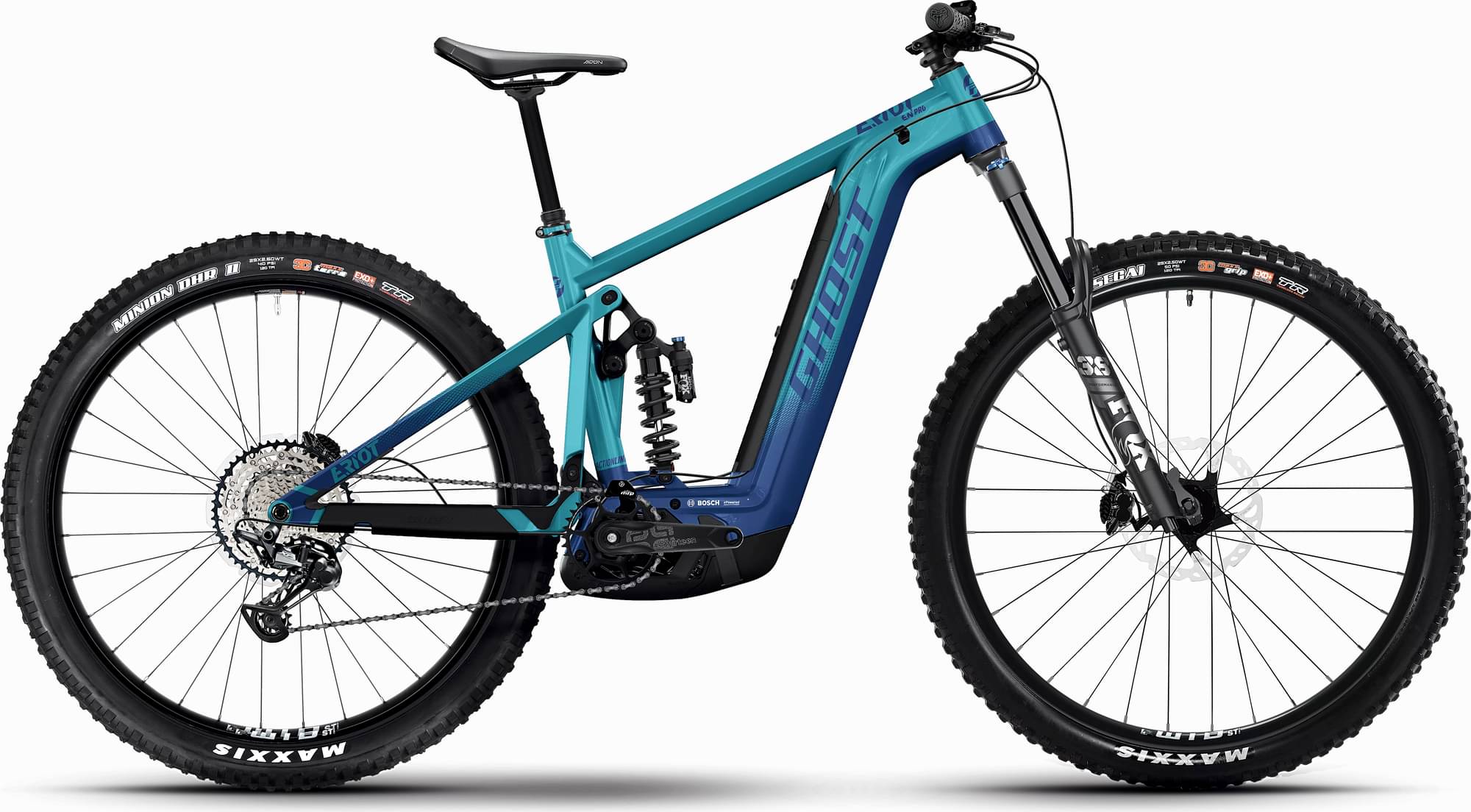

Ghost E-RIOT EN PRO 2025
2025 E-bike
Estimate price |
6,979$
Weight | 28.05 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Fork Fox Performance Float 38
-
Groupset XT -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch InTube 750 Wh, Capacity: 750 Wh, Location: Powertube -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
FOX Factory 38 Float Performance eMTB+ 170 mm
Rear Shock
FOX Factory DHX Performance 205x65mm, Trunnion
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100 12s, Shadow+
Shift Levers
Shimano Triggershift Deore XT SL-M8100, Rapidfire+
Cassette
Shimano SLX CS-M7100-12, MICRO SPLINE
Crank
E Thirteen e*spec Plus 165
Chain
Shimano SLX CN-M7100
Chain Guide
MRP 1x
Pedals
VP VPE-527
Wheels
Front Hub
DT Swiss 370 Classic 15x110 mm
Rear Hub
DT Swiss 370 Classic 12x148 mm
Rims
WTB ST i30 TCS 2.0
Tires
Maxxis Assegai 3C MaxxGrip Exo+ 2.5
Brakes
Brakes
Shimano Hydraulic Disc brake Deore BR-M6120, 203 mm
Brake Levers
Shimano BL-M6100
Cockpit
Stem
Ghost Ground Fiftyone Dia. 31.8 mm, L: 45 mm
Handlebar
Ghost Riser Bar Ground Fiftyone Dia. 31.8 mm, Rise: 15 mm
Headset
Acros Semi-integrated Blocklock 135° AZX-582 44/56 ALU
Seat
Saddle
Fizik MTB Terra Aidon
Seatpost
Limotec Dropperpost Alpha 1, Dia. 34.9 mm, Travel: 125 mm
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch InTube 750 Wh, Capacity: 750 Wh, Location: Powertube
Charger
Bosch Charger 4A 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.413 mm | 1.358 mm | 1.378 mm | 1.333 mm |
| Bottom Bracket Height | 352 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 772 mm | 799 mm | 836 mm | 874 mm |
| Rake | 51 mm | 52 mm | 52 mm | 52 mm |
| Trail | 118 mm | 117 mm | 117 mm | 117 mm |
| Stack | 619 mm | 630 mm | 667 mm | 685 mm |
| Reach | 438 mm | 464 mm | 484 mm | 514 mm |
| Top Tube Length | 596 mm | 614 mm | 643 mm | 677 mm |
| Seat Tube Angle | 75.7 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.1 ° | 65.1 ° | 65.1 ° | 65.1 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1206 mm | 1252 mm | 1289 mm | 1327 mm |
| Bottom Bracket Drop | 22 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 749 mm | 743 mm | 751 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
