Ghost E-RIOT FULL PARTY 2025
2025 E-bike
Estimate price |
11,051$
Weight | 24.29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission, Eagle AXS -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch InTube 800 Wh, Capacity: 800 Wh, Location: Powertube -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Maven Silver Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
171cm - 182cm
LG
180cm - 190cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Carbon Uni
Suspension Fork
FOX Factory 38 Factory EMTB - GRIP X2, FLOAT EVOL, 170 mm
Rear Shock
FOX Factory FLOAT X2 Factory, 2pos-Adj., 205x65mm, Trunnion
Drivetrain
Rear Derailleur
SRAM S1000 Eagle AXS T-Type 12s, wireless
Shift Levers
SRAM Triggershift AXS Pod Controller
Cassette
SRAM XS-1275 Eagle T-Type, XD
Crank
SRAM FC S1000 Eagle ISIS + CR XX Bosch DU38 DM T-Type 165
Bottom Bracket
Bosch, press-fit
Chain
SRAM GX Eagle T-Type 12s
Chain Guide
MRP 1x for Bosch BDU38 32-36T
Pedals
VP VPE-527 Alloy w/ Reflector
Wheels
Rims
DT Swiss H 1900 Spline 29", 15x110 mm, 6 bolt Disc
Tires
Continental Kryptotal-Fr Enduro Super Soft, TR 60-622
Brakes
Brakes
SRAM Hydraulic Disc brake DB Maven Silver, 4 pistons, organic pad, 220 mm
Brake Levers
SRAM DB Maven Silver-BL

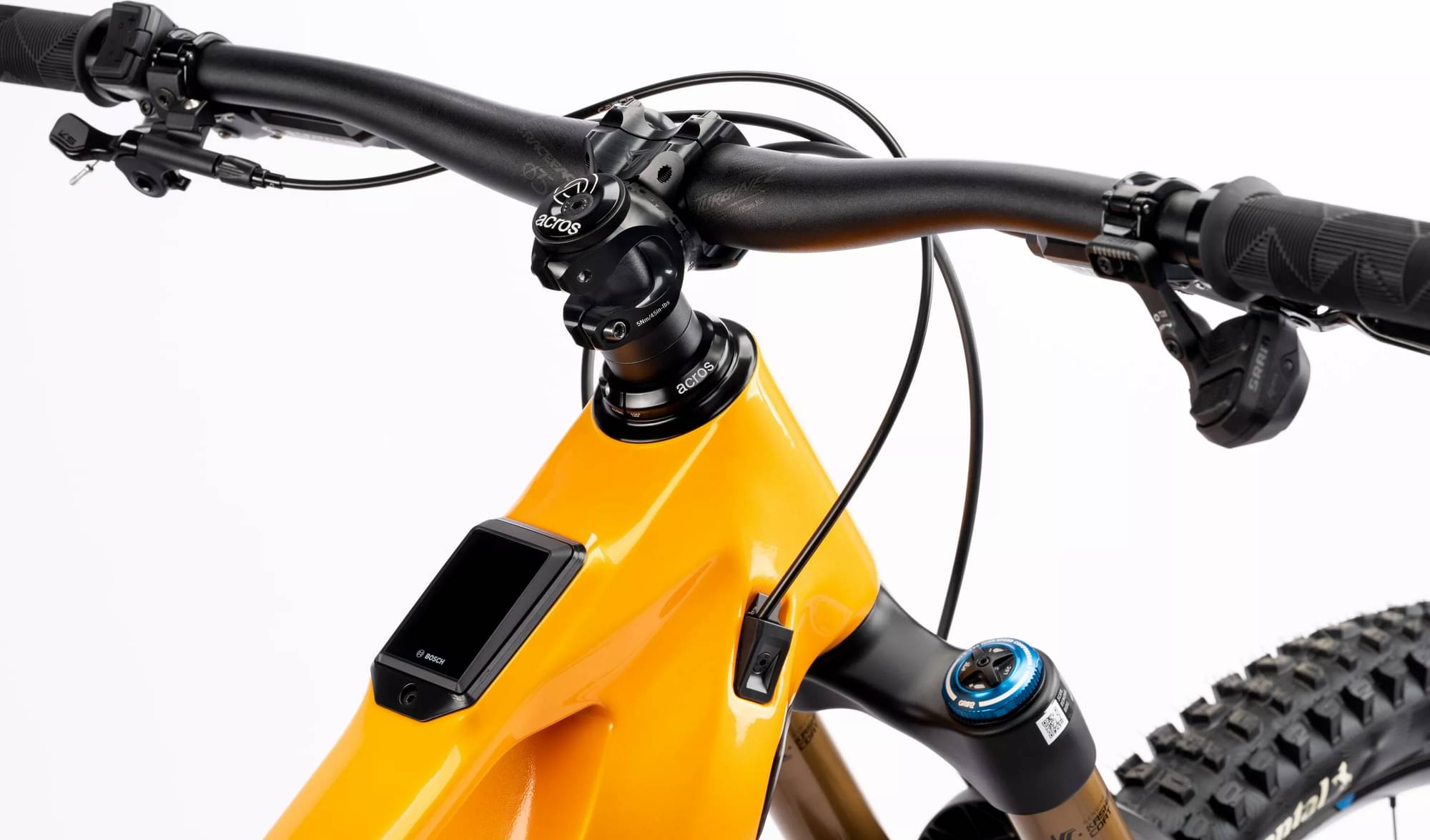

Cockpit
Stem
Race Face Not Adjustable Turbine R Dia. 35 mm, L: 40 mm, A-Head
Handlebar
Race Face Riser Bar Turbine R Dia. 35 mm, Rise: 20 mm
Headset
Acros Semi-integrated Blocklock 120° Tapered, Semi-Int. ZS56/ZS56

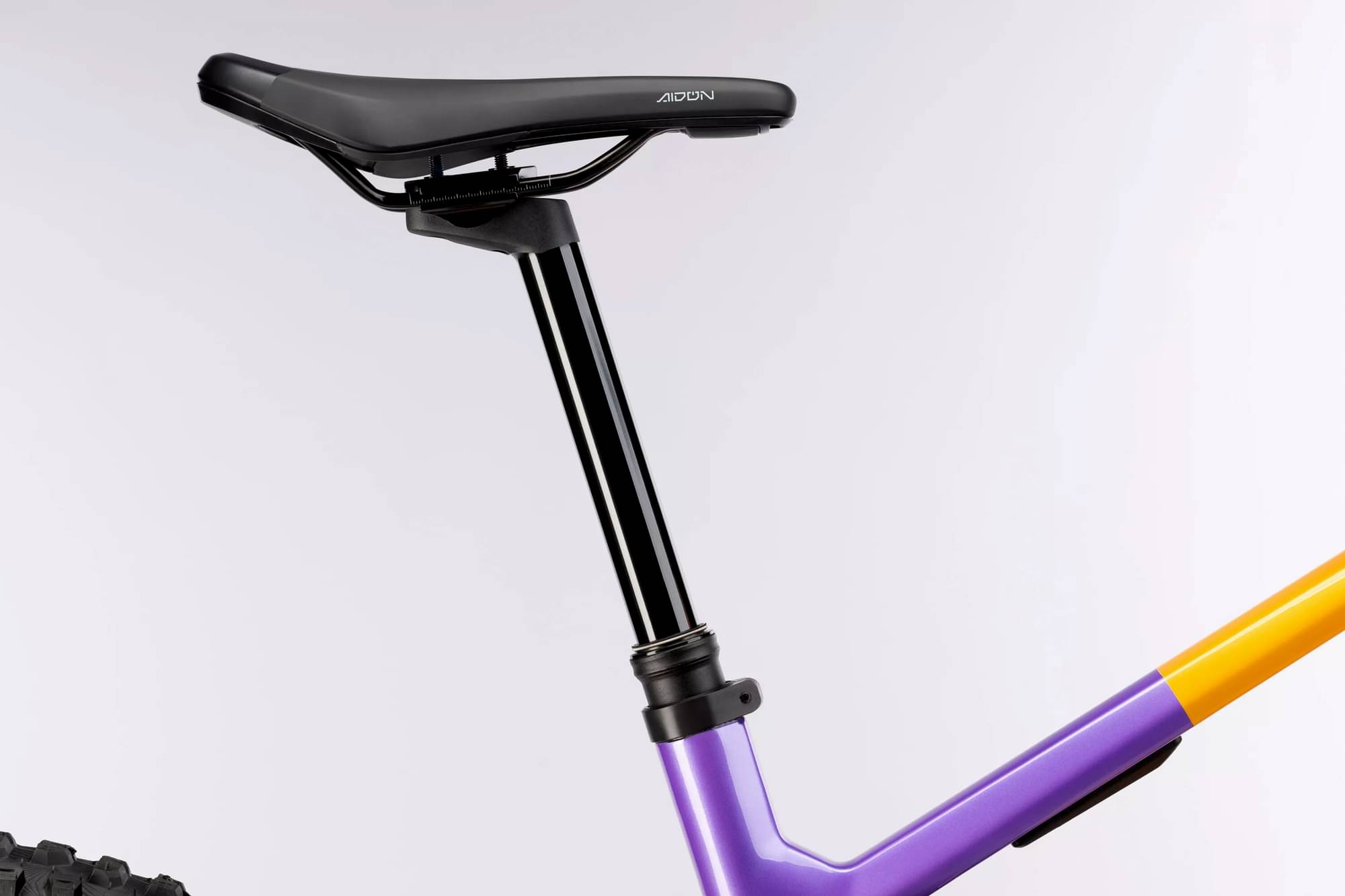

Seat
Saddle
Fizik MTB Terra Aidon X5 145 mm
Seatpost
Limotec Dropperpost Alpha 1 Dropper, Dia. 34.9 mm, Travel: 200 mm
Motor & Battery

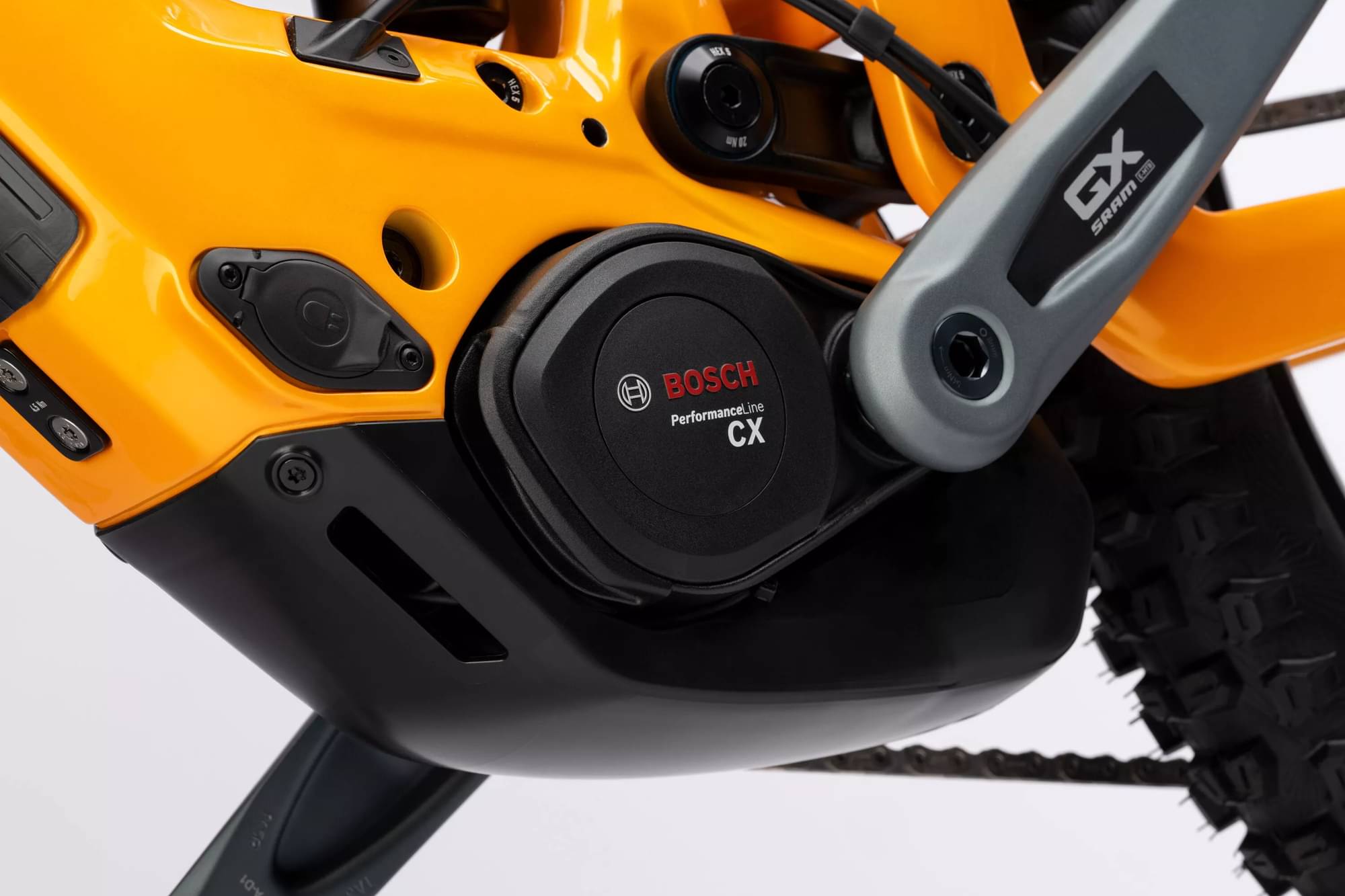

Motor
Bosch Performance Line CX
Battery
Bosch InTube 800 Wh, Capacity: 800 Wh, Location: Powertube
Charger
Bosch Charger 4A 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.348 mm | 1.306 mm | 1.27 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 771 mm | 806 mm | 837 mm | 869 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 133 mm | 133 mm | 133 mm | 133 mm |
| Stack | 618 mm | 627 mm | 640 mm | 654 mm |
| Reach | 435 mm | 465 mm | 490 mm | 515 mm |
| Top Tube Length | 572 mm | 604 mm | 632 mm | 660 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 384 mm | 410 mm | 424 mm | 474 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1216 mm | 1251 mm | 1282 mm | 1314 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 764 mm | 761 mm | 760 mm | 760 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 171 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 182 cm | 190 cm | 199 cm |
