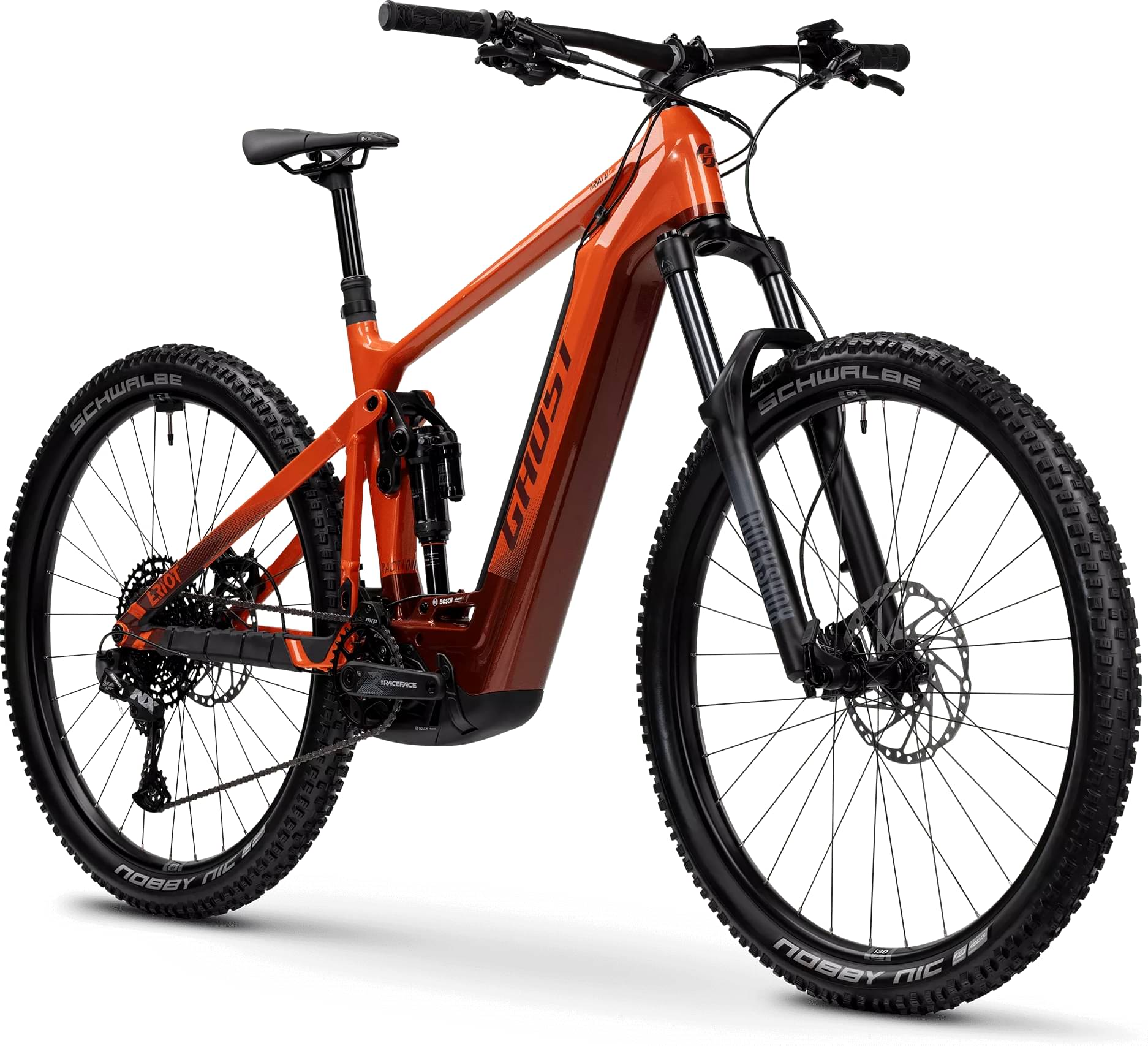

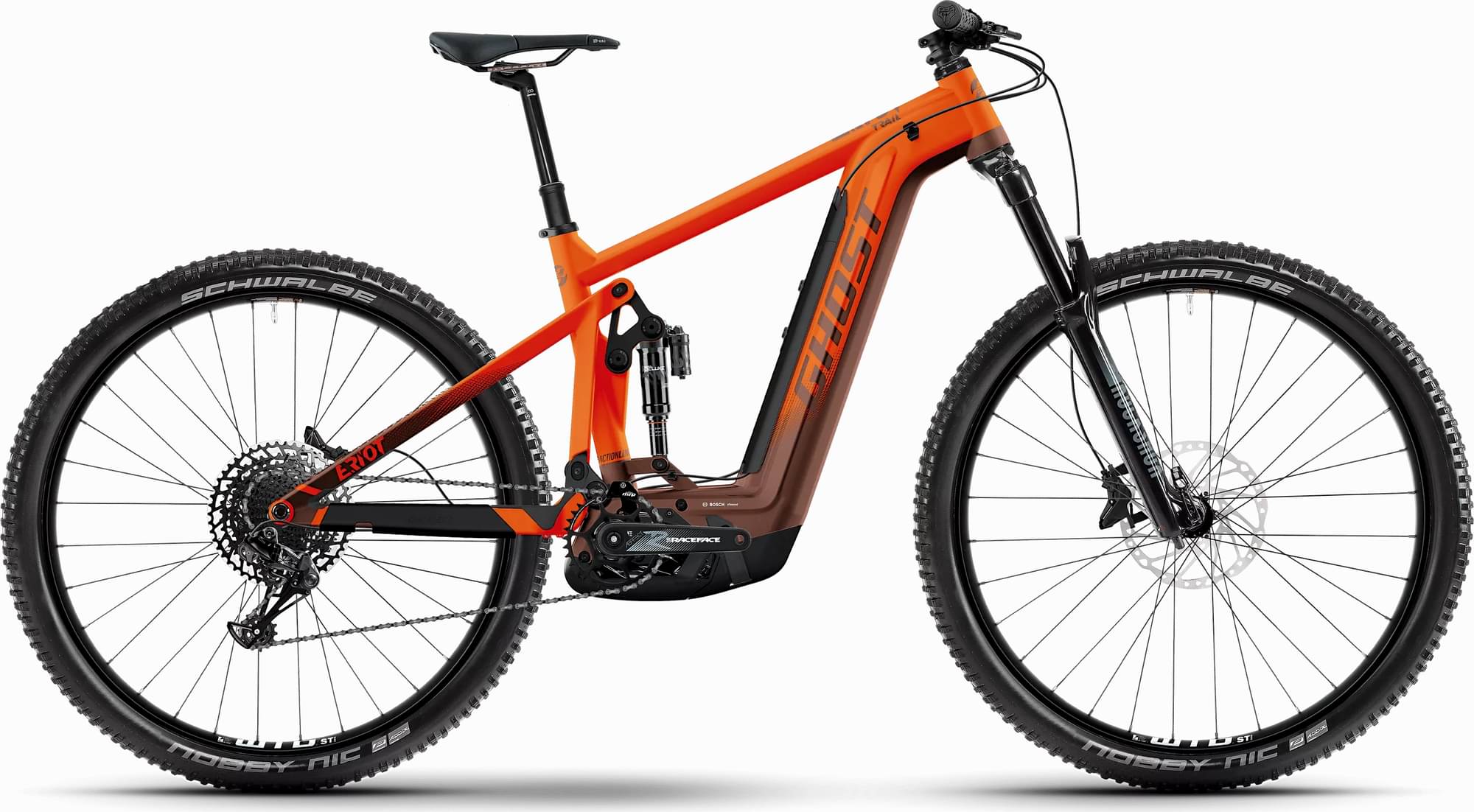

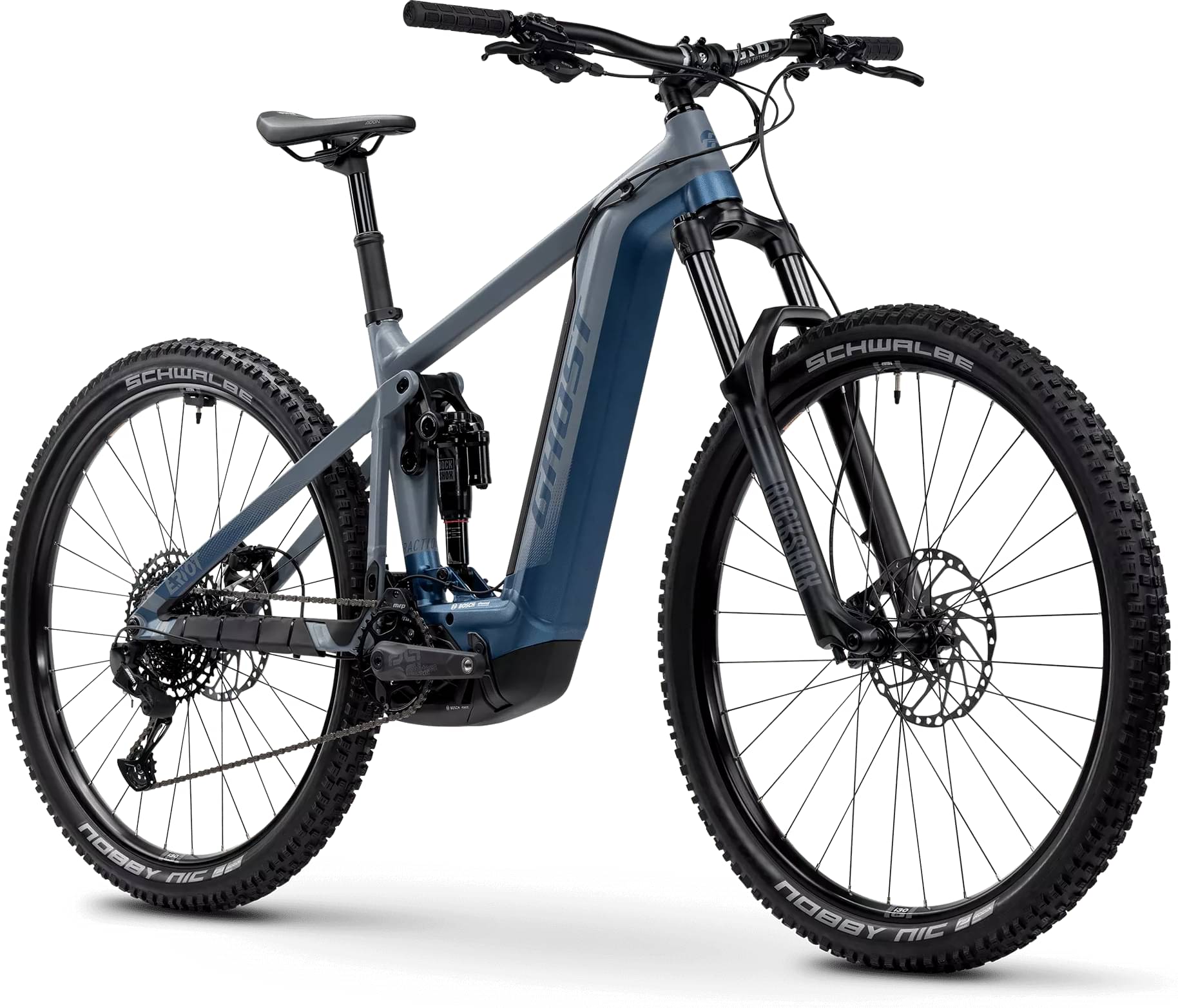

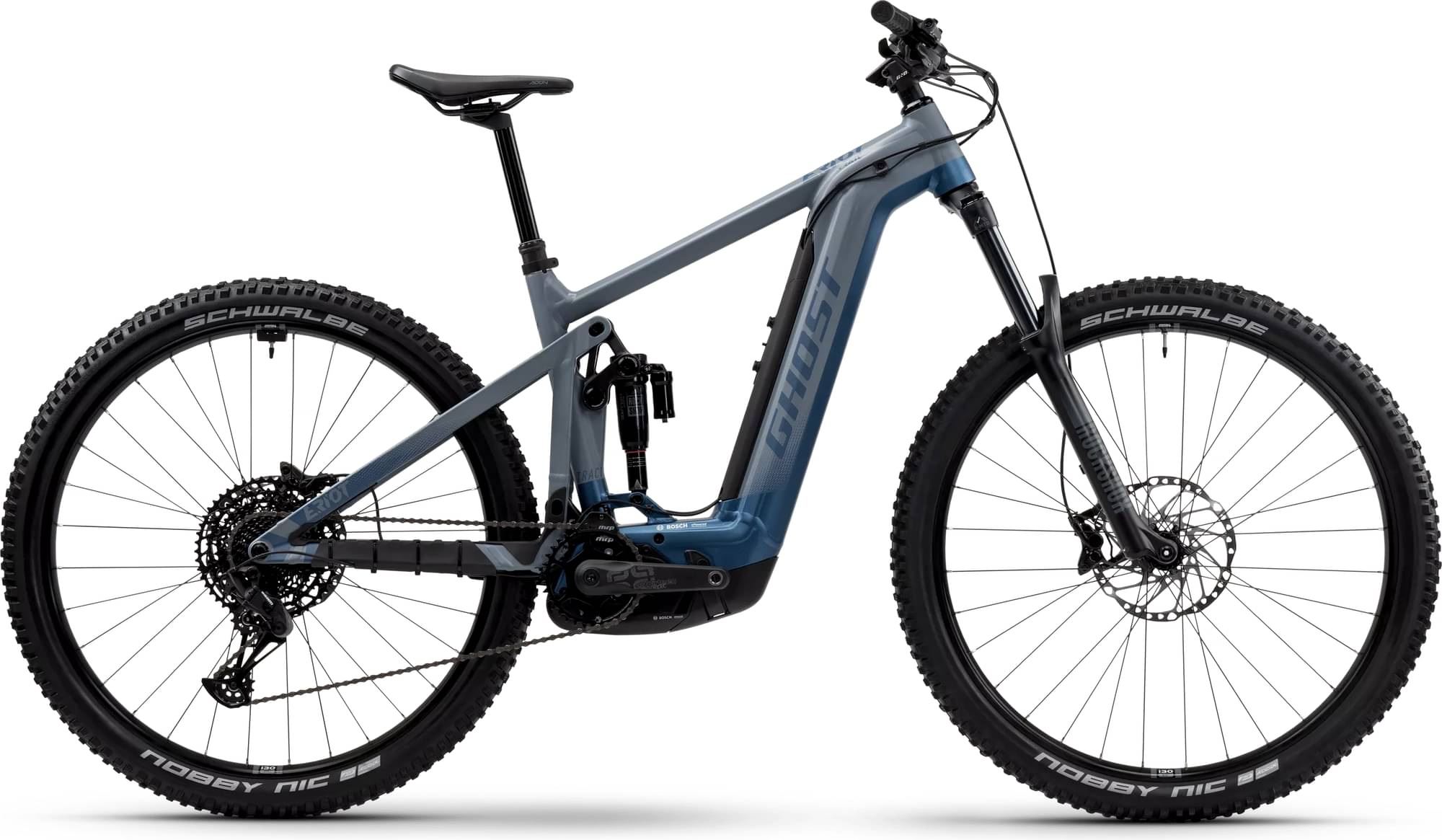

Ghost E-RIOT TRAIL 2025
2025 E-bike
Estimate price |
5,467$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Fork RockShox 35 Silver
-
Groupset NX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch InTube 625 Wh, Capacity: 625 Wh, Location: Powertube -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 172cm
MD
170cm - 180cm
LG
178cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Rockshox 35 Silver TK Solo Air 150 mm
Rear Shock
Rockshox Super Deluxe Select R 185x55mm, Trunnion
Drivetrain
Rear Derailleur
SRAM NX Eagle 12s
Shift Levers
SRAM Triggershift NX Eagle Single Click
Cassette
SRAM PG-1210 Eagle, HG
Crank
Race Face Aeffect-R 170
Chain
SRAM SX Eagle 12s
Chain Guide
MRP 1x
Pedals
VP VPE-527
Wheels
Front Hub
Shimano HB-TC500-15-B 15x110 mm
Rear Hub
Shimano FH-TC500-HM-B 12x148 mm
Rims
WTB ST i30 TCS 2.0
Tires
Schwalbe Nobby Nic Performance 2.6
Brakes
Brakes
Shimano Hydraulic Disc brake BR-MT520, 203 mm
Brake Levers
Shimano BL-MT501
Cockpit
Stem
Ghost Dia. 31.8 mm, L: 50 mm
Handlebar
Ghost Riser Bar MTB Dia. 31.8 mm, Rise: 15 mm
Headset
Acros Semi-integrated Blocklock 135° AZX-582
Seat
Saddle
Prologo MTB Proxim W400 Performance
Seatpost
Limotec Dropperpost Alpha 1, Dia. 34.9 mm, Travel: 170 mm
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch InTube 625 Wh, Capacity: 625 Wh, Location: Powertube
Charger
Bosch Charger 4A 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.372 mm | 1.381 mm | 1.339 mm | 1.298 mm |
| Bottom Bracket Height | 330 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 751 mm | 783 mm | 819 mm | 856 mm |
| Rake | 47 mm | 53 mm | 53 mm | 53 mm |
| Trail | 107 mm | 109 mm | 109 mm | 109 mm |
| Stack | 605 mm | 634 mm | 652 mm | 670 mm |
| Reach | 441 mm | 459 mm | 487 mm | 516 mm |
| Top Tube Length | 566 mm | 580 mm | 612 mm | 645 mm |
| Seat Tube Angle | 78.3 ° | 79.2 ° | 79.1 ° | 79.1 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 430 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1180 mm | 1230 mm | 1266 mm | 1303 mm |
| Bottom Bracket Drop | 25 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 772 mm | 800 mm | 803 mm | 802 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 161 cm | 170 cm | 178 cm | 187 cm |
| Rider Max Height | 172 cm | 180 cm | 189 cm | 198 cm |
