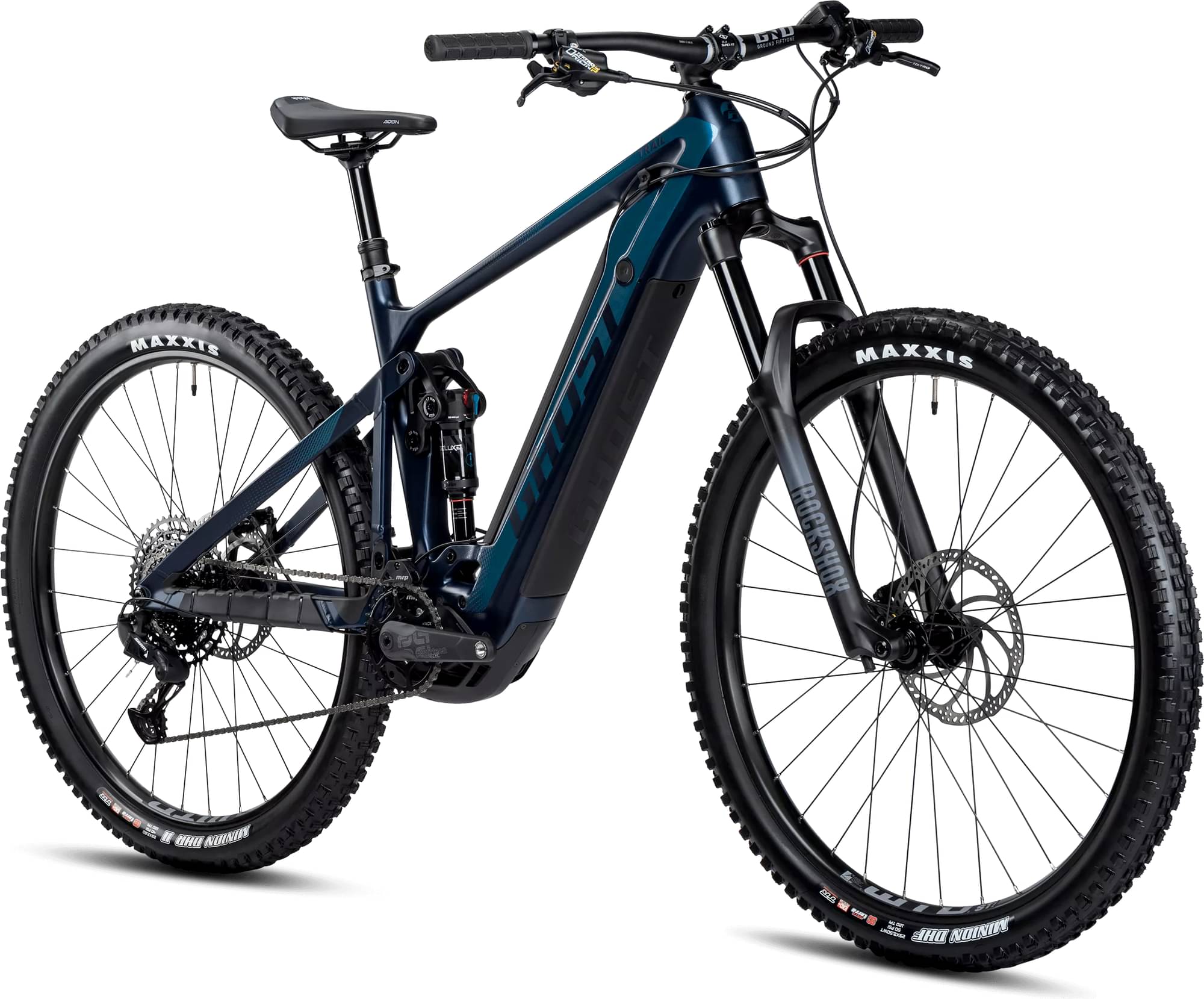

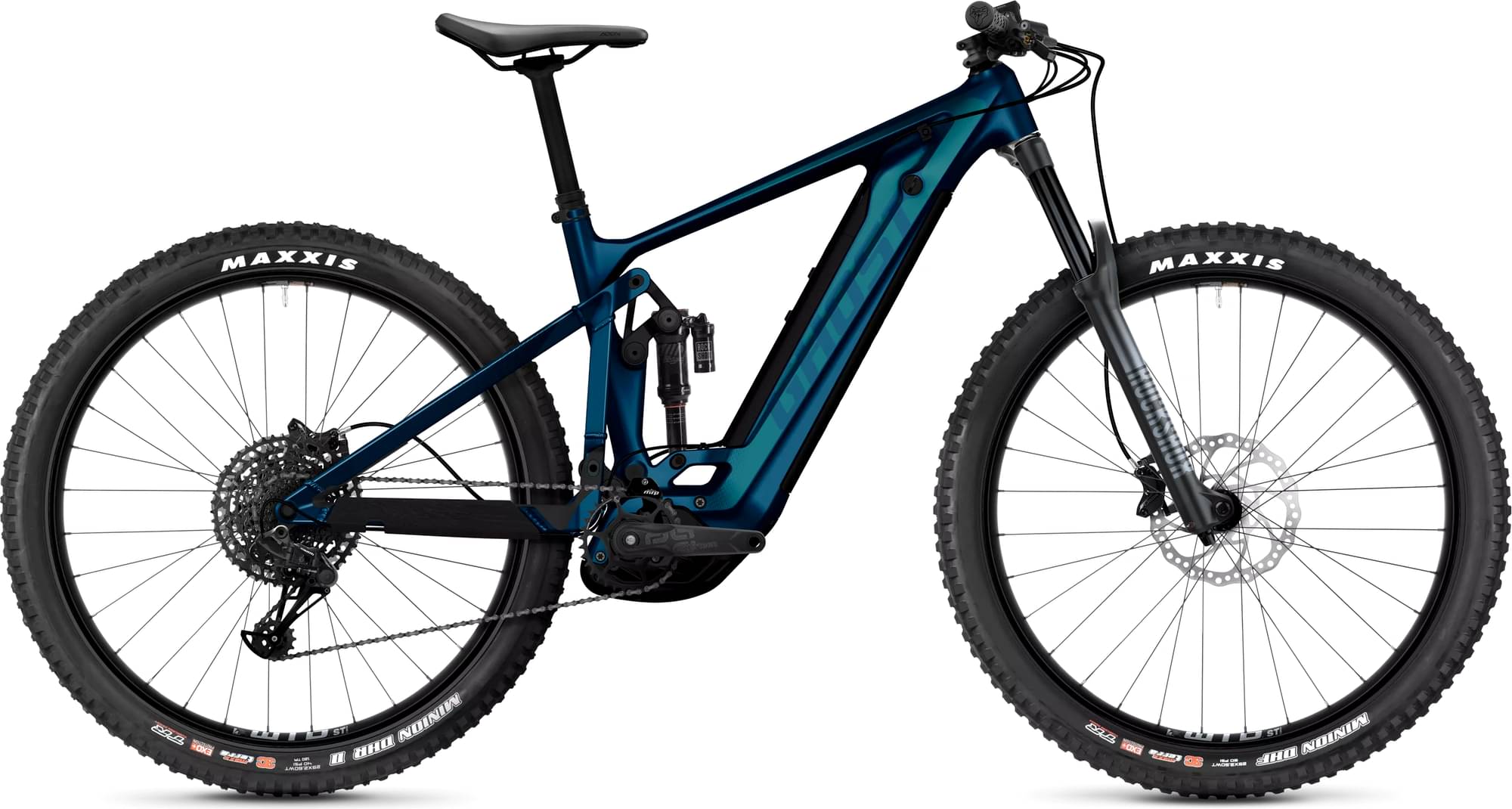

Ghost E-Riot Trail CF Advanced 2024
2024 E-bike
Estimate price |
6,630$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

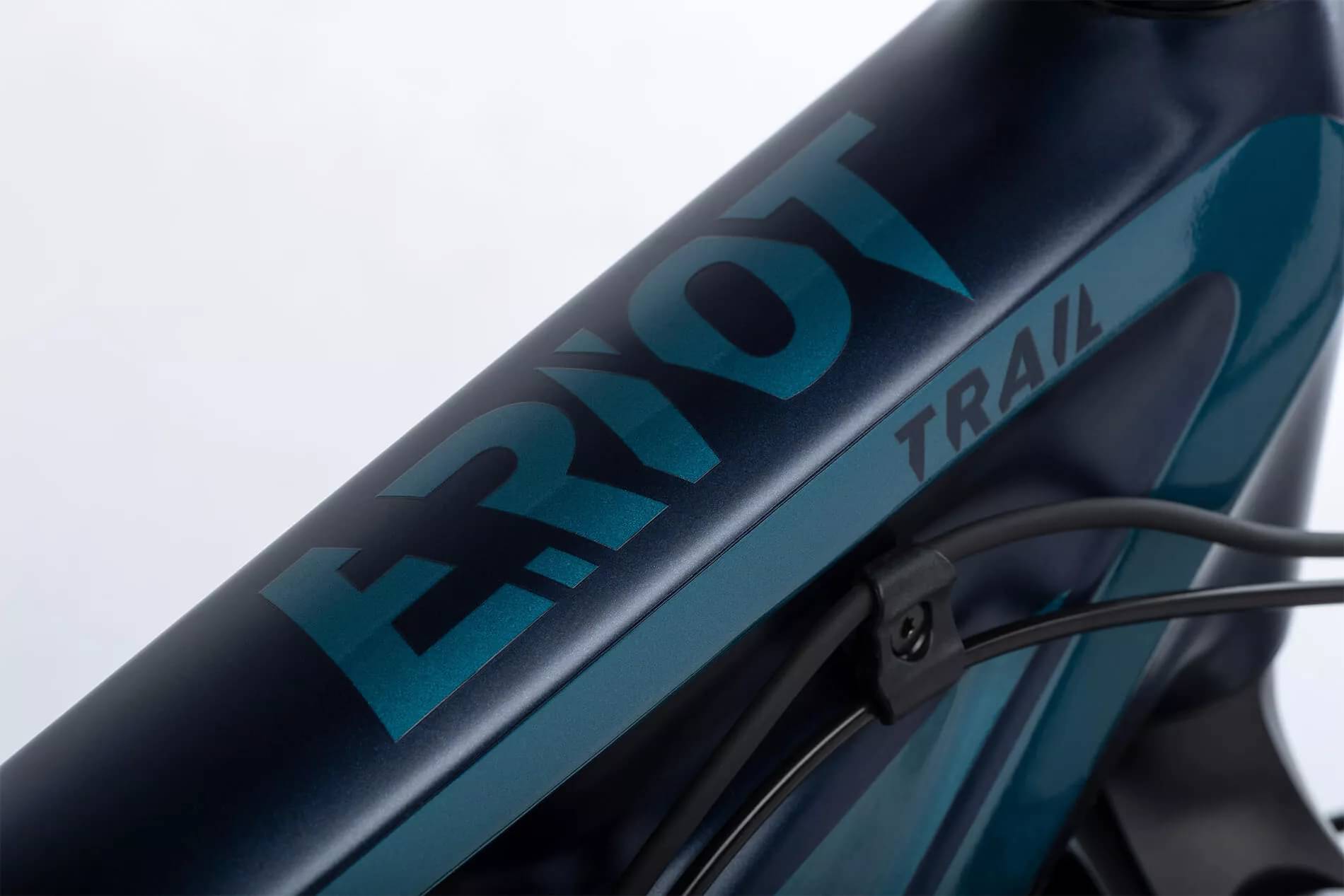

Frame
E-RIOT CF (S:27.5 M-XL:29)

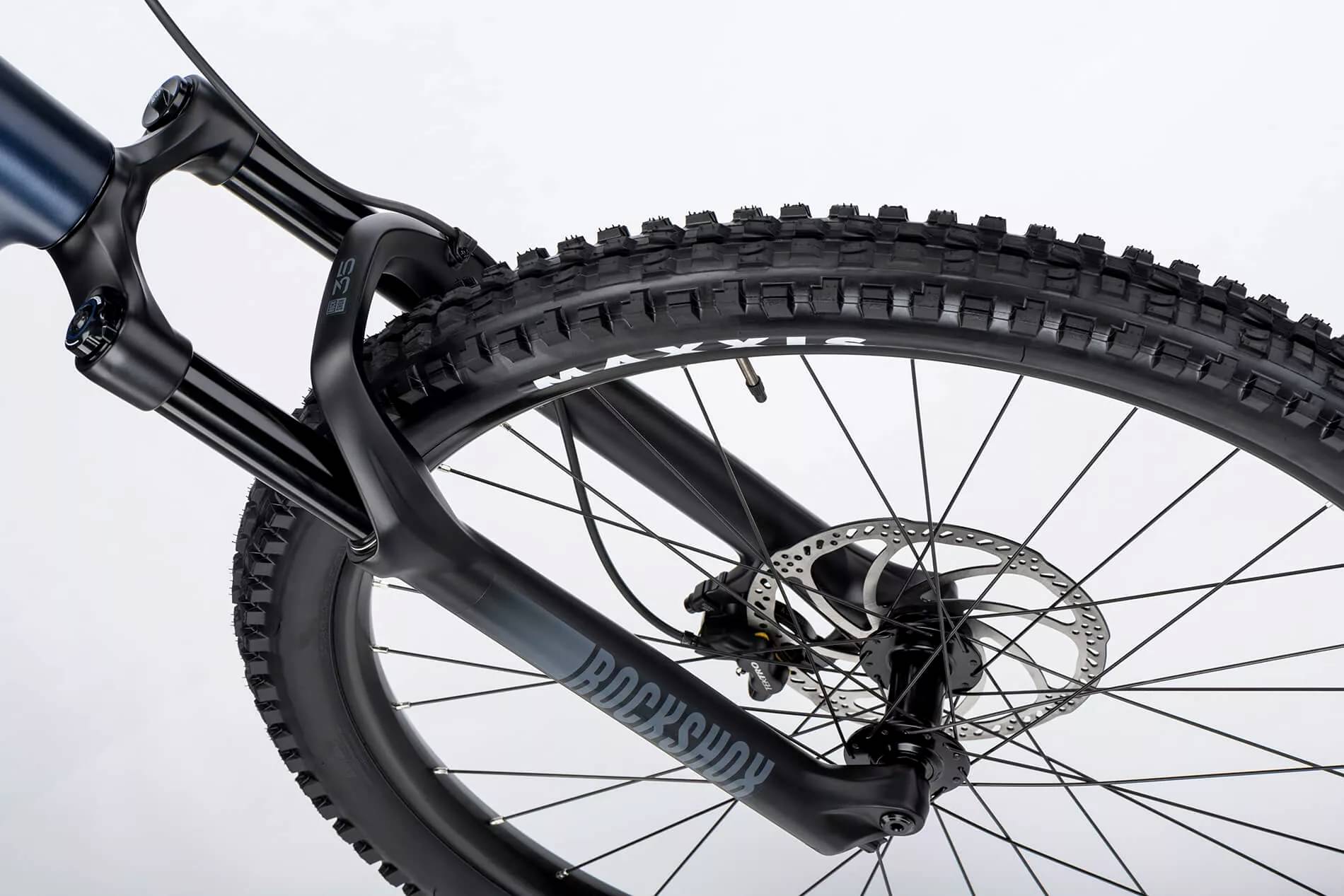

Suspension Fork
Rock Shox 35 Gold RL 150 mm

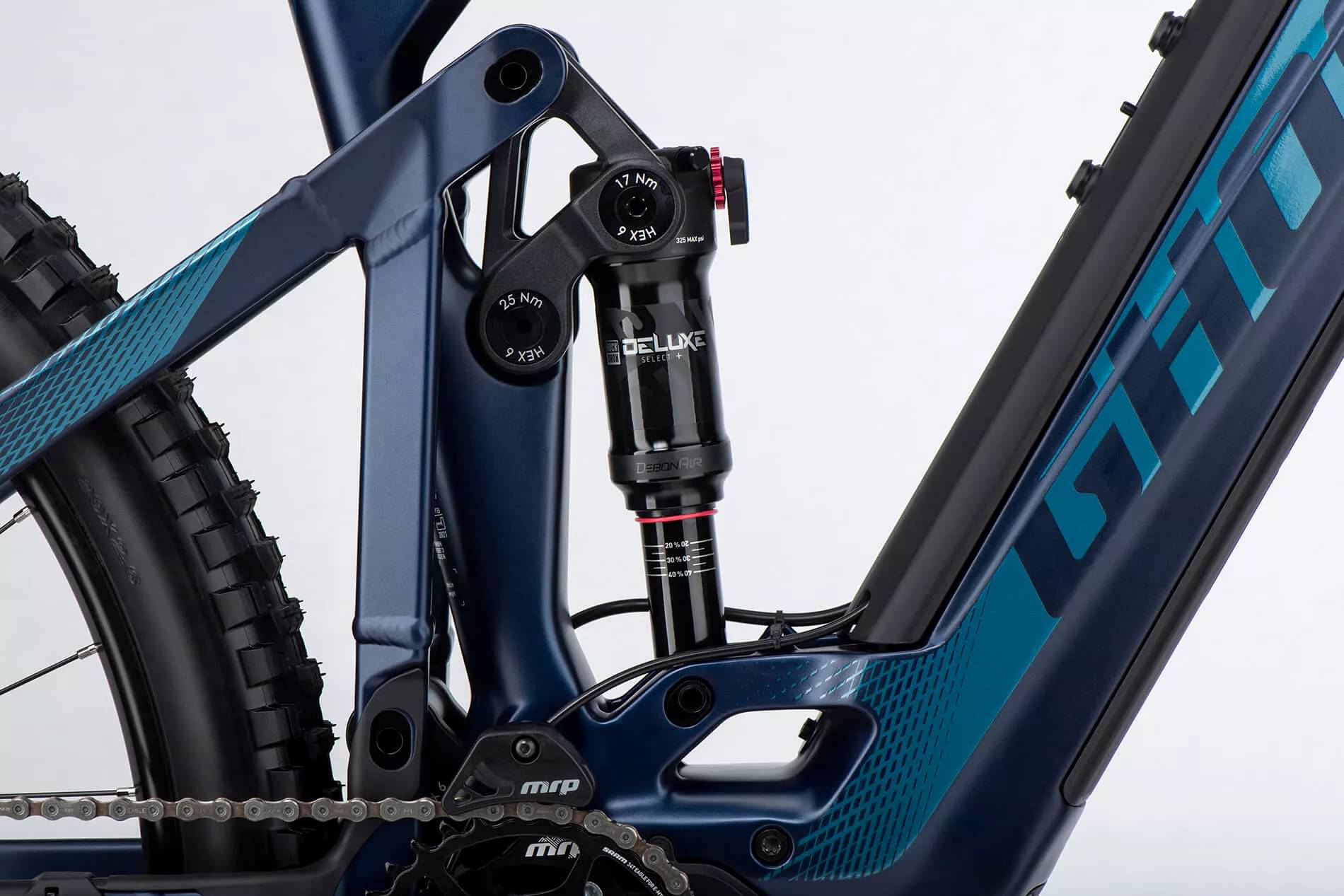

Rear Shock
Rock Shox Super Deluxe Select R 140 mm

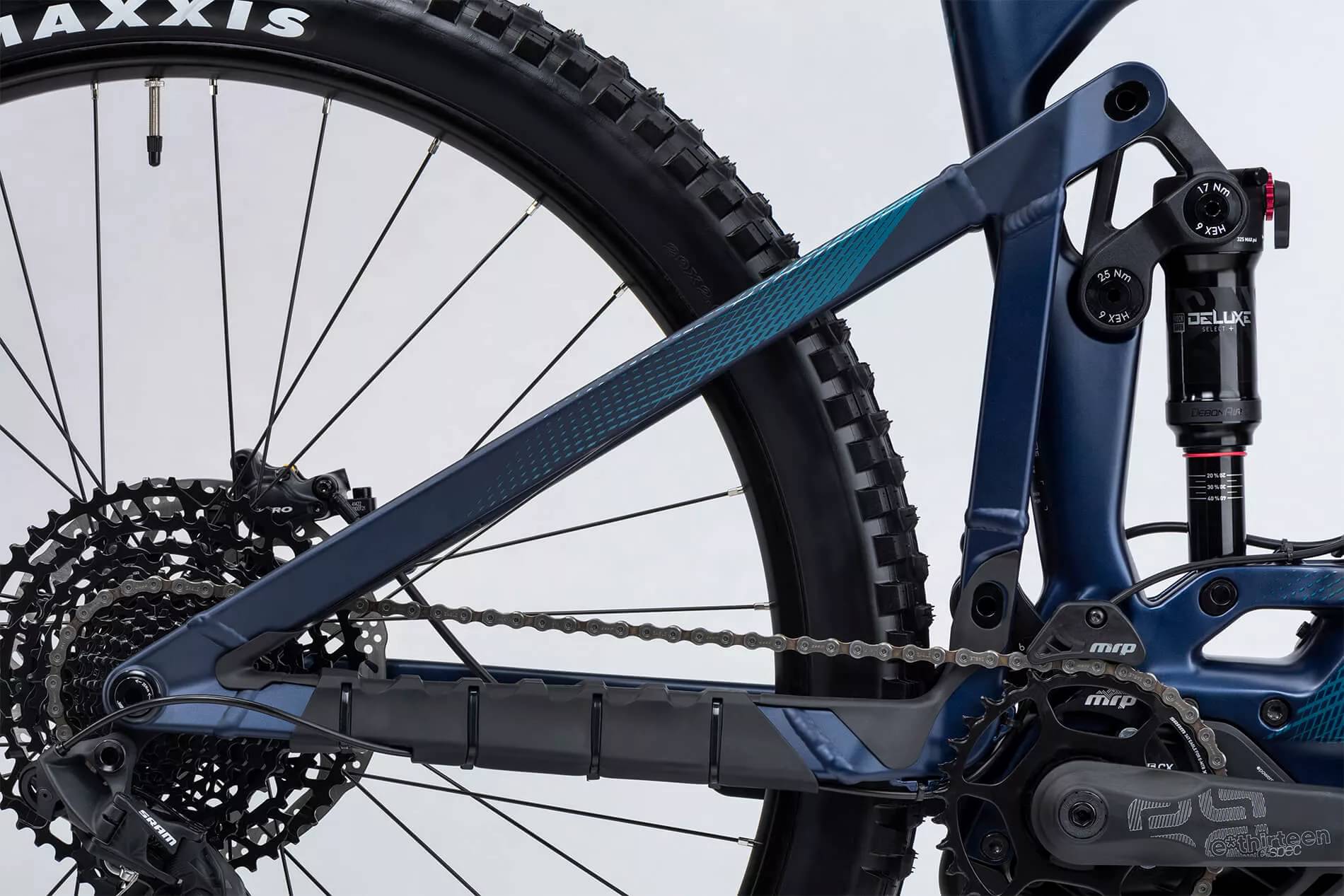

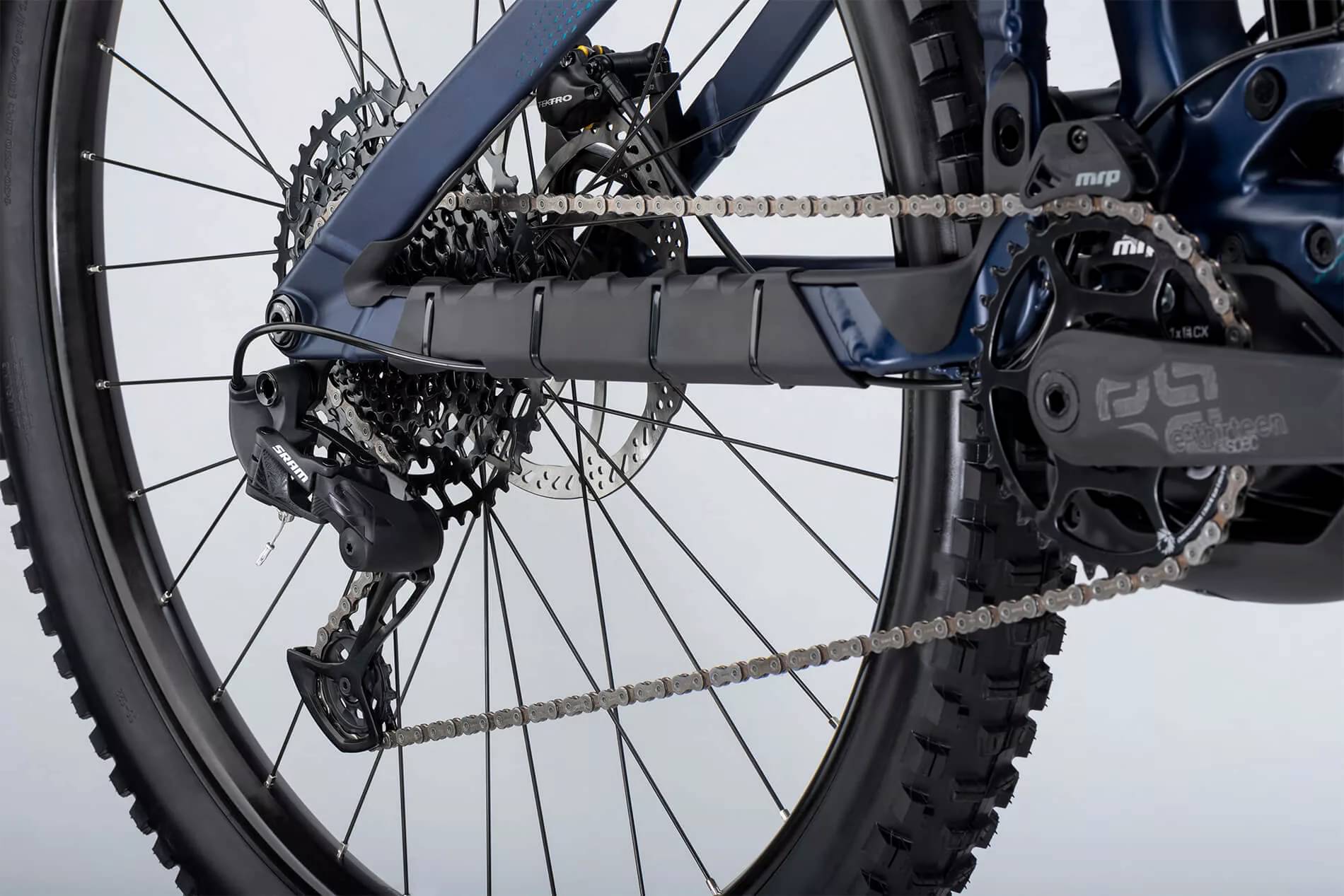

Drivetrain
Rear Derailleur
SRAM SX Eagle 12-S
Cassette
SRAM PG-1210 11-50
Crank
e*thirteen e*spec Plus 34T
Chain
SRAM SX Eagle
Chain Guide
MRP 1x
Pedals
VPE-527
Wheels
Rims
Front: WTB ST i30, Rear: WTB ST i30
Tires
Front: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 (S 27,5"; M-XL 29"), Rear: Maxxis Minion DHR II 3C MaxxTerra Exo+ 2.6 (S 27,5"; M-XL 29")
Brakes

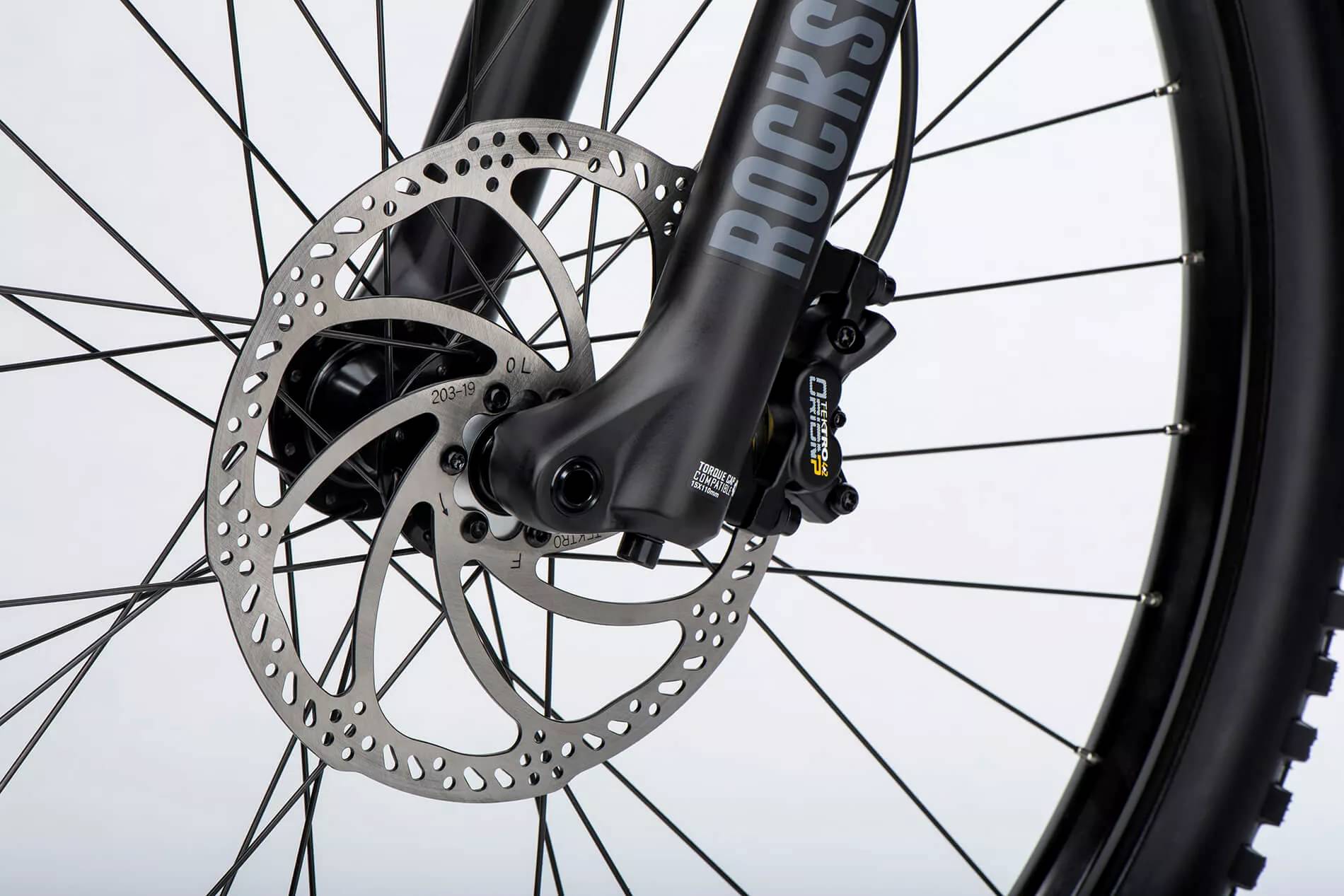

Brakes
Tektro HD-M750 203 mm Disc
Brake Levers
Tektro HD-M750
Cockpit

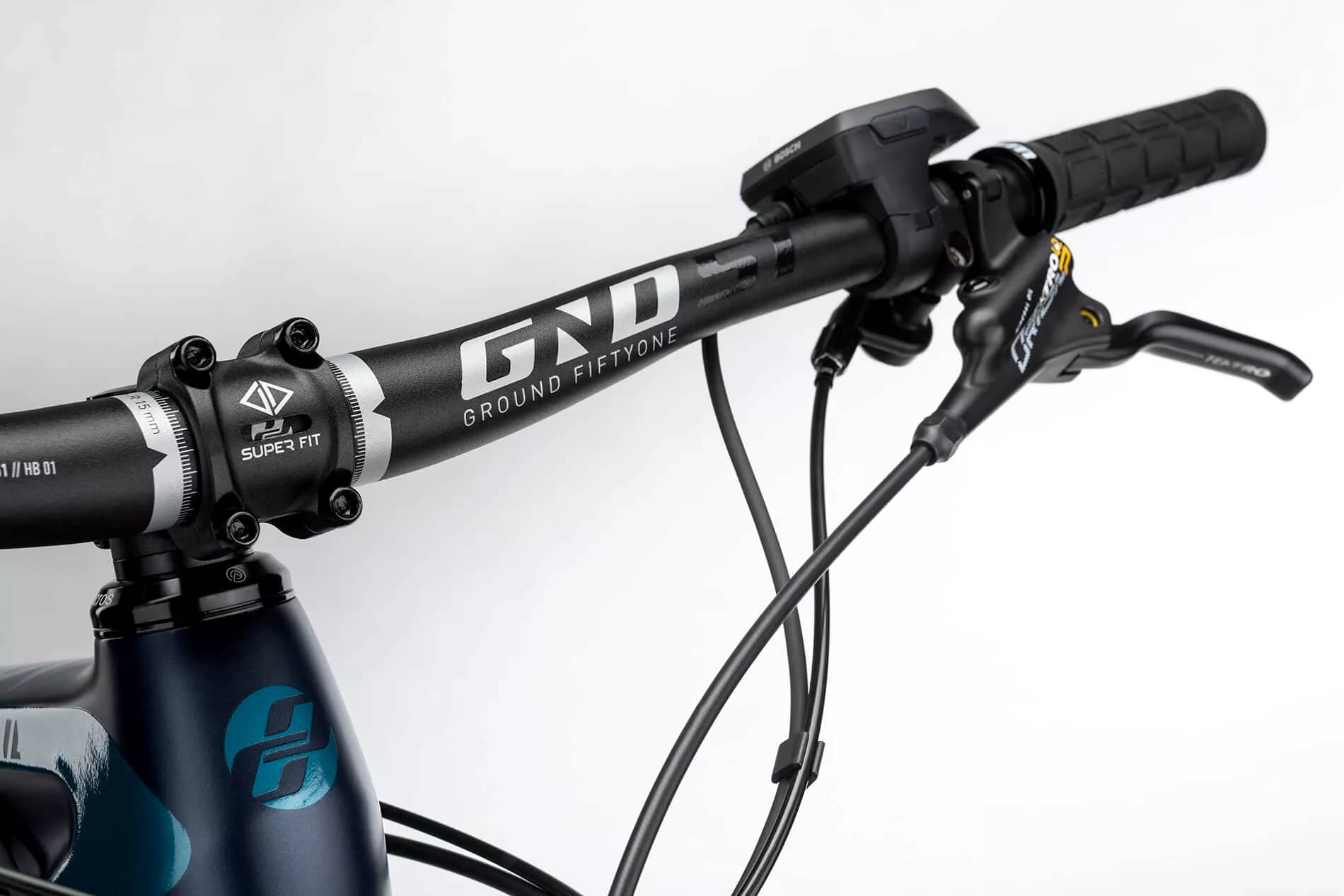

Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/15 (M-L) 780/40 (XL)
Grips
WTB Wafel
Seat

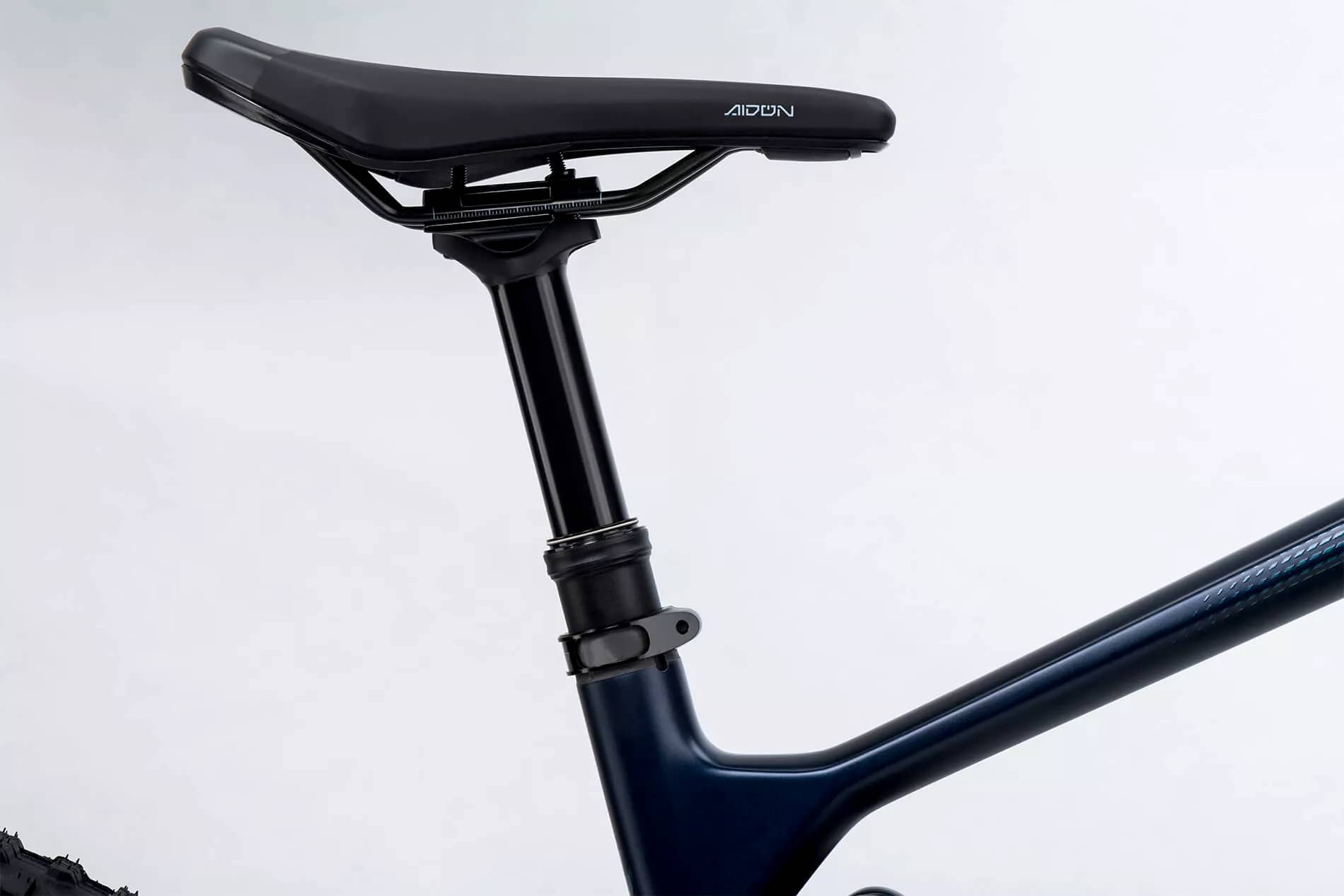

Saddle
Fizik Terra Aidon
Seatpost
Ghost Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)
Motor & Battery

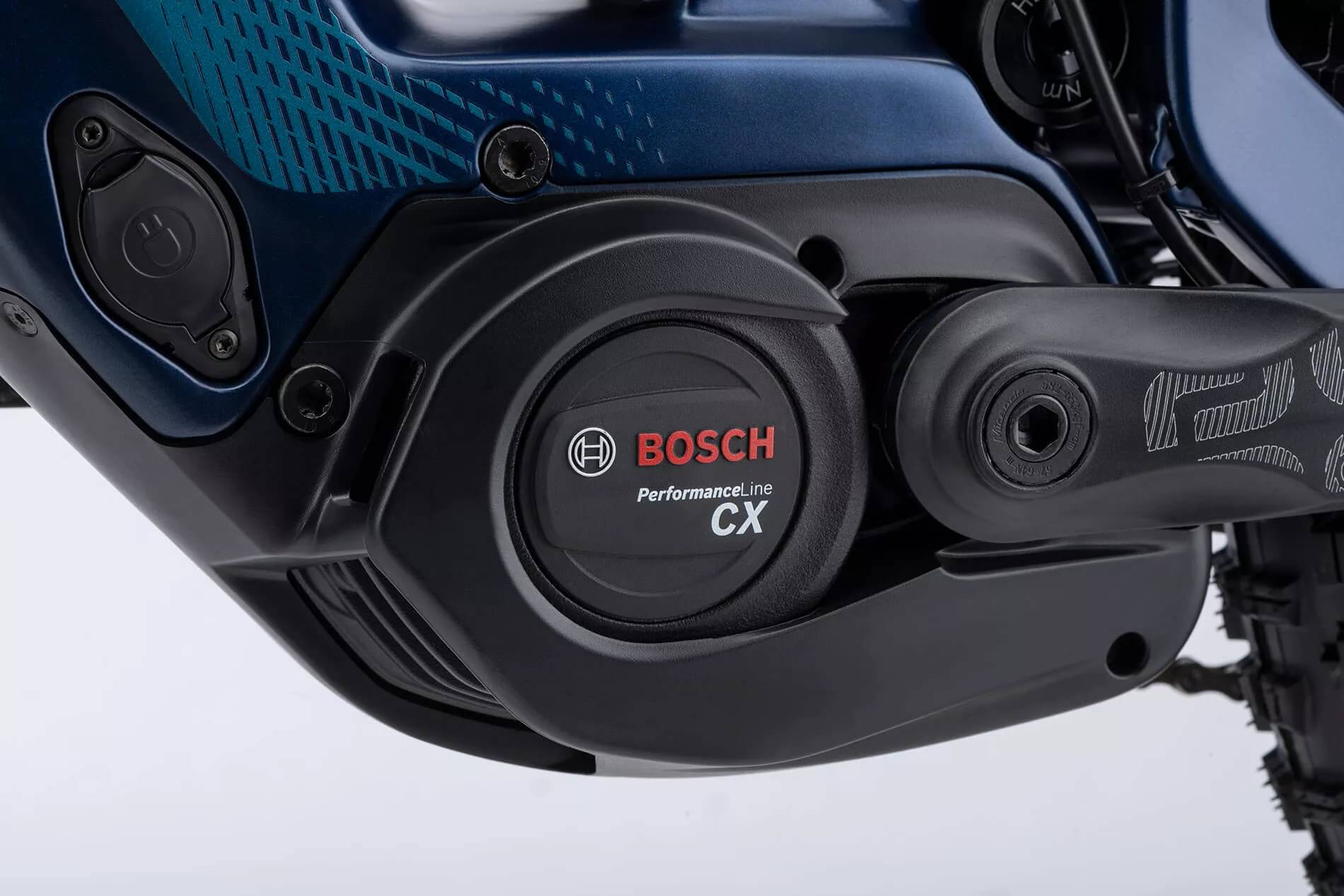

Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 625 Wh
Charger
Bosch Charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.339 mm | 1.35 mm | 1.369 mm | 1.331 mm |
| Bottom Bracket Height | 334 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 757 mm | 788 mm | 825 mm | 861 mm |
| Rake | 49 mm | 54 mm | 54 mm | 54 mm |
| Trail | 108 mm | 111 mm | 111 mm | 111 mm |
| Stack | 592 mm | 621 mm | 657 mm | 676 mm |
| Reach | 442 mm | 460 mm | 480 mm | 508 mm |
| Top Tube Length | 598 mm | 611 mm | 639 mm | 672 mm |
| Seat Tube Angle | 75.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 430 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1186 mm | 1236 mm | 1273 mm | 1309 mm |
| Bottom Bracket Drop | 21 mm | 33 mm | 33 mm | 33 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
