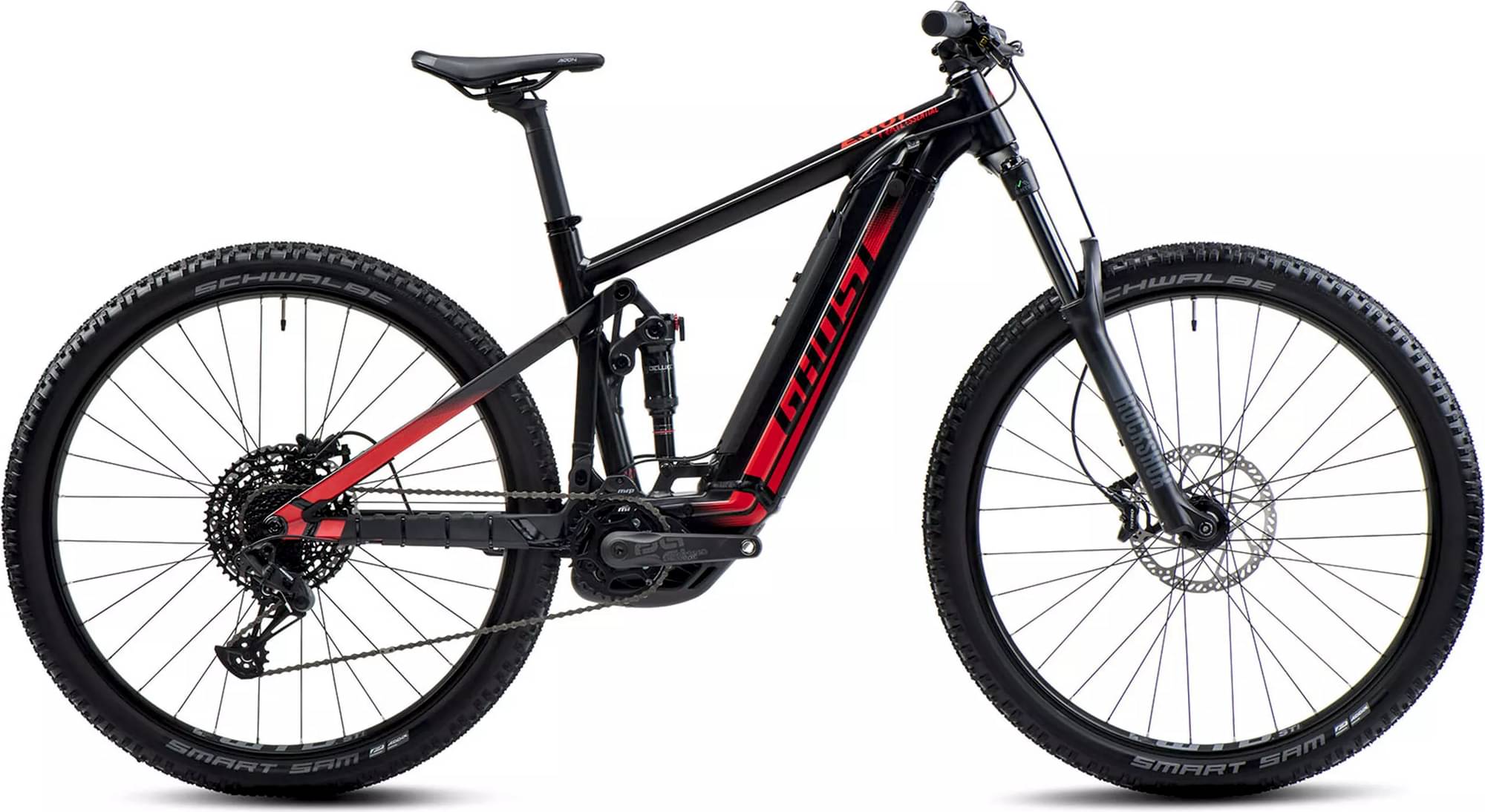

Ghost E-RIOT TRAIL ESSENTIAL 2025
2025 E-bike
Estimate price |
5,467$
Weight | 25.92 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 625 Wh, Capacity: 625 Wh, Location: Downtube -
Drivetrain 1 × 12 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

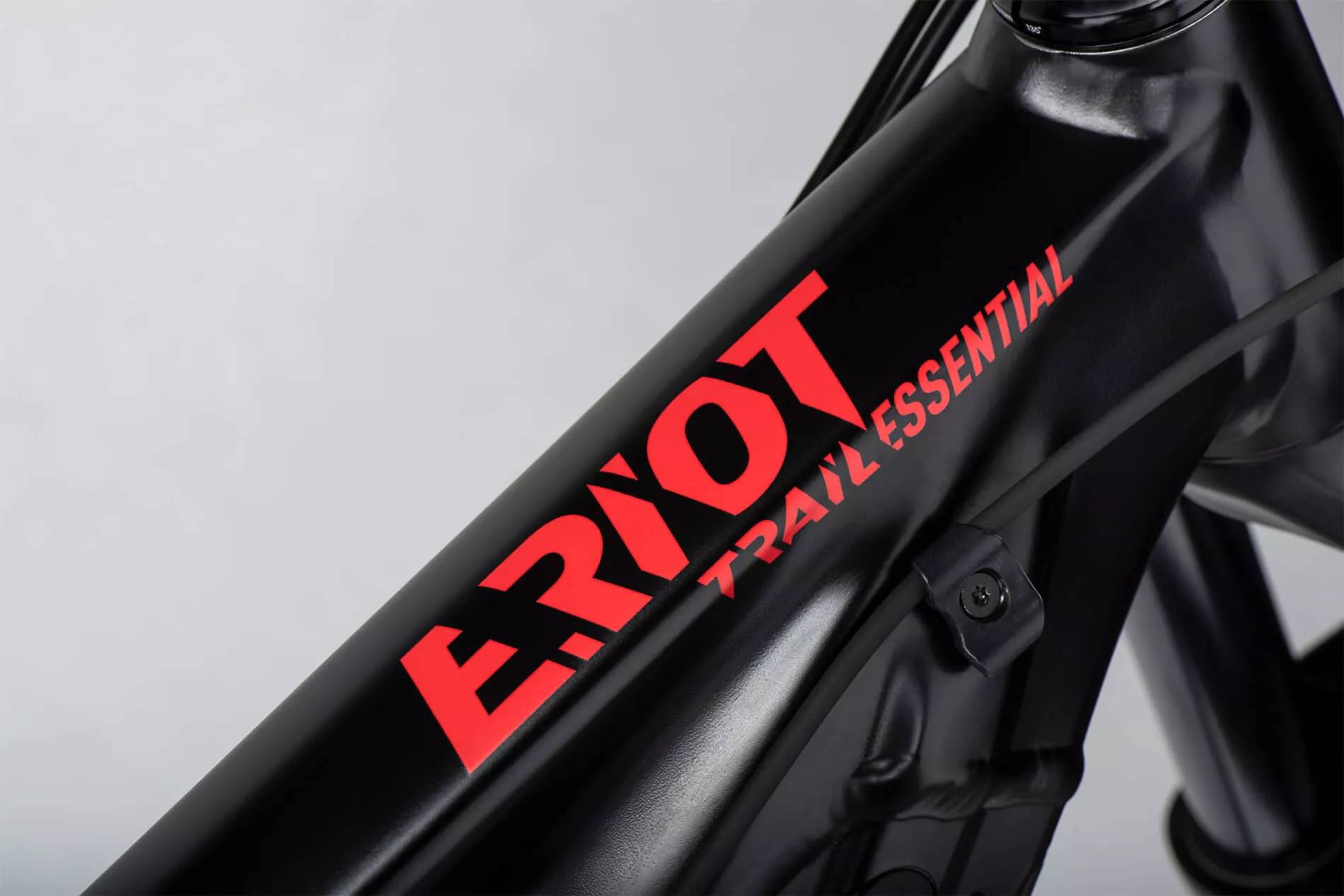

Frame
HIGH Aluminium Uni

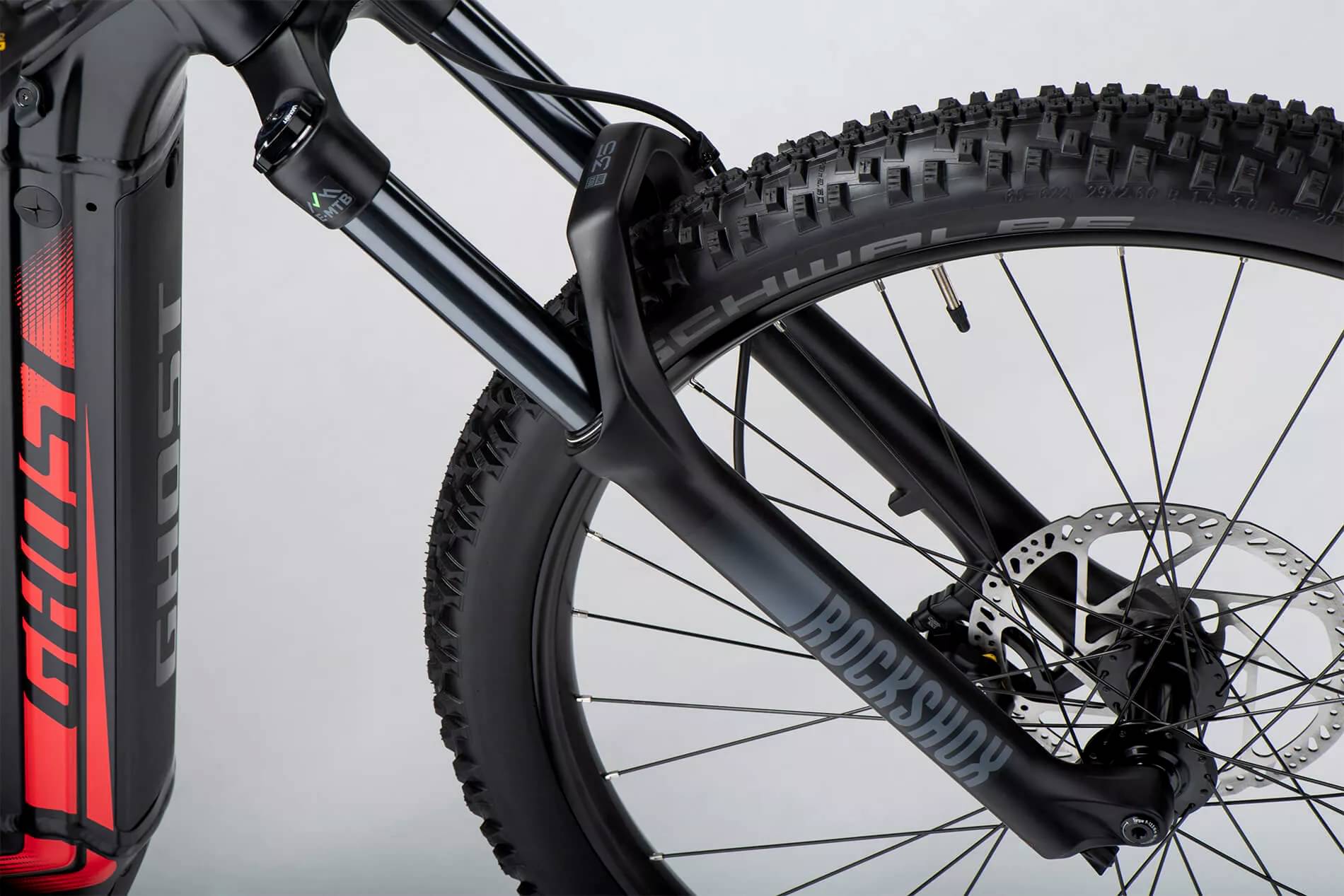

Suspension Fork
Rockshox 35 Silver TK Solo Air 150 mm

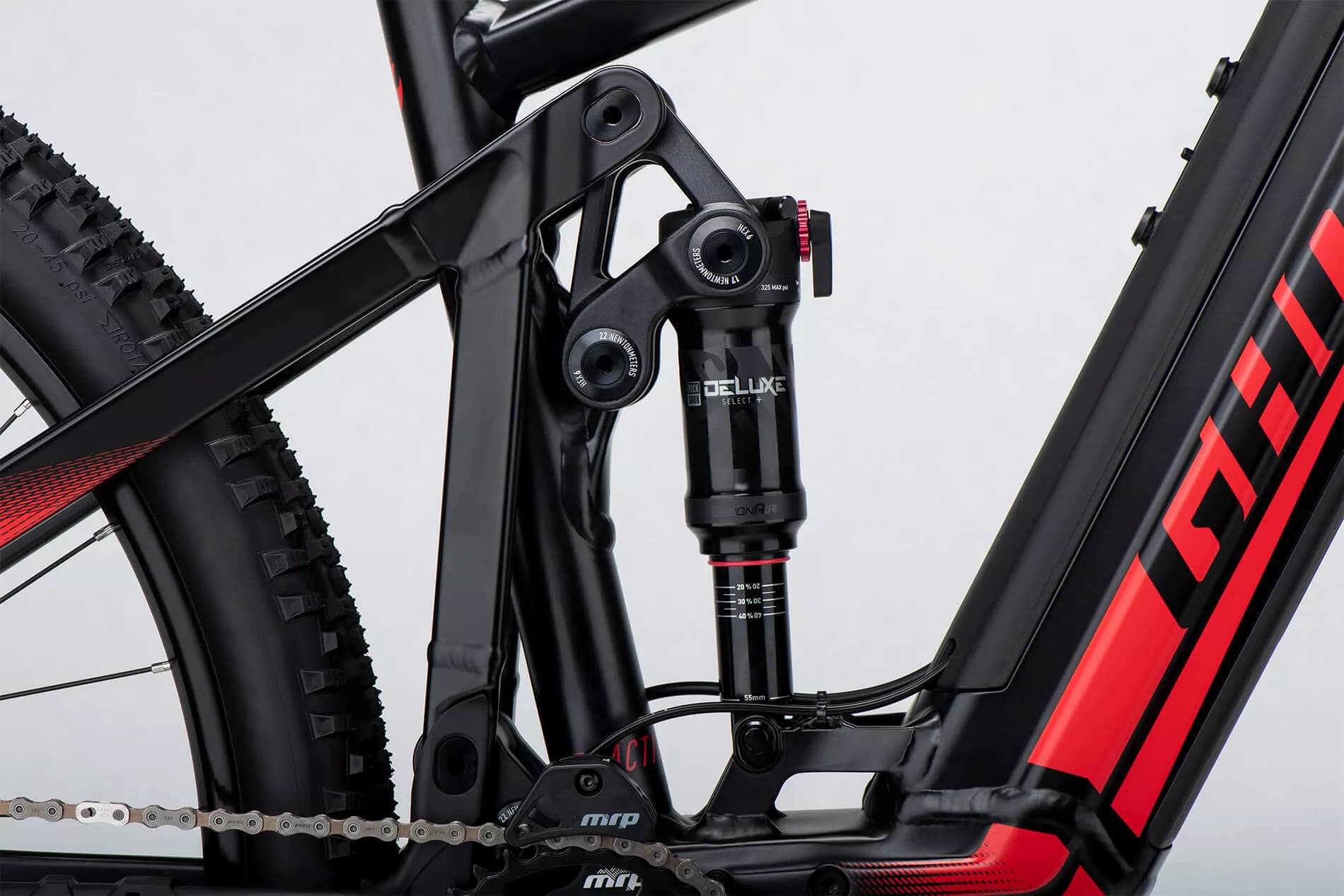

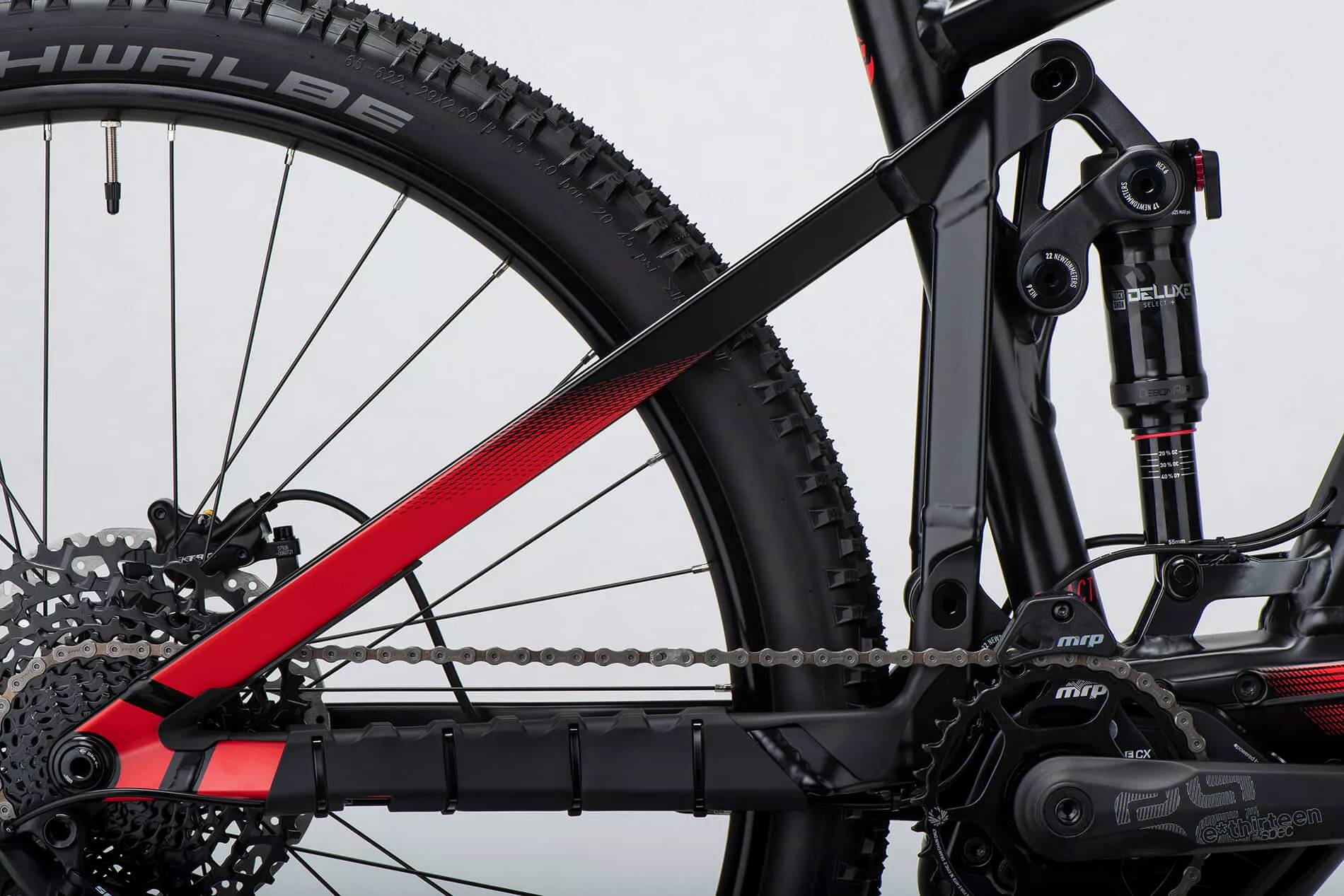

Rear Shock
Rockshox Super Deluxe Select R 140 mm

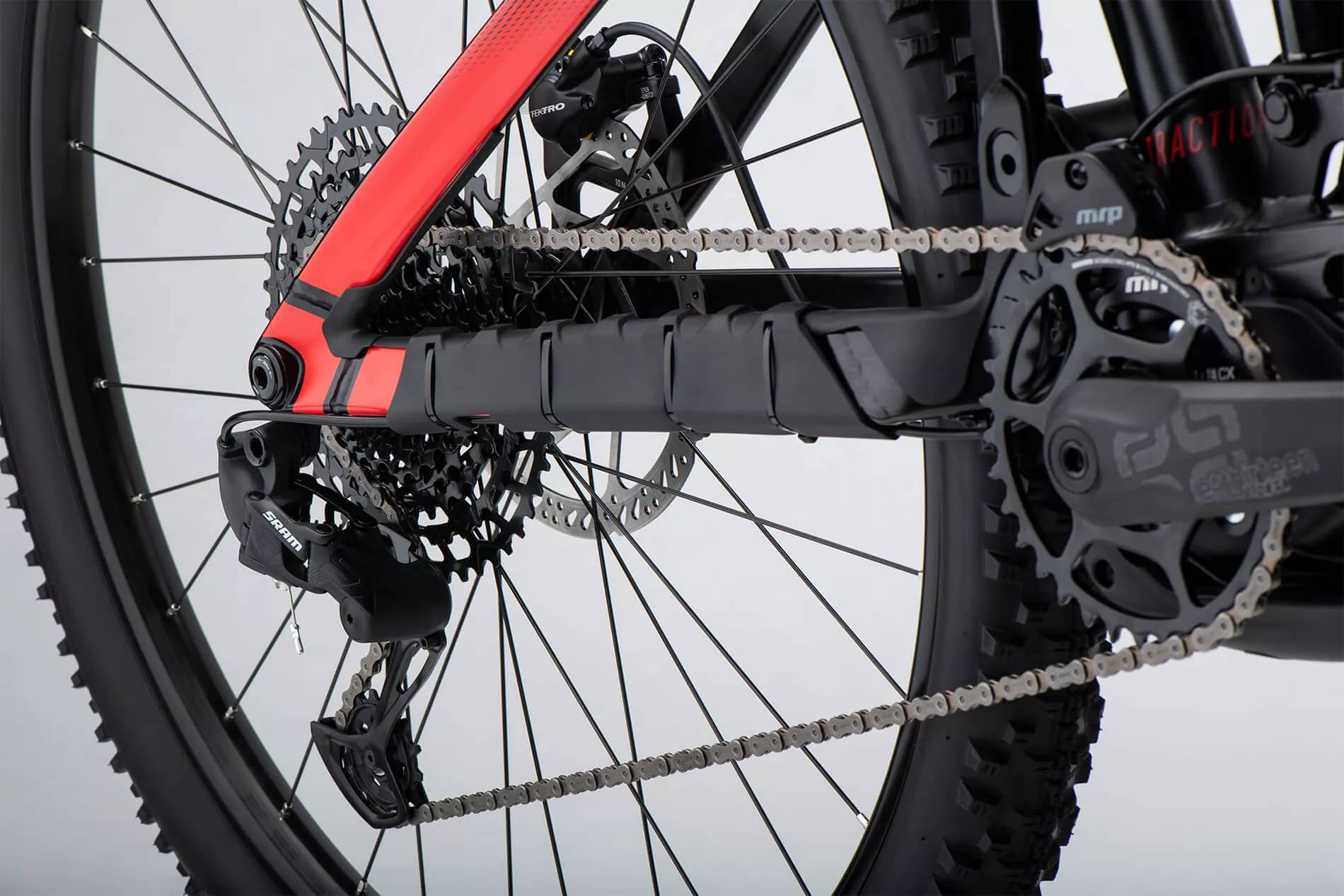

Drivetrain
Rear Derailleur
SRAM SX Eagle 12-S
Shift Levers
SRAM SX Eagle Single Click
Cassette
SRAM PG-1210
Crank
E Thirteen e*spec Plus 175
Chain
SRAM SX Eagle
Chain Guide
MRP 1x
Pedals
VP VPE-527
Wheels
Front Hub
DT Swiss 370 Classic 15x110 mm
Rear Hub
370 Classic 12x148 mm
Rims
WTB ST i30
Tires
Schwalbe Nobby Nic Performance 2.6 65-622

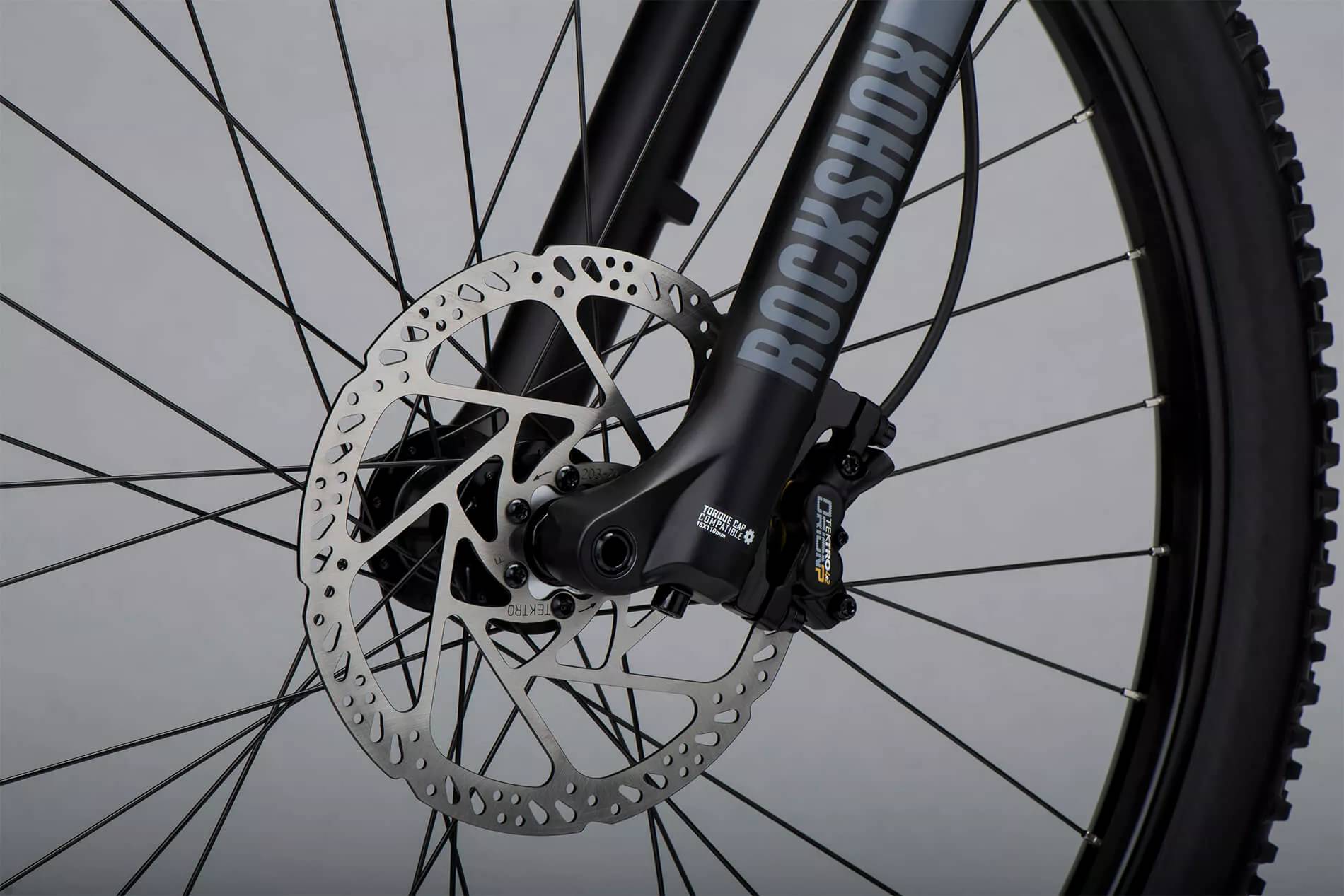

Brakes
Brakes
Tektro HD-M735 203 mm Disc
Brake Levers
Tektro HD-M735

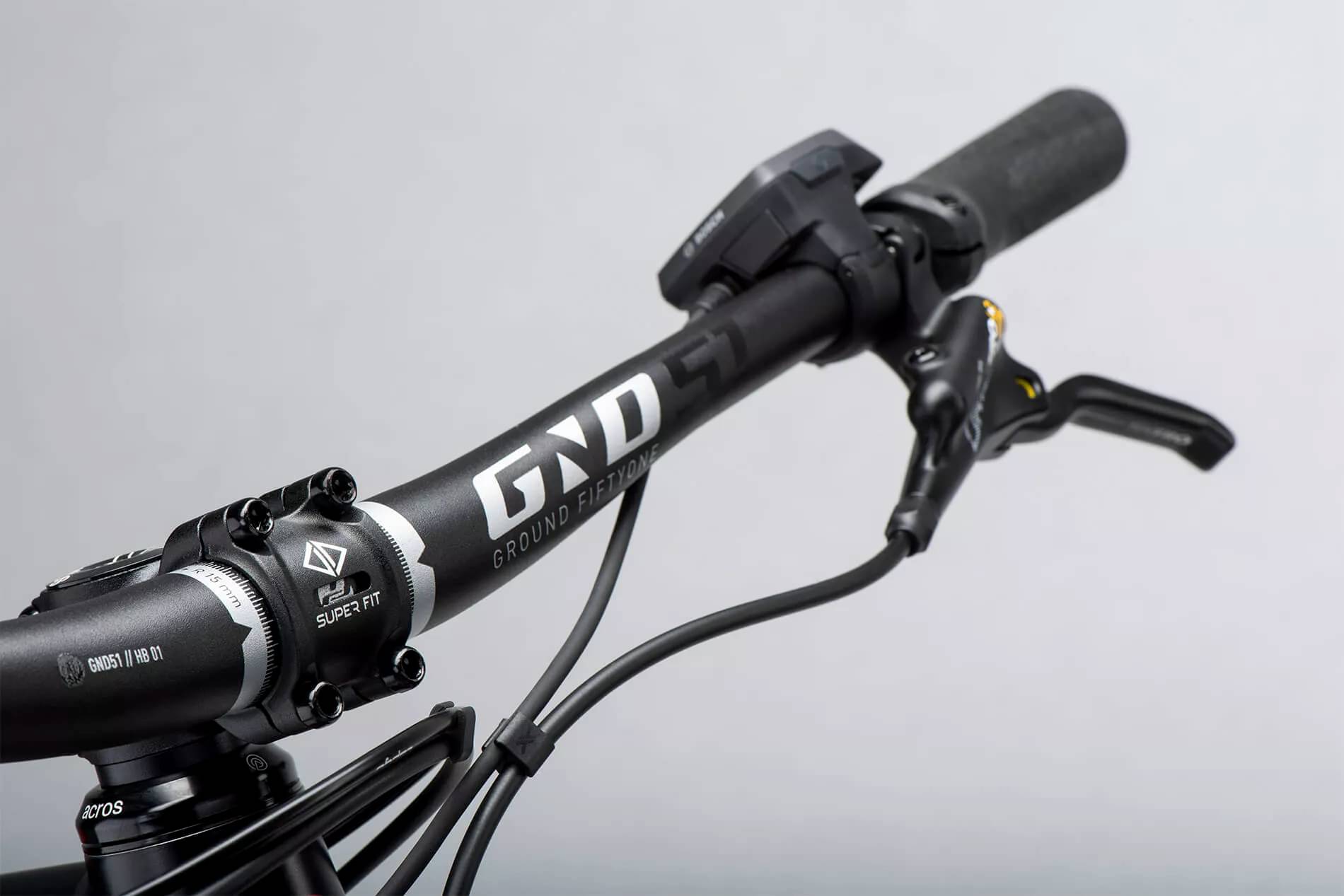

Cockpit
Stem
Ghost Ground Fiftyone Dia. 31.8 mm
Handlebar
Ghost Ground Fiftyone Dia. 31.8 mm
Headset
Acros Blocklock 135° AZX-582
Seat
Saddle
Fizik Terra Aidon
Seatpost
Ghost Non Suspension Ground Fiftyone SP-FG101 Length: 450 mm
Motor & Battery

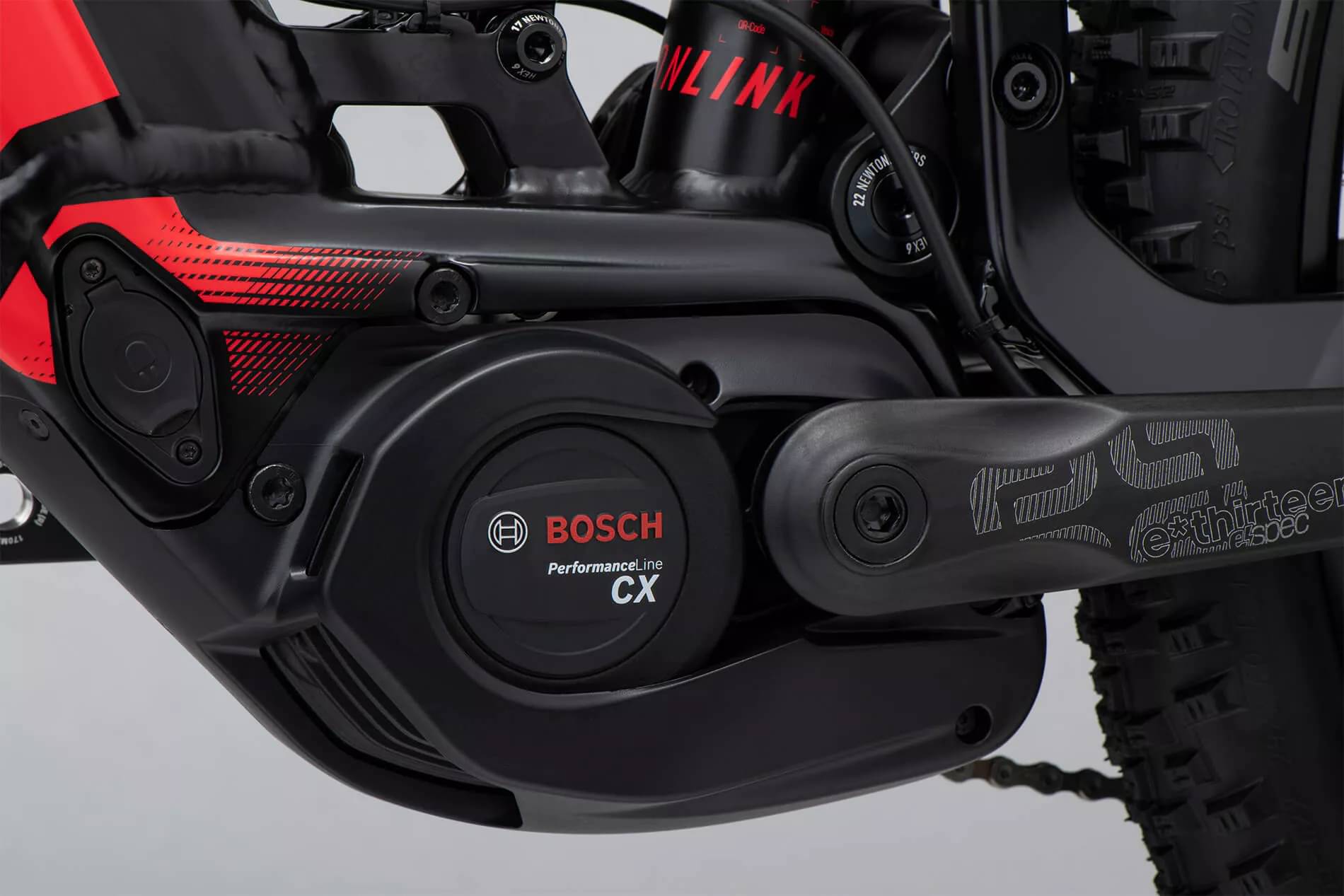

Motor
Bosch Performance Line CX Performance Line CX
Battery
Bosch Power Tube 625 Wh, Capacity: 625 Wh, Location: Downtube
Charger
Bosch Charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.339 mm | 1.35 mm | 1.369 mm | 1.331 mm |
| Bottom Bracket Height | 334 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 757 mm | 788 mm | 825 mm | 861 mm |
| Rake | 49 mm | 54 mm | 54 mm | 54 mm |
| Trail | 108 mm | 111 mm | 111 mm | 111 mm |
| Stack | 592 mm | 621 mm | 657 mm | 676 mm |
| Reach | 442 mm | 460 mm | 480 mm | 508 mm |
| Top Tube Length | 598 mm | 611 mm | 639 mm | 672 mm |
| Seat Tube Angle | 75.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 430 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1186 mm | 1236 mm | 1273 mm | 1309 mm |
| Bottom Bracket Drop | 21 mm | 33 mm | 33 mm | 33 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
