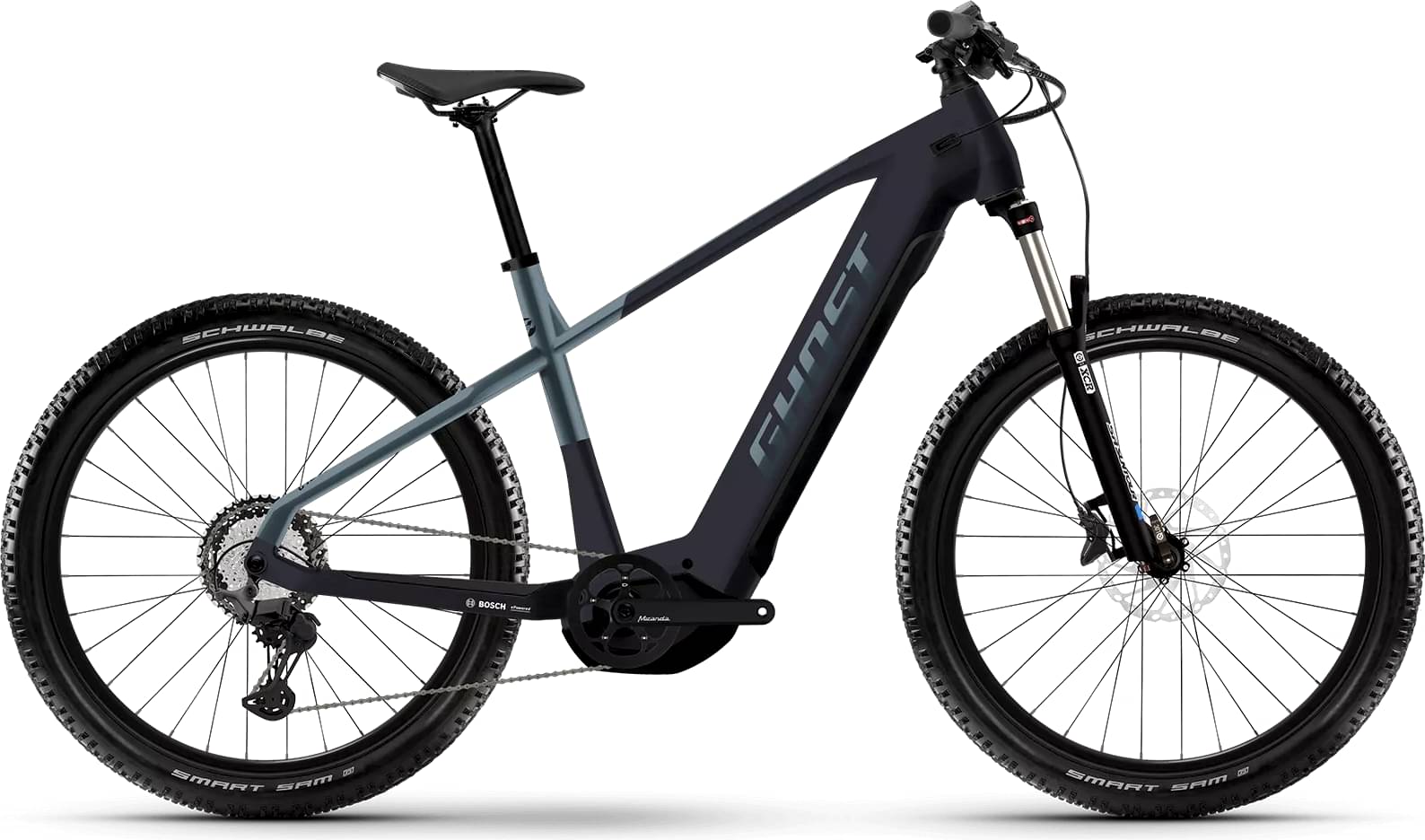

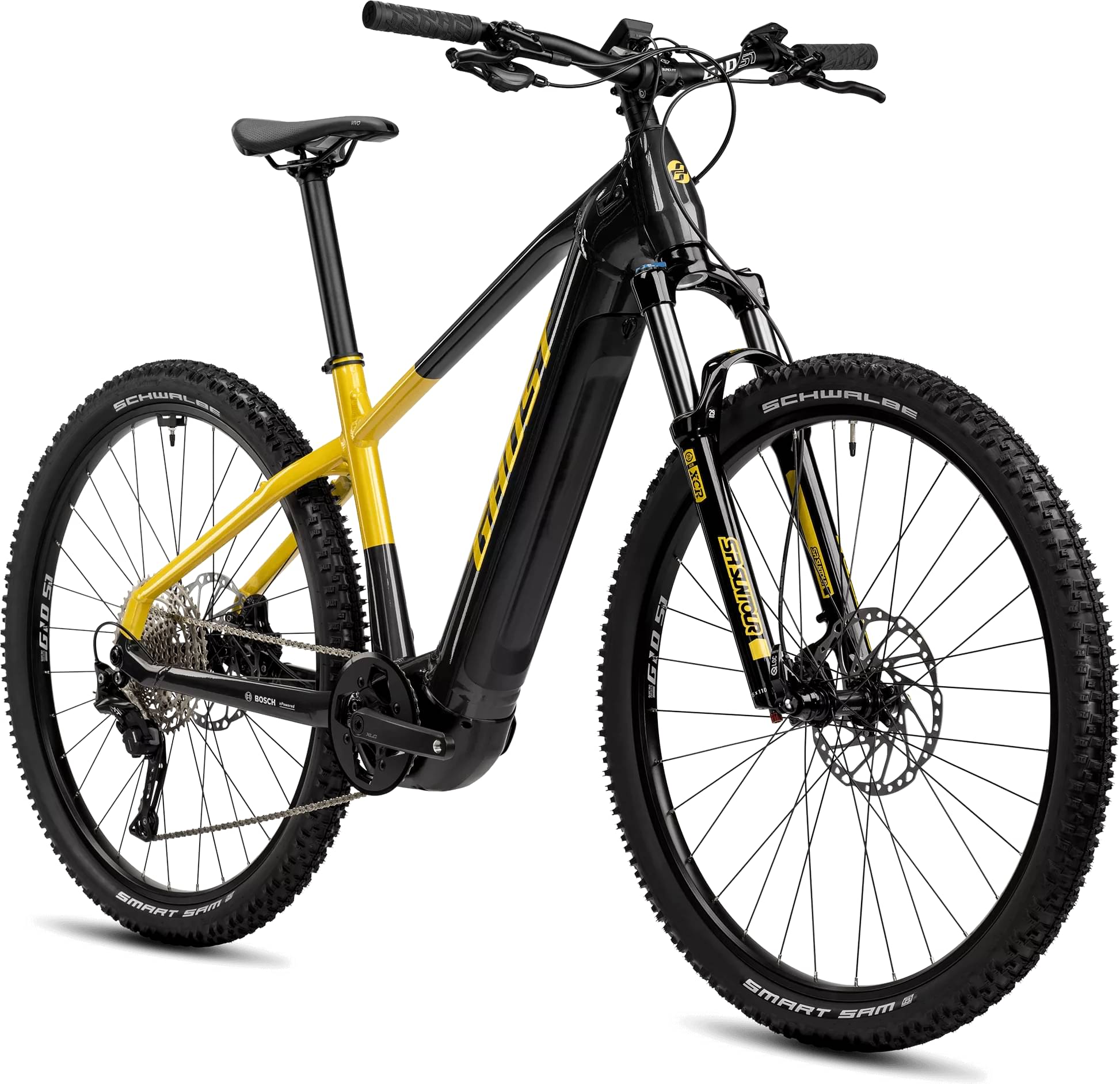

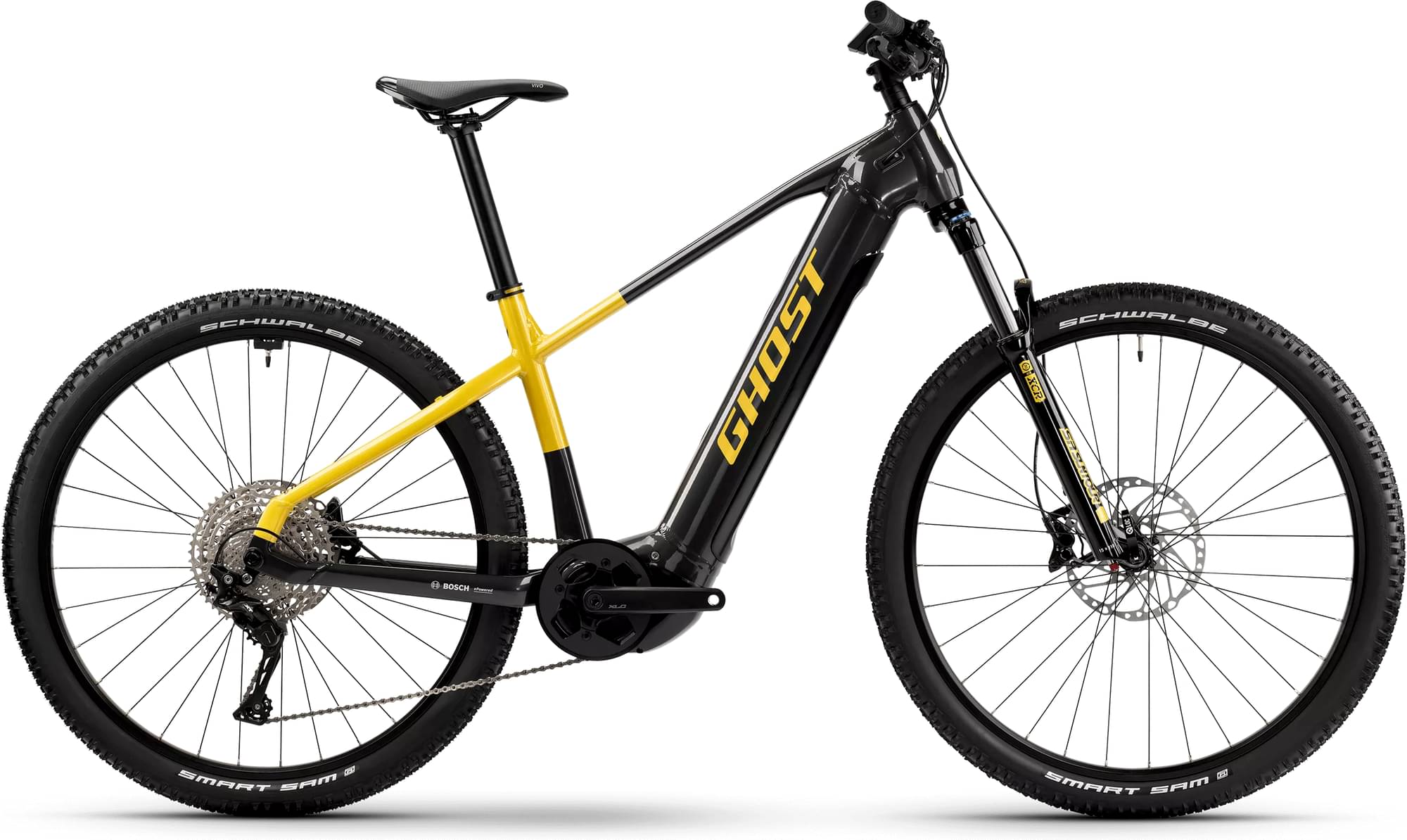

Ghost E-Teru Advanced 2024
2024 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-TERU AL
Suspension Fork
SR Suntour XCR34 Air Boost LOR DS 120 mm

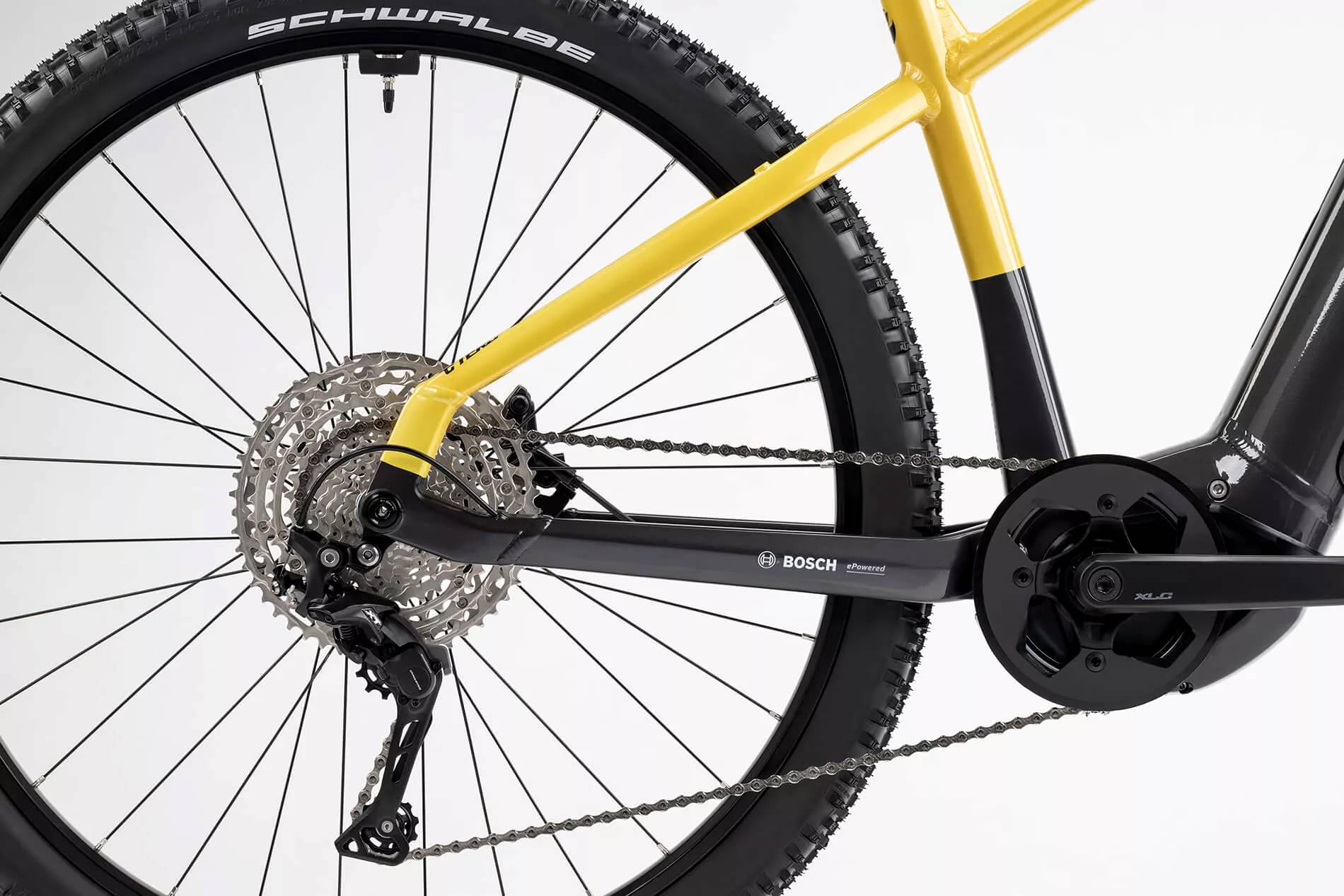

Drivetrain
Rear Derailleur
Shimano XT Linkglide RD-M8130 11-S
Cassette
Shimano XT Linkglide CS-LG600-11 11-50
Crank
Miranda Virage 38T
Chain
Shimano CN-LG500
Pedals
VPE-527
Wheels
Rims
Front: Schürmann Yak Disc 25, Rear: Schürmann Yak Disc 25
Tires
Front: Schwalbe Smart Sam 2.35 (S 27,5"; M-XL 29"), Rear: Schwalbe Smart Sam 2.35 (S 27,5"; M-XL 29")
Brakes
Brakes
Shimano BR-MT420 203 mm Disc
Brake Levers
Shimano BL-M4100
Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 720/20 (S) 740/27 (M-XL)
Grips
MTB Grip
Seat
Saddle
Selle Royal Vivo
Seatpost
Ghost 34.9 mm
Motor & Battery

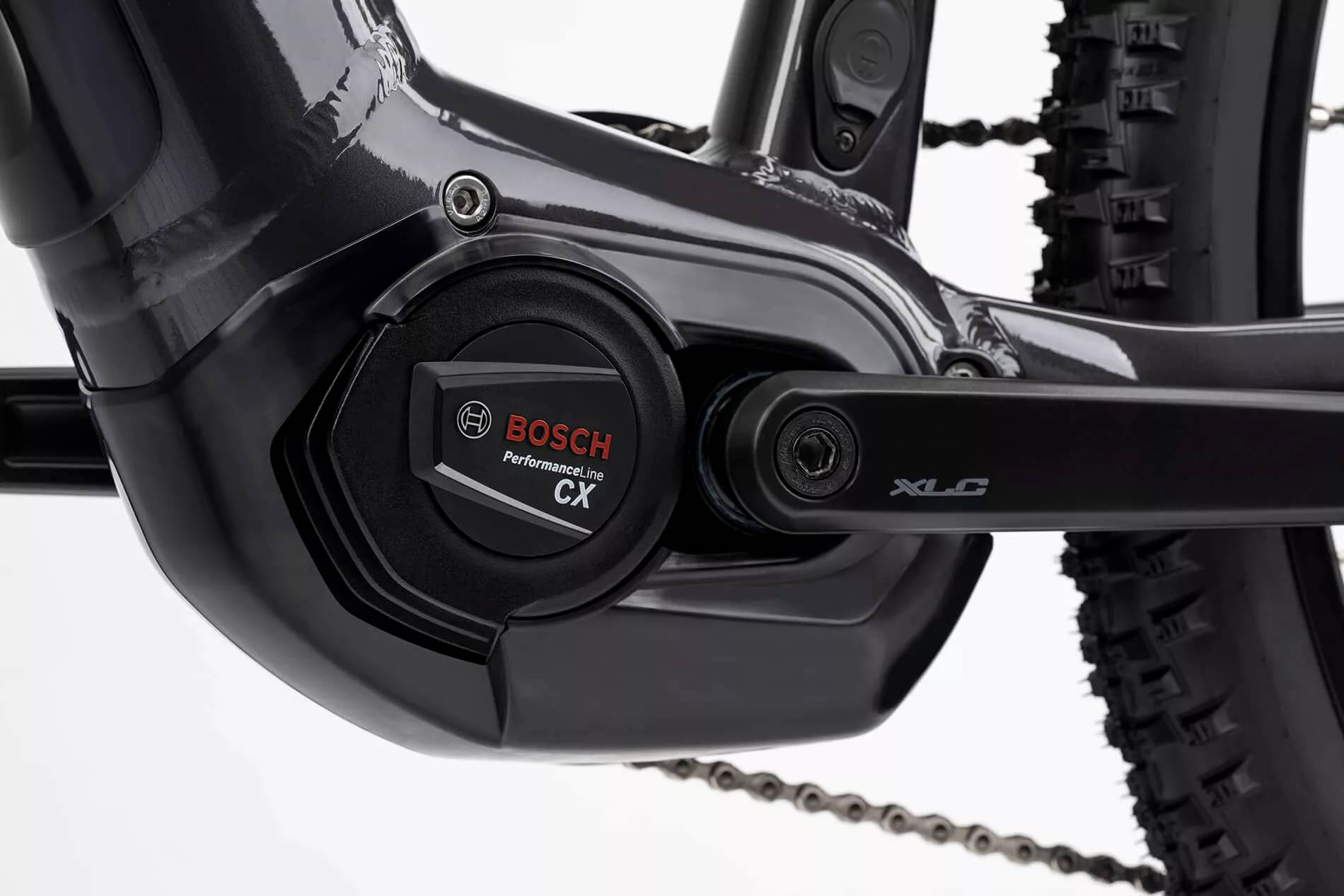

Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 750 Wh
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.555 mm | 1.56 mm | 1.525 mm | 1.495 mm |
| Front Center | 712 mm | 748 mm | 773 mm | 797 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 94 mm | 93 mm | 93 mm | 93 mm |
| Stack | 656 mm | 674 mm | 688 mm | 701 mm |
| Reach | 422 mm | 432 mm | 451 mm | 469 mm |
| Top Tube Length | 610 mm | 625 mm | 648 mm | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 465 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1171 mm | 1216 mm | 1241 mm | 1265 mm |
| Bottom Bracket Drop | 60 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 199 cm |
