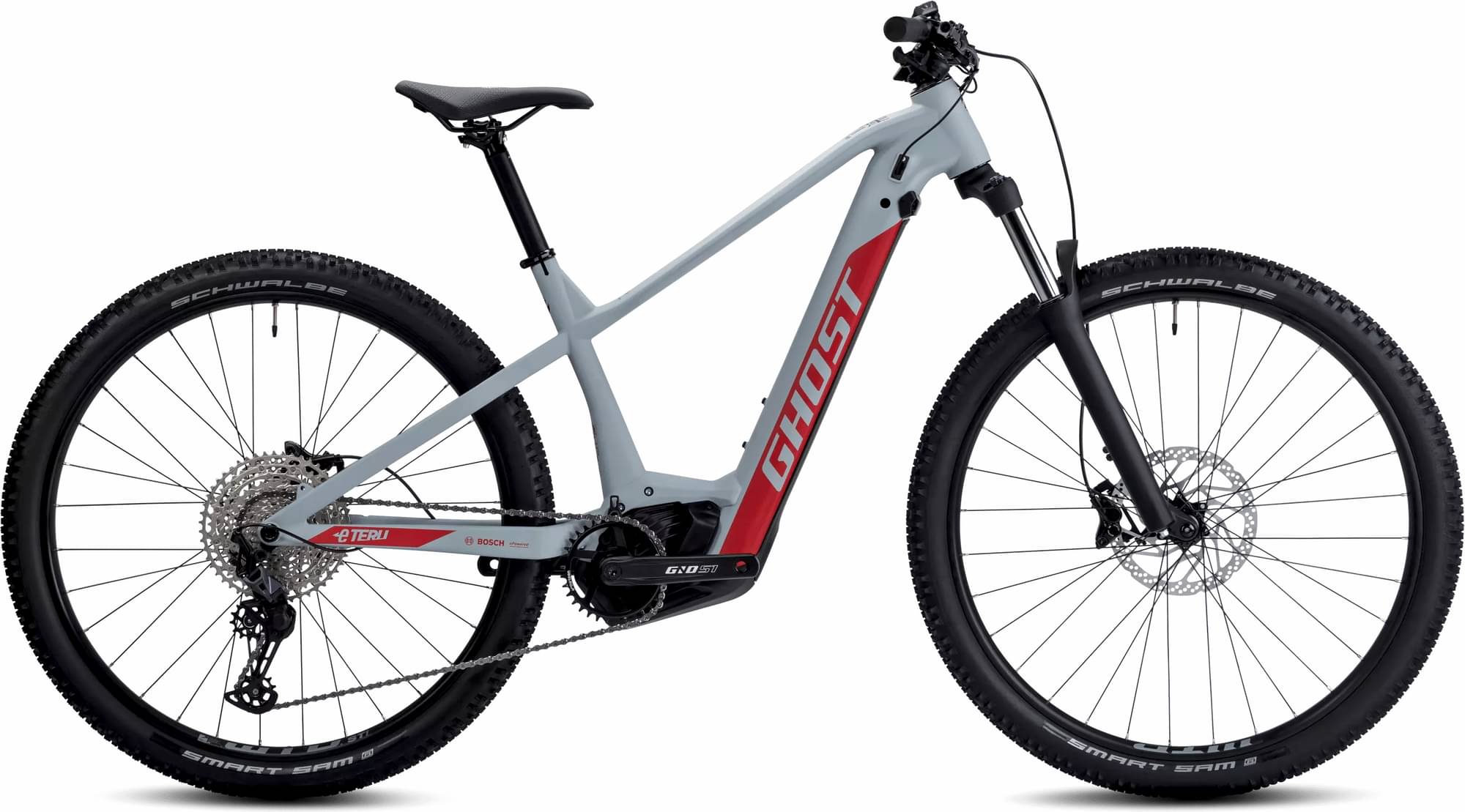

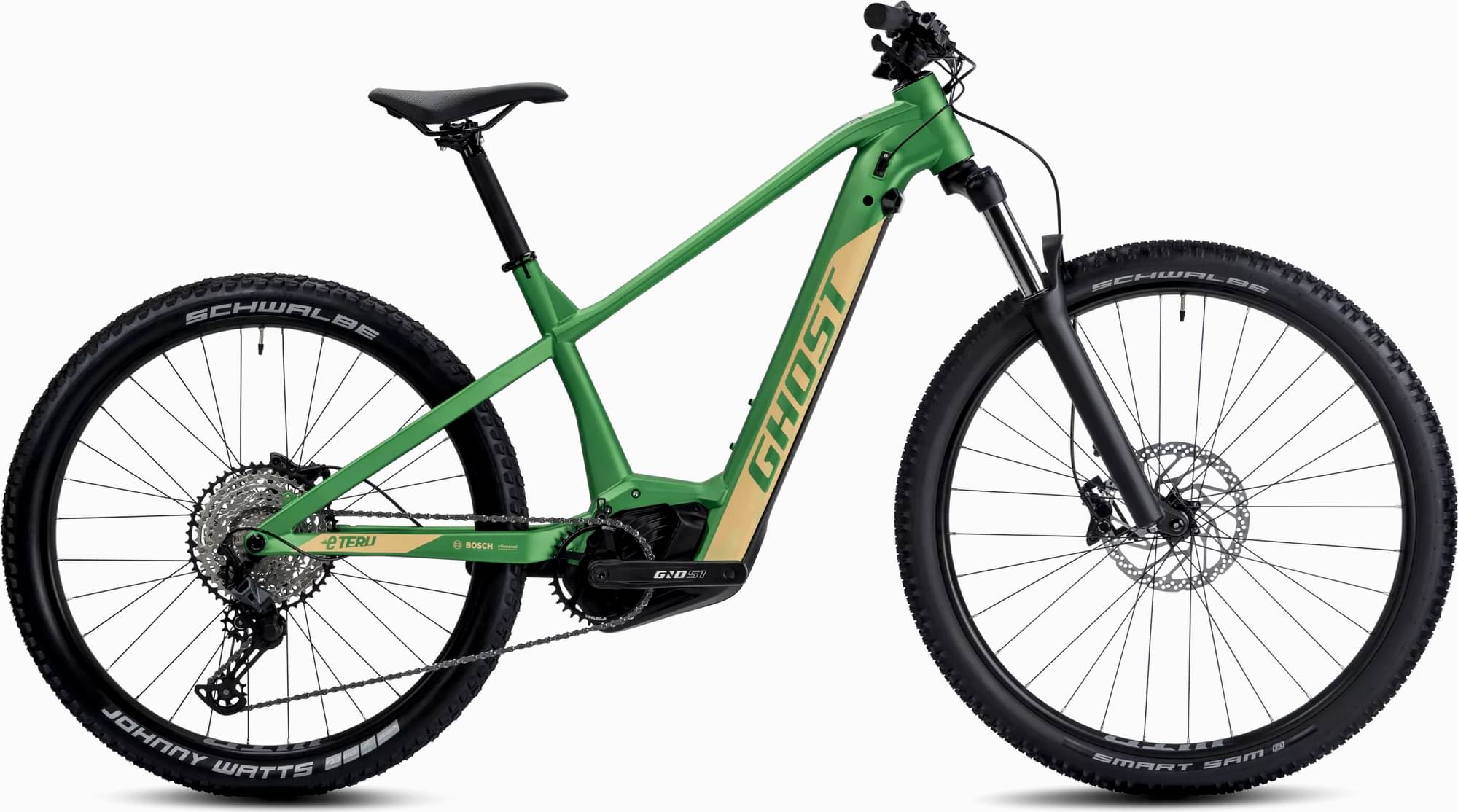

Ghost E-TERU ADVANCED 2025
2025 E-bike
Estimate price |
4,420$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh, Capacity: 750 Wh, Location: Downtube -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGH Aluminium Uni
Suspension Fork
Suntour XCM34 Boost LO DS 120 mm
Drivetrain
Rear Derailleur

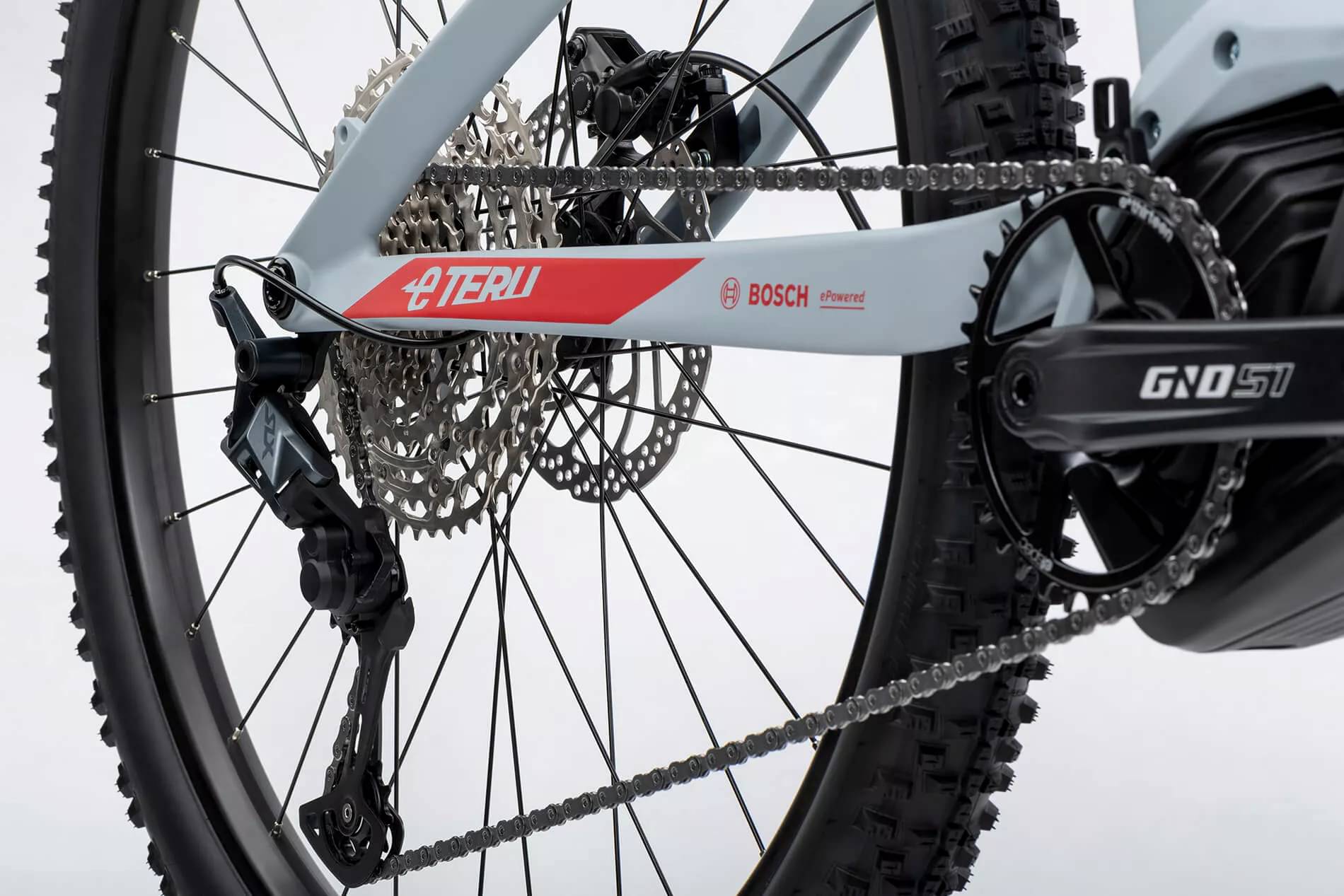

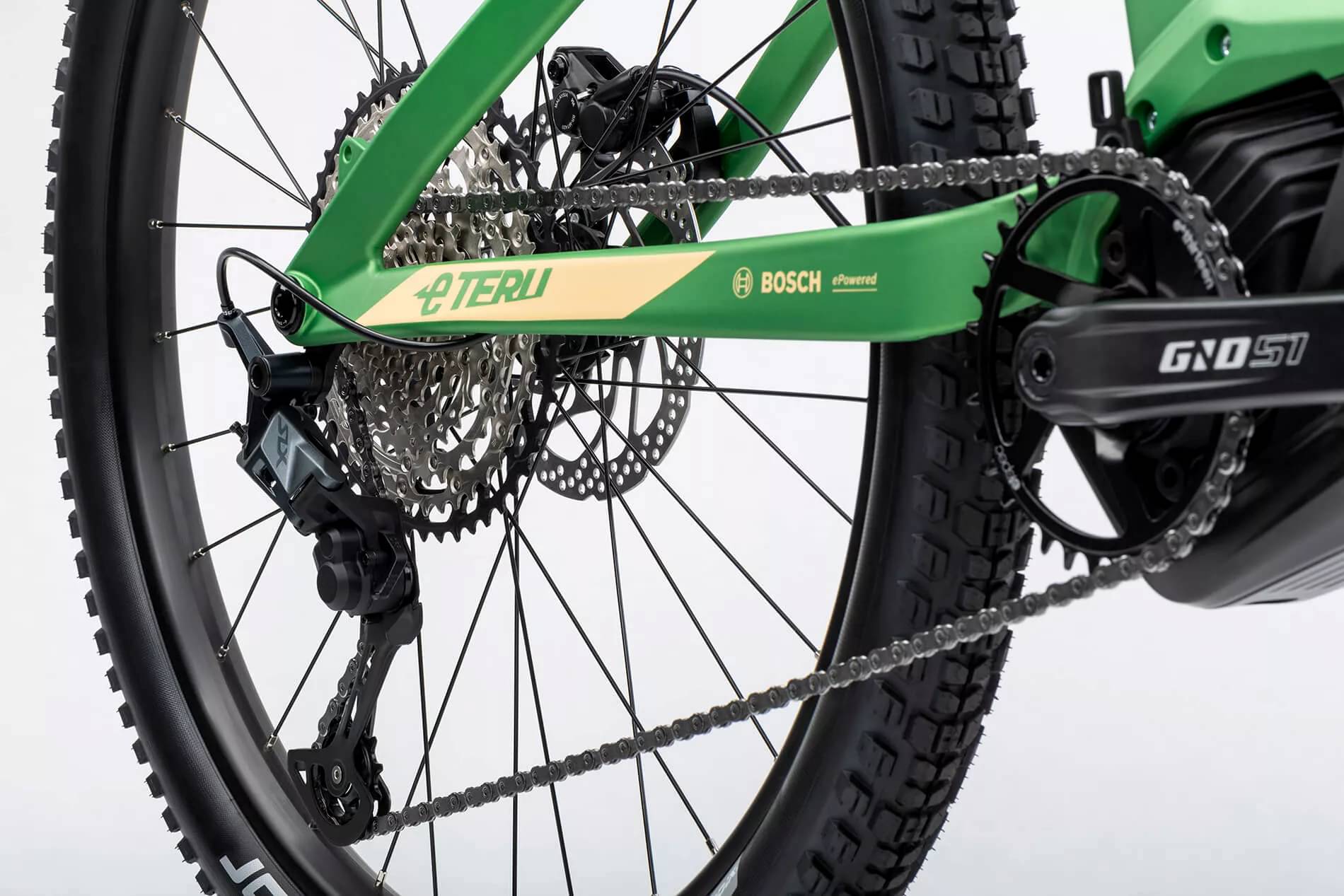

Shimano SLX RD-M7100 12-S
Shift Levers
Shimano Deore SL-M6100
Cassette
Shimano Deore CS-M6100
Crank
Samox Samox 165
Chain
Shimano Deore CN-M6100
Pedals
Ghost FPD NW-499
Wheels
Front Hub
Shimano HB-MT400-B 15x110 mm
Rear Hub
FH-MT510-B 12x148 mm
Rims
WTB ST i30
Tires
Schwalbe Smart Sam 2.35 60-622
Brakes
Brakes

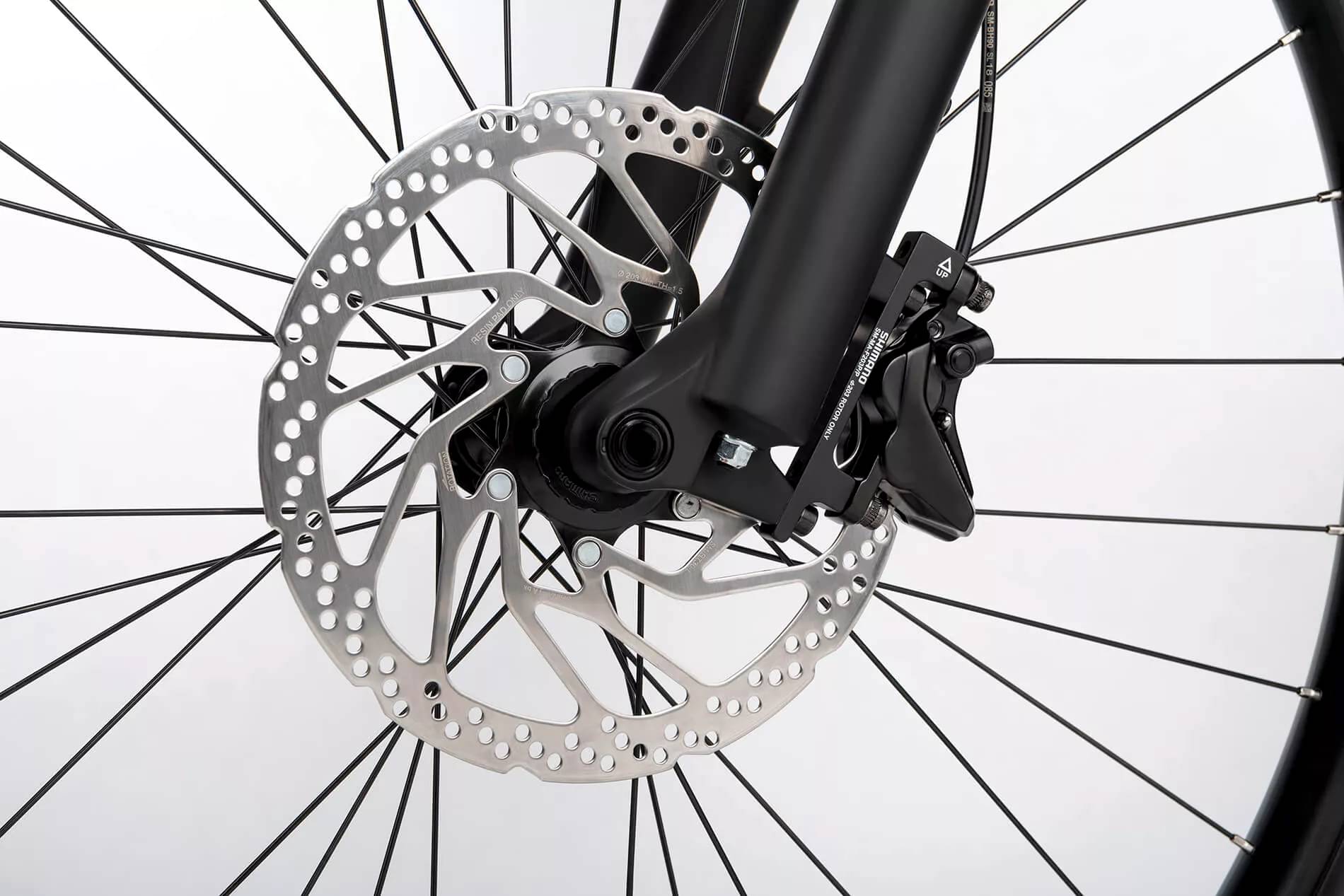

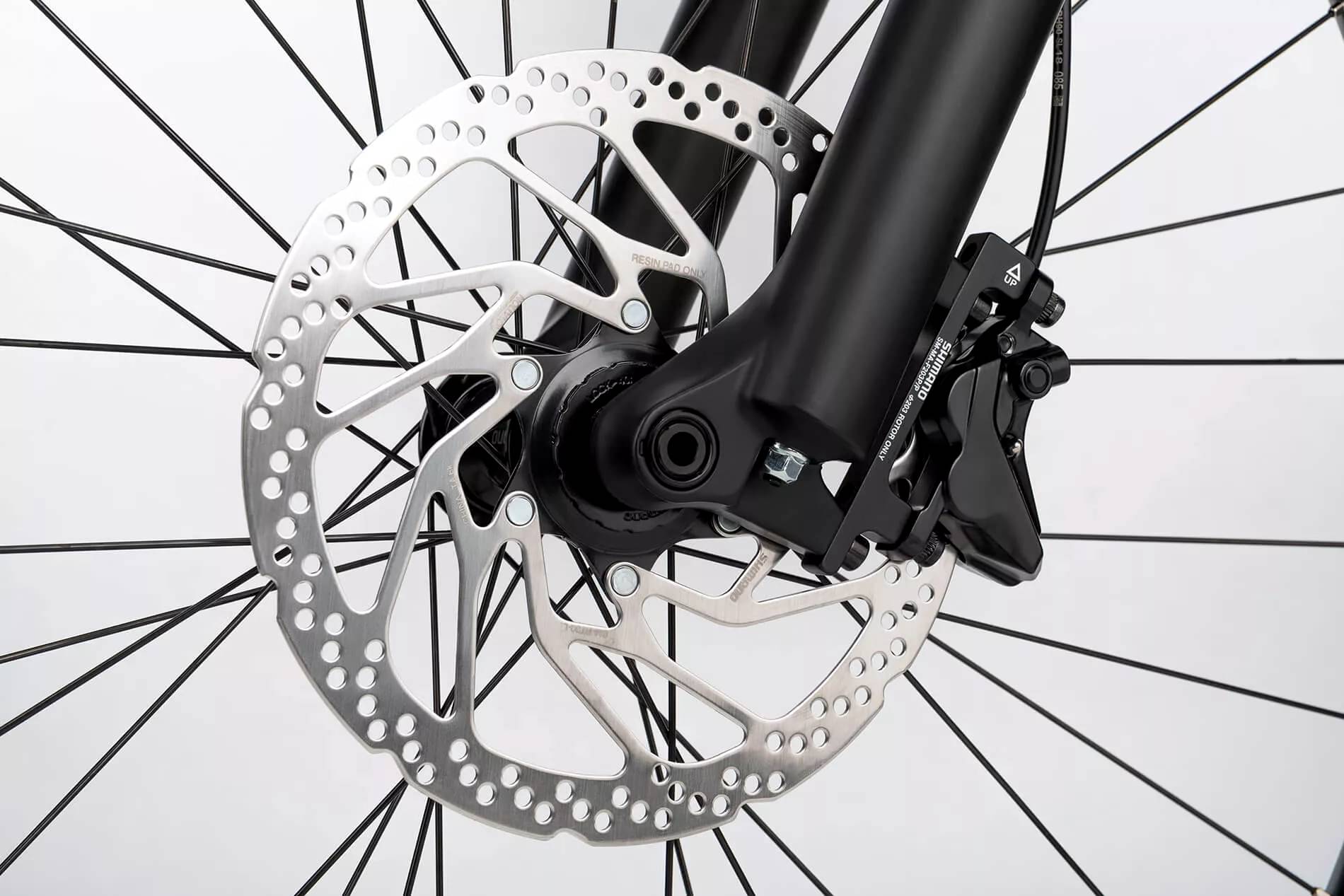

Shimano BR-MT420 203/180 mm Disc
Brake Levers
Shimano BL-M4100
Cockpit
Stem
Ghost Ground Fiftyone Dia. 31.8 mm

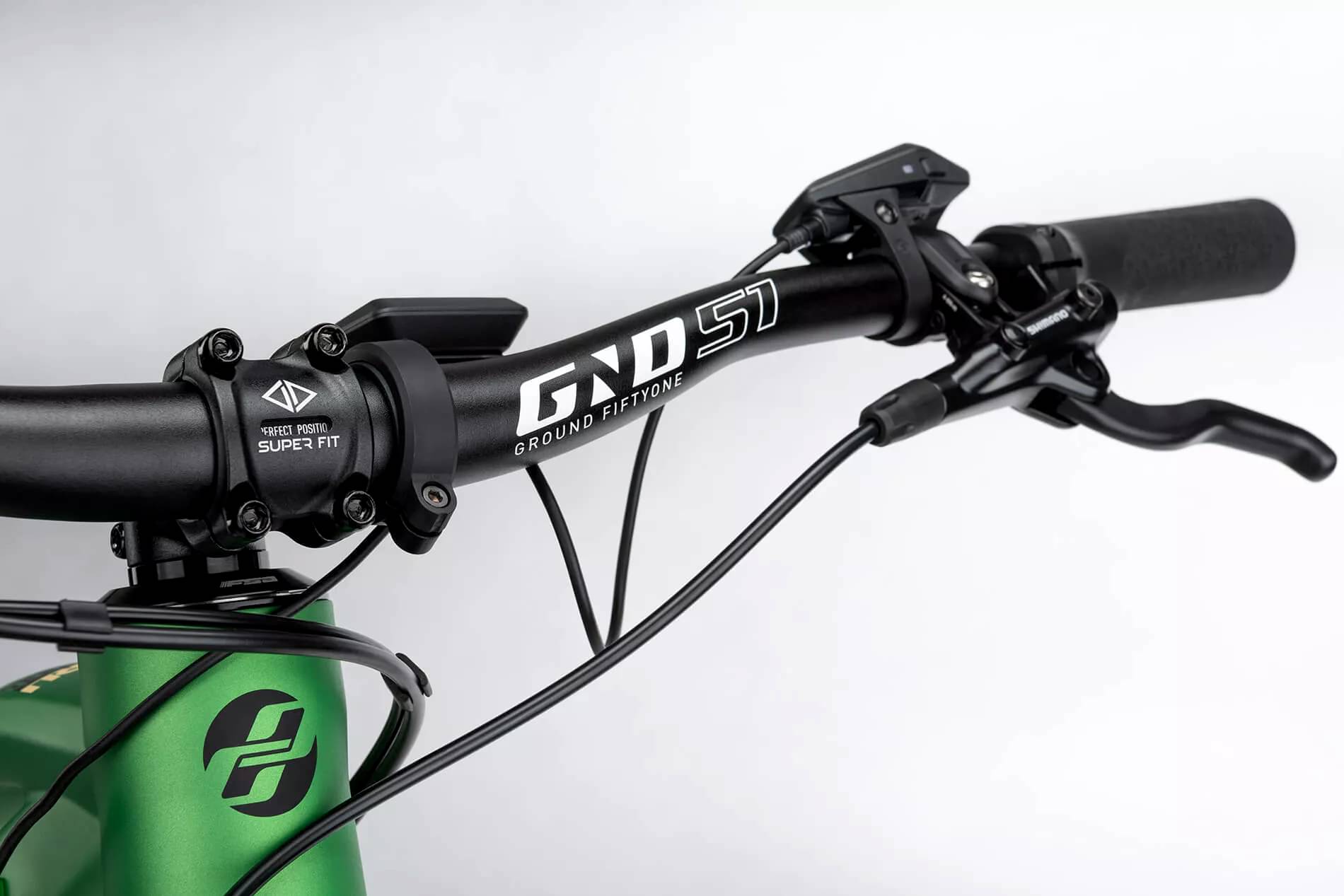

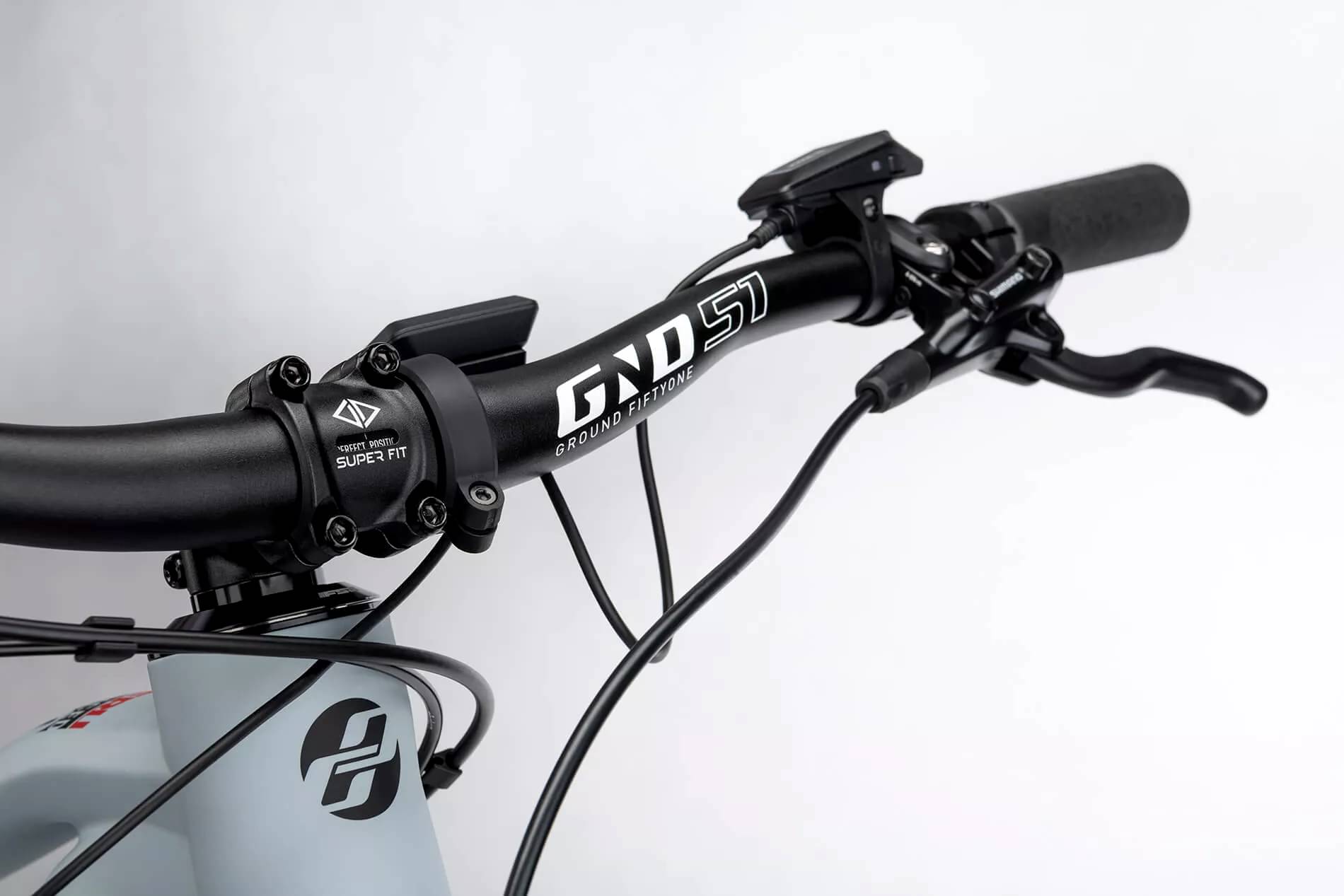

Handlebar
Ghost Ground Fiftyone Dia. 31.8 mm
Headset
Fsa NO.55R/57E
Seat
Saddle
Selle Royal 2315 HRN
Seatpost
Ghost Non Suspension Ground Fiftyone SP DC1
Motor & Battery
Motor

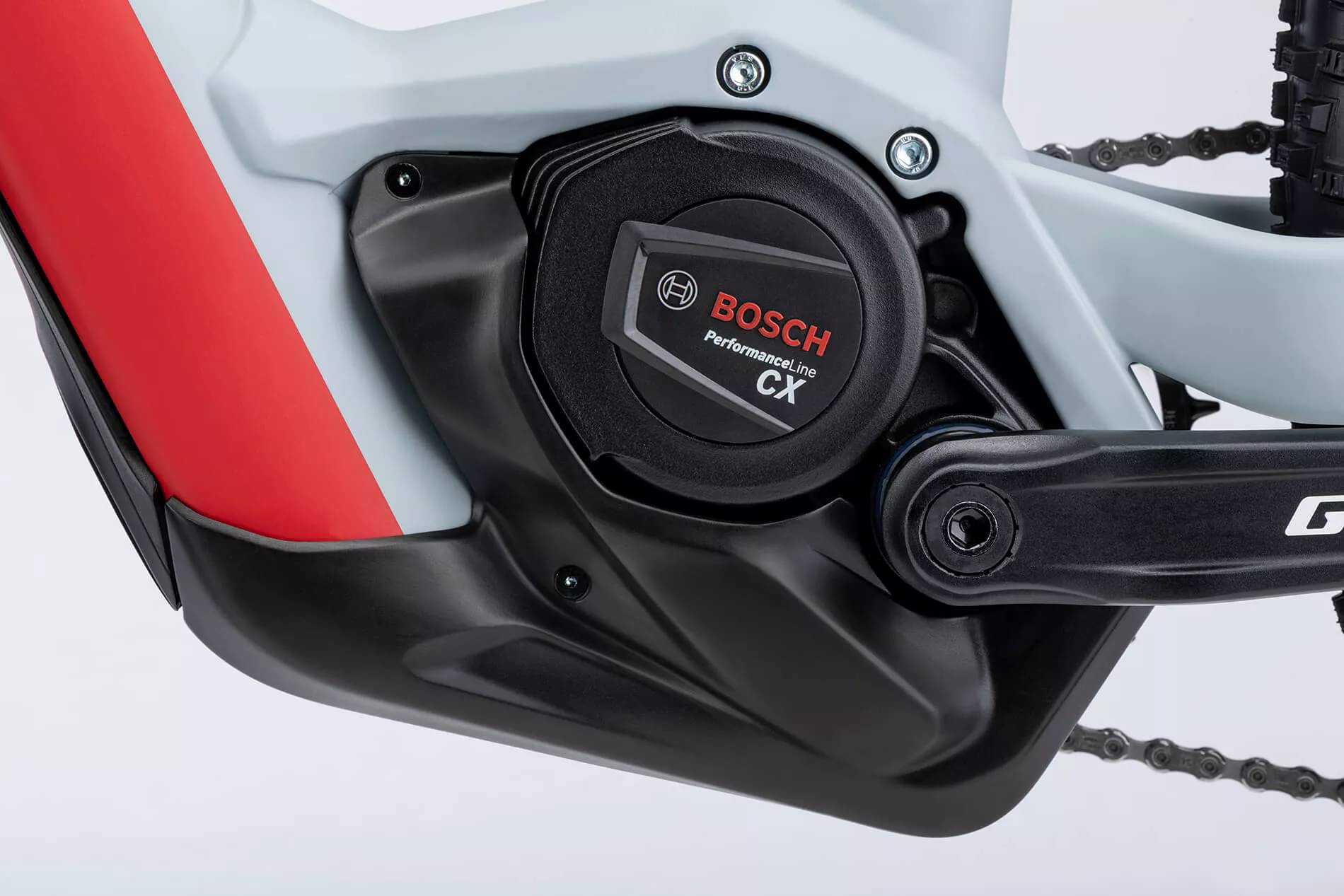

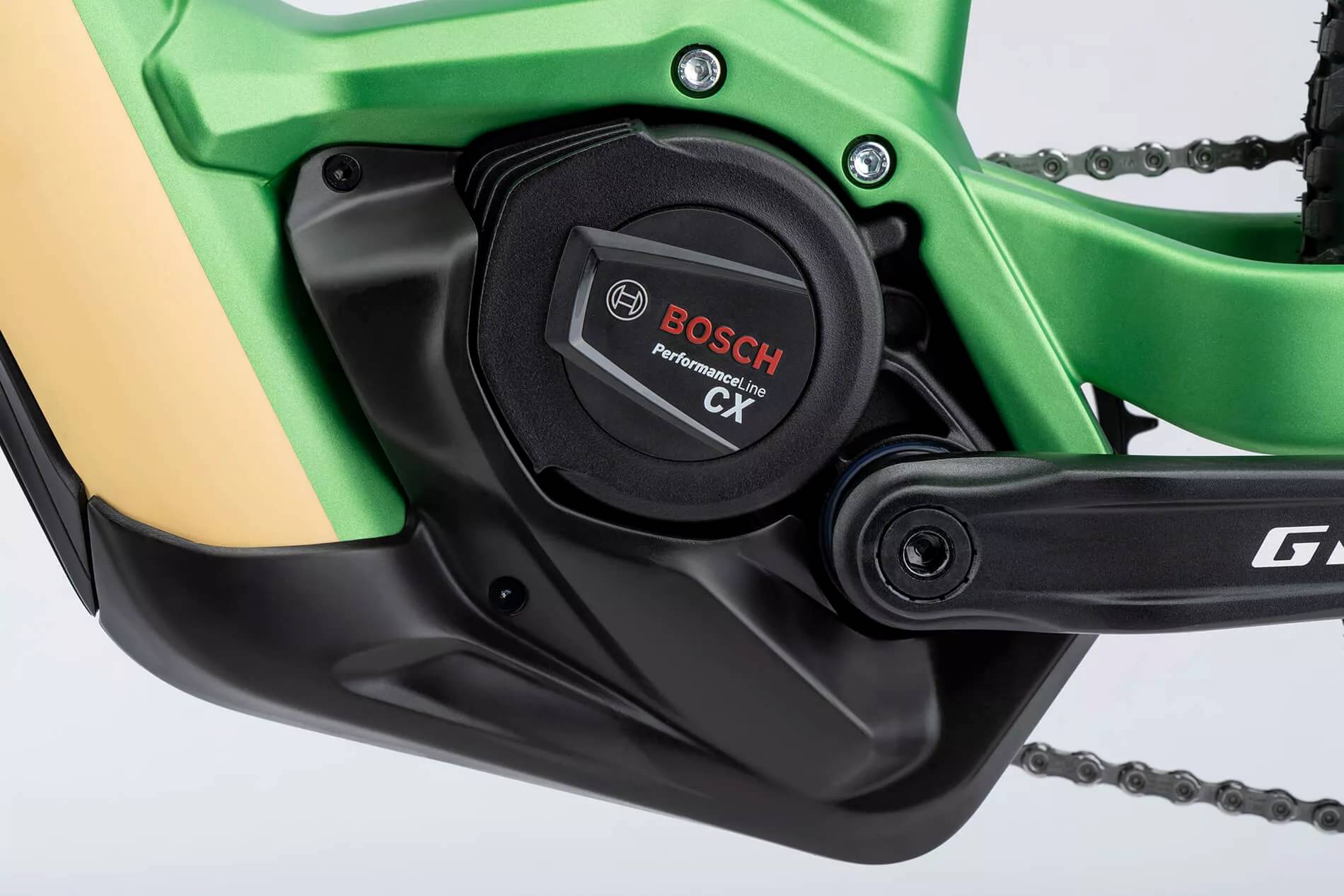

Bosch Performance Line CX Performance Line CX
Battery

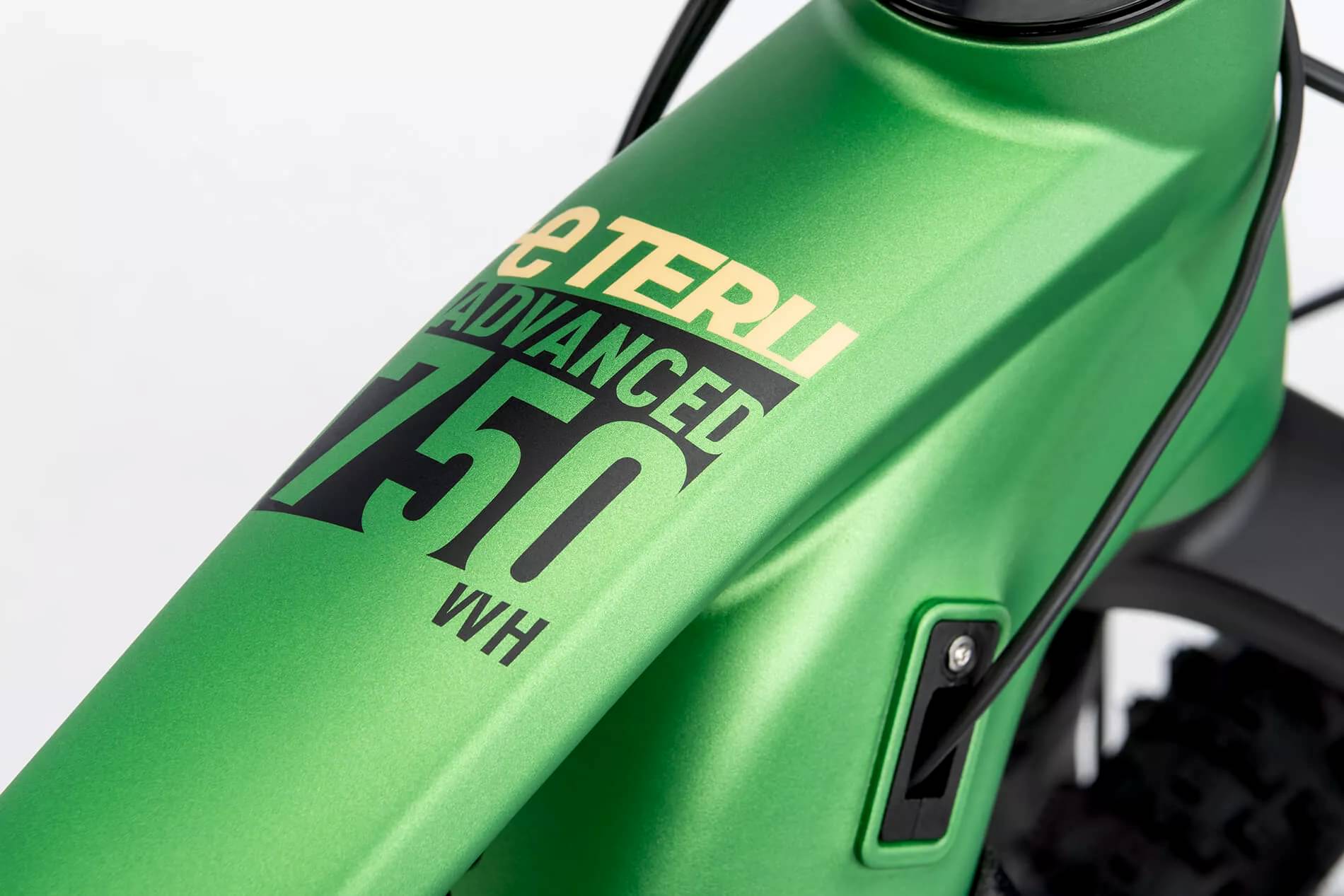

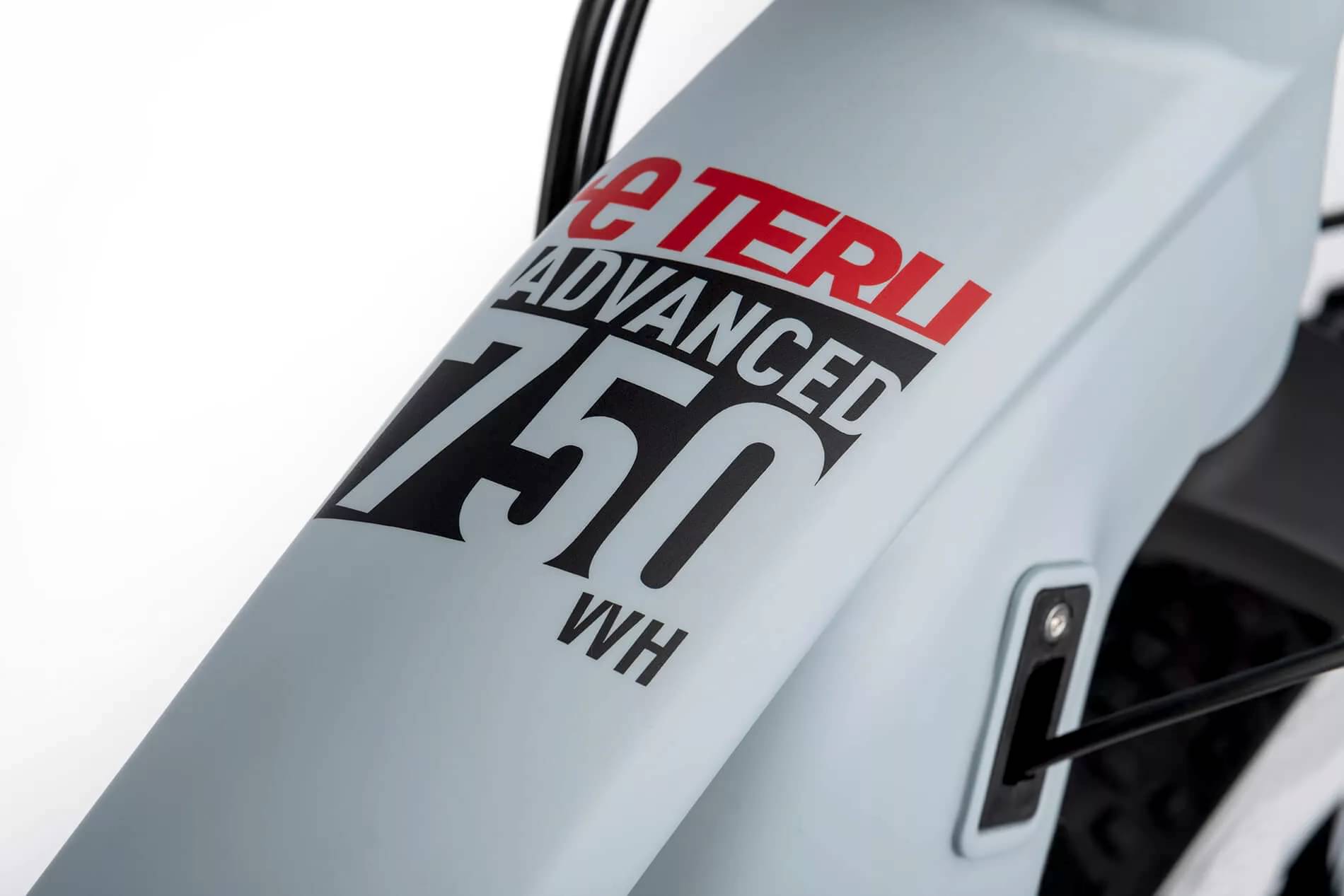

Bosch Power Tube 750 Wh, Capacity: 750 Wh, Location: Downtube
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.498 mm | 1.472 mm | 1.436 mm | 1.415 mm |
| Front Center | 719 mm | 744 mm | 770 mm | 799 mm |
| Rake | 51 mm | 52 mm | 50 mm | 51 mm |
| Trail | 91 mm | 98 mm | 101 mm | 100 mm |
| Stack | 614 mm | 633 mm | 646 mm | 665 mm |
| Reach | 410 mm | 430 mm | 450 mm | 470 mm |
| Top Tube Length | 586 mm | 612 mm | 635 mm | 661 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 445 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1159 mm | 1193 mm | 1220 mm | 1249 mm |
| Bottom Bracket Drop | 50 mm | 60 mm | 55 mm | 55 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 196 cm |
