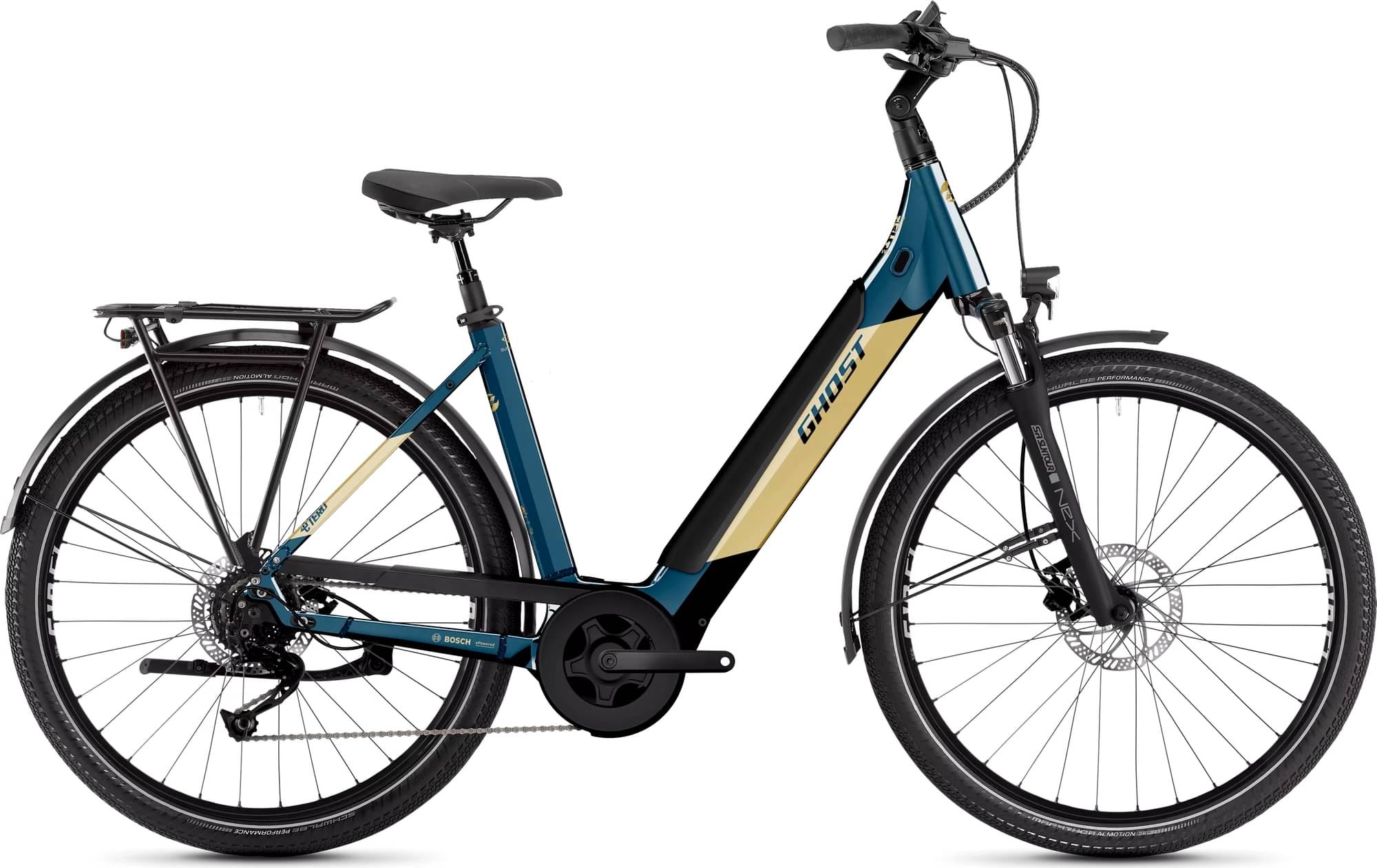

Ghost E-Teru B Essential Low EQ 2024
2024 E-bike
Estimate price |
4,187$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Power Tube 625 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-TERU AL Low
Suspension Fork
SR Suntour NEX HLO E25 DS 63 mm
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100 9-S
Cassette
Shimano CS-HG-200-9 11-36
Crank
Samox 38T
Chain
KMC e9s
Pedals
VPE-461
Wheels
Rims
Front: Schürmann Craft Disc 21, Rear: Schürmann Craft Disc 21
Tires
Front: Schwalbe Marathon Almotion 55-584, Rear: Schwalbe Marathon Almotion 55-584
Brakes
Brakes
Tektro HD-T275 160 mm Disc
Brake Levers
Tektro HD-T275
Cockpit
Stem
GHOST 31.8 mm
Handlebar
GHOST Dia. 31.8 mm 640 mm
Grips
XLC Ergo
Seat
Saddle
Selle Royal Viento Lady
Seatpost
Satori Harmony SA 31.6 mm
Motor & Battery
Motor
Bosch Performance Cruise
Battery
Bosch Power Tube 625 Wh
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.561 mm | 1.525 mm | 1.506 mm |
| Front Center | 700 | 710 mm | 720 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 78 mm | 78 mm | 79 mm |
| Stack | 668 mm | 668 mm | 673 mm |
| Reach | 428 mm | 438 mm | 447 mm |
| Top Tube Length | 652 mm | 661 mm | 671 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 190 mm | 190 mm | 195 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1169 mm | 1179 mm | 1189 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm |
| Rider Max Height | 173 cm | 181 cm | 188 cm |
