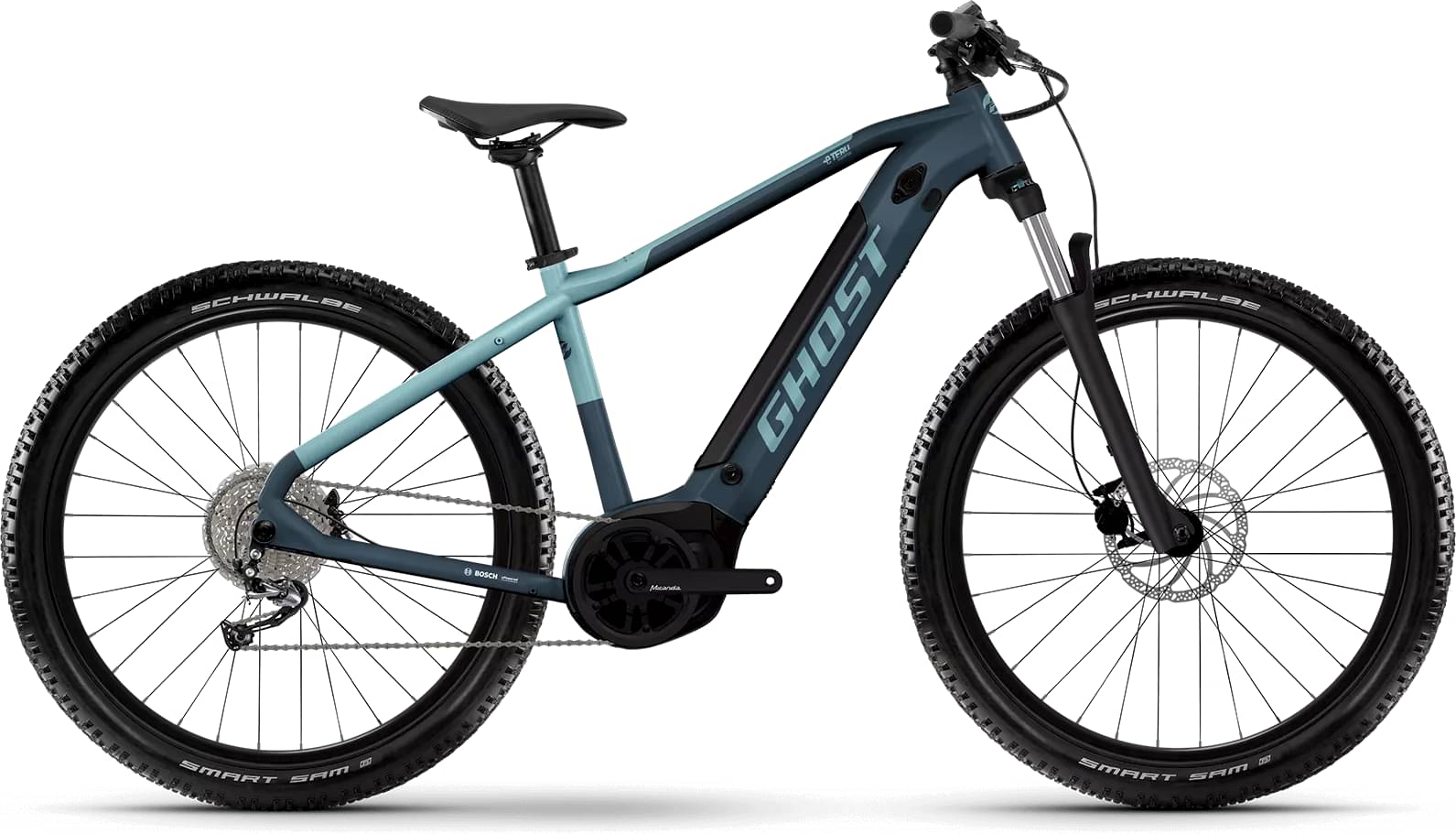

Ghost E-Teru Essential 2024
2024 E-bike
Estimate price |
3,489$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Power Tube 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-TERU AL
Suspension Fork
SR Suntour XCM32 Boost DS 120 mm
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100 9-S
Cassette
Shimano CS-HG-200-9 11-36
Crank
Miranda Virage 38T
Chain
KMC X9
Pedals
VPE-527
Wheels
Rims
Front: Schürmann Yak Disc 25, Rear: Schürmann Yak Disc 25
Tires
Front: Schwalbe Smart Sam 2.35 (S 27,5"; M-XL 29"), Rear: Schwalbe Smart Sam 2.35 (S 27,5"; M-XL 29")
Brakes
Brakes
Tektro HD-M275 180 mm Disc
Brake Levers
Tektro HD-M275
Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 700/0 (S) 720/20 (M) 740/27 (L) 760/40 (XL)
Grips
MTB Grip
Seat
Saddle
Selle Royal Vivo
Seatpost
Ghost 31.6 mm
Motor & Battery
Motor
Bosch Performance Line
Battery
Bosch Power Tube 500 Wh
Charger
Bosch Charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.541 mm | 1.529 mm | 1.45 mm | 1.417 mm |
| Front Center | 732 mm | 764 mm | 799 mm | 835 mm |
| Rake | 54 mm | 56 mm | 56 mm | 56 mm |
| Trail | 103 mm | 101 mm | 101 mm | 101 mm |
| Stack | 624 mm | 653 mm | 661 mm | 683 mm |
| Reach | 405 mm | 427 mm | 456 mm | 482 mm |
| Top Tube Length | 574 mm | 606 mm | 639 mm | 671 mm |
| Seat Tube Angle | 74.8 ° | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 400 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 125 mm | 120 mm | 135 mm | 160 mm |
| Chainstay Length | 490 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1217 mm | 1251 mm | 1287 mm | 1323 mm |
| Bottom Bracket Drop | 54 mm | 69 mm | 64 mm | 64 mm |
| Standover Height | 704 mm | 742 mm | 765 mm | 804 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 197 cm |
