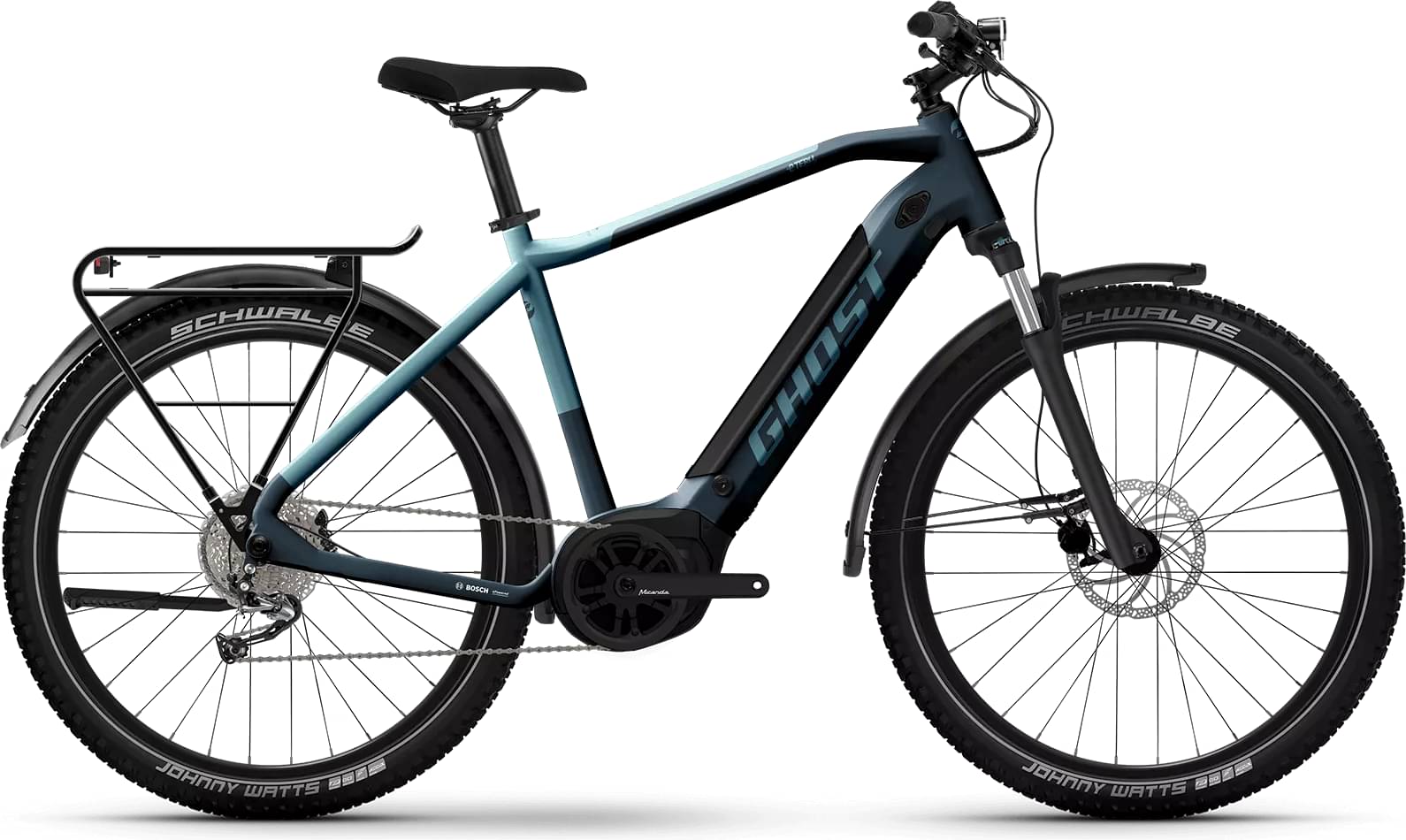

Ghost E-Teru Essential EQ 2024
2024 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Power Tube 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-TERU AL
Suspension Fork
SR Suntour XCM32 Boost DS 80 mm
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100 9-S
Cassette
Shimano CS-HG-200-9 11-36
Crank
Miranda Virage 38T
Chain
KMC X9
Pedals
VPE-527
Wheels
Rims
Front: Schürmann Yak Disc 25, Rear: Schürmann Yak Disc 25
Tires
Front: Schwalbe Johnny Watts 2.35, Rear: Schwalbe Johnny Watts 2.35
Brakes
Brakes
Tektro HD-M275 180 mm Disc
Brake Levers
Tektro HD-M275
Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 700/0 (S) 720/20 (M) 740/27 (L) 760/40 (XL)
Grips
MTB Grip
Seat
Saddle
Selle Royal Vivo
Seatpost
Ghost 31.6 mm
Motor & Battery
Motor
Bosch Performance Line
Battery
Bosch Power Tube 500 Wh
Charger
Bosch Charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.567 mm | 1.536 mm | 1.479 mm | 1.43 mm |
| Front Center | 691 mm | 713 mm | 739 mm | 765 mm |
| Rake | 47 mm | 46 mm | 47 mm | 46 mm |
| Trail | 97 mm | 98 mm | 97 mm | 98 mm |
| Stack | 622 mm | 636 mm | 645 mm | 655 mm |
| Reach | 397 mm | 414 mm | 436 mm | 458 mm |
| Top Tube Length | 545 mm | 575 mm | 604 mm | 635 mm |
| Seat Tube Angle | 76.6 ° | 75.8 ° | 75.4 ° | 74.9 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1176 mm | 1198 mm | 1224 mm | 1250 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 754 mm | 797 mm | 801 mm | 832 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 203 cm |
